Home / Products / Regular LED Strip / UV LED Strip Light / 60 Degree Lens UVC LED Strip Light 20mw Each LED
Share to:

60 Degree Lens UVC LED Strip Light 20mw Each LED

265~278nm UVC 30leds DC20~28V sterilization LED strip

Availability:

UVC LED Strip Light for Disinfection 265~278nm 24V

30 LED 24v 60degrees


How Do We Test UVC LED Product?

We use the LS126C UVC ultraviolet radiation meter for measurement, which is a special instrument for measuring the intensity of ultraviolet rays. Its spectral response range is 230nm-280nm, and the peak wavelength is 254nm.

When using the instrument for testing, the following two standards must be observed:

1. You must turn on the UV lamp for 5 minutes to test, because the UV intensity of the lamp is relatively stable after 5 minutes of turning on the UV light.

2. Place the instrument at 1m in the vertical direction under the UV lamp for measurement.  See how do we test UVC LED and protect from the UVC light.


For more product information, please download the specifications.30leds-60degree-UVC-strip-light.pdf


Parameters of UVC LED Strip Light

Item No.

STSN-30UVC3939-24

Light Source

UVC LED chip

Input Voltage

 DC20V~28V
Power Consumption

25W/m

Wavelength

265~278nm

Dimensions

1000mm*20mm

Beam angle

60 degree

Radiant Flux

600mw/m

265nm 270nm UVC LED Tape Description

1. 30 UVC LED chips per meter

2. Good stability, passed FCC, CE, RoHS certification

3.  Flexible PCB 3oz thickness

4. Genuine 3M tape and blue tape with good heat dissipation function

5. DC20~28v input, safe installation


* To view more of our UVC LED strip: 265nm UVC LED Light Strip

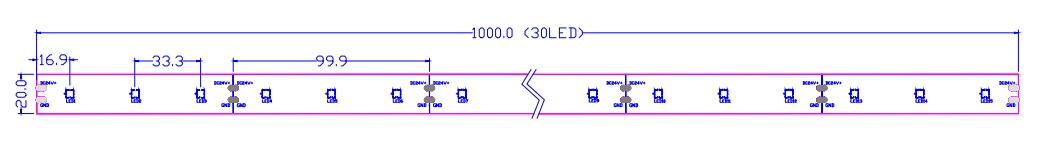

UVC LED Strip size:   Unit:mm

UVC LED Size

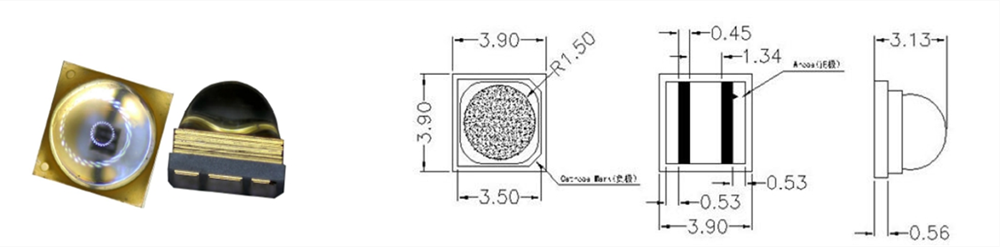

UVC LED chip details

UVC LED chip

wavelength 270nm


Germicidal test report of UVC LED strip

uvc germicidal test report

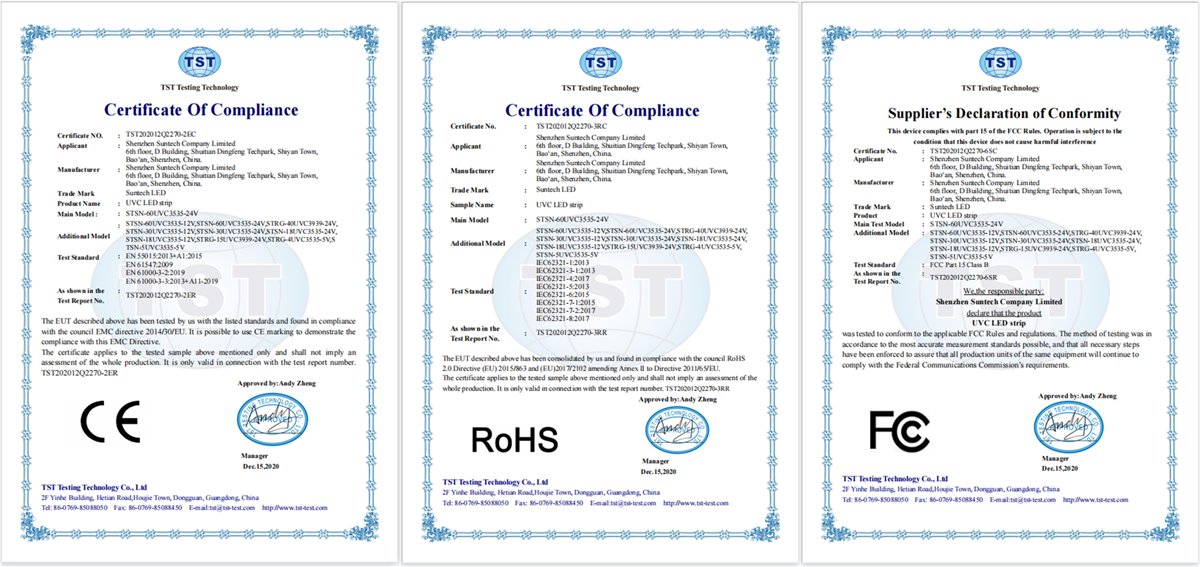

UVC LED Certificates display:

Certificates

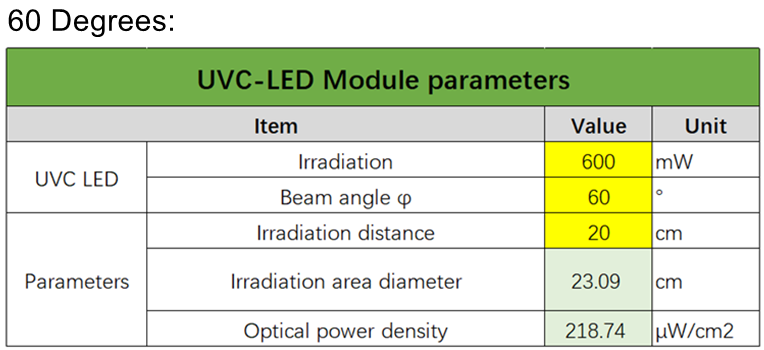

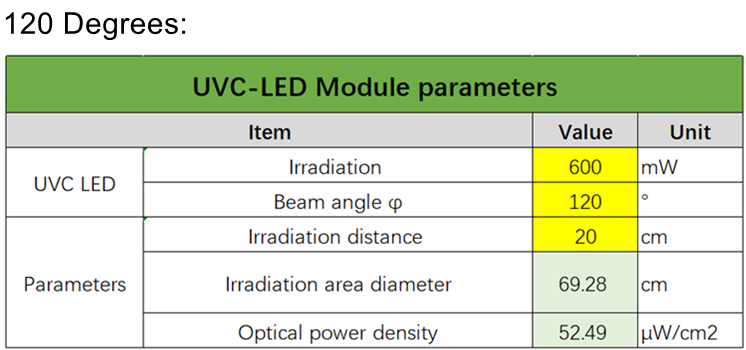

Sterilization effect comparison:

30 LED 60degreesVS30 LED 120degrees


Need assistance with your project or purchase? Our design experts are always available to help you, send email to us: sales@suntechleds.com


Application of UVC LED:

1. Surface Disinfection

2. Water sanitization

3. Air purification


FAQ:

1.Q: Why use UV sterilization?

   A: Since the 20th century, ultraviolet sterilization has been used to disinfect objects such as water and work surfaces. Ultraviolet light has a shorter wavelength than visible light, and can penetrate and destroy the body of viruses and bacteria.

2. Q: Where can UV be used?

    A: UV sterilization can be used as a supplementary infection control strategy in almost any situation, such as sterilizing water and work surfaces as described above, the efficiency of sterilization also allows other dedicated spaces to be used.

3. Q: How to use ultraviolet light?

    A: The installation of ultraviolet equipment such as ultraviolet lamps and lights on the top of the room and other circulation areas can disinfect the moving air, thereby improving the air quality and the efficiency of ultraviolet disinfection.


How to protect yourself from the UVC rays:



Package:

WPS-


package2

package3
