Input DC24v, voltage can be customized
Beam angle 60 degree, disinfection effect is much better than normal 120 degree UVC chip
Size of the UVC module is customized
Each UVC chip is 15mw, not regular 2-4mw of most UVC products in market, much better disinfection effect
Wavelength 265~278nm as below
For more product information, please download the specifications.15led-uvc-module-specification.pdf
If you need higher power UVC radiation, click here:
Every UVC LED chip with transparent round lens, which means higher UVC density, stronger bactericidal effect.
UVC-LED Module parameters | VS | UVC-LED Module parameters | ||||||
Item | Value | Unit | Item | Value | Unit | |||
UVC LED | Irradiation | 20 | mW | UVC LED | Irradiation | 20 | mW | |
Beam angle φ | 60 | ° | Beam angle φ | 120 | ° | |||
Parameters | Irradiation distance | 10 | cm | Parameters | Irradiation distance | 10 | cm | |
Irradiation area diameter | 11.55 | cm | Irradiation area diameter | 34.64 | cm | |||
Optical power density | 190.99 | μW/cm2 | Optical power density | 21.22 | μW/cm2 |
It depends on size of the sterilization area, please provide so our engineer can give solutions.

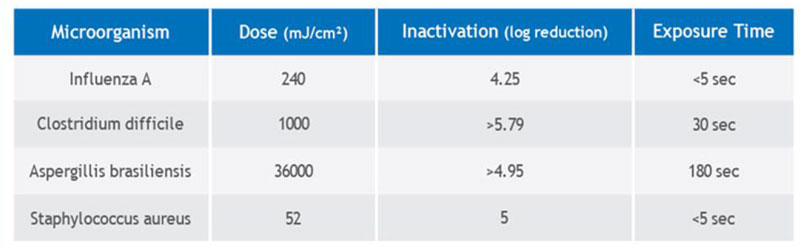

Here are the study we have today for some bacterias disinfection time and UVC irridation dose needed .
Bacteria are one-celled organisms that can be found naturally throughout our bodies and in our environment. Viruses are smaller than bacteria and they attach themselves to another living cell and use that cells' genetic material to reproduce themselves.
Well known dangerous bacteria are Salmonellae, Staphylococcus Aureus (MRSA) or E.coli. Most viruses cause disease, such as COVID-19, the flue, common cold, AIDS, chicken pox and much more.
While bacteria and viruses are clearly different, both have a very common attribute, they have genetic material (DNA).
Sunburns, that we have to protect from when out in the sun, happen because UV light damages the DNA. This is exactly why UV light kills all viruses and bacteria, it damages their DNA3.
While COVID-19 is a new virus the major difference to others is that people do not have immunity to it as of yet. Exposed to UV light the COVID-19 will die just like any other virus. Studies on both SARS4 and MERS proved that UV light inactivates viruses, so it’s almost certain it will have a similar effect on COVID-19.
Model | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | |||
STRG-15UV3535-15mw | 265-278nm | 15 | ≤17W | 24v | Double Copper PCB 240*40mm |
UVC LED module irradiation distance and optical power density , when distance is 20cm.
UVC-LED Module parameters | |||
Item | Value | Unit | |
UVC LED | Irradiation | 220 | mW |
Beam angle φ | 60 | ° | |
Parameters | Irradiation distance | 20 | cm |
Irradiation area diameter | 23.09 | cm | |
Optical power density | 209.45 | μW/cm2 |
UVC Module Irradiation Area | |||
Input | Number of UVC in horizontal direction | 15 | pcs |
Number of lamp beads in vertical direction | 0 | pcs | |
Horizontal distance of UVC chips | 1.6 | cm | |
Vertical distance of UVC chips | 0 | cm | |
Beam angle of UVC LED | 60 | ° | |
Irradiation distance | 20 | cm | |
Output | Horizontal length of irradiation area | 45.49 | cm |
Vertical length of irradiation area | 23.09 | cm |
UVC-LED Module parameters | |
Distance(cm) | Optical power density(μW/cm2) |
1 | 8124.08 |
2.5 | 3009.99 |
5 | 1353.51 |
7.5 | 817.90 |
10 | 561.05 |
50 | 47.54 |
100 | 27.64 |
Before sterilization VS after sterilization: UVC led modules can kill 99.9% of the virus with 30sec.

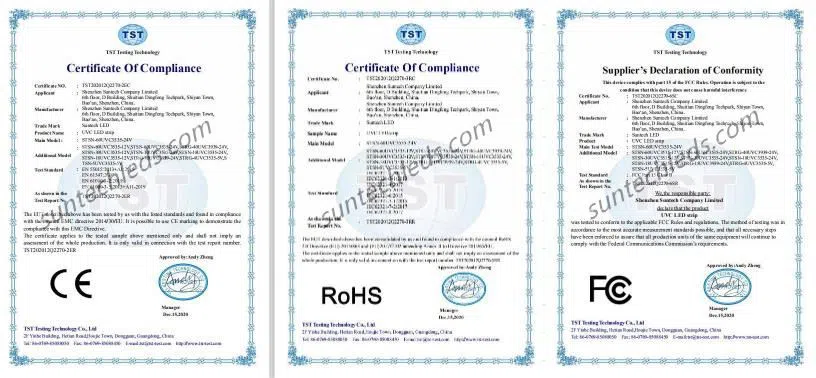

If you need a clearer picture of the certificate, please click here.
Sterilization Test Report from GuangDong Detection Center of Microbiology:

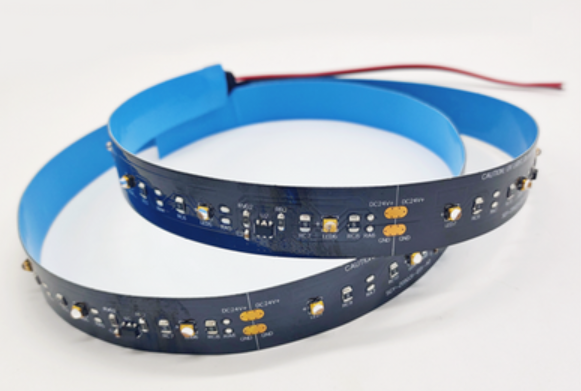

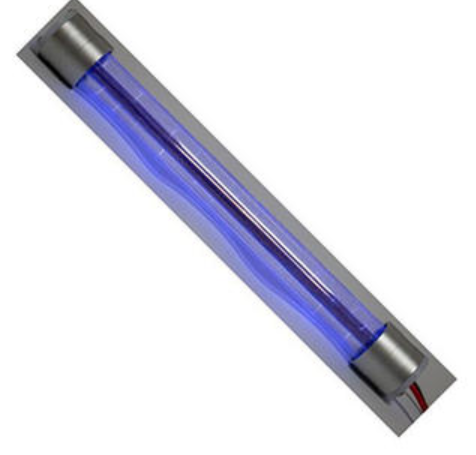

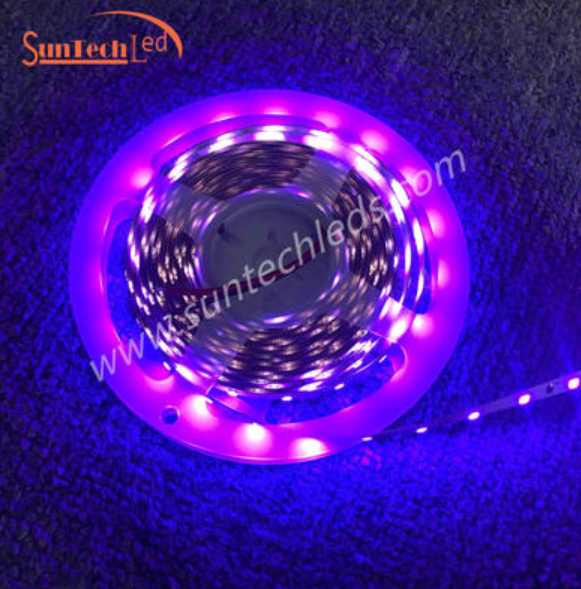

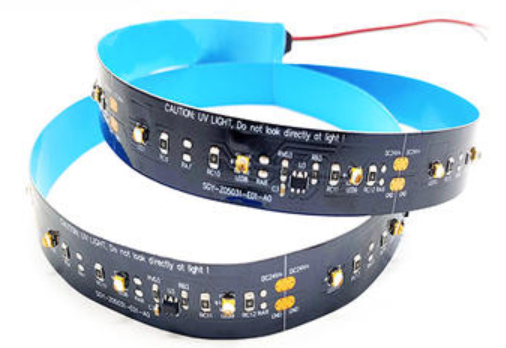

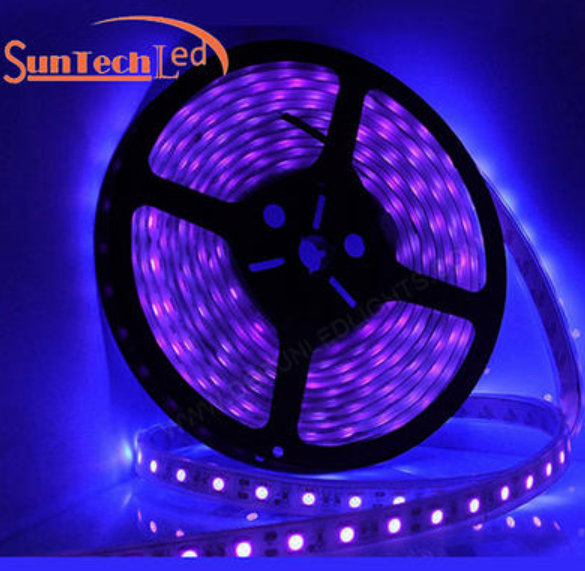

If you need to know about other wavelengths of UV LED Strips: UVA, UVB or UVC, please click the picture in the table below.
