12v DC Flexible UVC Led Strip Light 265nm-278nm

12v DC flexible UVC led strip light

Availability:

12v DC flexible UVC led strip light 265nm-278nm

Features

Item No.: STSN-18UVC3535

Light Source: UVC LED chip

Input Voltage: DC12V

Power Consumption: 5.8W/m

Wavelength: 265~278nm

Dimensions: 1000mm*12mm

Beam angle: 120 degree

Radiant Flux 90mw/m

12v DC UVC led strip 18leds3

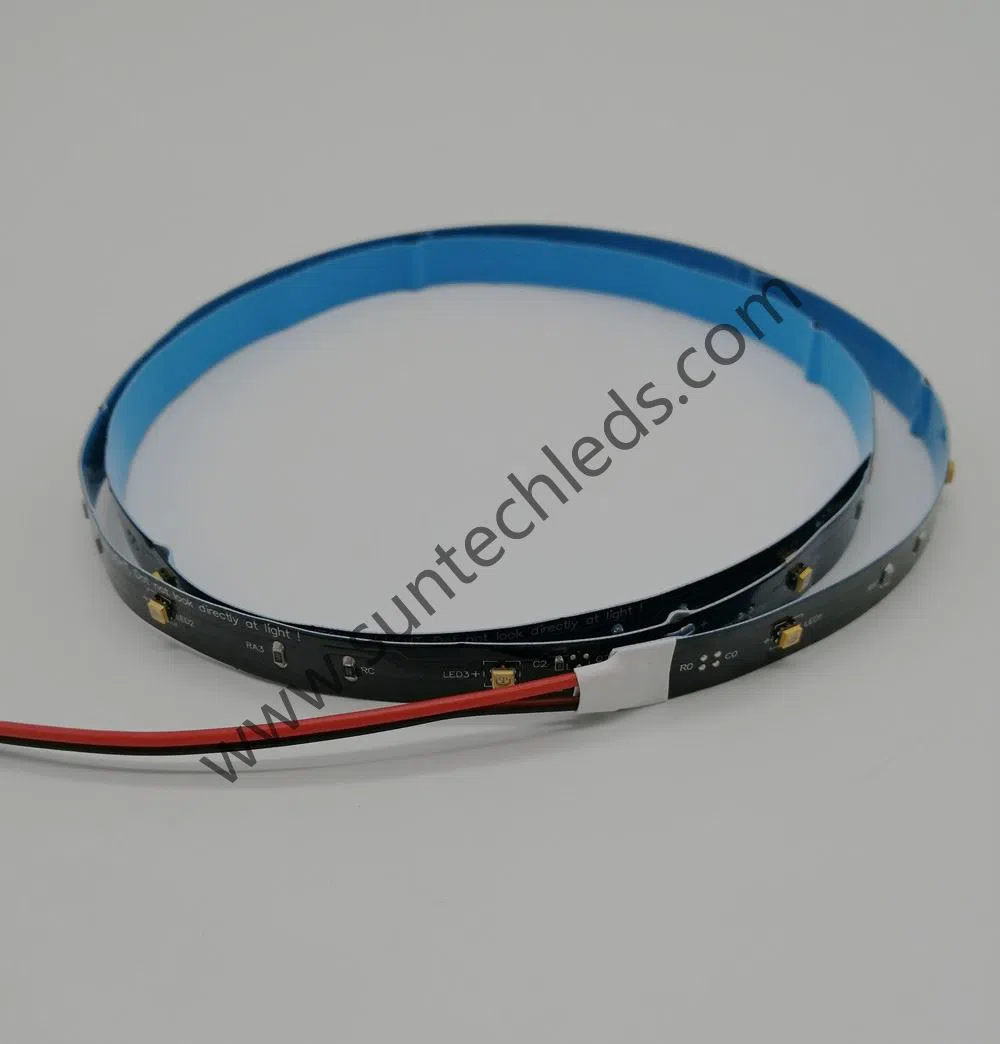

12v DC UVC led strip 18leds2

Chip information

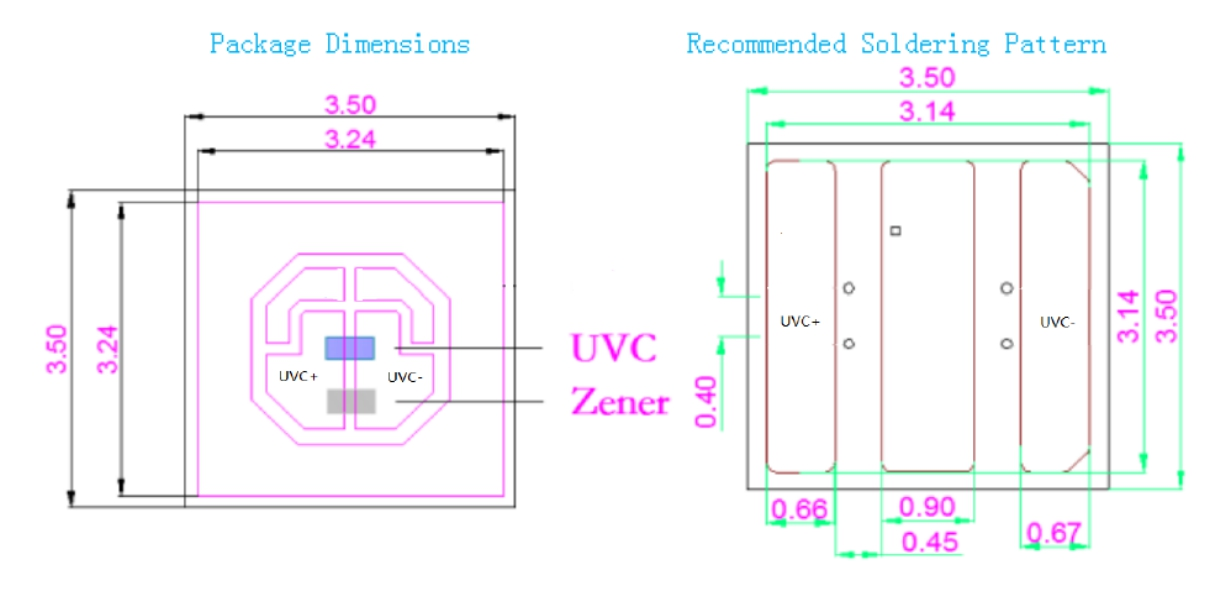

UVC LED chip information

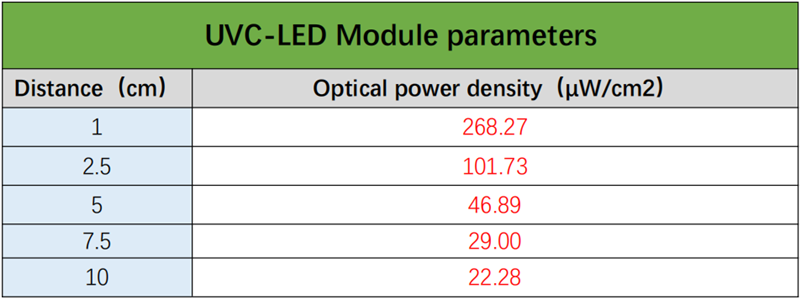

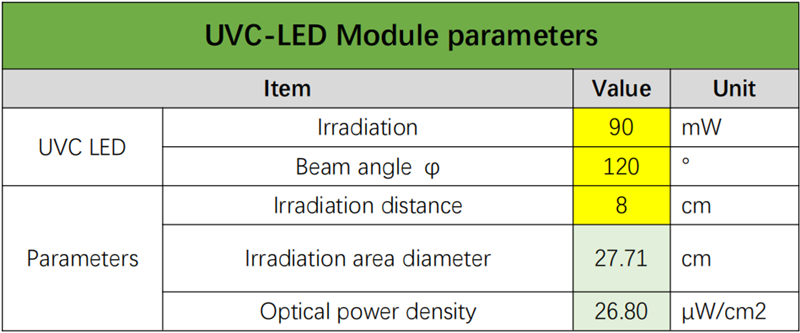

Technological Parameters

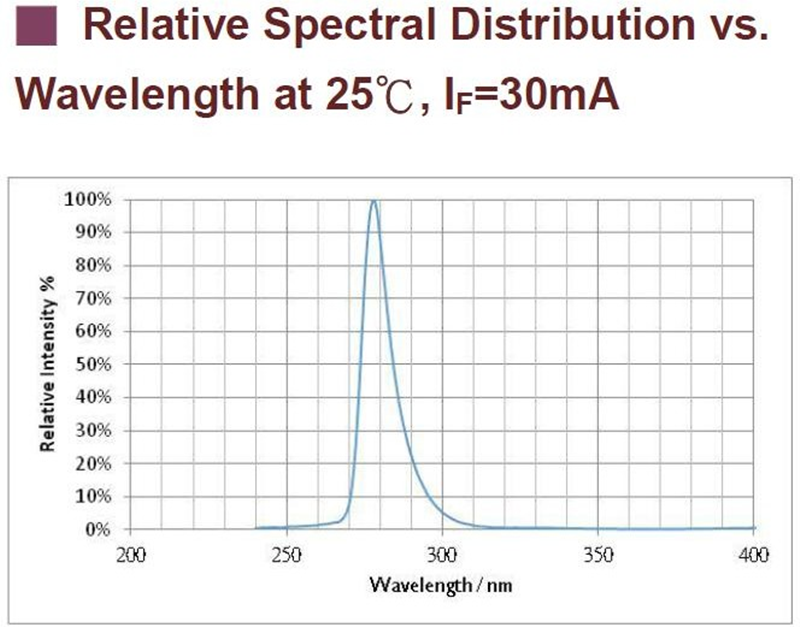

wavelength

01

02

Structure of 12v DC flexible UVC led strip light 265nm-278nm

1. 18 pcs UVC LED chip Per meter

2. Good stability, CE & RoHS approved

3. Flexible PCB 3oz thickness

4. Genuine 3M tape or good heat dissipation function blue tape

5. DC12v input , safe installation

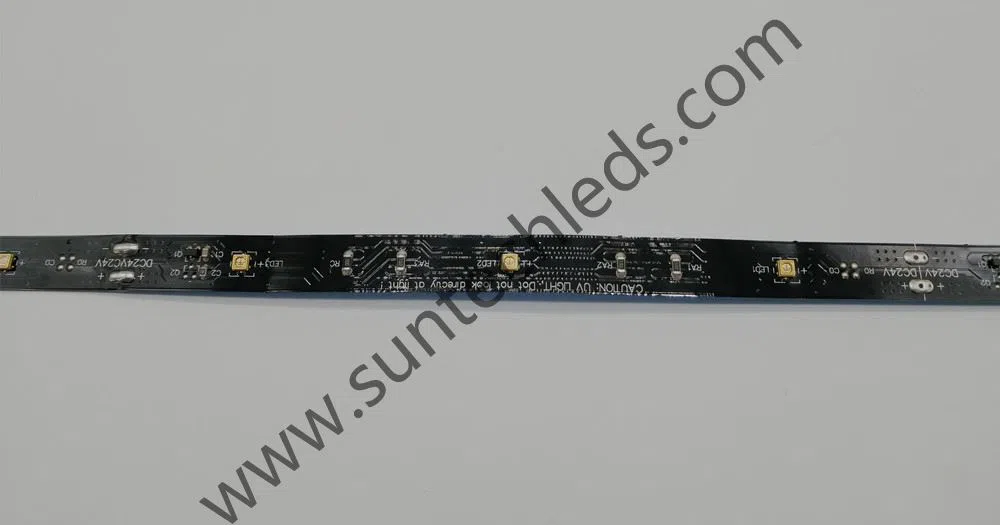

12v DC UVC led strip 18leds5

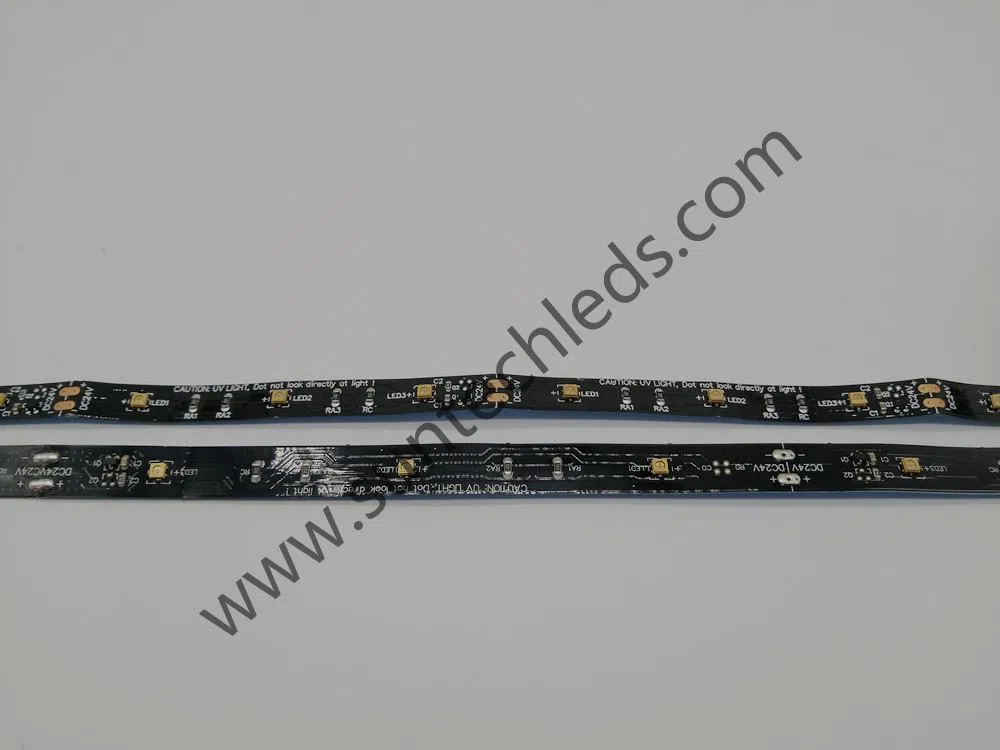

12v DC UVC led strip 18leds7


Application of 12v DC flexible UVC led strip light 265nm-278nm

Widely used in packaging containers, bottles, bottle cap sterilization, food surface sterilization, food production lines, cosmetics production line air sterilization, sewage, drinking water disinfection. Oral treatment examination, dermatological treatment, environmental surface anti-virus, air disinfection. The sterilization effect in a short time can reach 99.9%.

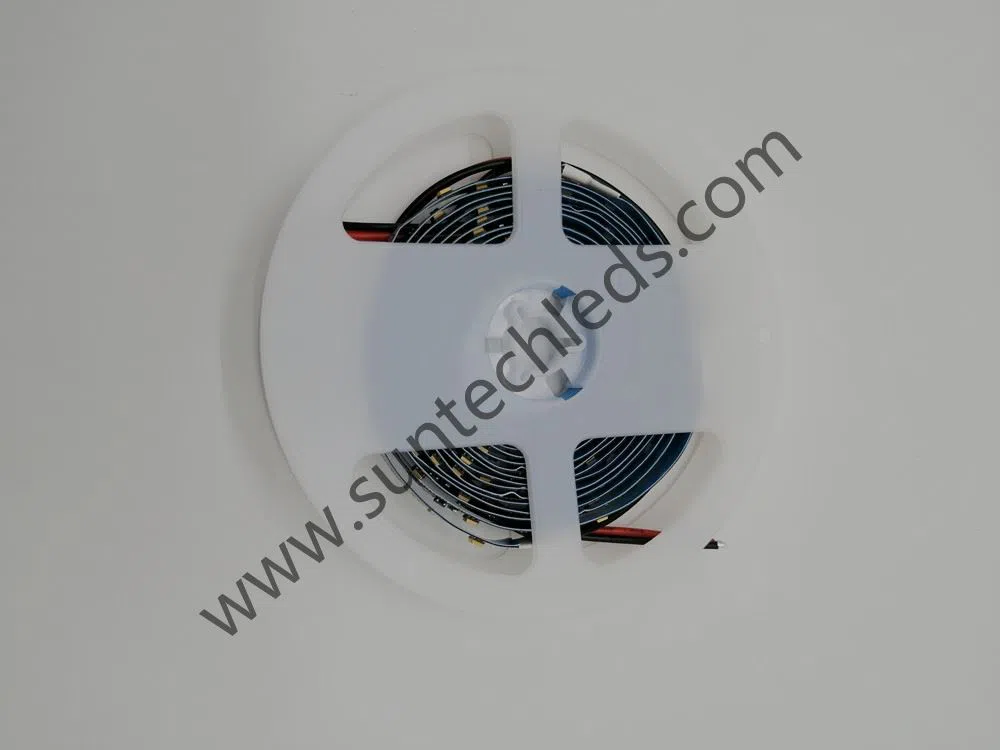

12v DC UVC led strip 18leds1


Please check the product specification for more details.18leds DC7vDC13v  UVC strip light - Suntech.pdf
