• Voltage : DC12v or24v.
• PCB width : 8mm or 10mm
• Length : 5000mm,could be customized.
• Installation: Self-adhesive.
• Cutting point : 10cm/5cm
• For more product information, please download the specifications.
2835-UVA-Suntech-365nm.pdf
• Taiwan Epistar Chip
• 3 years Warranty
• 2835 Packaging
◾ As our LED tapes are very small and light, this 3M backing will
usually be sufficient to hold the LED tape in position.

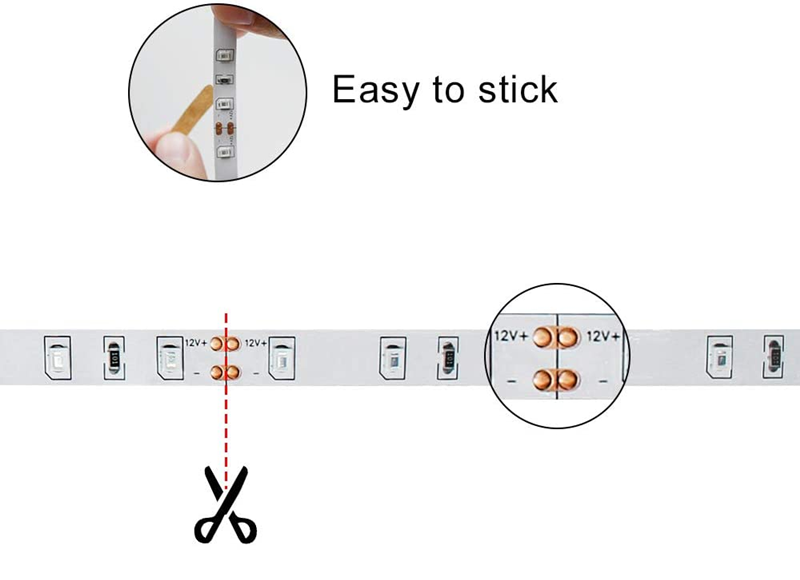

◾ Each type of LED tape has different cut points.
• 60led/m 12v--5cm
• 120led/m 12v--2.5cm
• 60led/m 24v--10cm
• 120led/m 24v--5cm
• We provide 365nm and 395nm black light.
• 320nm-400nm led chip are all availabe.
IP Grade: IP20, IP65,IP67,IP68. To know more about IP: Choose right IP Grade
| Model | Wavelength | Color | IP Rating | LED Qty per meter | Power Consumption | Voltage | PCB Size |
| W/M | V/DC | mm | |||||
| STSN-60UV2835 | 360~365nm | Purple | 20 | 60 | ≤5W | 12V/24V | Double Copper PCB 5000*10mm |
| STSN-120UV2835 | 360~365nm | Purple | 20 | 120 | ≤10W | 12V/24V | Double Copper PCB 5000*10mm |
| STSN-240UV2835 | 360~365nm | Purple | 20 | 240 | ≤20W | 12V/24V | Double Copper PCB 5000*10mm |
LEDs can be manufactured to emit radiation in the ultraviolet range. Currently, the most common types
of UV-LEDs that can be found/purchased are at 395 and 365 nm wavelengths, both of which are within the
UVA spectrum. When referring to the wavelength of a UV LED, the rated wavelength is the peak wavelength
emitted by the LED, and there are higher and lower wavelength frequencies near the peak wavelength, and
it is sought to be applied to certain purposes. The cheaper and more common 395 nm UV LED is closer to the
visible spectrum. The LED not only works at its peak wavelength, but also emits purple. This type of LED is
increasingly used in applications such as UV curing, such as paint or toys. The application of charging
light-emitting objects in the dark to detect counterfeit currency and body fluids has been successful in digital
printing applications and UV curing environments.
1. The main difference is that 395nm LED strip emit significantly more visible light than 365nm light strip.
2. Generally, 395nm LEDs emit bright violet light, while 365nm LEDs emit dim blue-white light.
3. 365 nm UV light is considered more powerful than 395nm light. Since 365 nm UV light is better at illuminating
tiny stains, cracks and spots in dry liquids than 395nm UV light.
If you want to know more about the difference between 365nm and 395nm, please click here 365nm VS 395nm Which is better?
Mainly Used in glue curing, PCB exposure, printing and other industrial fields, and mosquito trap,
nail art, anti-counterfeiting detection, photocatalyst purification.
365nm UV light strips for ink and glue curing printing
Our SMD LED use copper base and gold wire which provide good heat dispersion,long lifespan.
2. Our led chip is CRI>80Ra, we also can do CRI>95Ra.
3. Our flexible PCB are all high quality double layers PCB, at lealst 2 ounces, or 3 ounces in particular models.
4. We always require same bin number SMD LEDs for different production batches for the same customer.
5. Our strip is small tolerance of the CCT within +- 100k
6. We can produce UV LED Strip as customer request.
7. We can provide 3 years warranty for the led strip.
More UV LED light products that you may interested: Ultraviolet LED Strip
5m per reel, one reel per bag package
Accessories of 365nm uv led strip - Power supply/Driver
