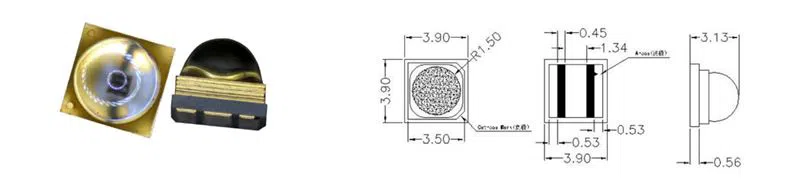

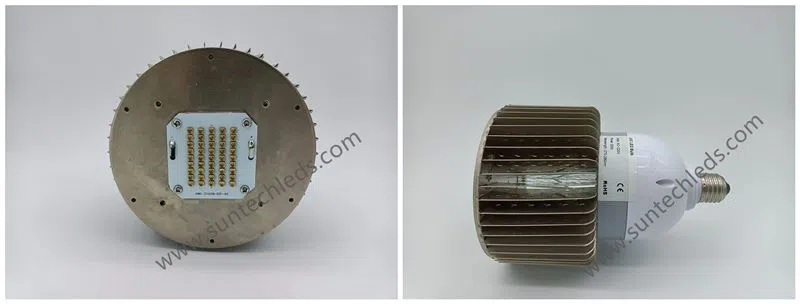

(1) 45pcs UVC LED chips per piece;
(2) Good stability, CE & RoHS approved;
(3) AC110V/220V;
(4) Two specifications of 50W and 80W are available；
(5) Beam angle is 60 degree, UVC dose is much higher than ordinary UVC chip;
(6) The aluminum profile is used as a part of the shell to increase the heat dissipation area.
For more product details, please download the product specification：
50W UVC LED Bulb Suntech-2021.12.17.pdf
80W UVC LED Bulb Suntech-2021.12.17.pdf

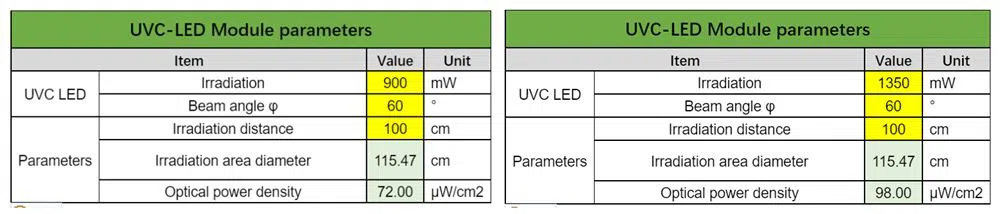

Item No: | STBU-45UVC3939-50 | Item No: | STBU-45UVC3939-80 |
Light Source: | Lens UVC LED chip 60 degree | Light Source: | Lens UVC LED chip 60 degree |
Input Voltage: | AC110V/220V | Input Voltage: | AC110V/220V |
Power Consumption: | 50W/PCS | Power Consumption: | 80W/PCS |
Wavelength: | 265~278nm | Wavelength: | 265~278nm |

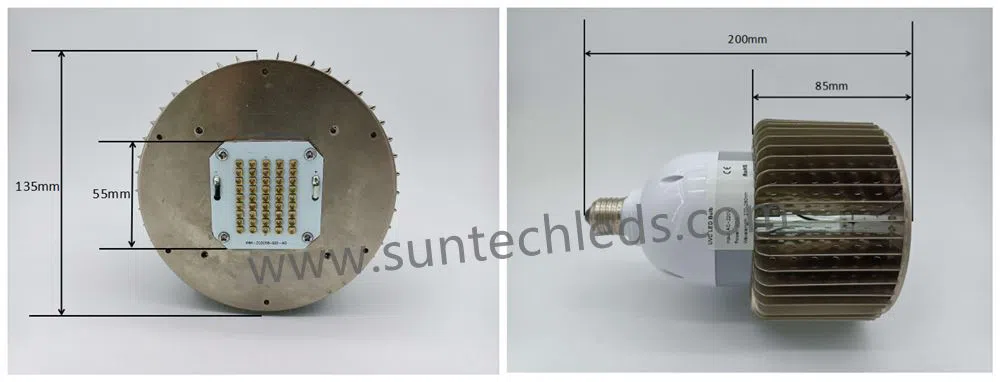

Dimensions: | φ135mm×200mm | Dimensions: | φ135mm×200mm |
Beam angle: | 60 degree | Beam angle: | 60 degree |
Radiant Flux: | 900mw/pcs | Radiant Flux: | 1350mw/pcs |

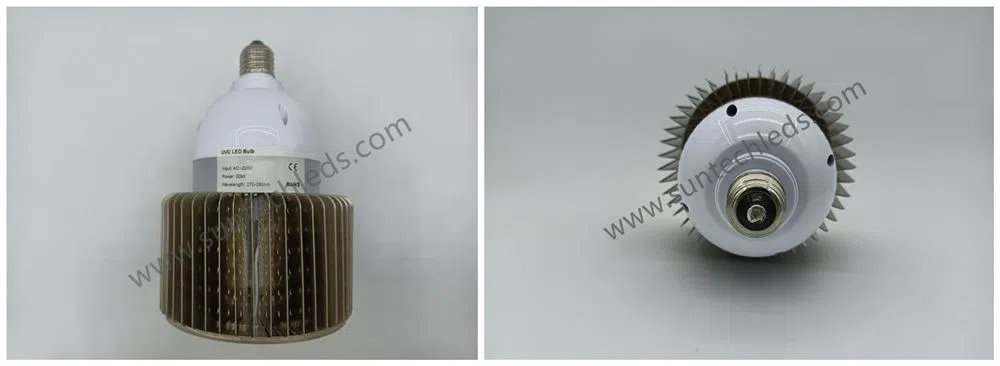

50W UVC LED Bulb: 80W UVC LED Bulb:
1. Pay special attention: UV lamps, please do not look directly at the light source with the naked eye! Test please wear special goggles!
2. Please read the product instructions carefully before the product is installed and used;
3. The power output must be AC110/220V;
4. The product is lightly put, to avoid damage to the product, please hand over to professionals to install and repair, maintenance;
5. Please understand the label tips on the lamp packaging when wiring;
6. When wiring must cut off the external power supply, to prevent people from touching or damage the lamp, the product must be installed after the installation before powering;
7. When using external power cords outdoors, it is necessary to take measures to waterproof and leak water;
8. It is forbidden to press the surface of the LED;
9. The use of any acidic or alkaline adhesive type of glue is prohibited from this product.
This is a high-voltage UVC LED Bulb, you just need to directly connect the light to the electricity AC110V/220V power.
About 10000 hours.
Yes, and this product does not contain mercury, which is safer and more environmentally friendly.
Yes, we support ordering samples for testing.
Before choosing the right UVC LED products for you, would you please let us know the following critical points:
1. Where do you use it?
2. What's the distance between the disinfection surface to the UVC source?
3. How long is the disinfection time?
So professional suggestions and the right products can be provided.
If you have any other questions or further requirements, please click here to email the Suntech team or call +(86) 13184617165 for priority-free consultation.
