LED UVC light Flexible 13LEDS Specification：
Item No.: STSN-86UVC3535
Light Source: UVC LED chip
Input Voltage: DC5-6V
Power Consumption: 24W/m
Wavelength: 265~278nm
Dimensions: 150mm*10mm
Beam angle: 120 degree
Radiant Flux: 430mw/m

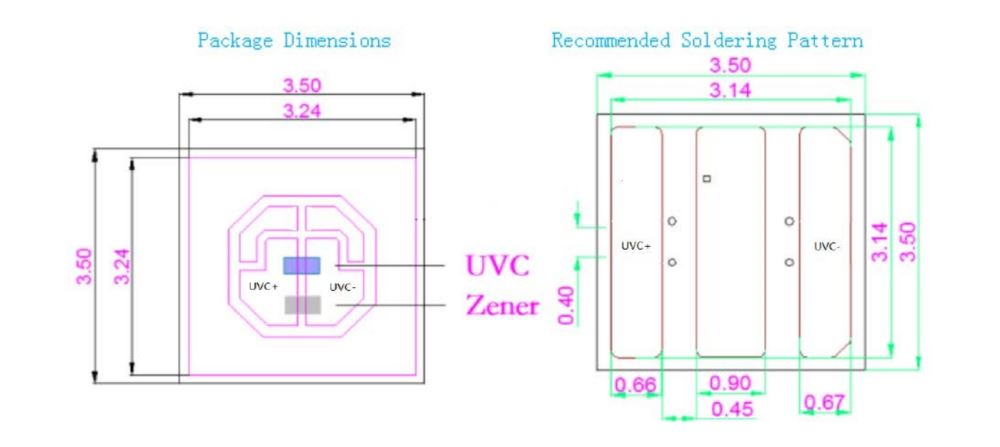

UVC LED chip information

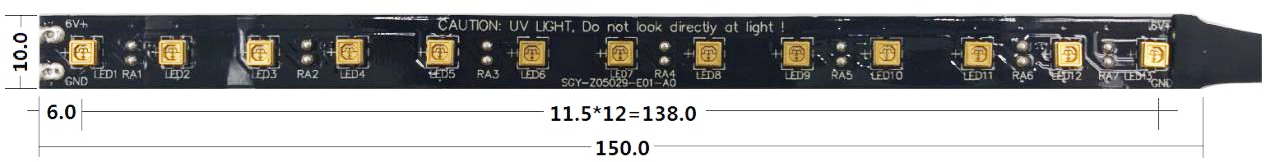

Each pcs UVC LED Strip dimension
For more product information, please download the specifications.
86leds-UVC-strip-light---Suntech.pdf
1) 86 pcs UVC LED chip Per meter, and each pcs have 13LEDS,
5) Every 2leds can be cut, The cutting point is every 2.33mm,
2) Good stability, with FCC, CE, RoHS certification,
3) Flexible PCB 3oz thickness PCB have good heat dissipation function ,
4）With 3M blue adhesive,
5) DC5~6v input, safe installation,
6) High-quality wires.

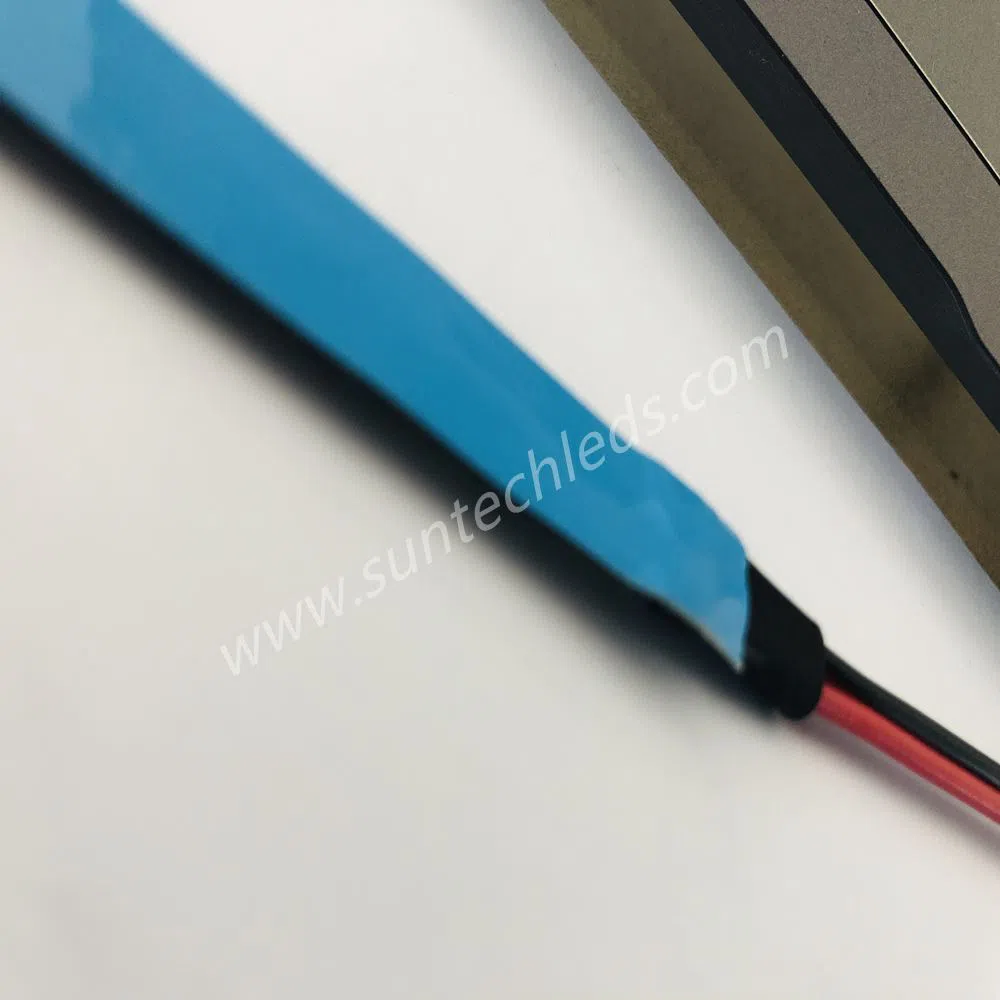

Self-adhesive，Can be pasted on any surface
High-quality wires, you can link the light strips to each other to make up the length you want

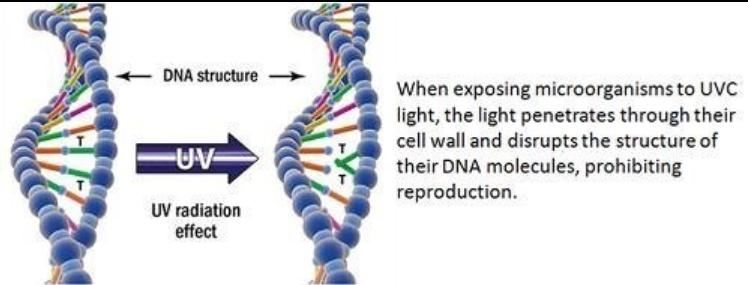

How can UVC light kill a virus?
You may be confused，How can a UVC light kill a virus? One theory is that the UVC light damages the virus’s RNA so that it is no longer able to reproduce and infect. It can also damage the protein that coats the virus, disabling its ability to attach to a host cell.
How much dose uvc to kill germs?
Typical germicidal UVC light kills viruses at a wavelength of 265nm. But all viruses are different and some respond to shorter or longer wavelengths. They also require a different UV dose, which is measured by light intensity and exposure time.
The UV dose can be expressed as the product of the UV intensity and the exposure time uv dosage sufficient conditions, inactivation of virus bacteria not resurrection, but insufficient dosage, many virus inactivation of bacteria by ultraviolet radiation can through the help of a light effect to repair damaged structure in the uv dose phase at the same time, can use high strength short-term or the illuminate of low intensity for a long time, in order to achieve sterilization to kill 1104 / mL helix bacili, uv dosage required around 30 mJ/cm2, and kill the same number of spores, requires about 70 mJ/cm2 of uv dose. The germicidal effect of 86leds 5v uvc strips please contact Technical staff.

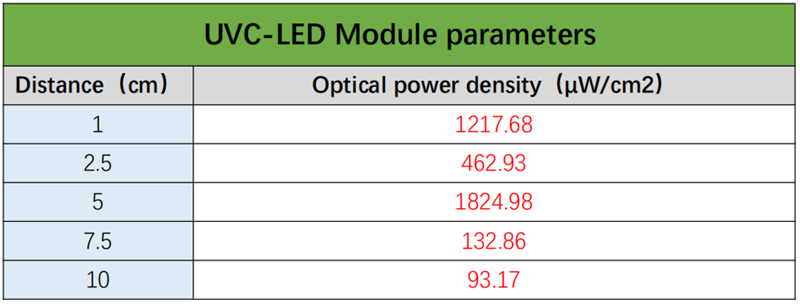

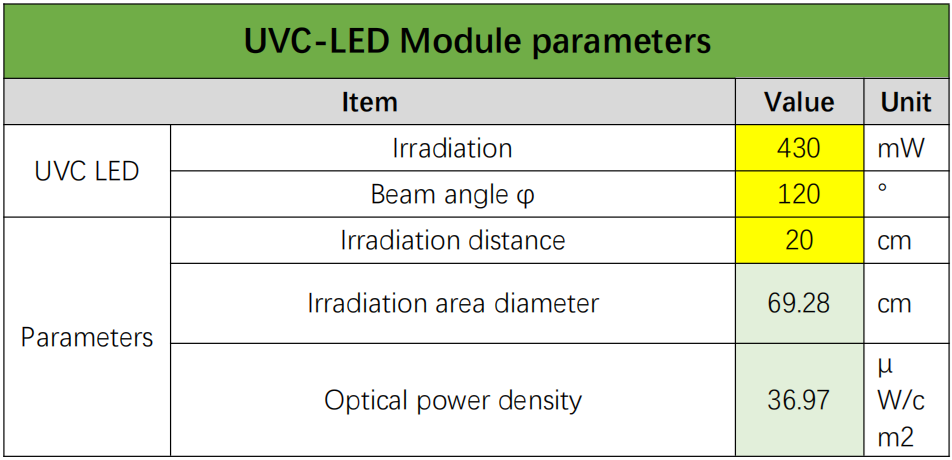

Please see the sterilization effect and UVC dose parameters of the 80leds 5v UV led light bar, the data is only for reference :
Kindly Note：
1.Please do not look directly with naked eyes When the light is on.
2.If you need a safe UVC lamp that will not damage people, we recommend you to use 222nm Excimer light, please click to know more infomation.
3.Or if you don’t know how to choose the right LED strip, please click on "send inquiry" on the left of the main picture to contact us, we will give you the most professional solution.
