Germicidal UVC LED Strip 24v 265nm 275nm

UVC can kill microorganisms that cause diseases. However, it cannot be used around people because it can cause skin cancer and cataracts. Usually, the UVC from the sun is completely filtered out by the earth's ozone layer, so there is no chance to cause harm to humans. The manufactured conventional sterilization UVC light source uses 265nm-278nm wavelength for sterilization.

Availability:
Germicidal UVC LED Strip 24v 265nm 275nm
Germicidal UVC LED Strip 24v 265nm 275nm

Product Detail Description

1.60 pcs/meter,

2.Excellent stability, CE & RoHS approved

3.Flexible PCB 3oz thickness,

4.Genuine 3M tape or good heat dissipation function blue tape

5.DC 24 voltage input , safe installation


Germicidal UVC LED Strip


IMG_1695_副本


UVC LED Strip size

UVC LED Size

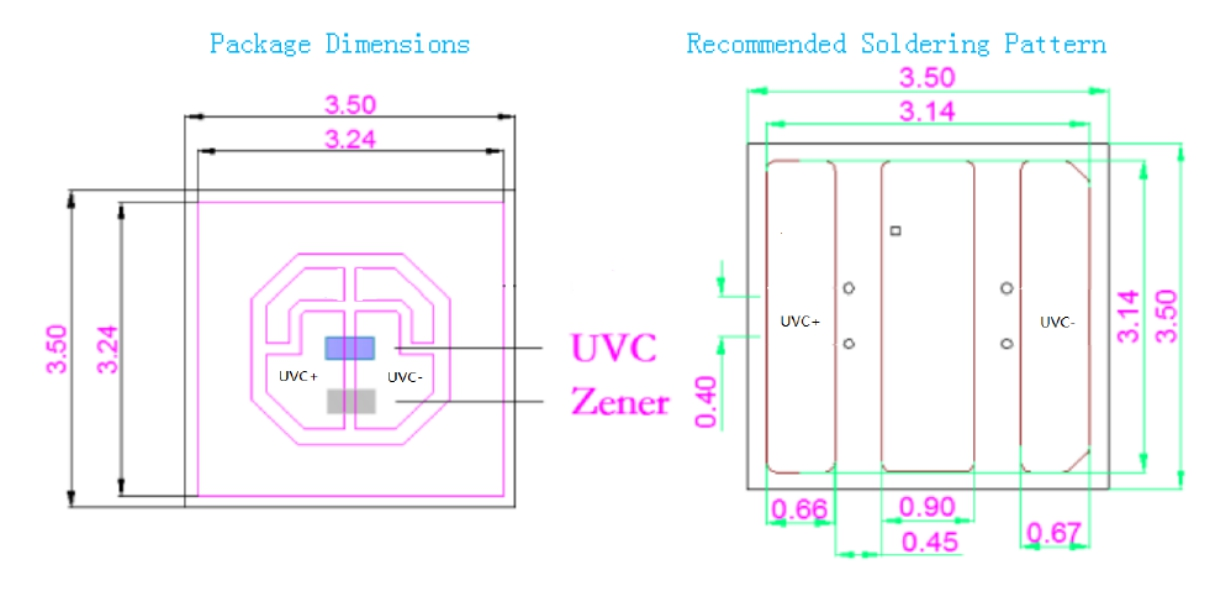

UVC LED chip information


uvc chip information

UVC LED chip information

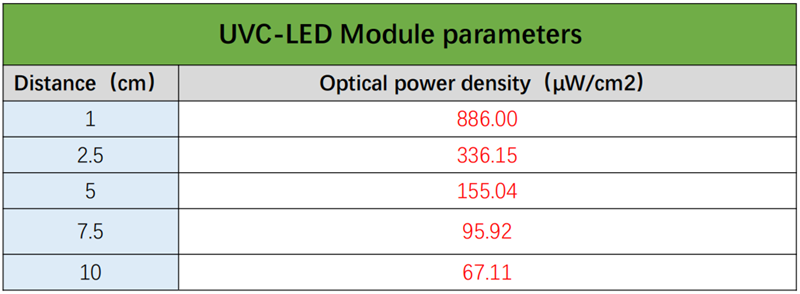

Technological Parameters

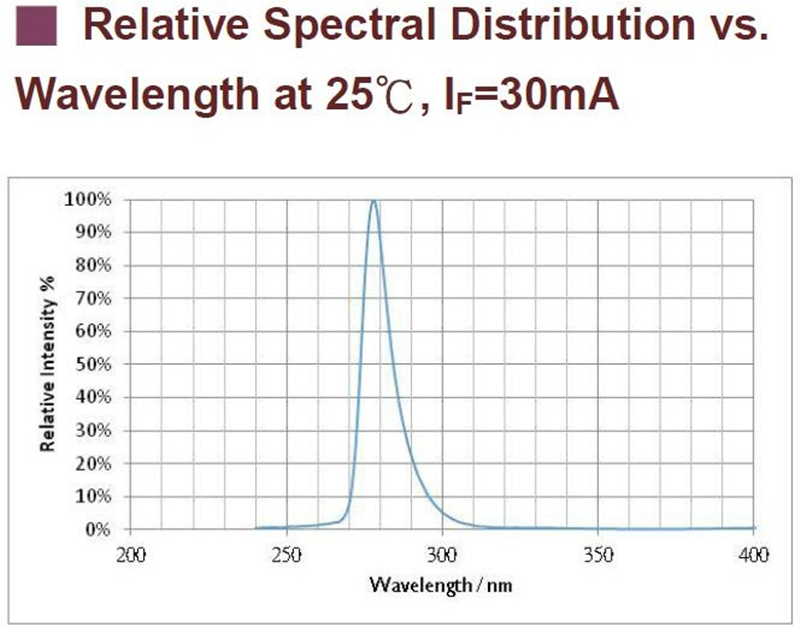

wavelength

01

02


For more details, please check the product specification.60leds DC24V UVC strip light - Suntech.pdf


Why does it has to be UVC?


The Electromagnetic Spectrum

According to ISO-DIS-21348 classification instructions, the UV wavelength range is below 400 nm, which can be divided into long-wavelength UVA, medium-wavelength UVB and short-wavelength UVC. UVA wavelength ranges from 315 nm to 400 nm, mainly used in UV curing, ink printing, PCB exposure, nail art, banknote recognition and other industrial and consumer fields; UVB wavelength ranges from 280 nm to 315 nm, mostly used in ultraviolet light therapy, medical care aspect.


As for the actual ultraviolet light that has the effect of disinfection and sterilization, it is UVC, with a wavelength of 200 nm to 280 nm, which is the shortest wavelength and strongest ultraviolet light. It can destroy bacteria, viruses, molds, spores and other microbial cells through short-term irradiation. The internal DNA or RNA structure prevents cells from reproducing and dying, achieving disinfection and sterilization. Therefore, they are widely used in surface, water, air purification, sterilization and disinfection.


  Germicidal UVC LED Strip Application

UVC sterilization is the use of ultraviolet rays to destroy the nucleic acid of microbial genetic material, which cannot be divided and replicated. It is suitable for waterworks, industrial sewage and harmful gas treatment, household water and air purifiers and other fields.

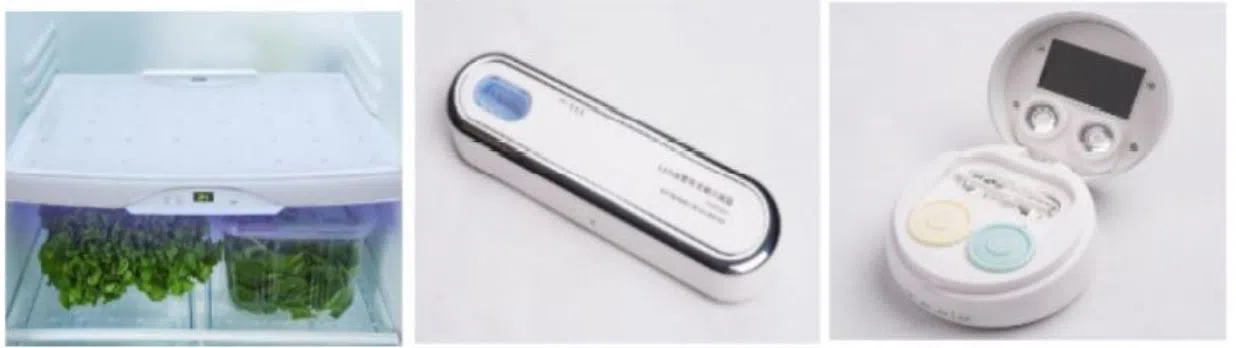

uvc led applications

uvc application


Attention

1.Please pay special attention to: UV lamp, do not look directly at the light source with naked eyes! Please wear special goggles when testing!

2. Please read the product description carefully before installing and using the product;

3. The power output must be DC24V;

4. Handle this product with care to avoid damage to the product, please leave it to a professional for installation, repair and maintenance;

5. Please understand the label on the bulb package when wiring;

6. When the wiring must cut off the external power supply, in order to prevent people from touching or damaging the bulb, the product must be installed after installation, and then power on;

7. When using external power cords outdoors, waterproof and leak-proof measures must be taken;

8. It is forbidden to press the LED surface;

9. It is forbidden to use any acidic or alkaline adhesives in contact with this product.
