outdoor architectural flood lighting

LED Flood Light Manufacturer

Suntech LED have an excellent technical team, which can be designed according to customers requirements. Suntech LED is one of the best quality floodlight manufacturers and suppliers in China. Suntech exterior LED flood lights is perfect for LED facade lighting to dress up buildings like bridges, art galleries, shopping malls, office buildings and more with stunning colors. The floodlight can be controlled via TTL or DMX control, and we offer a choice of monochrome, RGB or RGBW color change.
Suntech LED was established in 2008 and has more than ten years of experience in production and design. We offer 5 yeasrs warranty on all products, and for custom solutions, OEM and ODM services are available.
​​​​​​​

Types of LED Architectural Flood Light

Outdoor IP67 waterproof
SuntechLED have an excellent technical team, which can be designed according to customers requirements. With best quality products, strong technical support, and comprehensive after-sales support, we have gained recognition and newcomers from more than 100 regional customers around the world. Below introduce some of our best selling floodlight with you.
​​​​​​​
SHA205 LED flood light

 SHA205 LED Flood Light for Facade Lighting

Parameters
 Color temperature: Single color, RGB/W, RGBW
 Gray level: 65536 level
 Shell maretial: high thermal conductivity aluminum + optical glass
 Beam angle: 3°/7°/10°/15°/25°/30°/45°/60°
 Maximum power: 36W~54W
 Protection level: IP67
 Working temperature: -20°C to 50°C
Storage temperature:  -20°C to 60°C

Item No. LED Qty LED Type Color temperature Control way Voltage Power Brightness
SHA205-36WN 36pcs 3535/3030 R/G/B/W single color DC24V/36V 36W 2520LM
SHA205-54WN 36pcs 3535 R/G/B/W single color DC24V/36V 54W 3780LM
SHA205-36WD 36pcs 3535 RGB/W DMX512 DC24V/36V 36W 2520LM
SHA205-54WD 36pcs 3535 RGBW DMX512 DC24V/36V 54W 1450LM

Waterproof OSRAM Programmable DMX LED Flood Light  SHB160 LED Flood Light for Architectural Lighting

Parameters
 Color temperature: RGB/W
 Gray level: 65536 level
 Shell maretial: high thermal conductivity aluminum + optical glass
 Beam angle: 3°/5°/ 7°/10°/15°/25°/30°/45°/60°
 Maximum power: 24W~36W
 Protection level: IP67
 Working temperature: -20°C to 50°C
 Storage temperature:  -20°C to 60°C
Item No. LED Qty LED Type Color temperature Control way Voltage Power Brightness
SHC160-24W 24pcs 3535/3030 R/G/B/W Single color DC24V/36V 24W 1890LM
SHC160-30WN 24pcs 3535 R/G/B/W Single color DC24V/36V 30W 2100LM
SHC160-36WD-1 18/24pcs 3535 RGB/W DMX512 DC24V/36V 36W 2520LM
SHC160-36WD-2 18/24pcs 3535 RGBW DMX512 DC24V/36V 36W 960LM

OSRAM DMX LED Architectural Flood Light  SHB135 LED Flood Light for Commercial Lighting

Parameters
 Color temperature: RGB/W
 Gray level: 65536 level
 Shell maretial: high thermal conductivity aluminum + optical glass
 Beam angle: 3°/5°/ 7°/10°/15°/25°/30°/45°/60°
 Maximum power: 12W~24W
 Protection level: IP67
 Working temperature: -20°C to 50°C
 Storage temperature:  -20°C to 60°C
Item No. LED Qty LED type Color temperature Control way Voltage Power Brightness
SHB135-12WN 12pcs 3030 R/G/B/W Single color DC24V/36V 12W 840LM
SHB135-18WN 18pcs 3030 R/G/B/W Single color DC24V/36V 18W 1050LM
SHB135-24WD-1 12pcs 3535 RGB/W DMX512 DC24V/36V 24W 1680LM
SHB135-24WD-2 12pcs 3535 RGBW DMX512 DC24V/36V 24W 570LM
OSRAM LED Flood Light Wireless

  SHC120 LED Flood Light for Landscape Lighting

Parameters
 Color temperature: RGB/W
 Gray level: 65536 level
 Shell maretial: high thermal conductivity aluminum + optical glass
 Beam angle: 1°/3°/5°/ 7°/10°/15°/25°/30°/45°/60°
 Maximum power: 9W~18W
 Protection level: IP67
 Working temperature: -20°C to 50°C
 Storage temperature:  -20°C to 60°C
Item No. LED Qty LED Type Color temperature Control way Voltage Power Brightness
SHC120-12WN 4/12pcs 3535/3030 R/G/B/W Single color DC24V/36V 12W 840LM
SHC120-15WN 12pcs 3535 R/G/B/W Single color DC24V/36V 15W 1050LM
SHC120-18WD-1 9/12pcs 3535 RGB/W DMX512 DC24V/36V 18W 1260LM
SHC120-18WD-2 9/12pcs 3535 RGBW DMX512 DC24V/36V 18W 480LM

CREE RGB Programmable LED Flood Light  SHC190 LED Flood Light for Industrial Lighting

Parameters
 Color temperature: RGB/W
 Gray level: 65536 level
 Shell maretial: high thermal conductivity aluminum + optical glass
 Beam angle: 3°/5°/ 7°/10°/15°/25°/30°/45°/60°
 Maximum power: 48W~72W
 Protection level: IP67
 Working temperature: -20°C to 50°C
 Storage temperature:  -20°C to 60°C
Item No. LED Qty LED Type Color temperature Control way Voltage Power Brightness
SHC190-48WN 16/48pcs 3535/3030 R/G/B/W Single color DC24V/36V 48W 3360LM
SHC190-54WN 36pcs 3535 R/G/B/W Single color DC24V/36V 54W 3780LM
SHC190-72WD 36pcs 3535 R/G/B/W Single color DC24V/36V 72W 5040LM
SHC190-72WD-1 36pcs 3535 RGB/W DMX512 DC24V/36V 72W 5040LM
SHC190-72WD-2 36pcs 3535 RGBW DMX512 DC24V/36V 72W 1940LM

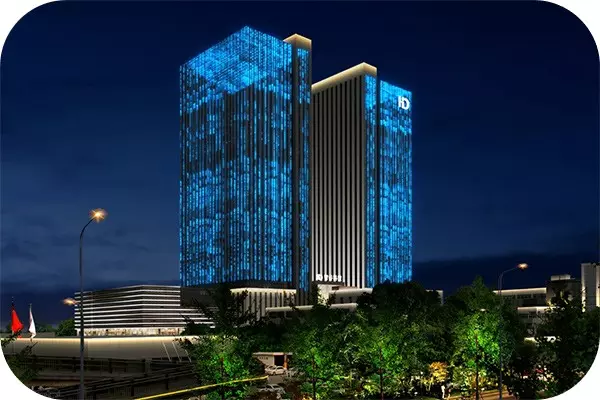

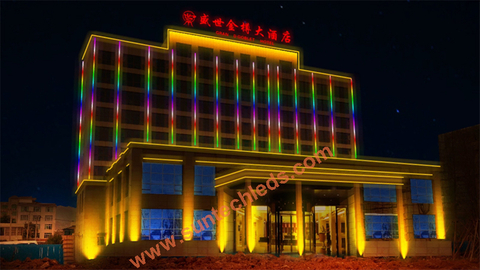

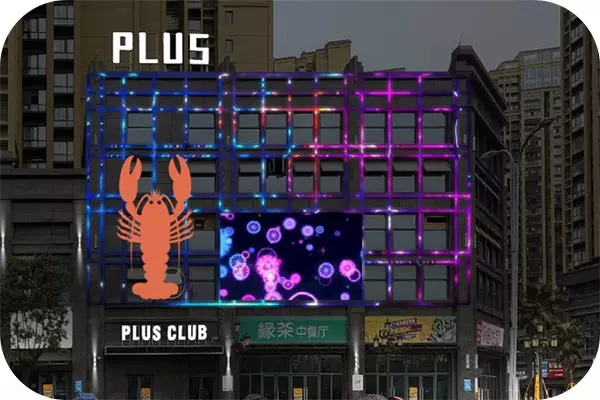

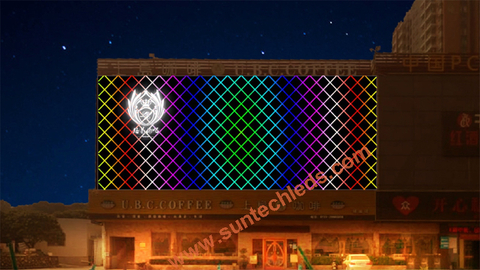

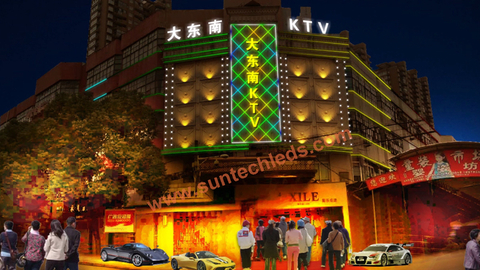

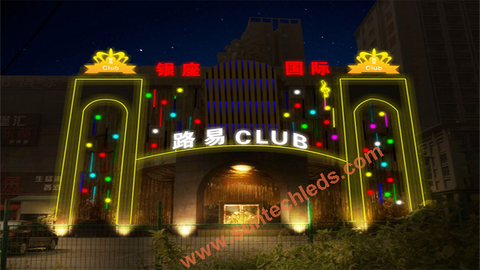

LED Flood Light Projects Gallery

Outdoor facade lighting breathes legendary energy into the monotony of the building at night. As a professional company in the field of facade lighting and control, SuntechLED is committed to providing complete, sustainable and intelligent lighting solutions. We are happy to share some of our experiences in this dynamic field with you.
​​​​​​​

Why choose Suntech for Flood Light?

As one of the leading LED outdoor lighting manufacturers in China, SuntechLED focuses on the modern flood light products to satisfy every customer. Our main products are outdoor flood lights, exterior led spot lights, DMX LED dot lights, LED wall wash lights outdoor, LED linear lights, etc.  Over the years, we have provided total solutions for outdoor lighting projects such as outdoor architectural lighting, commercial led linear lighting, media facade lighting, landscape lighting, stadium lighting, street lighting, and media lighting. Design, production, distribution, installation, and your outdoor lighting project will be completed under professional guidance. Provied the best LED wall washer price.


Low MOQ

No MOQ requirements and you can purchase any quantity that is needed.

OEM/ODM

From design to production, delivery, and after-sale expert service.

Fast Delivery

We're so confident in our lighting products that we offer a 7-10 day lead time on all orders.

Customer Service

Efficient pre-after sale service. One-stop buying source to save your money and time.

Lower Price

Provide high-quality lighting at an affordable price.


5 Year Warranty

High-quality promise. We stand by our products with a 5-year warranty.

Lighting Fixtures Certificates

There is no doubt that we will be your good partner. In addition to providing the safest and highest quality LED Flood Light, we always strive to provide our customers with the best customer experience. To ensure optimum performance, all our LED wall washers are CE, RoHS and FCC certified.

Frequently Asked Questions

We have an excellent technical team, which can be designed according to customers requirements.
  • Please let us know the quantity, dimension, color, voltage, control mode requests, etc. Then we will guide you to finish the project. It will be better if you can provide a lighting diagram, so we will provide the specific quotation ASAP.
  • A standard LED flood light order takes 7-10 business days to complete, excluding transit time, which can take anywhere from 7 to 15 days, depending on your location. Custom and bulk orders may take a few days longer.

  • Yes, we support samples for you to check the quality before a large order. Usually, the sample needs 5 -7 days after receiving your payment.

  • SuntechLED put the product quality in the first place. That's why we provide 5 years warranty for all of our flood lights and other architectural lights. Every product is 100% tested before shipping.
Have More Questions?
We are happy to answer any questions you may have about our products and company.​​​​​​​

More Than Just an LED Flood Light Manufacturer

High-quality products, one-stop service, professional technical support. Your satisfaction is the goal we always pursue.
Let us help your business grow.


Lighting Design

Depending on specific architectural style and lighting goals, our professional LED lighting designers can customize your lighting project renderings, meeting precise lighting specifications, effects and atmosphere.



Lighting Solution

Do you want a one-stop cost-effective facade lighting ideas and solution? Please consult our experienced LED lighting designers now. Return you a satisfactory lighting solution.

ODM/OEM

Whether you are choosing existing lighting fixtures or customizing new lighting fixtures, please do not hesitate to tell us your needs and let us help you create a personalized high-quality facade lighting project.

Installation Support

We do more than sell led facade lighting products. Don't worry about after sales. Our professional engineers can provide you with technical support throughout the installation process. Let's light up the world together.
SuntechLED is a manufacturer and supplier in China focusing on outdoor LED lighting fixtures, we also have DMX series LED lights for stage lighting, media lighting, and event lighting. The DMX pixel dot light, DMX RGB flood light, DMX controlled spotlight, and DMX LED bar light are here for you to choose from. We not only provide quality LED lights, but also provide the best service to you.



Outdoor Architectural Flood Lighting Buying Guides


Architectural floodlights are a major investment in outdoor lighting. Due to its design, the building's floodlight can be used in different environments. Their most important applications are the lighting of large stadiums, parks, then street lights, and finally backyards or the street ahead. They are outdoor fixtures that conveniently illuminate construction sites or any industrial setup compartment. Therefore it is widely loved.
It is necessary to have a plan before purchasing as there are a wide variety of LED architectural floodlights on the market. The installation process requires proper planning, as the strategic placement of fixtures and bulbs ensures that they adequately cover areas that require light from the right elevation angle. Don't worry! Our company has specially compiled the following guide to ensure you have a brief overview of all the key factors!

Table of Contents​​​​​​​
1. What is Architectural Floodlighting?
2. Difference between floodlight and wall washer
3. Advantages of Installing Outdoor Architectural Floodlights
4. Where are Outdoor Architectural Floodlights Used?
5. How to Choose Outdoor Architectural Floodlights?
6. Why Buy Architectural Floodlights from Suntech?
7. Conclusion



What is Architectural Floodlighting?


In render production, floodlights are the most commonly used light sources. Standard floodlights are used to illuminate the entire scene. A variety of floodlights can be used in the scene to achieve better results. Architectural floodlights illuminate a large area with their strong light. Their main application areas include warehouses, stadiums, industry, building facades, etc. These small power stations can provide enough brightness and even light to make large areas brighter.
Traditional architectural floodlights are HID (High-intensity Discharge Lamp based). They are cheaper and provide a lot of lighting, but the industry has changed a lot in recent years. LEDs are in many ways that HID does not have, so many companies and individuals have come to rely on LEDs.

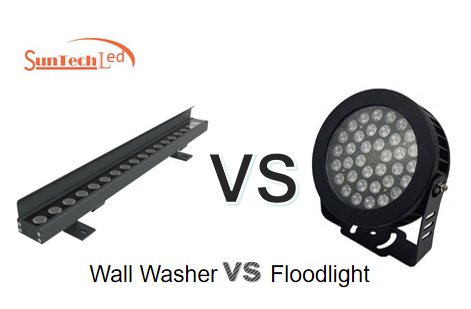

Difference between floodlight and wall washer


With the development of the lighting industry, there are more and more types of lamps. Although LED floodlights and LED wall washers are often seen in the market today, many friends confuse the two with each other. Today we will talk about the difference between wall washers and floodlights.
Here Suntech provides a table that briefly explains the difference between a led wall washer and a floodlight.

Table 1-Difference between floodlight and wall washer - Suntechled
Facade light Shape Heat dissipation Lighting effect Application scope Lighting range
Flood light Round or square Better The lighting distance is not far, the lighting outline is more obvious squares,lawns,billboards, docks,and other sports venues Large
Wall washer Rectangular Good The lighting distance is far, the area is large architectural,decorative lighting, shopping malls Small
Shape
LED-wall washers are generally rectangular, while LED floodlights are generally round or square.

★Heat dissipation
The heat dissipation of the floodlight is better than that of the wall washer.

★Lighting effect
Floodlight is a generic term. Floodlights can be called projection lights, spotlights, floodlight etc. The projection angle is 90 degrees and has a wide range of functions.The floodlights distance is not far, the lighting outline is more obvious.But,The wall washer distance is far, the area is large.

★Application scope
LED floodlights are widely used, usually used in squares, lawns, billboards, docks, and other sports venues, while LED wall washers are mainly used for architectural decorative lighting, and can also be used to describe the outline of large buildings.

★Lighting range
The difference between architectural floodlights and wall washers is also reflected in the illuminance range of the two. Floodlights are mainly used for architectural decorative lighting and commercial space lighting. The decorative elements are relatively heavy, and there are also many styles in the shape design. If multiple LED wall washers are put together, the entire wall will look the same after washing, but the range of such lights is usually not very far. LED floodlights are different. Since the rays are farther apart, the area is larger.

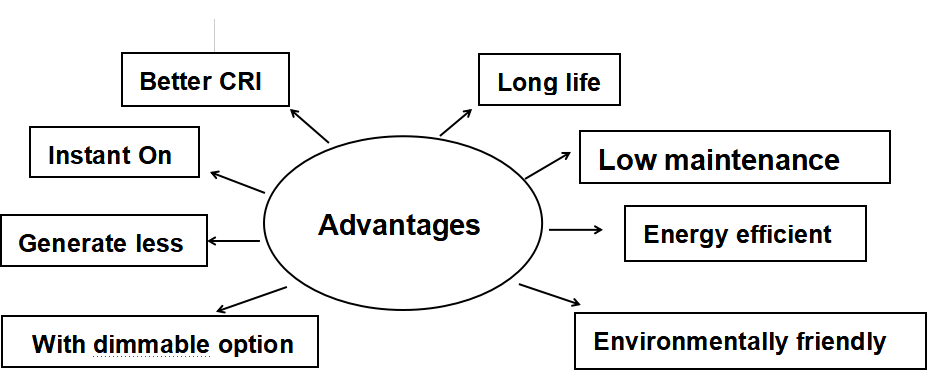

Advantages of Installing Outdoor Architectural Floodlights

In today's society that vigorously advocates energy conservation and environmental protection, many companies will use outdoor architectural floodlights as the first choice for lighting, mainly because of their environmental protection, pollution-free, low power consumption, and long life. Some of the advantages of these lights include the following:



1. Long life :

The maximum lifespan of LED floodlights is 50,000 hours.


2. Generate less heat:

LED floodlights operate at a lower temperature, so they do not generate as much heat as fluorescent lights.


3. Energy efficient:

By switching from traditional halogen lamps to modern LED floodlights, you can save at least 88% in energy, saving you from paying extra for extra energy consumption.


4. Better CRI:

Compared to ideal or natural light sources, LED floodlights to have a CRI of 80, making objects and surfaces look realistic and non-artificial by up to 80%.



5. Instant On:

This product does not require any warm-up time or cool-down time to keep running.


6. Environmentally friendly:

LED floodlights do not contain any harmful substances and have no carbon emissions. At Suntech, we guarantee that all LEDs are organic so that they are not harmful to the environment. Although the LED light is very strong, it does not have any adverse effect on the surrounding area.


7. With dimmable option:

With the dimmable option, you can adjust the brightness of the LED light according to yourself.


8. Low maintenance:

LED floodlights only require a one-time investment. All LED lights require low maintenance and long life, such as LED downlights, LED corn lights, etc. At Suntech, every LED bulb is carefully manufactured to guarantee its perpetual usefulness!


Where are Outdoor Architectural Floodlights Used?


LED architectural floodlights can be used in many places, Let's see where they can be used!

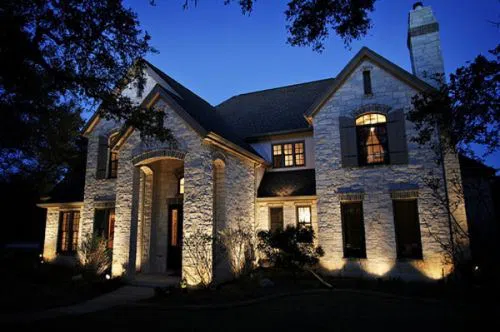

Residential Areas:
For safety reasons, architectural floodlights in residential areas need to be properly assessed before place-ment  to illuminate the area. Residential architectural floodlights are not that large and come with a variety of mounting options for highlighting and general lighting. Placed on street poles or boundary walls, their location, and beam angle are critical, as they should not be directly facing the neighbor's property or the street, rather than emitting bright light in the target area.
Warehouses or industrial plants are often located in remote areas where there is a higher demand for architectural floodlights to ensure safety and visibility at night. Powerful floodlights are integrated with motion sensors for increased safety in these places.
Construction Sites:
Temporary lighting is required on construction sites for builder compliance and safety reasons. Many powerful portable floodlights are available for this type of use.
Street Lights:
Architectural floodlights are used on poles and street fixtures to ensure visibility and safety for the public at night. These are powerful fixtures of different sizes; they have a variety of mounting options and can operate on DC line voltage systems.


How to Choose Outdoor Architectural Floodlights?


Photometric research is very helpful in determining light for architectural projects. It will help evaluate the brightness, intensity, and uniformity of light on a property. It will help to consider the following basic factors when choosing the architectural light that best suits your requirements.


1. Regional layout:

Luminaire placement needs to be where the light can fully illuminate its target area, without high walls blocking and creating shadow-filled blind spots. The correct placement of the lamps is crucial: the number of luminaires and the spacing of the luminaires for adequate lighting. First, the lights must be 10 feet high and extend beyond 40 feet depending on the area. This does not include the risk of potential damage to the lights themselves and personnel, as these lights could cause injury. Their main task is to illuminate the entire area, while angled downwards, directly onto people's eyes or nearby properties. In some cases, such as stadiums, overlapping is preferred to avoid shadows. In other respects, cross lighting is avoided.


2. Beam angle:

There are many types of architectural floodlights. There are many more variations of these types when it comes to the angle of the beam. Architectural floodlights are available in a variety of wide beam angles, depending on the bulbs used to cover a wider illuminated area. A larger total area will require a smaller beam angle and vice versa. A beam angle of 25-40 degrees is typical at an altitude of 35 feet. In most cases, our company recommends a 120-degree narrow beam configuration, which provides a sharp, high-intensity beam with a smaller beam angle to highlight a particular element.


3. Power output or light effect:

When deciding on a light fixture, check lumens. At lower heights, lower lumen fixtures are appropriate. High lumen fixtures in low ceiling spaces will only create bright spots and poor lighting quality. LED floodlights are highly efficient and produce higher lumens per watt. They are powerful compact lamps. Different environments require different levels of brightness, depending on the desired environment. Lumens tell us how much light a fixture produces.
Floodlights have high lumen output despite their size and construction. For example, a 150-watt incandescent light bulb produces about 2,600 lumens, while a 150-watt LED can produce 21,000 lumens.


4. Heat dissipation:

This is a slightly overlooked feature, but it comes into play when the fixture is used for longer periods every day. If the light fixture does not have a built-in heat sink, it will drastically change its function. This is not a problem for LED luminaires, as they have built-in heat sinks that generate less heat and more light.


5. Motion sensor:

Motion-sensor floodlights add an added layer of safety, as they light up whenever anything passes by them. This is an important factor that does not delay startup and does not affect its power and operation. There are also dusk-to-dawn sensors, which help save energy and wasted light
cross-lighting


6. Cross lighting is light from different fixtures:

Light from different directions reduces shadows and highlights. If positioned correctly, they do not overlap and enhance the lighting design.


7. Service life:

The service life of LED architectural floodlights exceeds 50,000 hours, which is 5-8 times that of other similar products. This is an important factor when choosing a mass replacement since no one wants to keep changing bulbs. This is expensive and quite cumbersome.


8. Waterproof:

Outdoor architectural luminaires must be able to withstand harsh weather such as rain, snow, and dust. Waterproof light fixtures that can withstand heavy rain are an essential consideration. The LED floodlights are available in a variety of dust and water IP ratings, and their design features are compatible with freezing temperatures.


9. Warranty

LEDs have a very long life, up to 80,000 hours! However, there is nothing wrong with preventing any situation in advance. Buy your LED architectural floodlight from a manufacturer that offers a certificate of warranty. There will be a corresponding quality assurance!


Why Buy Architectural Floodlights from Suntech?

In the past ten years, SuntechLED has become a leading outdoor lighting enterprise in China's architectural lighting industry. Our lights are very safe and have a high IP rating. Our products have passed a lot of trials to adapt to the market.
In addition, we have professional lighting professionals to assist with any problems encountered with the installation. We provide a step-by-step installation guide for any purchase of architectural floodlights and online service.
We provide our customers with LED architectural floodlights that meet your various lighting needs. Our light fixtures come in a wide variety of sizes and colors, so we can meet your every need.


Conclusion

The functional characteristics of architectural floodlights are critical to the selection of suitable luminaires outside a building. LED floodlights are popular because they have a unique design that enhances their functional characteristics and helps to choose from a range of different methods depending on the needs. Architectural floodlights utilize a variety of different lighting techniques to create more powerful lighting effects for your projects.
