UVC Led Strip Light For Sterilization Flexible Disinfection Tabe 265-278nm

UVC Led strip light flexible disinfection tabe

Availability:

UVC Led strip light for sterilization flexible disinfection tabe 265-278nm

Features

1.Item No.: STSN-30UVC3535

2.Light Source: UVC LED chip

3.Input Voltage: DC24V

4.Power Consumption: 9.6W/m

5.Wavelength: 265~278nm

6.Dimensions: 1000mm*10mm

7.Beam angle: 120 degree

8.Radiant Flux 150mw/m

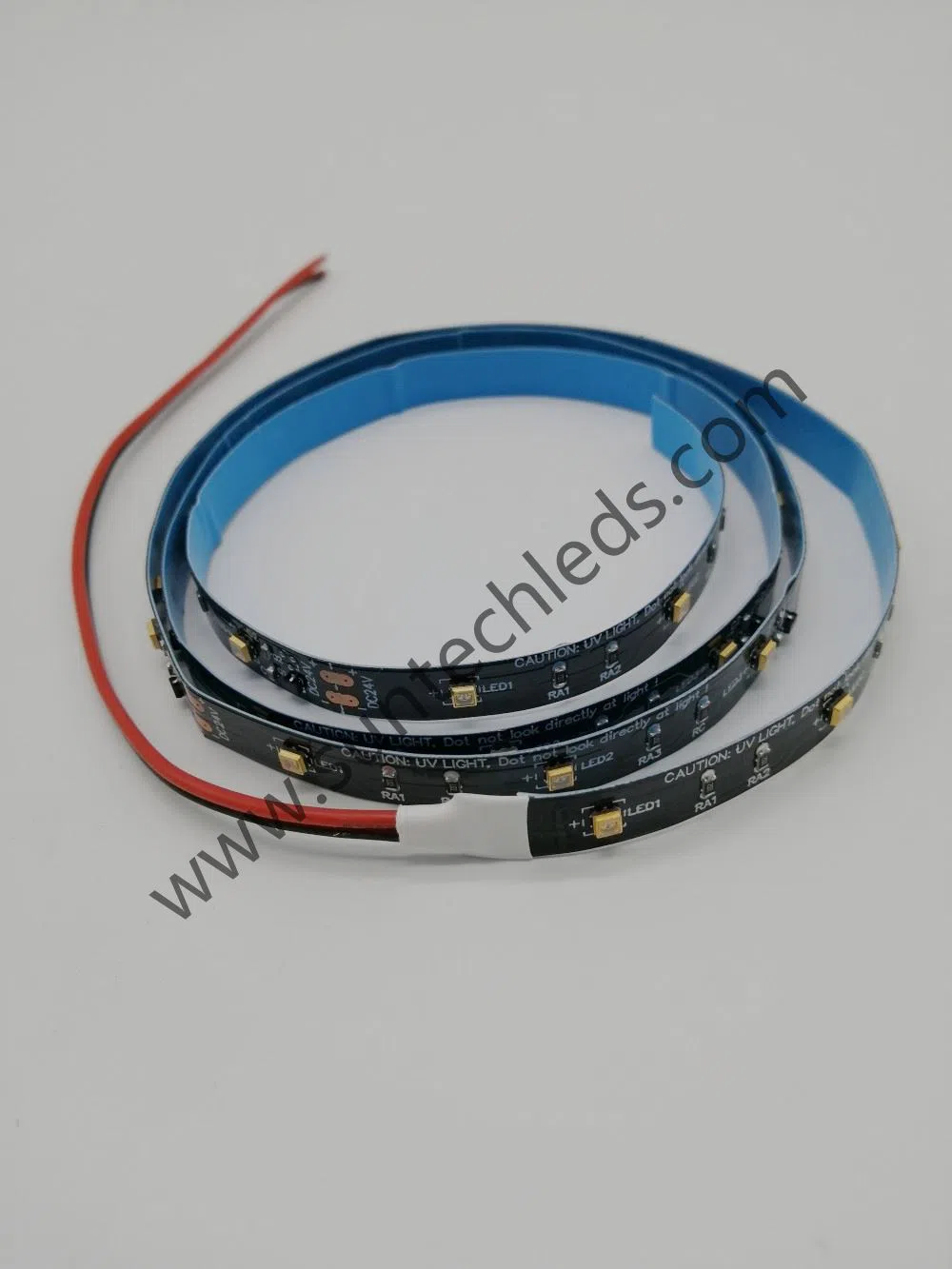

IMG_20200512_175244

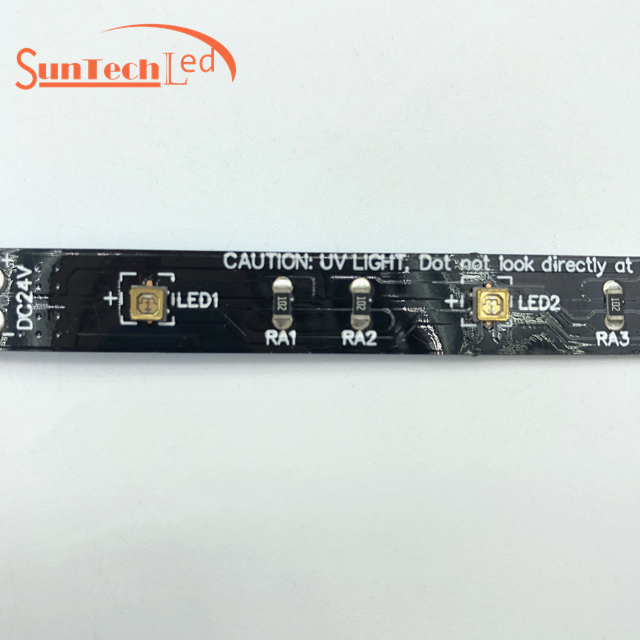

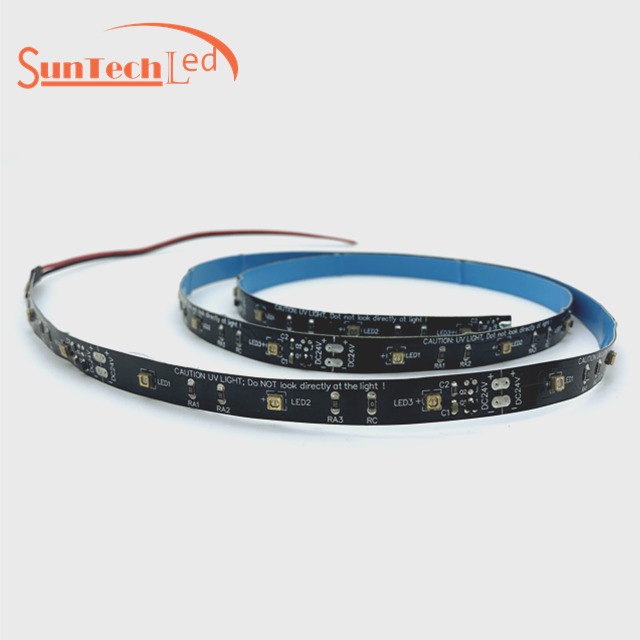

Structure of the UVC Led strip light for sterilization flexible disinfection tabe 265-278nm

1.30 pcs UVC LED chip Per meter

2.Good stability, CE & RoHS approved

3.Flexible PCB 3oz thickness

4.Genuine 3M tape or good heat dissipation function blue tape 5) DC24v input , safe installation

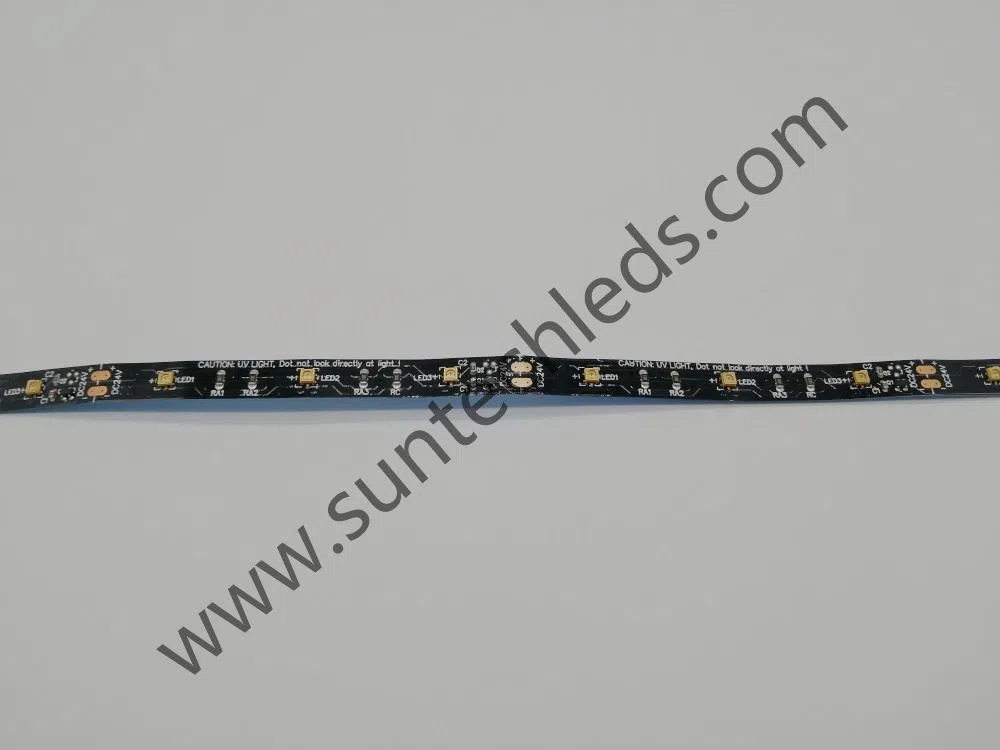

IMG_20200512_175439

IMG_20200512_175451



Chip information

UVC LED chip information

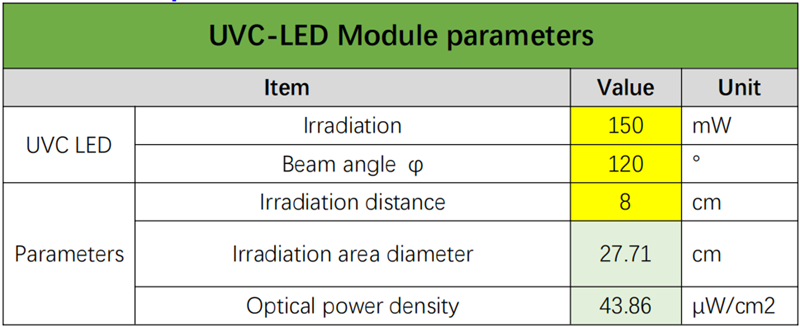

Technological Parameters

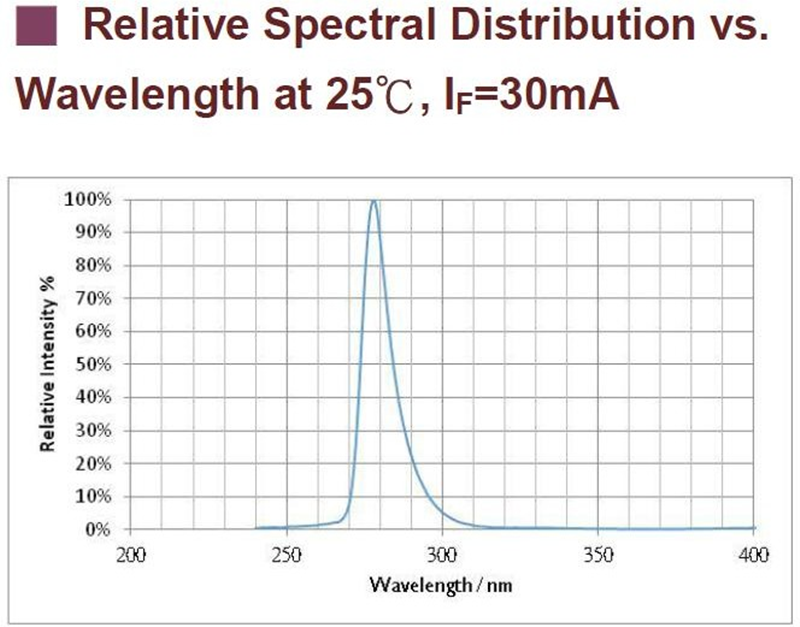

wavelength

01

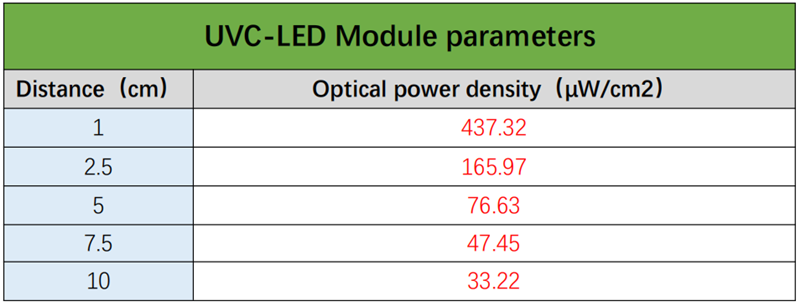

02

Application of the UVC Led strip light for sterilization flexible disinfection tabe 265-278nm

Widely used in packaging containers, bottles, bottle cap sterilization, food surface sterilization, food production lines, cosmetics production line air sterilization, sewage, drinking water disinfection. Oral treatment examination, dermatological treatment, environmental surface anti-virus, air disinfection. The sterilization effect in a short time can reach 99.9%.

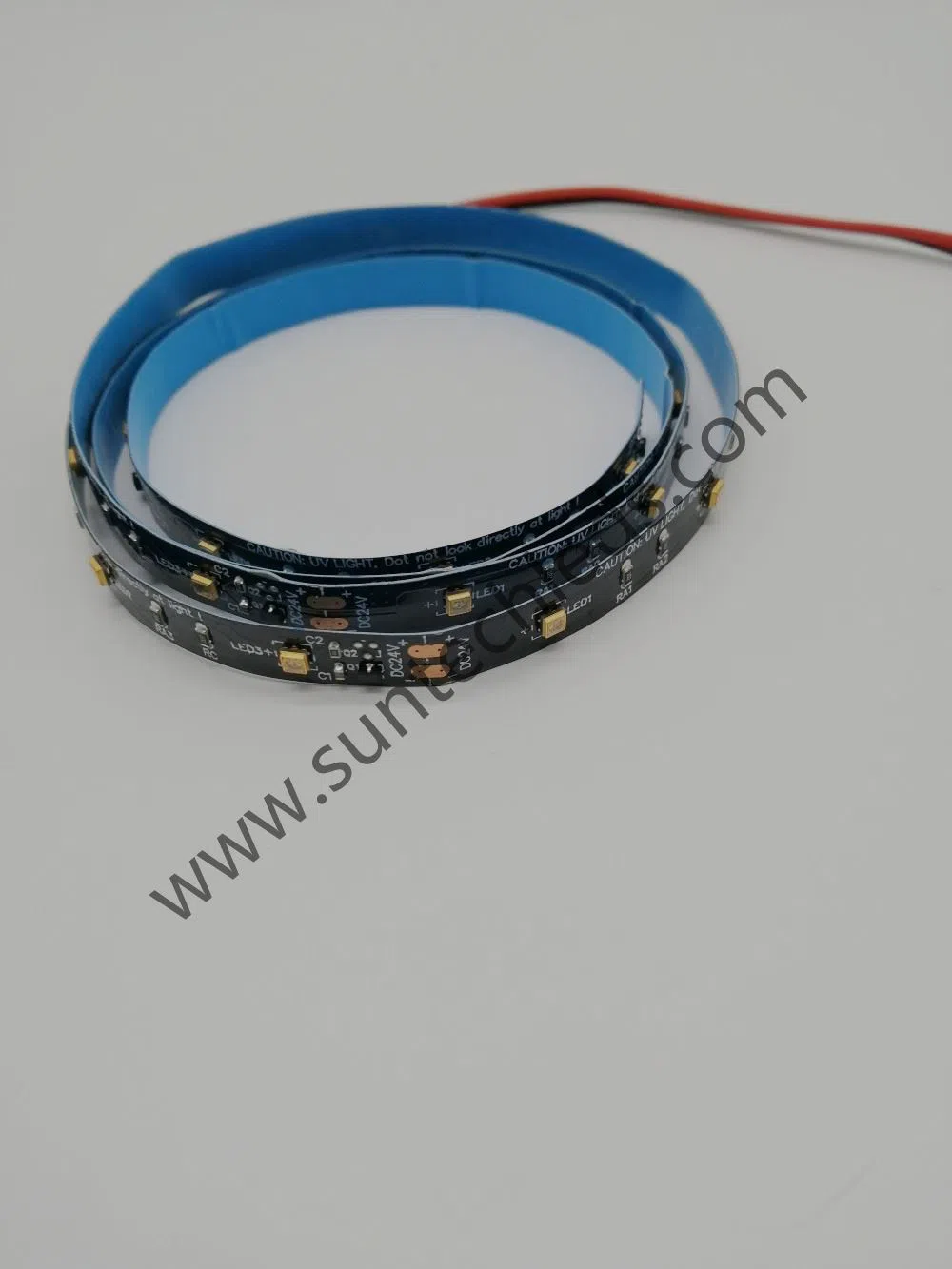

IMG_20200512_175223

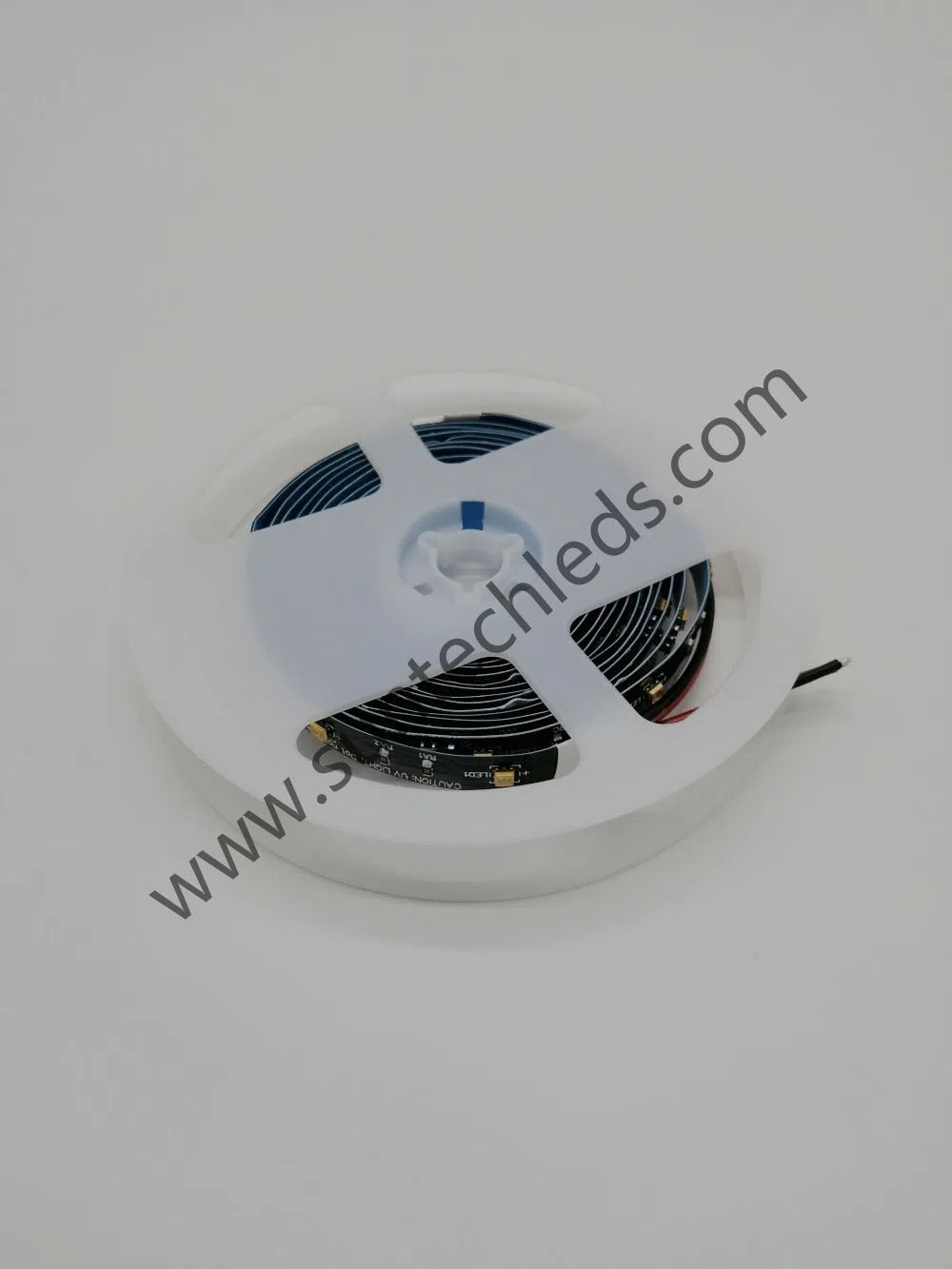

IMG_20200512_174135

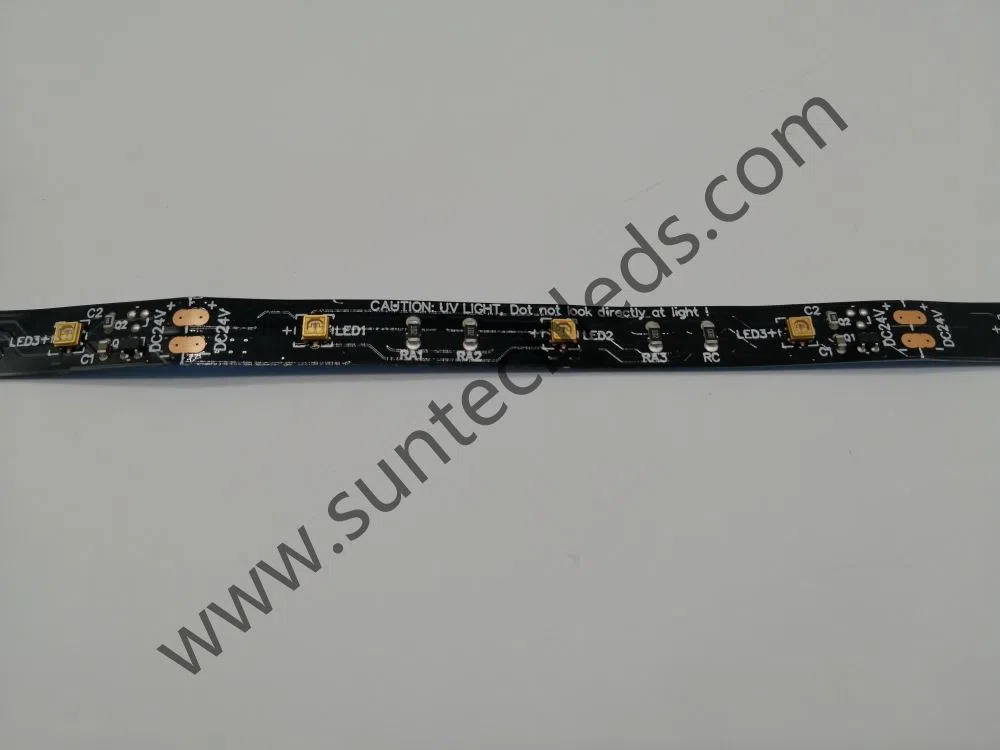

IMG_20200512_175543



Attention when use the UVC Led strip light for sterilization flexible disinfection tabe 265-278nm

1. Pay special attention: UV lamps, please do not look directly at the light source with the naked eye! Test please wear special goggles!

2. Please read the product instructions carefully before the product is installed and used

3. The power output must be DC24V

4. The product is lightly put, to avoid damage to the product, please hand over to  professionals to install and repair, maintenance

5. When wiring must cut off the external power supply, to prevent people from touching or  damage the lamp, the product must be installed after the installation before powering

6. It is forbidden to press the surface of the LED

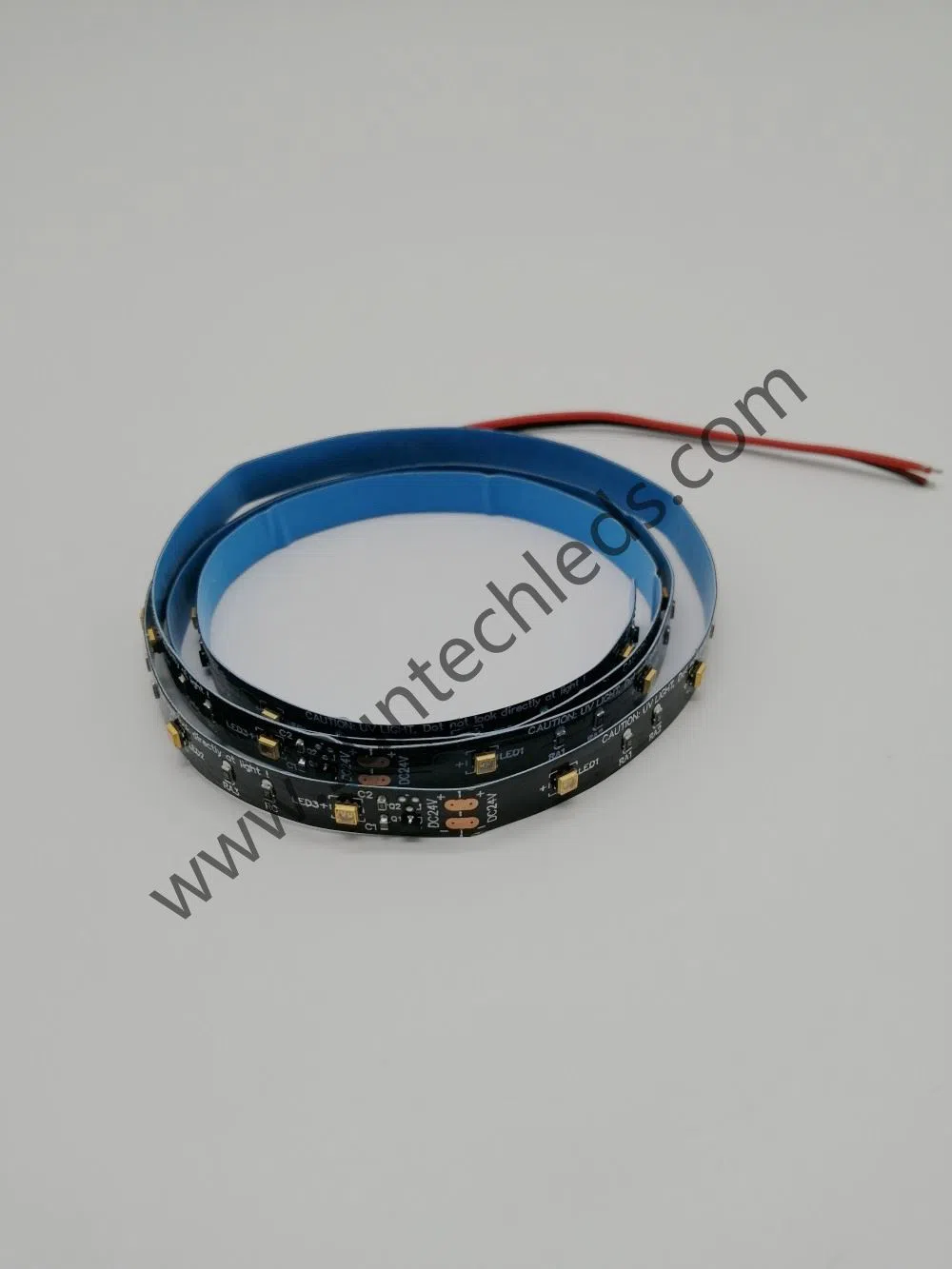

IMG_20200512_175216


For more details, please check the product specification.30leds UVC DC24v strip light - Suntech.pdf
