Flexible UVC Led Strip Light Disinfection Module For Surface Sterilization Air Purification

Flexible UVC Led strip light disinfection module

Availability:
Flexible UVC Led Strip Light Disinfection Module For Surface Sterilization Air Purification
Flexible UVC Led Strip Light Disinfection Module For Surface Sterilization Air Purification

Flexible UVC Led strip light disinfection module for surface sterilization air purification

Features

Item No.: STSN-60UVC3535

Light Source: UVC LED chip

Input Voltage: DC12V

Power Consumption: 32W/m

Wavelength: 265~278nm

Dimensions: 1000mm*25mm

Beam angle: 120 degree

Radiant Flux: 300mw/m

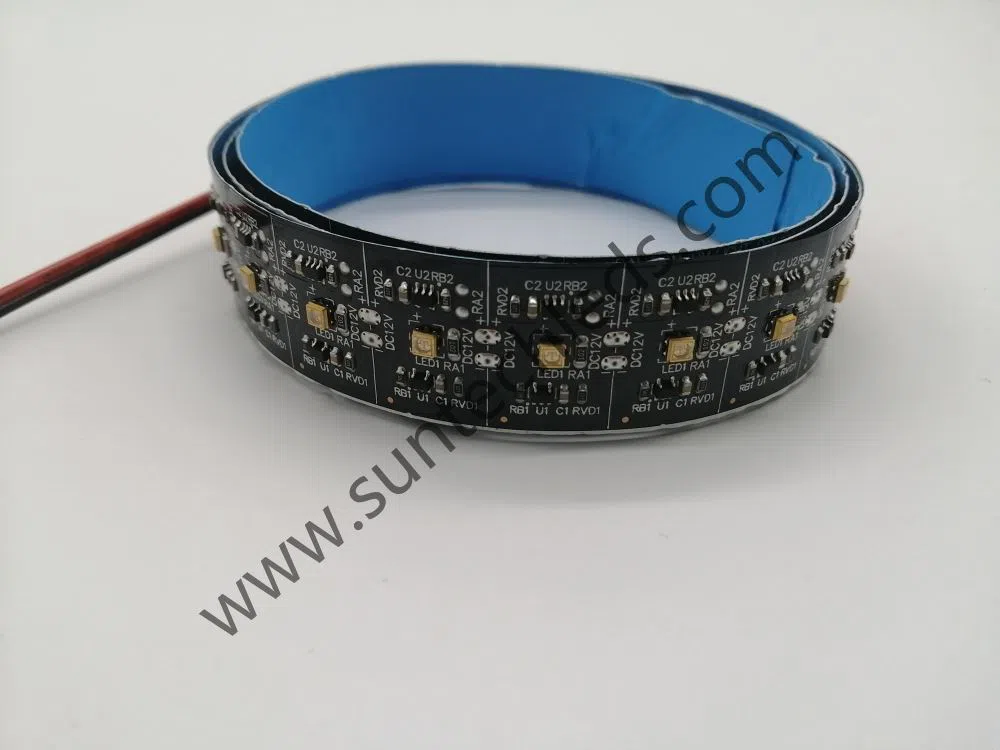

IMG_20200521_143739

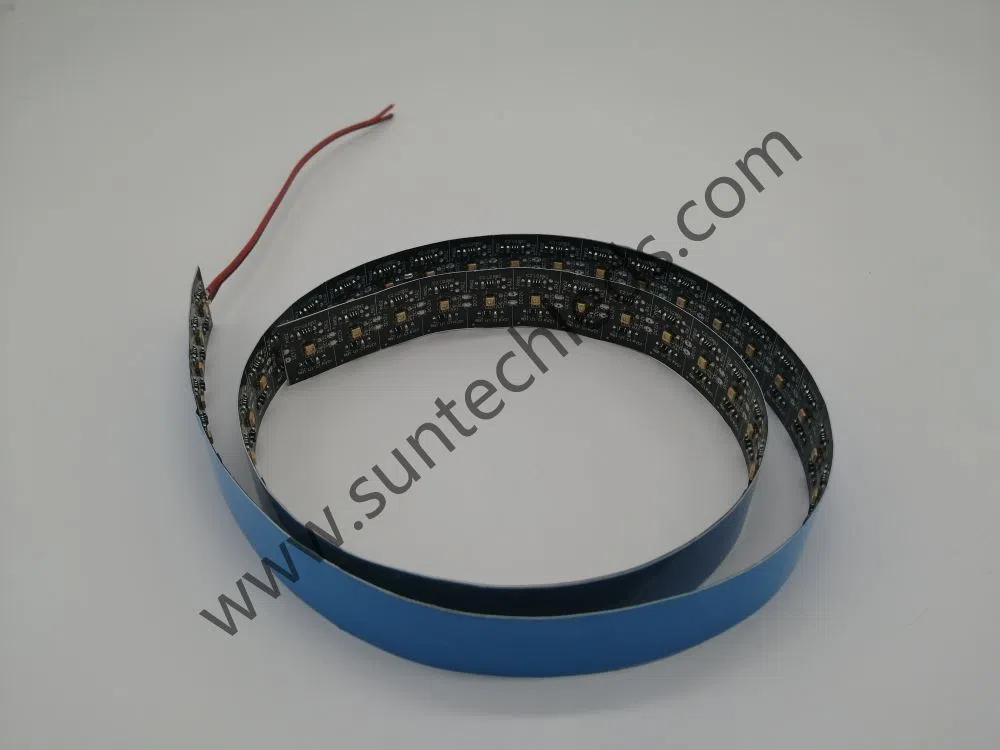

IMG_20200521_144543


Structure of Flexible UVC Led strip light disinfection module for surface sterilization air purification

1. 60 pcs UVC LED chip Per meter

2. Good stability, CE & RoHS approved

3. Flexible PCB 3oz thickness

4. Genuine 3M tape or good heat dissipation function blue tape

5. DC12v input , safe installation

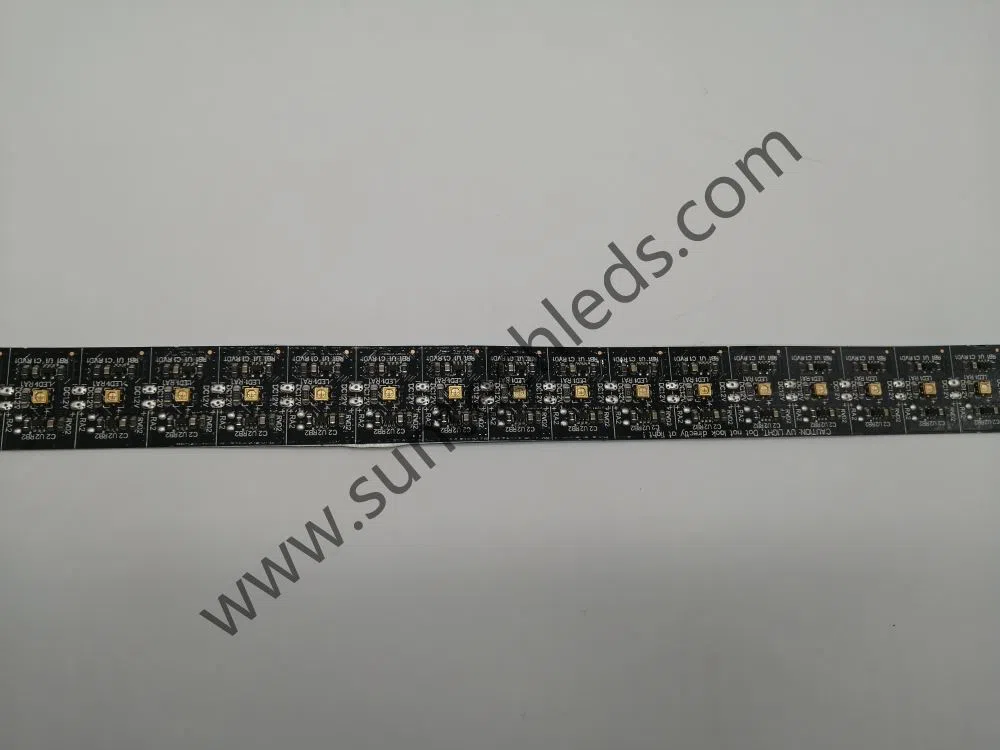

IMG_20200521_144021

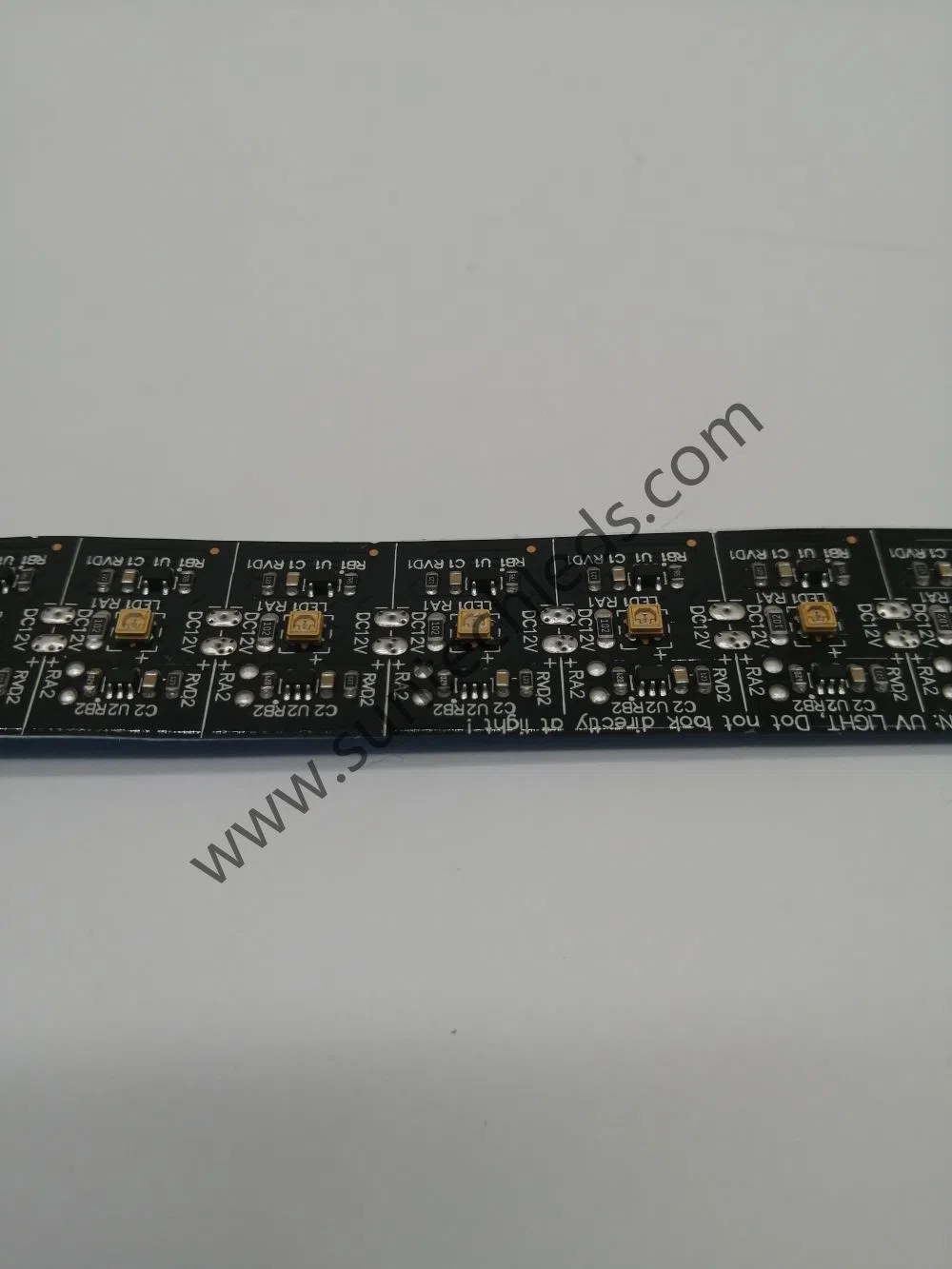

IMG_20200521_144055

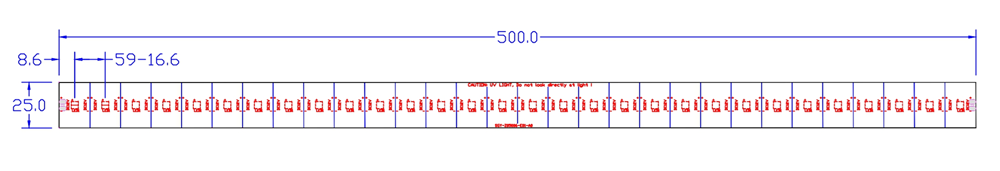

UVC LED Strip Size

UVC LED Strip Size

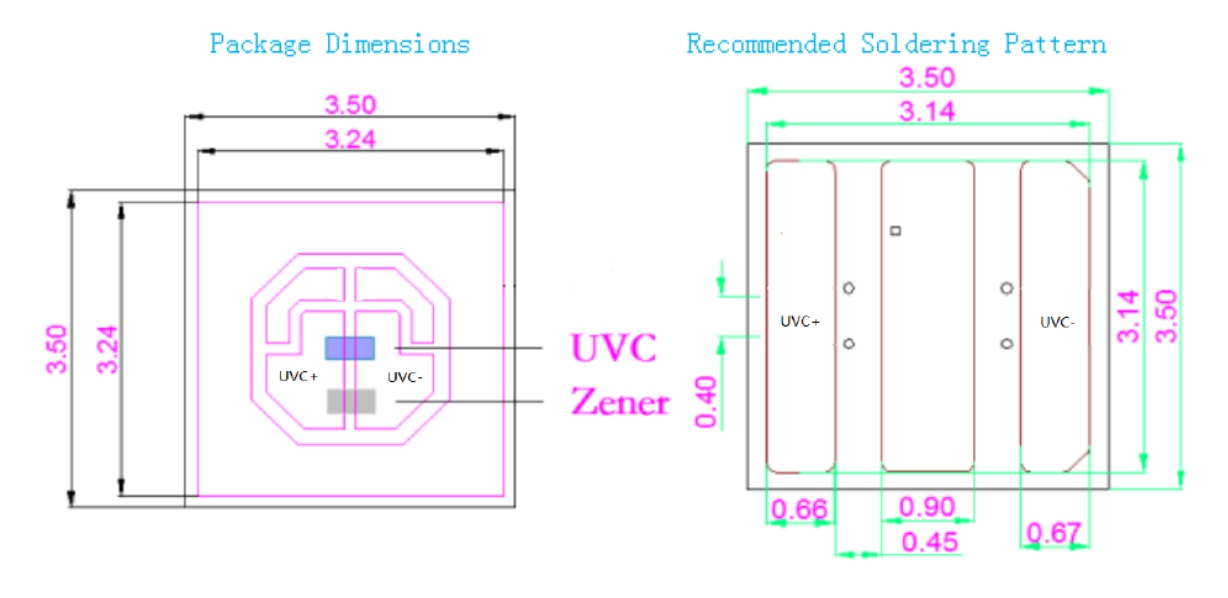

UVC LED Chip information

UVC LED chip information

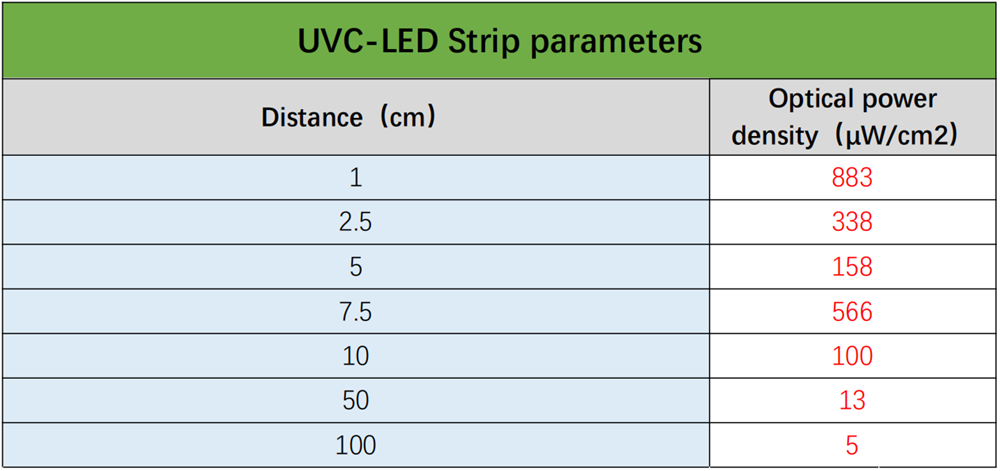

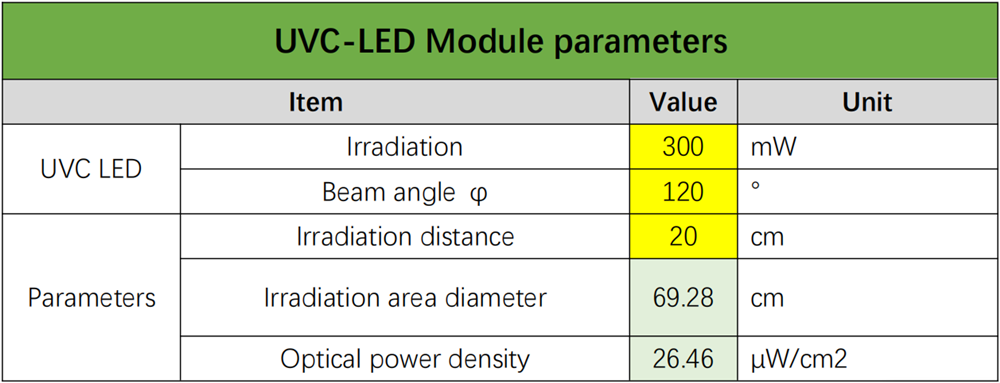

Technological Parameters

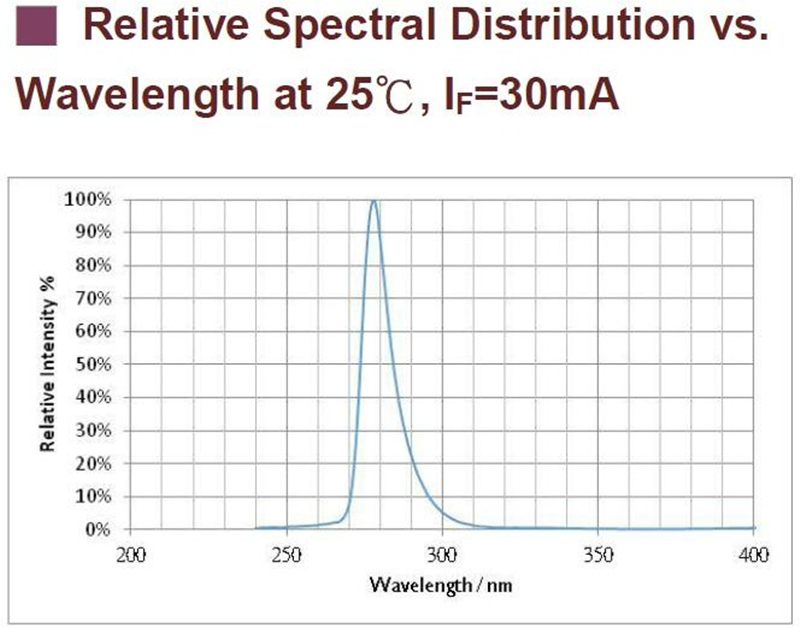

wavelength

01

02

Application of flexible UVC Led strip light disinfection module for surface sterilization air purification

Widely used in packaging containers, bottles, bottle cap sterilization, food surface sterilization, food production lines, cosmetics production line air sterilization, sewage, drinking water disinfection. Oral treatment examination, dermatological treatment, environmental surface anti-virus, air disinfection. The sterilization effect in a short time can reach 99.9%.

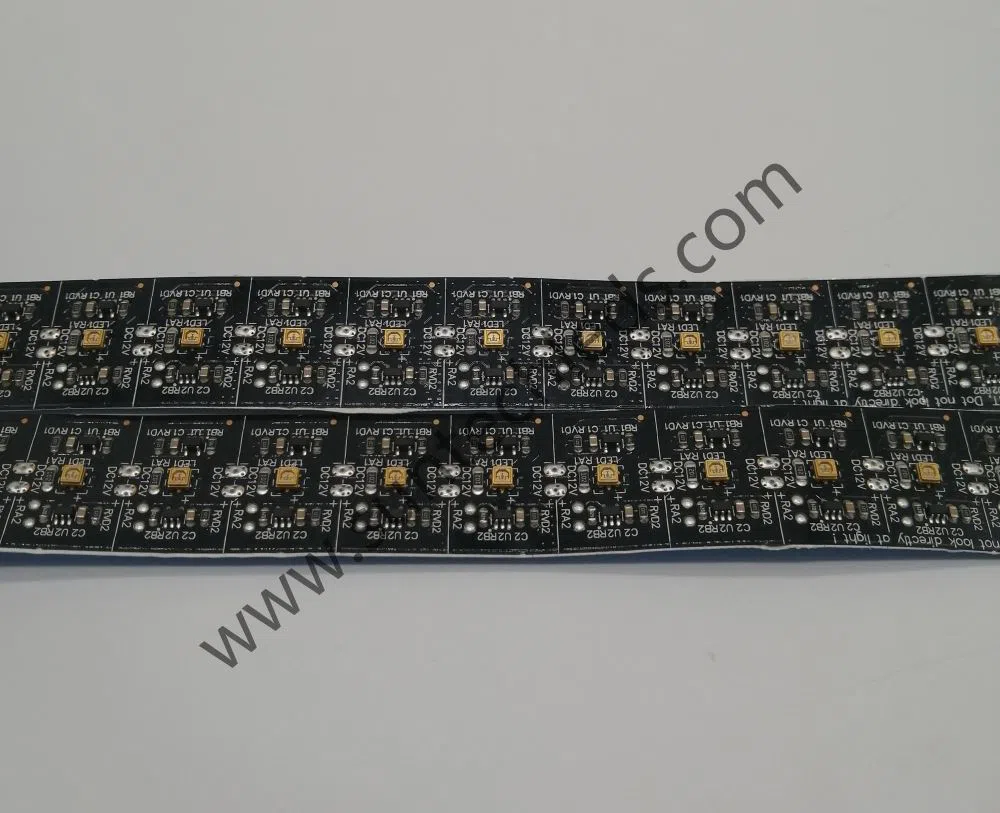

IMG_20200521_1458114

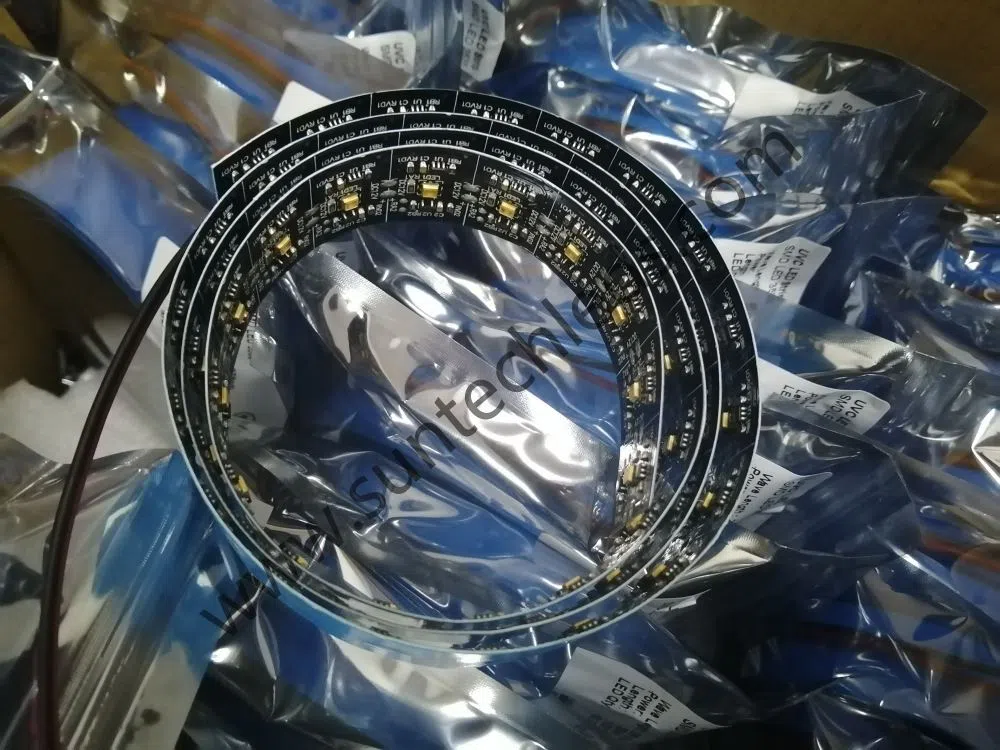

IMG_20200519_230450



For more details, please check the product specification.60leds DC7V13 UVC strip light - Suntech.pdf
