English
 |

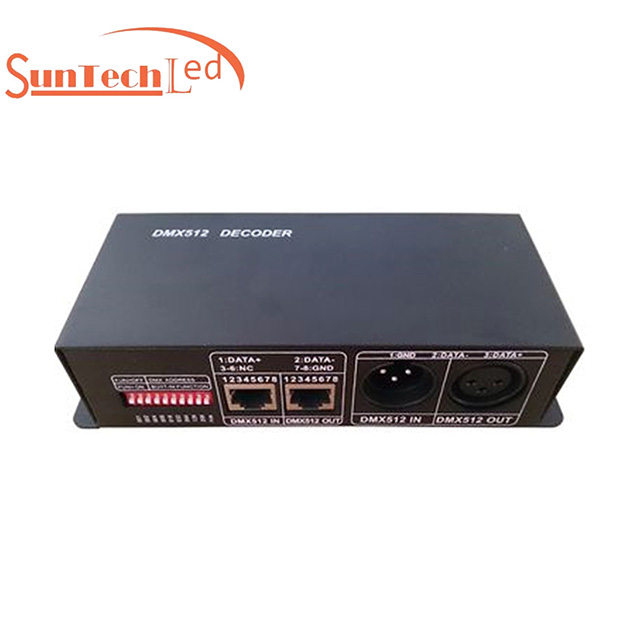

l Protocol: DMX512 protocol
l Input: RS485 differential signal input
l 0~100% dimmable, 1024 gray levels, refresh frequency is 500HZ
l Input voltage: DC 6V~DC 24V

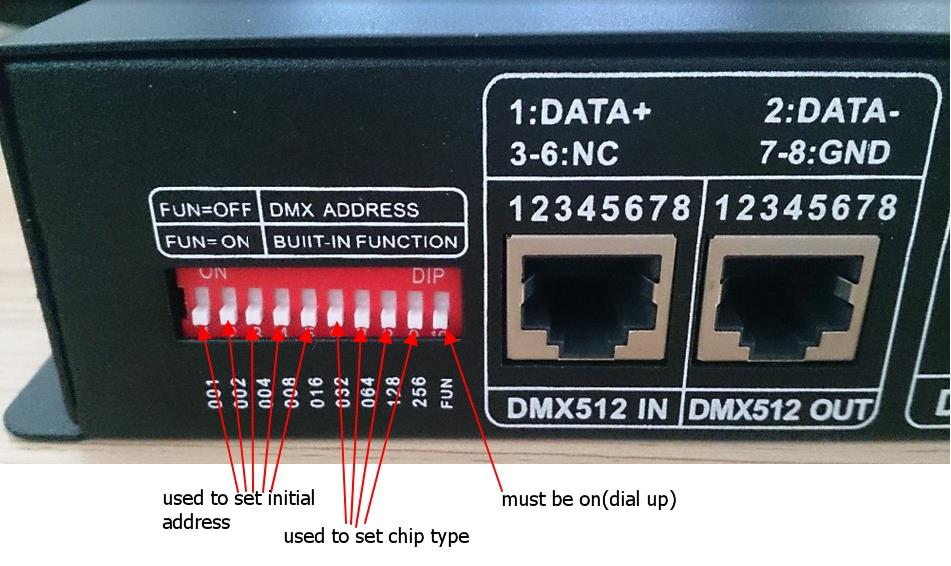

l The beginning fifth switches(from left to right) are used to set initial address, unit is 8, that is to say, value 0 corresponds initial address 1, value 1 corresponds initial address 9, value 2 corresponds initial address 17......, value 32 corresponds initial address 256
l Controllable chips: the sixth to ninth switches are used to set the chip type, H805DMX controls maximum 170 pixels.
l type, H805DMX controls maximum 170 pixels.
Status of switch 6 to 9 | Chip type |
| LPD6803、UCS6909、UCS6912、APA101、D705 |
| LPD8806 |
| WS2801 |
| P9813 |
| TM1812、TM1809、TM1804、UCS1903、UCS1909、UCS1912、WS2811、INK1003 |
| LPD1882、LPD1889 |
l Port Definition
