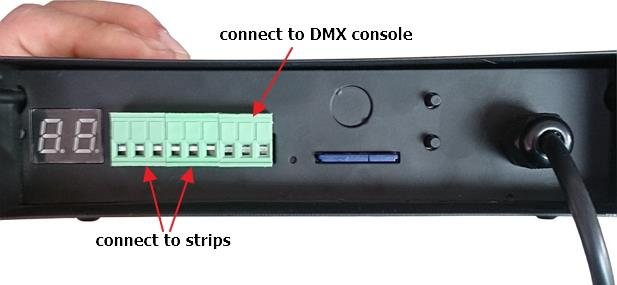

H807SC has two output ports and can be connected to DMX console. H807SC can control single line, double lines, three lines and four lines LED driver chips. Drive a maximum of 4096 pixels.
1. DMX console LED controller Introduction

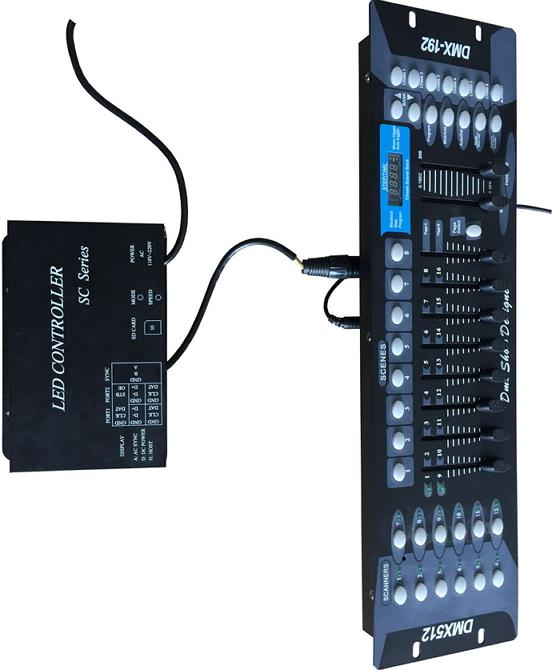

H807SC has two output ports and can be connected to DMX console. H807SC can control single line, double lines, three lines and four lines LED driver chips. Drive a maximum of 4096 pixels.
Auxiliary software is “LED Build Software”.
2. Support driver chips
LPD6803, LPD8806, LPD6813, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886; UCS6909, UCS6912, UCS1903, UCS1909, UCS1912; WS2801, WS2803, WS2811, WS2812; TM1812, TM1809, TM1804, TM1803, TM1829, TM1913, TM1914, TM1926;LX1003, LX2003, LX2006, DMX512, HDMX, APA102, P9813, DZ2809, INK1003, TLS3001, TLS3002, SM16711, SM16716, SM16726, LD1510, LD1512, LD1530, LD1532, MBI6021, MBI6023, MBI6024, etc.

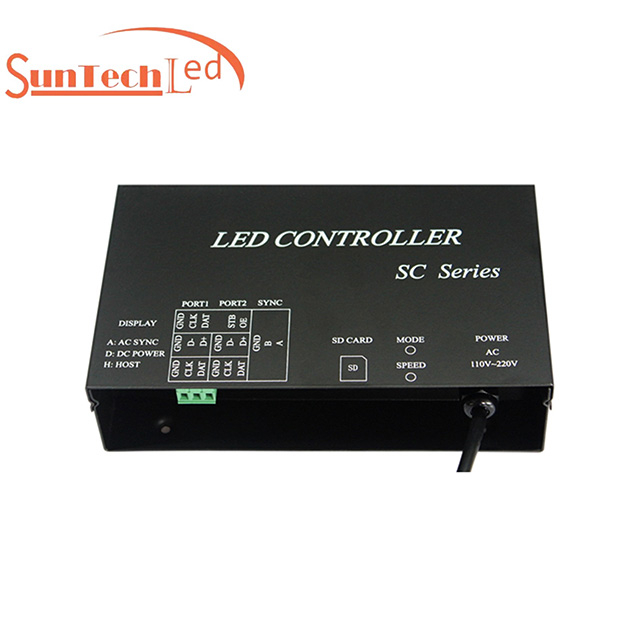

3. Product Display
4. DMX console LED controller Specifications
Input Voltage | AC110V or 220V |
Power Consumption | 1W |
Control pixels number | 4096 |
Weight | 0.7KG |
Working Temperature | -20C°--85C° |
Dimension | L180 x W126 x H46 |
