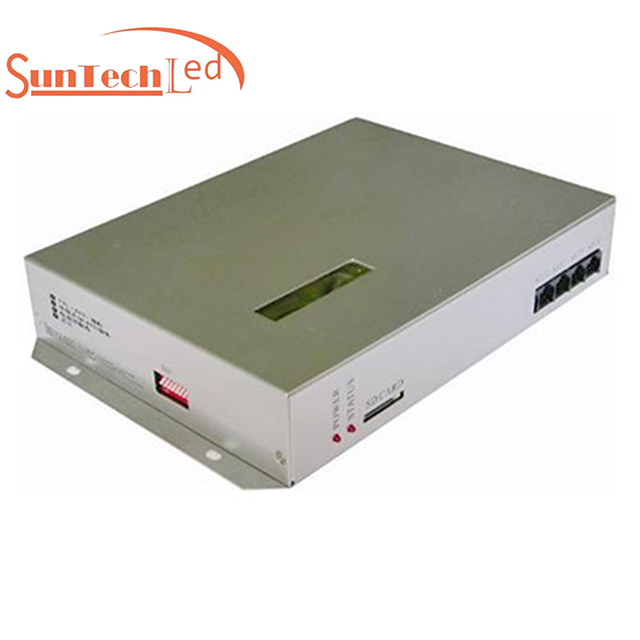

T-300K Controller For DMX WS2811 LPD6803 LED Strip

T-300K controllelr support online download and SD card files control.With 8 ports output, each port can support 512-1024 pixels.

Availability:

Specific parameters

   Memory card:

        Type:      SD card (if controlling so many lamps it is best to use the high-speed SD card).

        Capacity:128MB—2GB

        Format:   FAT

        Store file:*.led



Physical parameters

        Working temperature:   -30℃—85℃

        Weight:                       1.35KG

        Working voltage:          AC220V

        Working power:            8W

        Size:                            L270mm×W180mm×H55mm

        Signal port:                  3pin connect port

NOTE:

1. T-300K Support online download the effect-file to SD card.

2. Before copy files to SD card, the SD card must be formatted as FAT format.


T-300k System features

A. 32--256 grade Gray level,Support software Gamma correction.

B. Support the rules and special-shaped handle.

C. 8 ports output,one port can support 512-1024 lamp pixels.

D. On-line (also can SD Card) control, offline control Can be multiple controllers used in combination, the contents of the line control program stored in the SD card.

E. Compatible with single line or double line chips.

F. If the controller to the lamps distance can choose photoelectric isolated transmission and as far as several distances of up to 200-300 M.

Note:

1. The T-300 K controller offline control, each machine controller must put a SD card.

2. 2012 Edition T-300K controller can only be combined with the new version software LedEdit2012. Using the old software does not support the new version of the controller, the new version of the controller has been printed the Chinese sign.


Support chips

Support chips

Software code&

Controller type

Lamps/(MAX)

NOTE

LPD6803,D705,1101,6909, 6912

T-300K-6803

8192

32 grade gray level

LPD8806,LPD8809

T-300K-8806

4096/8192


TM1803,TM1804,TM1809,TM1812

T-300K-TM

4096/8192

TM1804&TM1809 Divided into high speed and low speed

TM1903,TM1904,TM1909,TM1912

T-300K-TM19

4096/8192


UCS6909,UCS6912,UCS7009,UCS5903

T-300K-UCS32

8192


UCS1903,UCS1909, UCS1912

T-300K-UCS256

4096/8192

Divided into high speed and low speed

UCS3903

T-300K-UCS1024

4096/8192


DMX512

T-300K-DMX

1360/4096

Compatible with standard DMX512

WS2801,WS2803

T-300K-WS

4096/8192


WS2811

T-300K-WS2811

4096/8192

Divided into high speed and low speed

DS189

T-300K-DS189

4096/8192


TLS3001,TLS3002, TLS3008

T-300K-TLS

4096/8192


P9813

T-300K-P9813

4096/8192


SM16715

T-300K-SM16715

4096/8192

Divided into high speed and low speed

SM16716

T-300K-SM16716

4096/8192


BS0901,BS0902

T-300K-0901

4096/8192


BS0815

T-300K-0815

4096/8192



If you are looking for the DMX LED lighitng controllers, please click here: DMX RGB controller


Application scope

LED digital tube, LED point light source, the exterior light and a module, pixel screen (dazzle colour screens), high power DMX lighting.

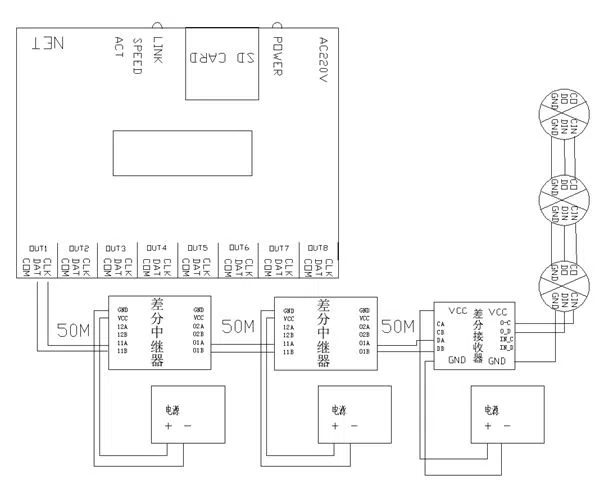

Mode of connection
