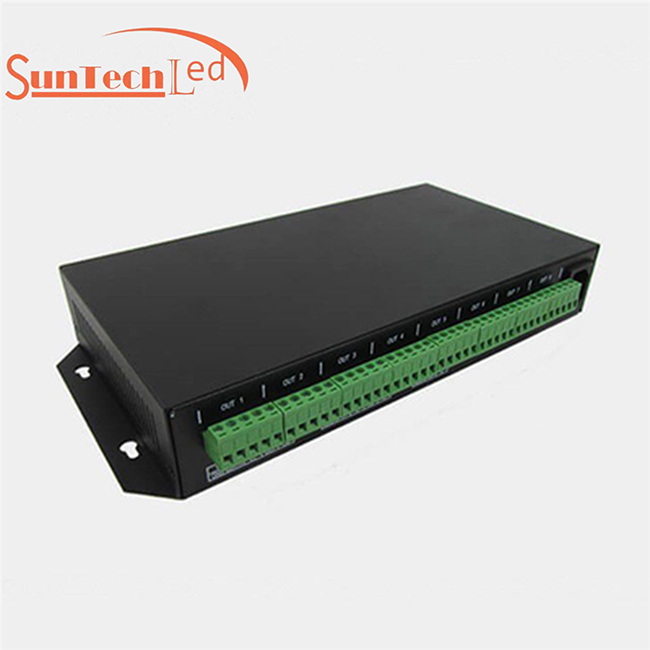

1. Controller's output support standard USITT DMX512/1990 Universal Protocol and expand DMX512 Protocol.
2. Controller signal output ADRI/PO terminal can achieve DMX512 channel automatic addressing，Support DMX512AP-N / NB, UCS512, MY7221, WS2821 and other driver chips.
3. MR-218DW Controller addressing signal output compatible differential signals output，Improve the addressing signal transmission distance， in favor of the project application for long distance transmission and effective addressing.
4. Three-primary-color independent brightness control, which realize simple, effective and accurate adjustment of white balance.
5. Precise gamma correction algorithm. It better conforms to the visual photographic characteristics of the human body, and the display color is more sufficient and rich, so as to perfectly reflect the animation or video effects of the designer.
6. Support 120-frame frequency maximum, to guarantee demands for HD display and 3D display of the image.
7. Adopt Ethernet interface and UDP network protocol, to guarantee stable transmission, the maximum transmission distance is 100m.
8. LCD display module, to timely display the controller parameters and state.
9. Dual-network interface, which can realize cascade connection between controllers and automatic inspection of the controller, and the connection status is displayed intuitively through the software.
10. 8-port output, single port output is standard 512-channel, expand protocol load points by client basis chip characteristics self-testing.
11. Support dual-way backup, the display will not be influenced if a controller is broken or the network cable is disconnected.
12. Can set self-adapting 1000M / 100M or forced 100M, to guarantee stability of large project.
Rated voltage | AC100V ~ 240V |
Rated power | 15W |
Length | 283mm |
Width | 134mm |
Height | 45mm |

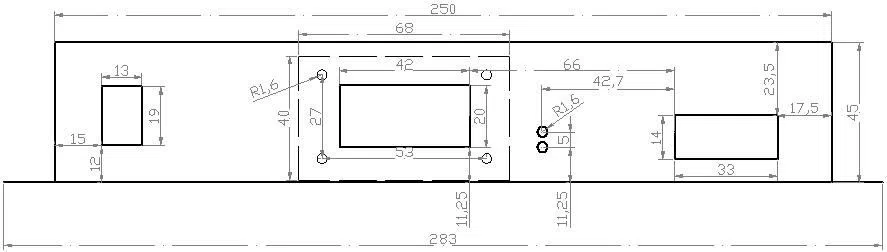

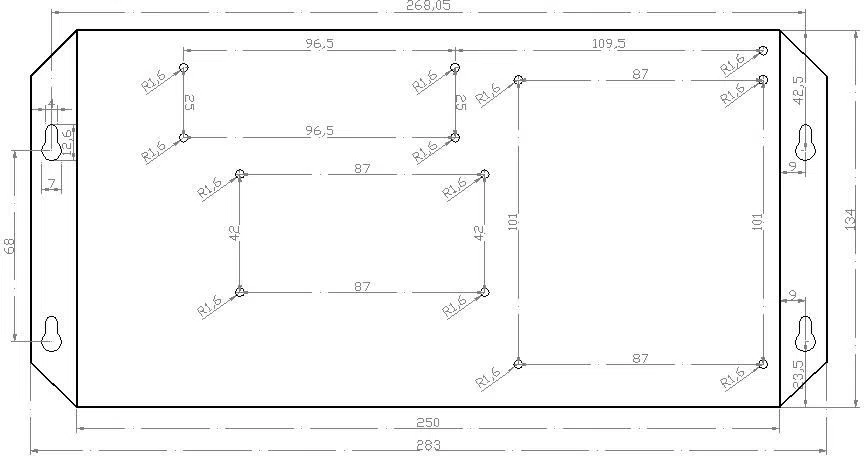

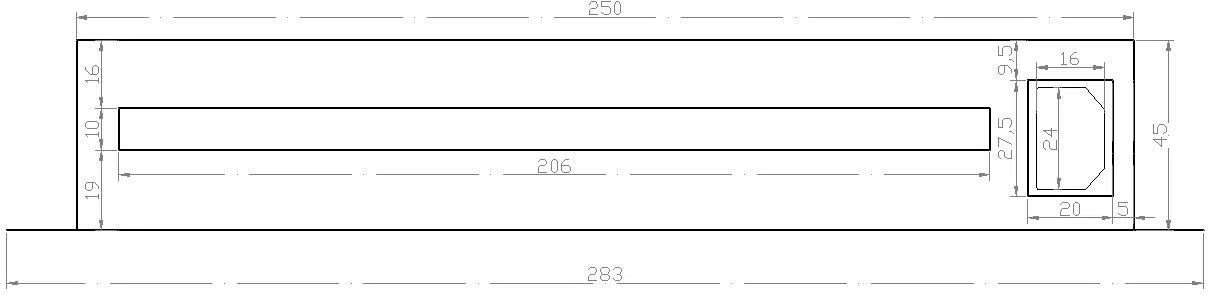

Spacing of fixing holes | 268mm；68 mm |
Standard accessories | AC power cord ×1 |
* MR-218DW controller is suitable for pixel dot light, LED mesh light, DMX LED bar light, and DMX LED strip light.
Looking for more DMX LED lighting controllers? Please click: DMX pixel controller
① | ② | ③ | ④ | ⑤ | |
DMX Signal | Ground | Data+ | Data- | Addressing - | Addressing + |
GND | A | B | ADRI/PO- | ADRI/PO+ |

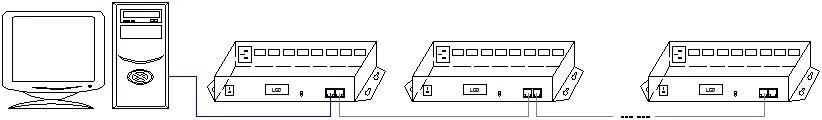

MR-218DW Controller connect with the computer Ethernet port，as shown below：

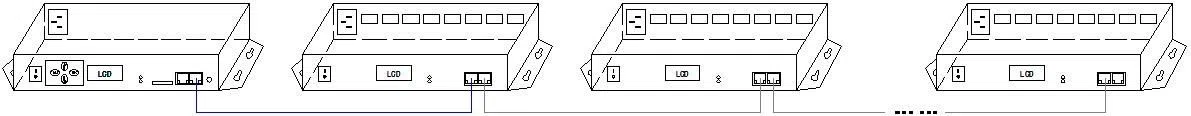

MR-218DW connect with the offline master controller，as shown below：

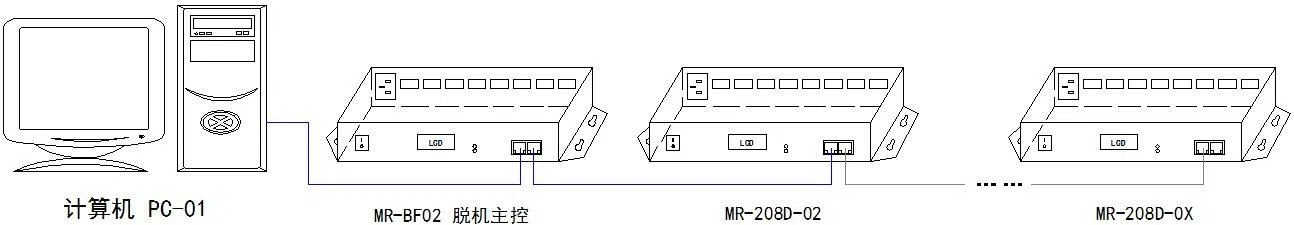

Connected with the computer and offline master controller (when the mode is selected, the computer on-line works in priority, and the offline effect is automatically switched to without online signal)， as shown below：
For more product information, please download the specifications.
MR-218DW.pdf
and other addressable LED lights control.
1. Controller output port to the lamp if the distance is too far，Recommended for the use of 485 dedicated lines or Cat.5e kind shielded cable connection，the best connection way is： Orange-A；Orange white-B；Green-addressing+（ADRI/PO+)；Green white-addressing-(ADRI/PO-); Other connect to GND（Ground）
2. At the end of each road signal that is between A and B to add a 120R terminal resistance.
3. Do not connect the two wires that are intertwined to receive the signal, such as orange.
MR-218DW Controller using metal case, rated supply voltage is AC100V-240V. Therefore, it is necessary to ensure the effective grounding of the controller equipment and the effective grounding of the metal outer box.
And the output port of the controller is exposed to the metal contact surface，therefore, according to the requirements of safety regulations，to ensure safe use of the operator， signal output port GND signal must be effectively grounded.
