T-700K LED Strip 6144 Pixels RGB Sub Controller XB-Z2

Product Code: T-700K Sub Controller Can be used with XB-Z2

Availability:
T-700K LED Strip 6144 Pixels RGB Sub Controller XB-Z2

T-700K system features

(1) 32 to 65536-grade gray control, software Gamma correction processing.

(2) Supports various point, line and area light sources, supports various rules, and special-shaped processing.

(3) The master control and the sub-control are adopted, and the play effect is stored in the SD card of the main controller (offline player). In the same project, only the need to insert the card in the master control is ok, the sub-control has no need to insert the card, and it is more convenient to switch the effects.

(4) Single master (offline player) with a maximum load of 60 sets sub-control or maximum load of 160,000 pixels points; communication between controllers using international standard TCP / IP network protocol, transmission speed is more stable and fast, every two The maximum transmission distance between the controllers can reach 100 meters, beyond which the switch can be used or the fiber can be used for long-distance transmission.

(5) Each sub-control has 8 ports, each port can support a maximum of 768-pixel lights, and the main control does not have a light.

(6) The sub-control test function, selects the lamp-loaded IC by adjusting the button and comes with 3 kinds of test programs (the built-in effect defaults to 3 channels).

(7) The main control manually numbers the sub-controls, and the sub-controls manually number the sub-controls.

(8) When carrying DMX lamps, the master can perform one-click address writing for all the sub-control lamps. For details, please refer to the one-click address function of our 2019 LedEdit-K V4.6 and later software.

(9) Enhanced TTL and 485 differential signal output, compatible with single, dual-line, and DMX IC controllers, when connected to single-line IC lamps, no need to connect CLK clock line.


Support chips: (software edition select T-700K )

Support chips software edition select T-700K


For more technical parameters and operations, please see and download the T-700K Operation  Manual

T-700K-Operation-manual-suntechleds.pdf


Product schematic diagram

T-700K Product schematic diagram 1

T-700K Product schematic diagram 2

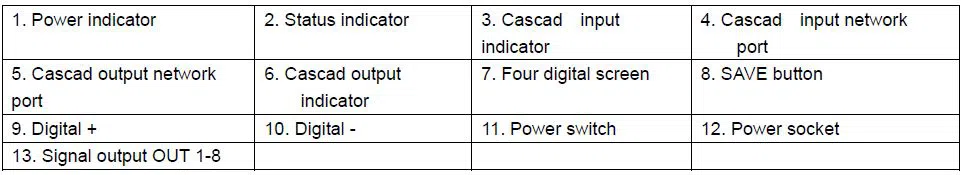

T-700K Product schematic diagram 3


Wiring diagram

(1) Single mater control offline

Single-mater-control-offline


(2) Multiple master control wireless cascades

Multiple-master-control-wireless-cascades

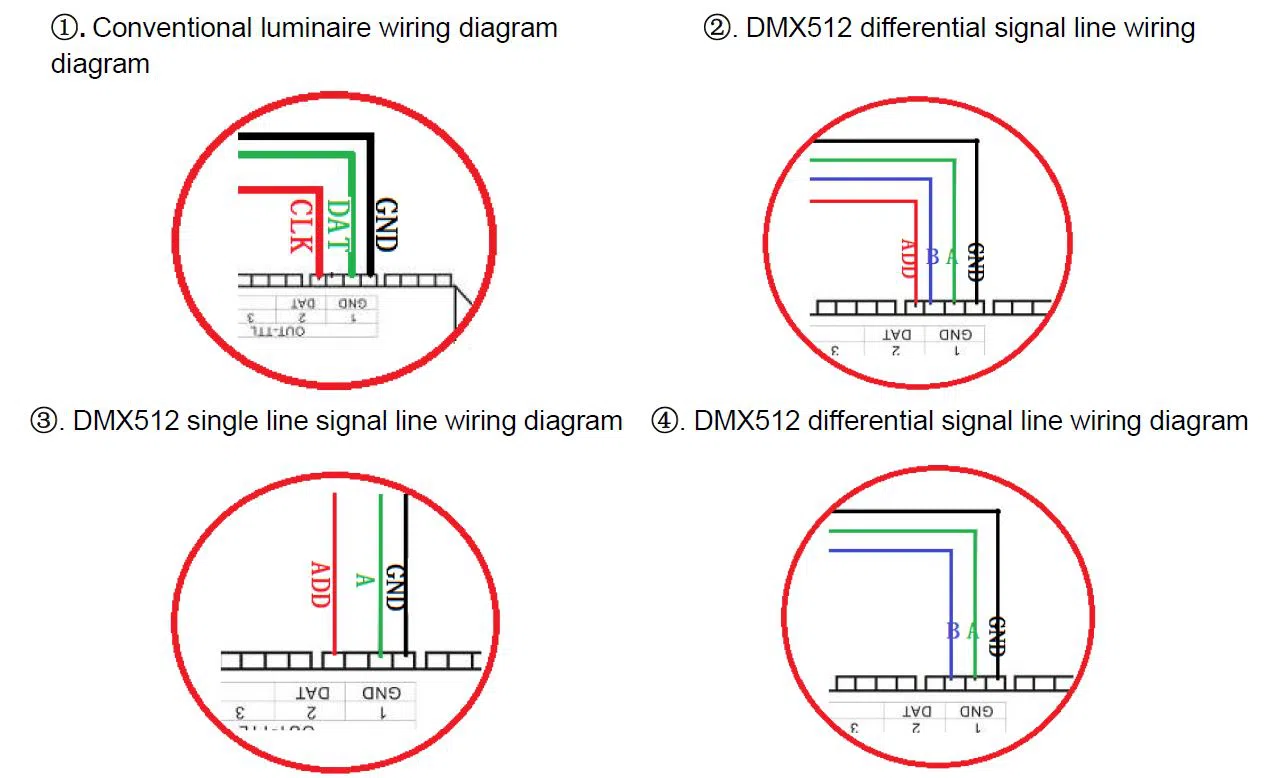

(3) Controller signal output port wiring diagram

Controller signal output port wiring diagram


Physical parameter

Working temperature: -30 ° C - 85 ° C



Working power: AC100-240V input



Power consumption: 5W



Output type: 4pin terminal block



Appearance size: L257MM * W140 * H40MM



Weight: 1.5Kg with outer packaging (4pin terminal block *8; power cord *1; paper box *1)

Physical parameter


Installation Precautions

Between controller and controller uses super five types of network cables or above. The maximum cascading is 80-100 meters. Over this distance, the switch can be added or the fiber can be used for long-distance transmission.

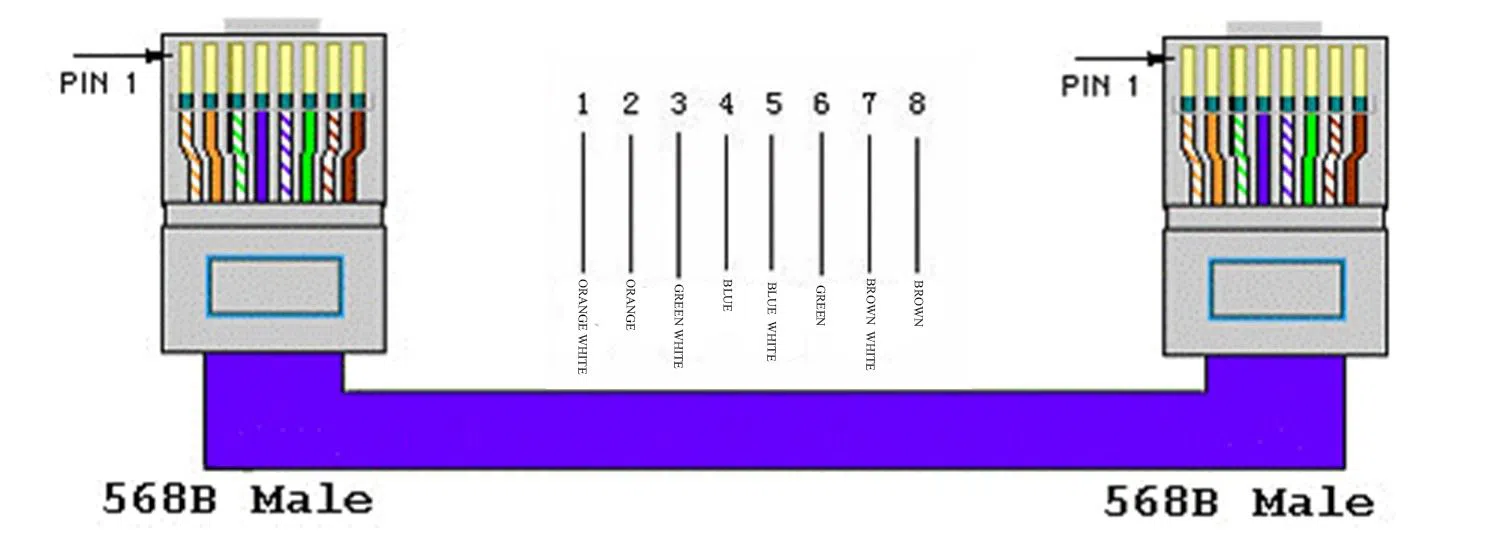

Network cable crimping method is 568B straight through

Installation-Precautions
