Addressable Led Strip Controller

Addressable LED strip controller ST801RC is a slave controller that transmits data based on Ethernet Protocol, data is input from mater controller or computer to NET1 and output from NET2. ST801RC has eight output ports and drives maximum 8192 pixels, and can be connected to computer or master controller.


1.Software supported for this controller

Offline auxiliary software is “LED Build Software”; online auxiliary software is “LED Studio Software”.

2.Different digital LED strip IC supported

 LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, P9813, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

3. Performance
(1). Eight output ports drive maximum 8192 pixels. Pixel number that each port can drive is 8192 divided by number of using ports. Port number could be one, two, four, or eight.(means you can choose “one slave with a line”, “four slave with a line”, or “eight slave with a line” in LED Build Software)
(2). Working online or offline, ST801RC can be connected to computer, master controller, switch or photoelectric converter.
(3). High synchronization performance, transmission delay of adjacent slave controller is less than 400 ns, image has no tearing or mosaic phenomenon.
(4). Good control effect, gray scale is under precisely control.
(5). Far transmission distance. Data transmitted based on standard Ethernet protocol and the nominal transmission distance between adjacent controllers is up to 100 meters.

(6). Clock scanning frequency is adjustable from 100K to 50M Hz.
(7). Using gray scale and inverse gamma correction technology to make actual displaying effect more consistent with human physiological sensation.

4. Operation Instruction

(1). Connect Net1 to the network interface of a computer or a master, and Net2 to Net1 of next ST801RC.

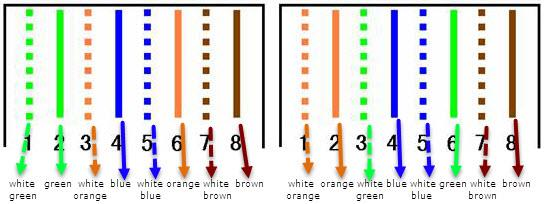

(2). Crossover network cable is recommended in engineering. The following is the wiring sequence.

(3). When setting sculpt, you can choose “one line with a slave”, “four line with a slave”, or “eight line with a slave”. Line number is port number.



(4). There are two indicator lights besides the network interfaces, the upper one is green NET, which will flash when ST801RC detects data from network cable, the below one is red ACT, which will flash when controller output data to lamp. Flash frequency is effected by data transmit speed.

(5). When ST801RC is connected to computer, don’t choose “obtain an IP address automatically” but choose “Use the following IP address”, enter an IP address as follows, Subnet mask is, remember check “validate setting upon exit”.

5. Ports definition

6. Connection Diagram

7. Addressable LED strip controller Specifications

Input Voltage


Power Consumption


Drive pixels




Working Temperature



L189 x W123 x H40

Installation Hole Distance


Carton Size

L205 x W168 x H69
