Specific parameter
Memory card:
Type: SD card
Capacity: 128MB—32GB
Format：FAT or FAT32 format
Storage files: *.led
Physical parameter:
Working temperature：-20℃— 85℃
Working power：DC 5V or DC 12-24V input
Power consumption: 5W
Weight: 0.8Kg

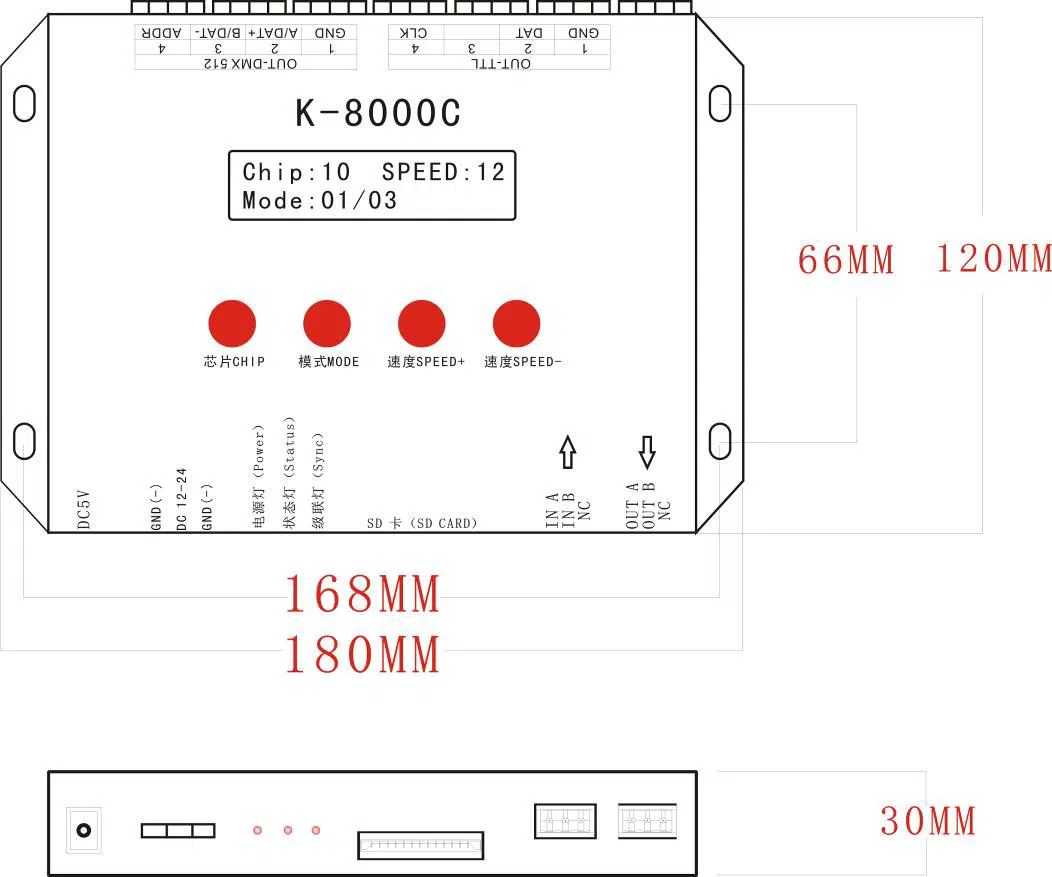

Size:

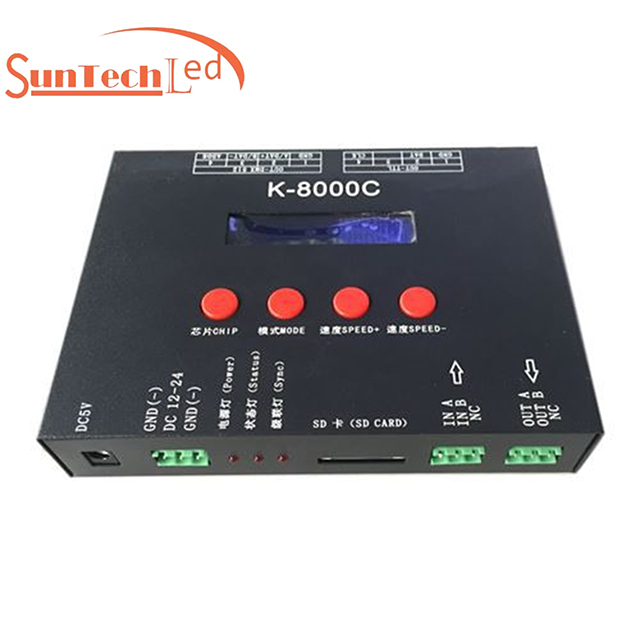

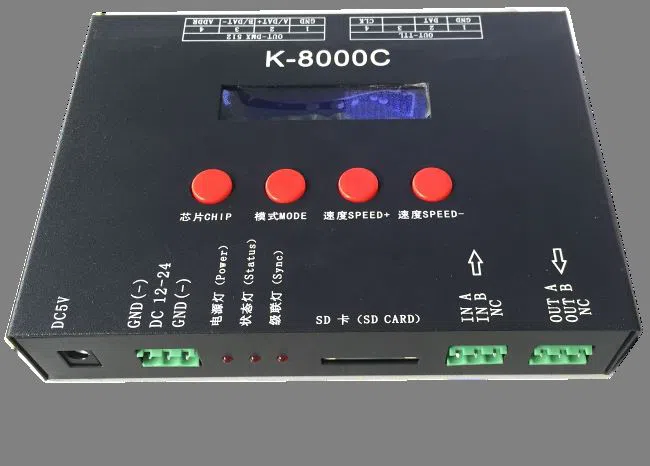

Features of K-8000C system
1. 32 to 65536 degree Gray control, Gamma correction procession handle.
2. Support various point, line light source, and all kinds of rules and specific shaped handle.

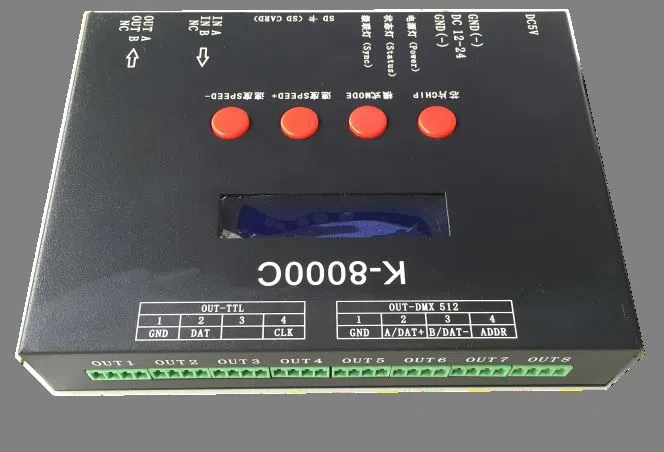

3. The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).
4. The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.
5. The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.
6. The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7. For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
8. Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
9. Enhanced 485 TTL and 485 differential (DMX) signal output.
10. The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.
Support chips
00: UCS1903,1909,1912,2903,2904,2909,2912; TM1803,1804,1809,1812; SM16703,16709,16712; WS2811; INK1003; LX3203,1603,1103;
GS8205,8206; SK6812（Support up to 1024*8=8192 pixels）
01：SM16716,16726（Support up to 1024*8=8192 pixels）
02：P9813（Support up to 1024*8=8192 pixels）
03：LPD6803（Support up to 1024*8=8192 pixels）
04：LX1003,1203（Support up to 1024*8=8192 pixels）
05：WS2801（Support up to 1024*8=8192 pixels）
06：LPD1886（Support up to 1024*8=8192 pixels）
07：TM1913（Support up to 1024*8=8192 pixels）
08：TM1914（Support up to 1024*8=8192 pixels）
09：P9883,P9823（Support up to 1024*8=8192 pixels）
10：DMX（Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels）
11：DMX 500K（Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels）
12：DMX 250K-CZF （Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels）
13：DMX 250K-CZF （Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels）
NOTES:
1.If support RGBW, four channels'lights should select K-8000-RGBW.
2.If support single channel light should choose K-8000-W, at this time, one channel means one pixel, the software effect make as white lighting.

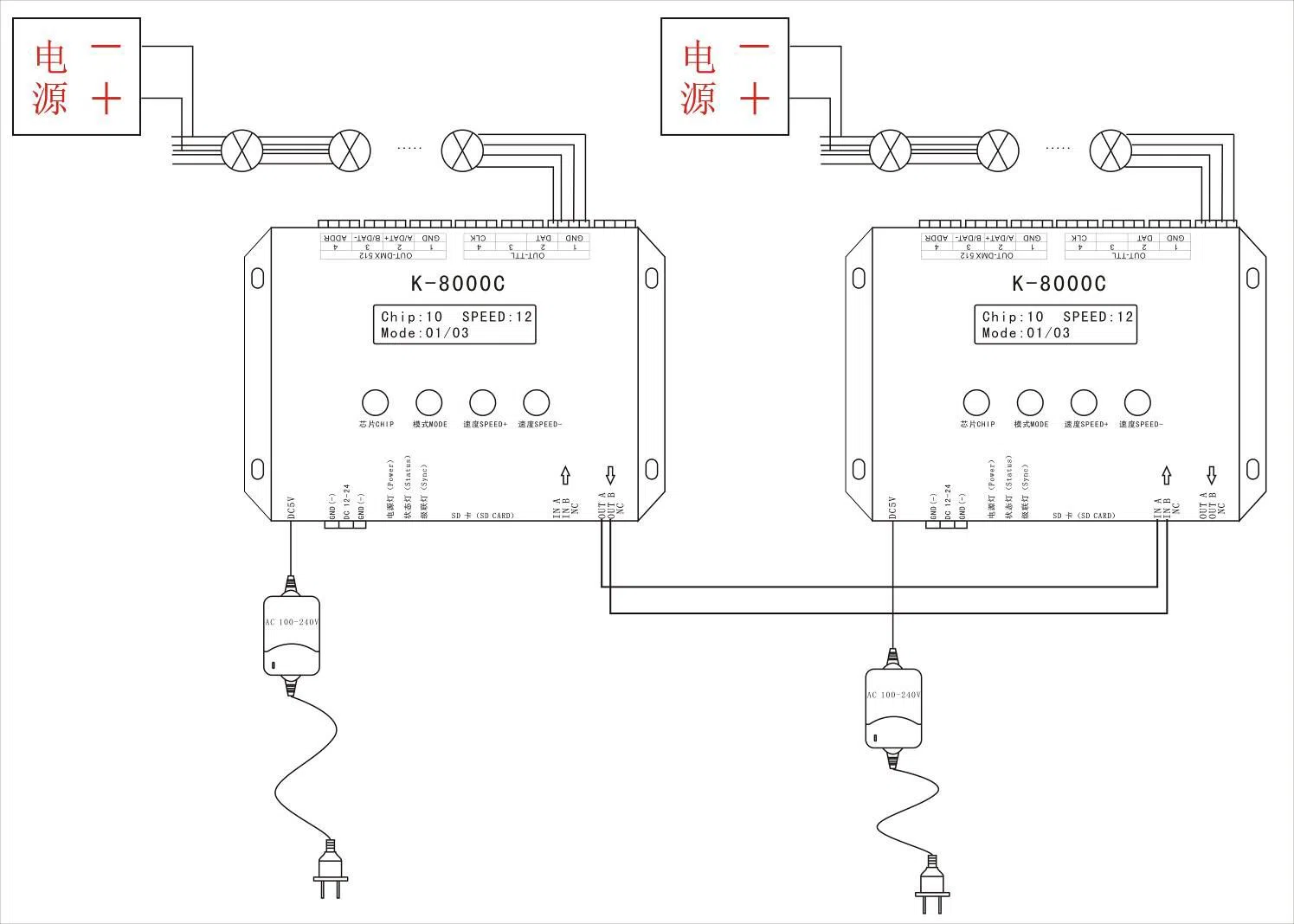

Conventional IC lamps wiring
Encryption Glossary Explanation
Password is OK | Password normal! |
Num | The remaining boot times |
Password exist | Password has existed |
Can't repeated | Can’t repeat set password |
Set Password OK | Password set successfully |
Clear Pwd OK | Clear password successfully |
Pwd not right | Password not correct |
No Password | Password don’t exist |
Has expired! Contact factory | Password expired, please contact the factory! |
To know more about the controller, please see the specification.
