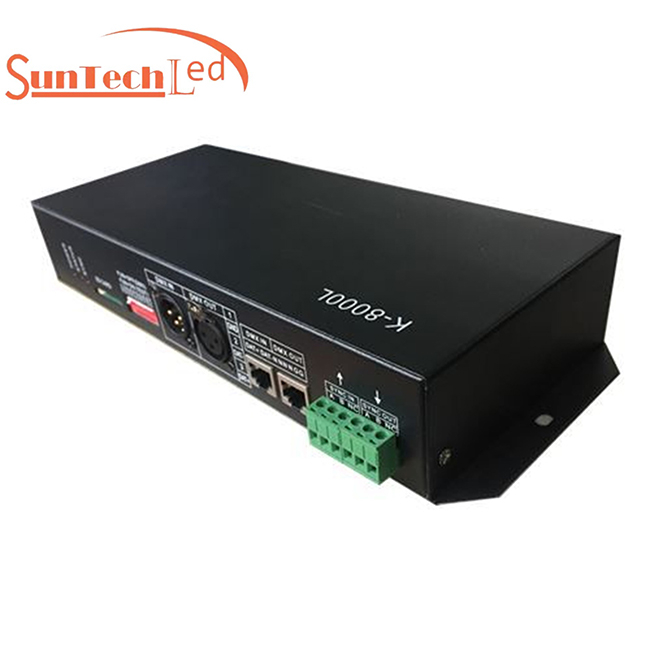

K-8000L LED Light Controller for DMX RGB Light Strip

K-8000L system features 1. 32--65536 Gray level, support software Gamma correction. 2. Support the rules and special-shaped handle. 3. Eight--port output,every port can support 512-1024 pixels (DMX light Max 512 pixels). 4. Store a maximum of 16 programs, copy multiple files to the SD card in...

Availability:

K-8000L system features

1. 32--65536 Gray level, support software Gamma correction.

2. Support the rules and special-shaped handle.

3. Eight--port output,every port can support 512-1024 pixels (DMX light Max 512 pixels).

4. Store a maximum of 16 programs, copy multiple files to the SD card in order, after formatting the SD card as “FAT or FAT32” format, the SD card capacity is128MB~32GB.

5. It can play single ,also can be multiple controllers used in combination, play back content

stored in the SD card. If need combination, the rule should be follow as follows:

The max distance between the two K-8000Ls is 150 meter,it will be need used the 0.5m² fine copper line.

6. Enhance TTL and 485 (DMX) signal output.

7. The controllers have 16 programs in advance( chip1903).


Specific parameters of K-8000L

    SD CARD

        Type:    SD card

        Capacity: 128MB—32GB

        Format:   FAT or FAT32

        File saved:*.led

    Physical parameters

        Working temperature:-20℃—85℃

        Working voltage:100-240V input

        Working power:5W

        Weight:0.8Kg

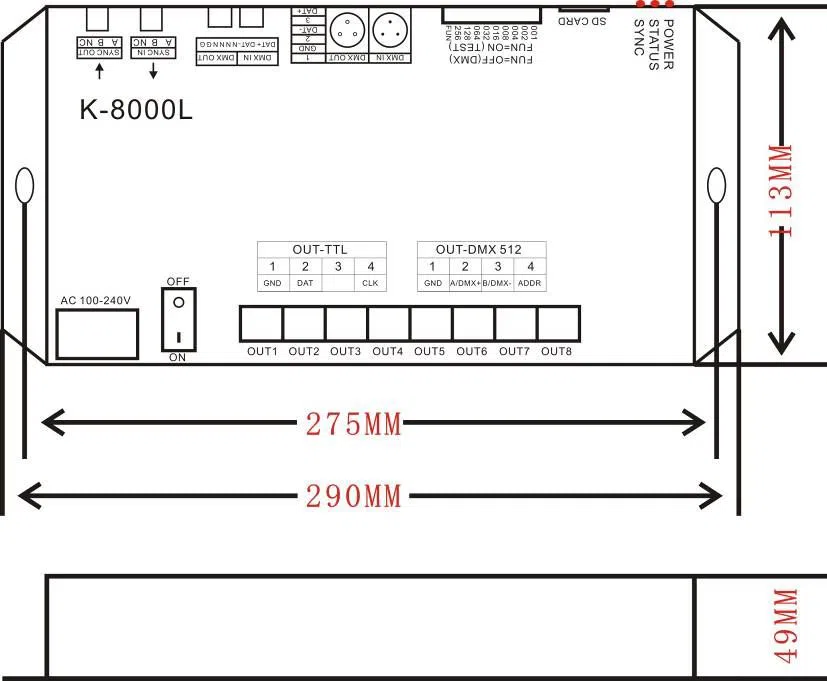

        Size:

K-8000C size




Support chips (K-8000-RGB) :

  UCS1903, P9813, LX1003, WS2801, LPD1886, TM1913, TM1914, P9883, DMX512, DMX512 high speed, DMX512, DMX512, INK1003, APA102, UCS5603A&B

  NOTEThe controllers not support RGBW light


* K-1000C controller is compatible with DMX RGB LED strip, DMX LED dot light, DMX flood light, LED pixel bar DMX for indoor annd outdoor lighting.


The meaning of flag:

Input voltage

AC100-240V

POWER

Power light

SYNC

Combination status

STATUS

Work status

SD CARD

SD card slot


Signal output (TTL/245 signal):

GND

Ground wire

DAT

Data line

CLK

Clock line


Signal output (DMX512 signal):

GND

Ground wire

A/DAT+

Data +

B/DAT-

Data -

ADDR

Address line

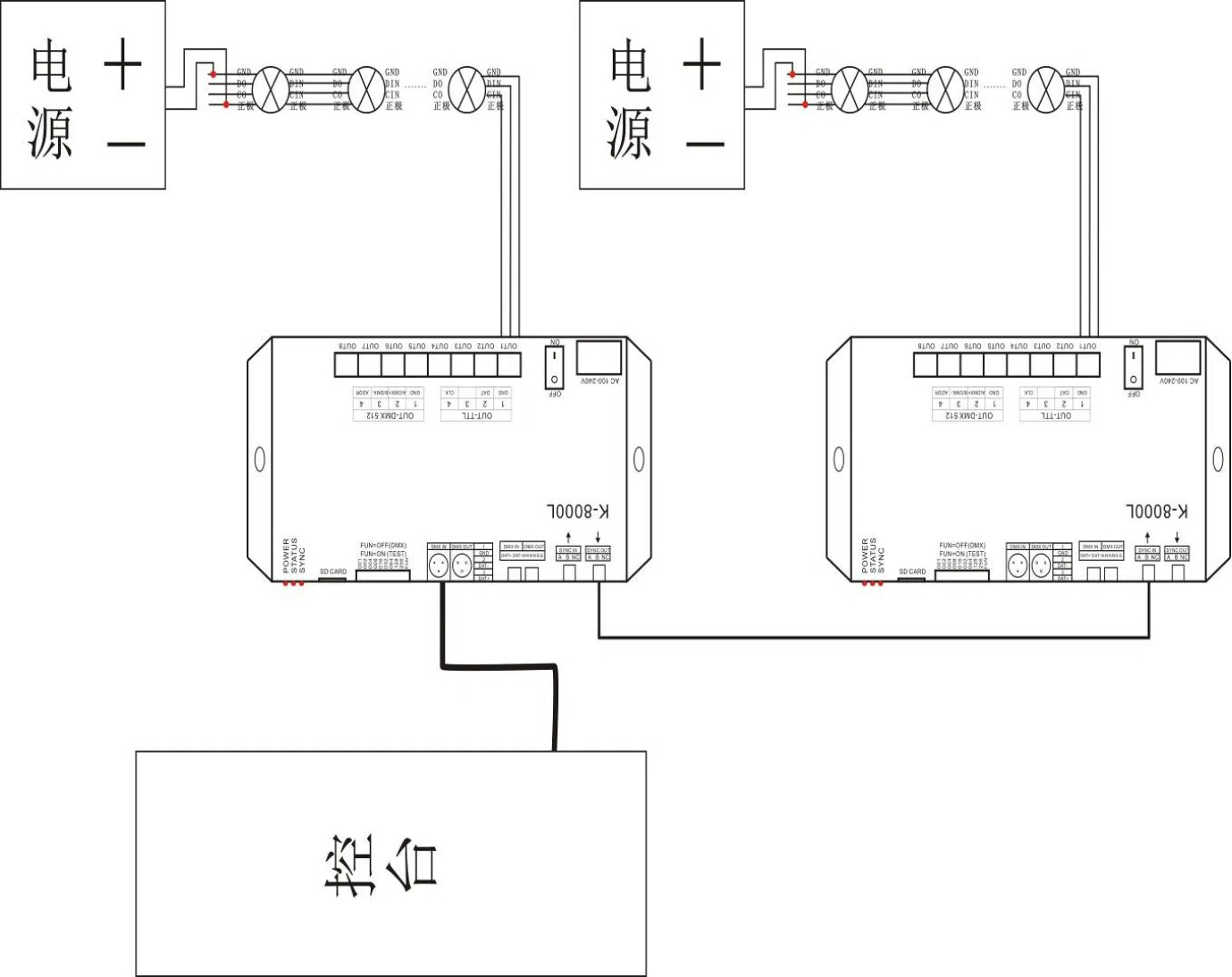

Mode of connection

K-8000L wiring


Please check the K-8000L-Suntech.pdf specification for more details. For more DMX LED lighting controllers, please click: DMX pixel controller
