English
 |

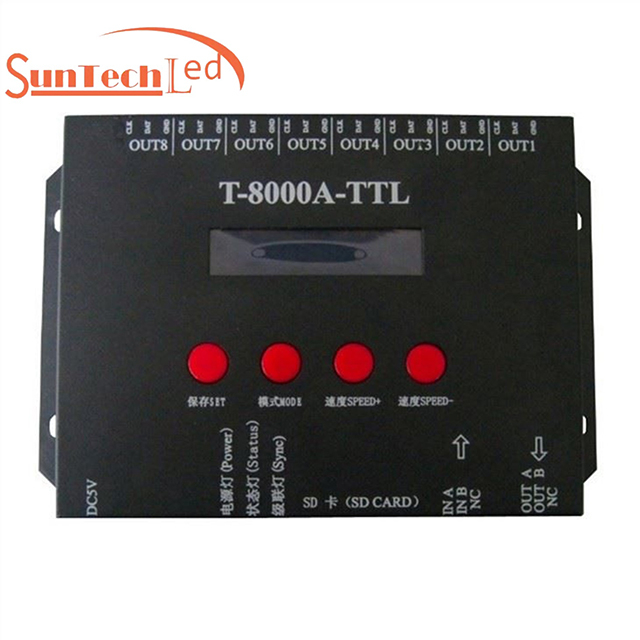

T-8000A-TTL controller has eight output ports, each port can support 512-1024 pixels. With off-line control, used in combination, play back content stored in the SD card.
1. 32—256 Gray level, support software Gamma correction.
2. Support the rules and special-shaped handle.
3. Eight--port output，every port can support 512-1024 pixels.
4. Off-line (SD Card) control, can be multiple controllers used in combination, play back content stored in the SD card.
5.T-8000A-TTL store a maximum of 16 programs，copy multiple files to the SD card in order,after formatting the SD card as “FAT” format.
6. The program must be named in orders, just as ：00_1.led, 01_1.led, 02_1.led.
7. Compatible with single and dual ICs, if you control a single line IC LED lights, without being connected to the CLK line.
8. New T-8000A-TTL have a screen, the controller can be encrypted to limit the times of use.
NOTE: When T-8000A--TTL controller control less than 512 lamps the frame rate can reach 30fps. When T-8000A-TTL controls more than 512 lamps and less than 1024 lamps the frame rate will slow down automatically.
Memory card：
type：SD card（suggest using high-speed SD card）
Capacity：128MB—2GB
Format：FAT
Store file Format：*.led
Physical parameters：
Working temperature ：-30℃—85℃
Working voltage：DC5V
Working power：3W
Size：L200mm×W170mm×H50mm
Weight：1.5KG
Signal port：3pin connect port
NOTE：
1. Before copy files to SD card, the SD card must be formatted as “FAT” format.
2. The SD card in controller can not be hot-swappable, plug the SD card every time, you must first disconnect the power supply.
Chip type | Software code& Controller type | Pixels/(MAX) | Note |
LPD6803,D705,1101,6909, 6912 | T-8000-6803 | 8192 | |
LPD8806,LPD8809 | T-8000-8806 | 8192 | |
TM1803,TM1804,TM1809,TM1812 | T-8000-TM | 8192 | TM1804 and TM1809 are divided into high speed and low speed |
TM190，TM1904，TM1909，TM1912 | T-8000-TM19 | 8192 | |
UCS6909, UCS6912, UCS7009, UCS5903 | T-8000-UCS-32 | 8192 | |
UCS1903,UCS1909, UCS1912 | T-8000-UCS-256 | 8192 | divided into high speed and low speed |
UCS3903 | T-8000-UCS-1024 | 8192 | |
DMX512 | T-8000-DMX | 1360/4096 | Compatible with standard DMX512 |
WS2801,WS2803 | T-8000-WS | 8192 | |
WS2811 | T-8000-WS2811 | 8192 | divided into high speed and low speed |
DS189 | T-8000-DS189 | 8192 | |
TLS3001,TLS3002, TLS3008 | T-8000-TLS | ____ | |
P9813 | T-8000-P9813 | 8192 | |
SM16715 | T-8000-SM16715 | 8192 | divided into high speed and low speed |
SM16716 | T-8000-SM16716 | 8192 | |
BS0901,BS0902 | T-8000-0901 | 8192 | |
BS0815 | T-8000-0815 | 8192 |
