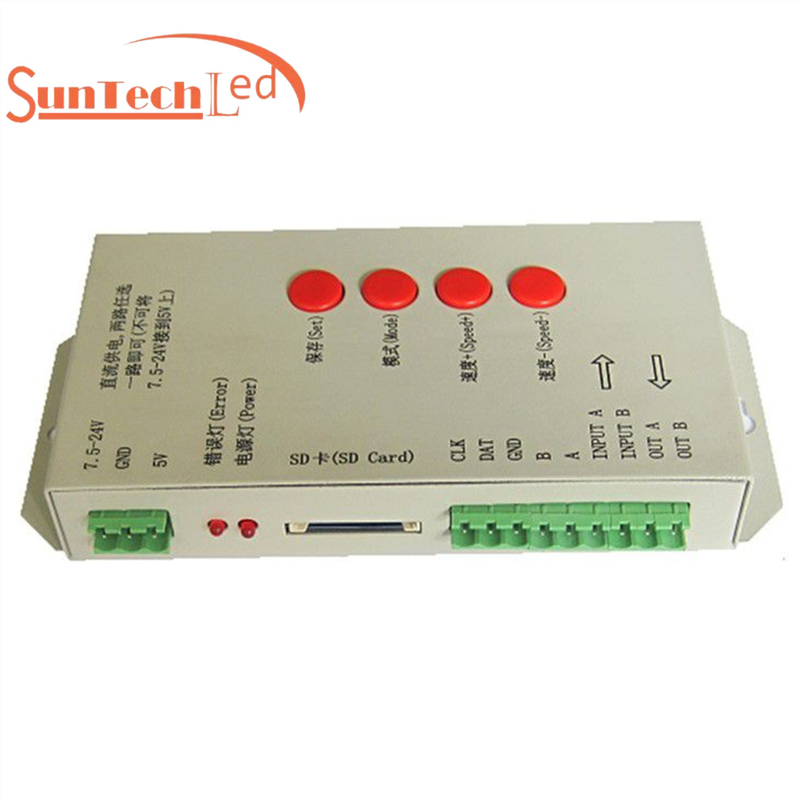

T-1000S controller support off line control and is compatible with single line or double line chips. The single-port output can support 2048 pixels.
1. 32—256 Gray level, support software Gamma correction.
2. Support the rules and special-shaped handle.
3. Single-port output, can support 2048 pixels.
4. Off-line(SD Card) control, play back content stored in the SD card.
5. T-1000S store a maximum of 16 programs, copy multiple files to the SD card in order,
after formatting the SD card as “FAT” format.
6. The program must be named in orders just as: 00_1.led, 01_1.led, 02_1.led.
7. Compatible with single line or double line chips.
NOTE：
1. When T-1000S controller control less than 512 lamps, the frame rate can reach 30fps. When T-1000S control more than 512 lights and less than 2048 lights, the frame rate will slow down automatically.
2. T-1000S must use the new software LedEdit 2012.
type：SD card（suggest using high-speed SD card）
Capacity：128MB—2GB
Format：FAT
Store file：*.led
Working temperature ：-30℃—85℃
Working voltage：DC5V / DC7.5-24V
Working power：1W
Size：L165mm×W80mm×H30mm
Weight：0.35KG
Signal port：3pin connect port
Note：
1. Before copy files to SD card ,the SD card must be formatted as "FAT" format.
2. The SD card in controller can not be hot-swappable, plug the SD card every time, you must first disconnect the power supply.
Chip type | Software code& Controller type | Lamps/(MAX) | Note |
LPD6803, D705, 1101, 6909, 6912 | T-1000-6803 | 2048 pixels | |
LPD8806, LPD8809 | T-1000-8806 | 2048 pixels | |
TM1803, TM1804, TM1809, TM1812 | T-1000-TM | 2048 pixels | TM1804 and TM1809 are divided into high and low |
TM1903, TM1904, TM1909, TM1912 | T-1000-TM19 | 2048 pixels | |
UCS6909, UCS6912, UCS7009, UCS5903 | T-1000-UCS-32 | 2048 pixels | |
UCS1903, UCS1909, UCS1912 | T-1000-UCS-256 | 2048 pixels | 1903 and 1909 are divided into high and low |
UCS3903 | T-1000-UCS-1024 | 2048 pixels | |
DMX512 | T-1000-DMX | 170/512 pixels | Compatible with standard DMX512 |
WS2801, WS2803 | T-1000-WS | 2048 pixels | |
WS2811 | T-1000-WS2811 | 2048 pixels | WS2811 be divided into high and low |
DS189 | T-1000-DS189 | 2048 pixels | |
TLS3001, TLS3002, TLS3008 | T-1000-TLS | * pixels | |
P9813 | T-1000-P9813 | 2048 pixels | |
SM16715 | T-1000-SM16715 | 2048 pixels | SM16715 be divided into high and low |
SM16716 | T-1000-SM16716 | 2048 pixels | |
BS0901, BS0902 | T-1000-0901 | 2048 pixels | |
BS0815 | T-1000-0815 | 2048 pixels |

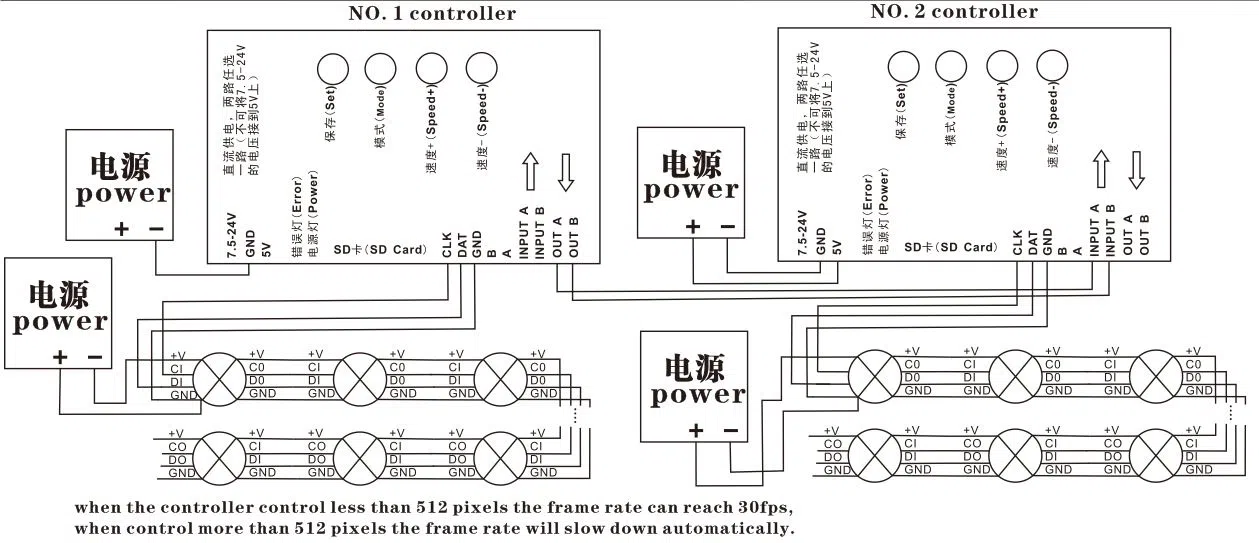

1. Multiple T-1000S controllers can be cascaded together and work synchronously.
2. T-1000S one TTL(SPI) signal and one RS485 signal port output，can control 2048 pixels/lamps.
3. When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.
4. If you need to use RS485 signal you need to connect controller A interface with LED lamps A (DMX+), controller B interface with LED lamps B(DMX-).
5. If you need to control a new IC type by the controller, software code mode is: T-1000-IC model.
Please download the product specification for further details.
1. 32—256 Gray level, support software Gamma correction.
2. Support the rules and special-shaped handle.
3. Single-port output, can support 2048 pixels.
4. Off-line(SD Card) control, play back content stored in the SD card.
5. T-1000S store a maximum of 16 programs, copy multiple files to the SD card in order,
after formatting the SD card as “FAT” format.
6. The program must be named in orders just as: 00_1.led, 01_1.led, 02_1.led.
7. Compatible with single line or double line chips.
NOTE：
1. When T-1000S controller control less than 512 lamps, the frame rate can reach 30fps. When T-1000S control more than 512 lights and less than 2048 lights, the frame rate will slow down automatically.
2. T-1000S must use the new software LedEdit 2012.
type：SD card（suggest using high-speed SD card）
Capacity：128MB—2GB
Format：FAT
Store file：*.led
Working temperature ：-30℃—85℃
Working voltage：DC5V / DC7.5-24V
Working power：1W
Size：L165mm×W80mm×H30mm
Weight：0.35KG
Signal port：3pin connect port
Note：
1. Before copy files to SD card ,the SD card must be formatted as "FAT" format.
2. The SD card in controller can not be hot-swappable, plug the SD card every time, you must first disconnect the power supply.
Chip type | Software code& Controller type | Lamps/(MAX) | Note |
LPD6803, D705, 1101, 6909, 6912 | T-1000-6803 | 2048 pixels | |
LPD8806, LPD8809 | T-1000-8806 | 2048 pixels | |
TM1803, TM1804, TM1809, TM1812 | T-1000-TM | 2048 pixels | TM1804 and TM1809 are divided into high and low |
TM1903, TM1904, TM1909, TM1912 | T-1000-TM19 | 2048 pixels | |
UCS6909, UCS6912, UCS7009, UCS5903 | T-1000-UCS-32 | 2048 pixels | |
UCS1903, UCS1909, UCS1912 | T-1000-UCS-256 | 2048 pixels | 1903 and 1909 are divided into high and low |
UCS3903 | T-1000-UCS-1024 | 2048 pixels | |
DMX512 | T-1000-DMX | 170/512 pixels | Compatible with standard DMX512 |
WS2801, WS2803 | T-1000-WS | 2048 pixels | |
WS2811 | T-1000-WS2811 | 2048 pixels | WS2811 be divided into high and low |
DS189 | T-1000-DS189 | 2048 pixels | |
TLS3001, TLS3002, TLS3008 | T-1000-TLS | * pixels | |
P9813 | T-1000-P9813 | 2048 pixels | |
SM16715 | T-1000-SM16715 | 2048 pixels | SM16715 be divided into high and low |
SM16716 | T-1000-SM16716 | 2048 pixels | |
BS0901, BS0902 | T-1000-0901 | 2048 pixels | |
BS0815 | T-1000-0815 | 2048 pixels |
1. Multiple T-1000S controllers can be cascaded together and work synchronously.
2. T-1000S one TTL(SPI) signal and one RS485 signal port output，can control 2048 pixels/lamps.
3. When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.
4. If you need to use RS485 signal you need to connect controller A interface with LED lamps A (DMX+), controller B interface with LED lamps B(DMX-).
5. If you need to control a new IC type by the controller, software code mode is: T-1000-IC model.
Please download the product specification for further details.
