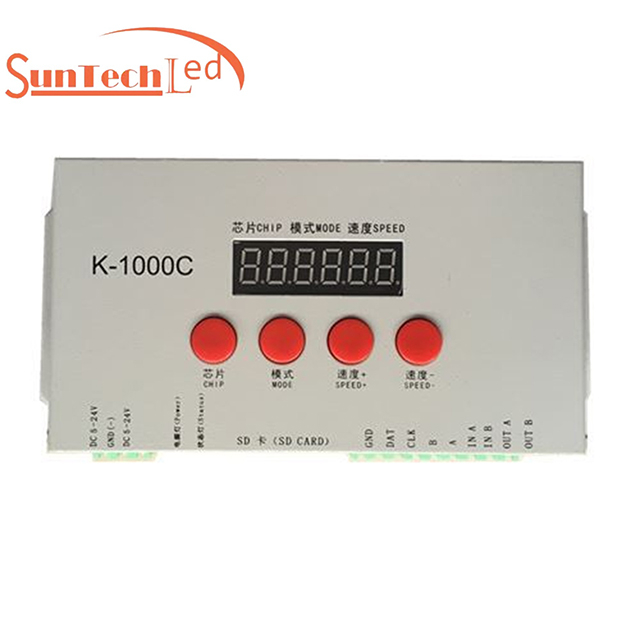

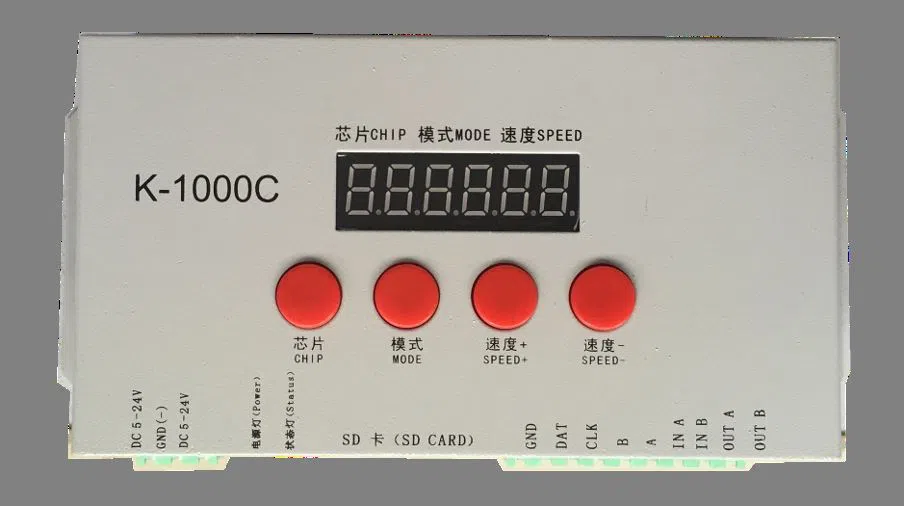

K-1000C DMX Controller for RGB/RGBW LED Light

5 0 Reviews

K-1000C controller for DMX lighting, can support up to 512/2048 pixels.

Availability:

Specific parameter

   Memory card:

          Type: SD card

          Capacity: 128MB—32GB

          Format: FAT or FAT32

          Storage file: *.led

   Physical parameter:

           Working temperature :-30℃—85℃

           Working power:DC 5V -24V input

           Power consumption:2W

           Data transmission interface:3pin binding post

           Weight: 0.35Kg

   Size:

1


K-1000C system features

1. 32 to 65536 degree Gray control, Gamma correction procession handle.

2. Support various point, line light source, and all kinds of rules and specific shaped handle.

3. The controller has one output port, can support up to 512/2048 pixels(DMX lighting support up to 512 pixels).

4. Play content stored in the SD card , the SD card can store up to 32 effects File, SD card capacity support 128MB-32GB.

5. The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.

6. The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.

7. For the DMX lighting IC, the controller comes with write address function; In addition,  with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.

8. Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.

9. Enhanced 485 TTL and 485 differential (DMX) signal output.

10.The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.


Support chips(PC Software Select K-1000-RGB):

00: UCS1903,1909,1912,2903,2904,2909,2912; TM1803,1804,1809,1812; SM16703, 16709,16712; WS2811, WS2812, WS2813, WS2815, WS2818; INK1003; LX3203,1603,1103; GS8205,8206;SK6812

      (max. supports lights 2048 pixels)

01:SM16716,16726(support up to 2048 pixels)

02:P9813(support up to 2048 pixels)

03:LPD6803(support up to 2048 pixels)

04:LX1003,1203(support up to 2048 pixels)

05:WS2801(support up to 2048 pixels)

06:LPD1886(support up to 2048 pixels)

07:TM1913(support up to 2048 pixels)

08:TM1914(support up to 2048 pixels)

09:P9883,P9823(support up to 2048 pixels)

10:DMX(support up to 512 pixels, suggest to support ≤320 pixels)

11:DMX 500K(support up to 512 pixels, suggest to support ≤320 pixels)

12:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)

13:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)

NOTES:

1. If support RGBW four channels’ lights should select K-1000-RGBW.

2. If support single channel light should choose K-1000-W, at this time, one channel means one pixel, the software effect make as white lighting.

K-1000C


The corresponding frame rate of speed level

Speed Level

 Frame Rate/Sec

Speed Level

Frame Rate/Sec

1

4 frame

9

14 frame

2

5 frame

10

16 frame

3

6 frame

11

18 frame

4

7 frame

12

20 frame

5

8 frame

13

23 frame

6

9 frame

14

25 frame

7

10 frame

15

27 frame

8

12 frame

16

30 frame

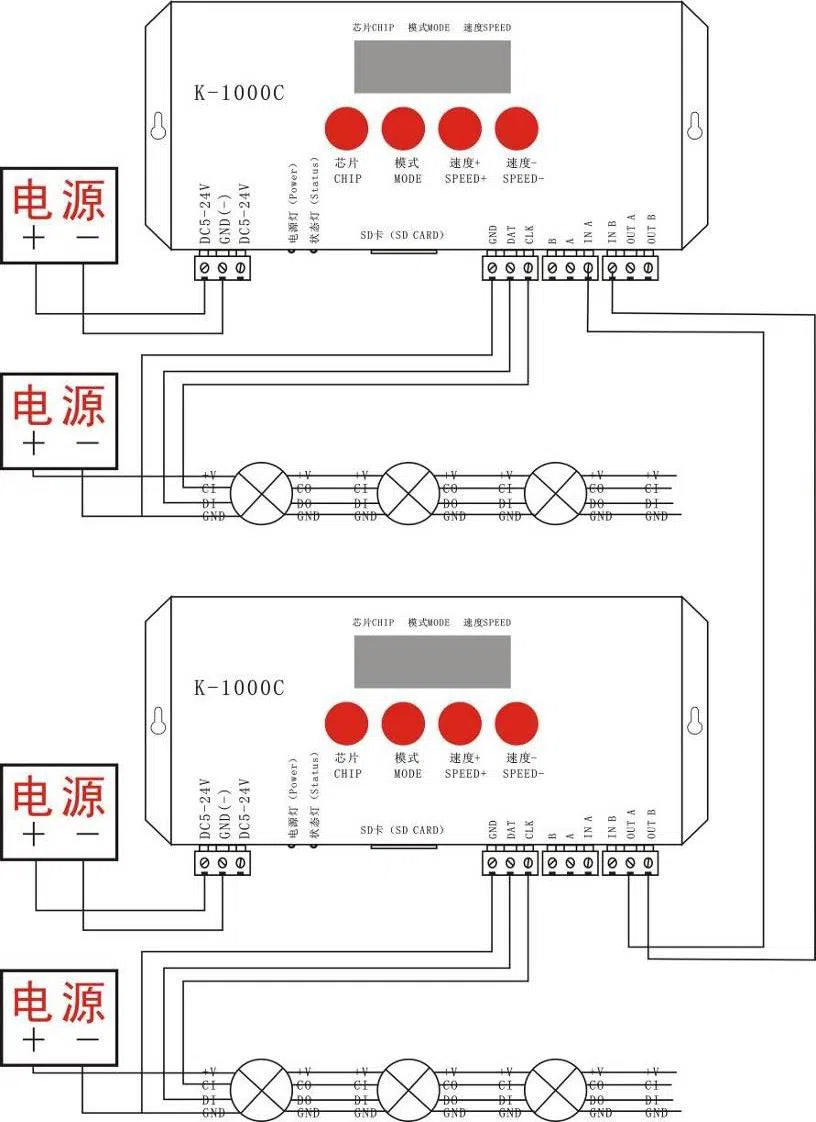

Conventional IC lamps wiring

conventional wiring


Controller support DMX lights coding and wiring method

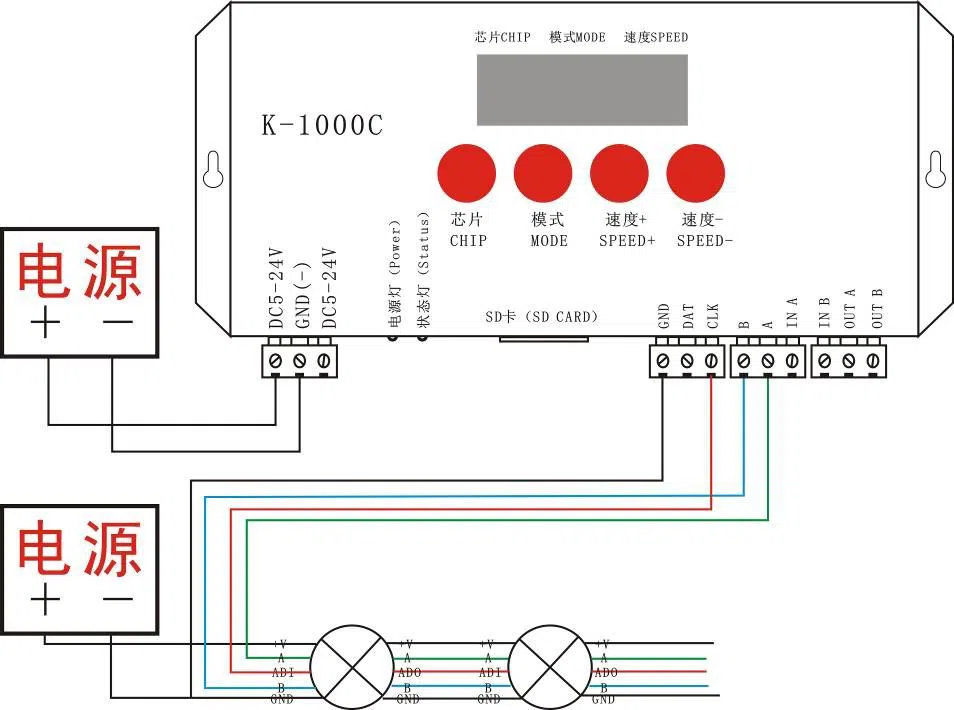

Two signal wiring diagram:

two single wiring

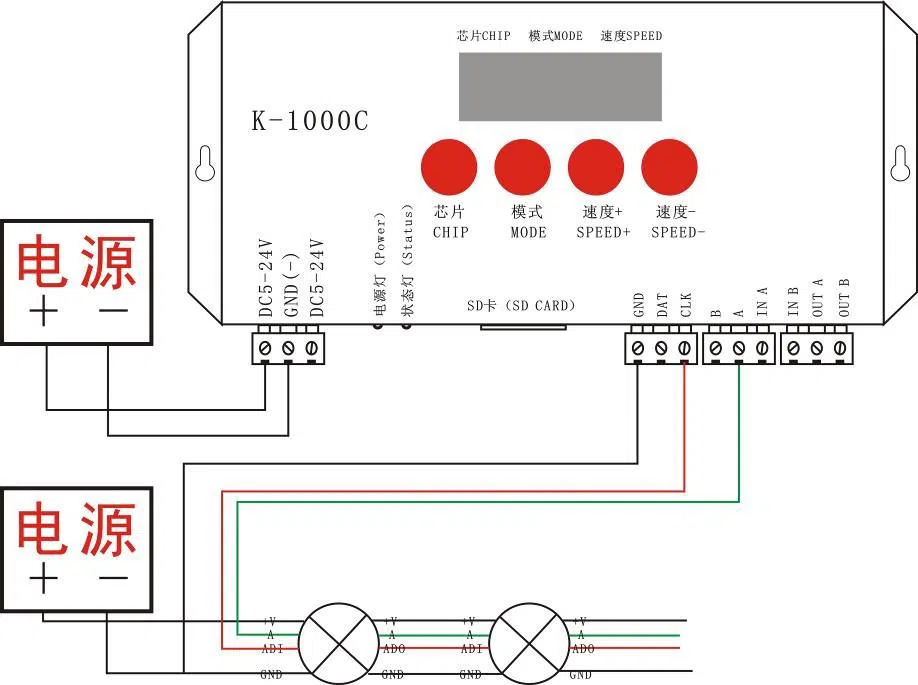

Single signal wiring diagram:

single single wiring


For more detailed information, please check the specification.
