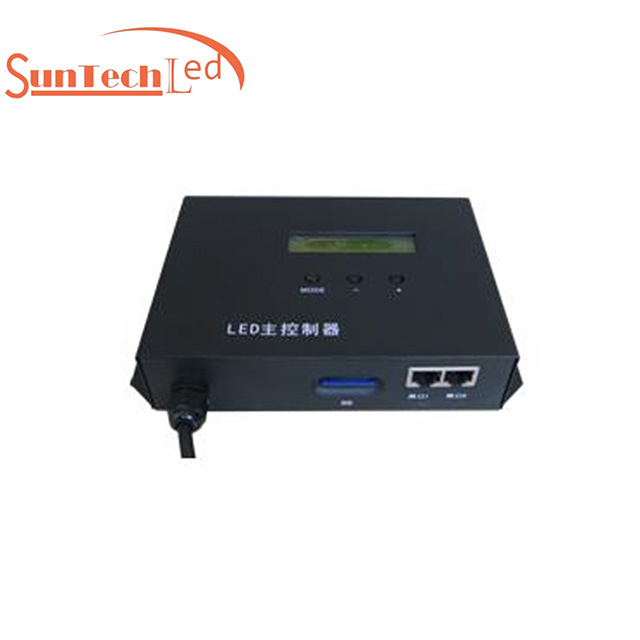

ST802TB is an offline master arduino LED controller that reads data from SD card to control multiple slave controllers. Two network interfaces connect maximum 48 slave controllers and control maximum 30720 pixels. Auxiliary slave controllers are H801RA, H801RC and H802RA. Auxiliary software is “LED Build Software”.
ST802TB is an offline master arduino LED controller that reads data from SD card to control multiple slave controllers. Two network interfaces connect maximum 48 slave controllers and control maximum 30720 pixels.
Auxiliary slave controllers are H801RA, H801RC and H802RA. Auxiliary software is “LED Build Software”.

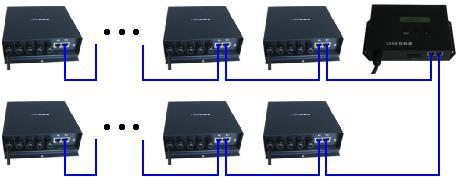

(1). ST802TB controls maximum 30702 pixels. Two ports connect maximum 48 slave controllers.
(2). SD card supports FAT32, FAT16 format, maximum capacity is more than 64G bytes, stores up to 64 DAT files.
Input Voltage | AC220V |
Power Consumption | 3W |
Control Pixels | 30720 |
Controlled Slave Controllers | 48 |
Weight | 0.88Kg |
Working Temperature | -20C°--75C° |
Dimension | L187 x W117 x H40 |
Installation Hole Distance | 100mm |
Carton Size | L205 x W168 x H69 |
ST802TB is an offline master arduino LED controller that reads data from SD card to control multiple slave controllers. Two network interfaces connect maximum 48 slave controllers and control maximum 30720 pixels.
Auxiliary slave controllers are H801RA, H801RC and H802RA. Auxiliary software is “LED Build Software”.
(1). ST802TB controls maximum 30702 pixels. Two ports connect maximum 48 slave controllers.
(2). SD card supports FAT32, FAT16 format, maximum capacity is more than 64G bytes, stores up to 64 DAT files.
Input Voltage | AC220V |
Power Consumption | 3W |
Control Pixels | 30720 |
Controlled Slave Controllers | 48 |
Weight | 0.88Kg |
Working Temperature | -20C°--75C° |
Dimension | L187 x W117 x H40 |
Installation Hole Distance | 100mm |
Carton Size | L205 x W168 x H69 |
