ST806SC has GPS synchronization and GPS timing function. Can control single, double, three lines, four lines LED driver chips; two output ports control a maximum of 4096 pixels.
1. GPS pixel LED controller Introduction
ST806SC has GPS synchronization and GPS timing function. Can control single, double, three lines, four lines LED driver chips; two output ports control a maximum of 4096 pixels.
Multiple ST806SCs can play the scheduled programs even if they are dispersed around the world.
Auxiliary software is “LED Build Software”.
2. Support drive chips
LPD6803, LPD8806, LPD6813, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886; UCS6909, UCS6912, UCS1903, UCS1909, UCS1912; WS2801, WS2803, WS2811, WS2812; TM1812, TM1809, TM1804, TM1803, TM1829, TM1913, TM1914, TM1926; LX1003, LX2003, LX2006, DMX512, HDMX, APA102, APA104, P9813, P9823, DZ2809, INK1003, TLS3001, TLS3002, SM16711, SM16716, SM16726, LD1510, LD1512, LD1530, LD1532, MBI6021, MBI6023, MBI6024, etc.
3. GPS pixel LED controller Features
(1). Two output ports control maximum 4096 pixels.
(2). Play programs with GPS synchronization and GPS timing schedule.
(3). SD card support FAT32, FAT16 format, the maximum capacity is 64G bytes, stores maximum of 64 DAT files.
(4). Choose IC type, clock rate, RGB order, brightness and grayscale on LED Build Software.

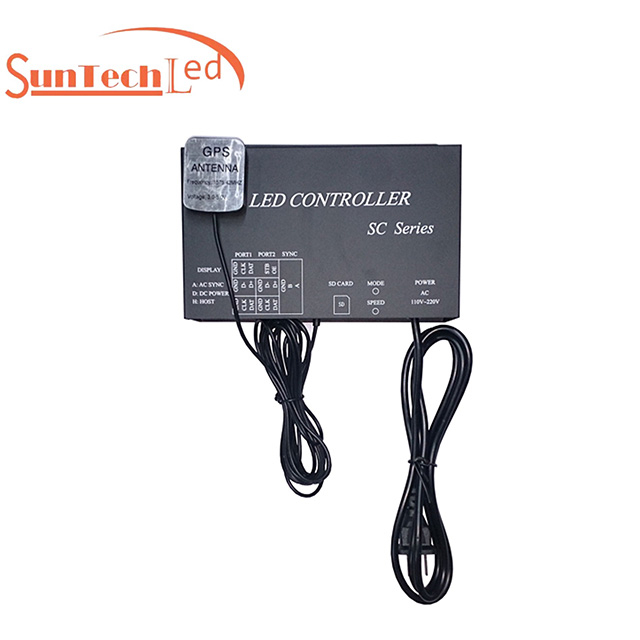

4. Product Display

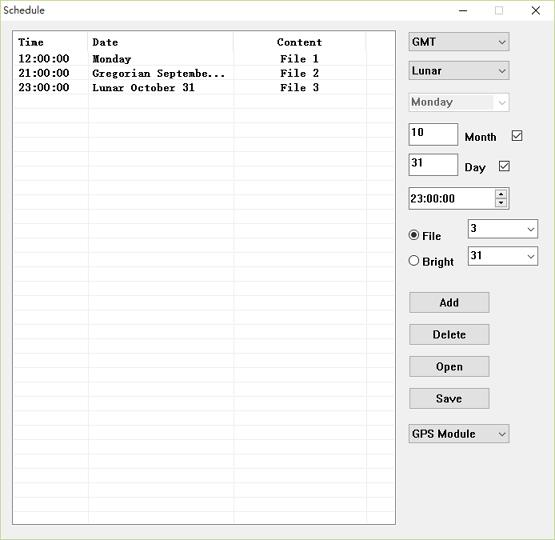

5. TimeTable (In LED Build, click "Tool"-"Schedule")
6.GPS pixel LED controller Specifications
Input Voltage | AC110V or 220V |
Power Consumption | 1W |
Control Pixels Number | 4096 |
Weight | 0.7KG |
Working Temperature | -20C°--85C° |
Dimension | L180 x W126 x H46 |
