UVC Led Bar Light UVC Led Disinfection Module 265-278nm Air Sterilization

UVC Led bar light UVC Led disinfection module

Availability:

UVC Led bar light UVC Led disinfection module 265-278nm air sterilization

Features

1. Item No.: STRG-15UVC3535

2. Light Source: UVC LED chip

3. Input Voltage: DC24V

4. Power Consumption: 5.8W/PCS

5. Wavelength: 265~278nm

6. Dimensions: 200mm*35mm

7. Beam angle: 120 degree

8. Radiant Flux 90mw/pcs

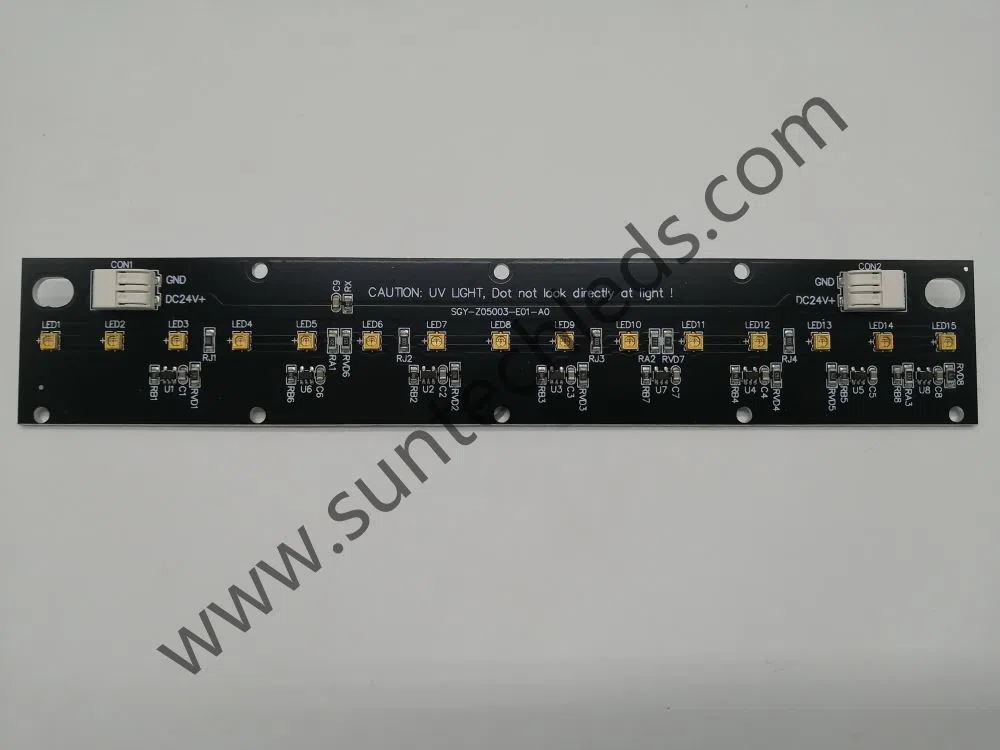

IMG_20200512_173144

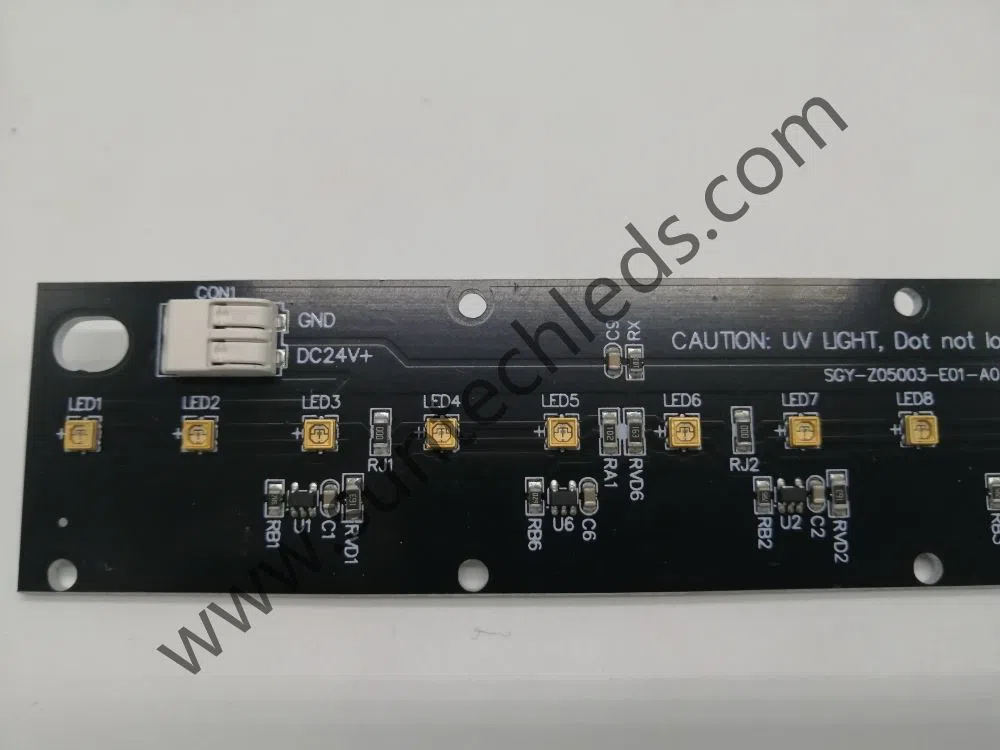

IMG_20200512_173227


Structure of the UVC Led bar light UVC Led disinfection module 265-278nm air sterilization

1.15pcs UVC LED chip per piece

2.Good stability, CE & RoHS approved

3.Aluminium PCB stable quality and good heat dissipation

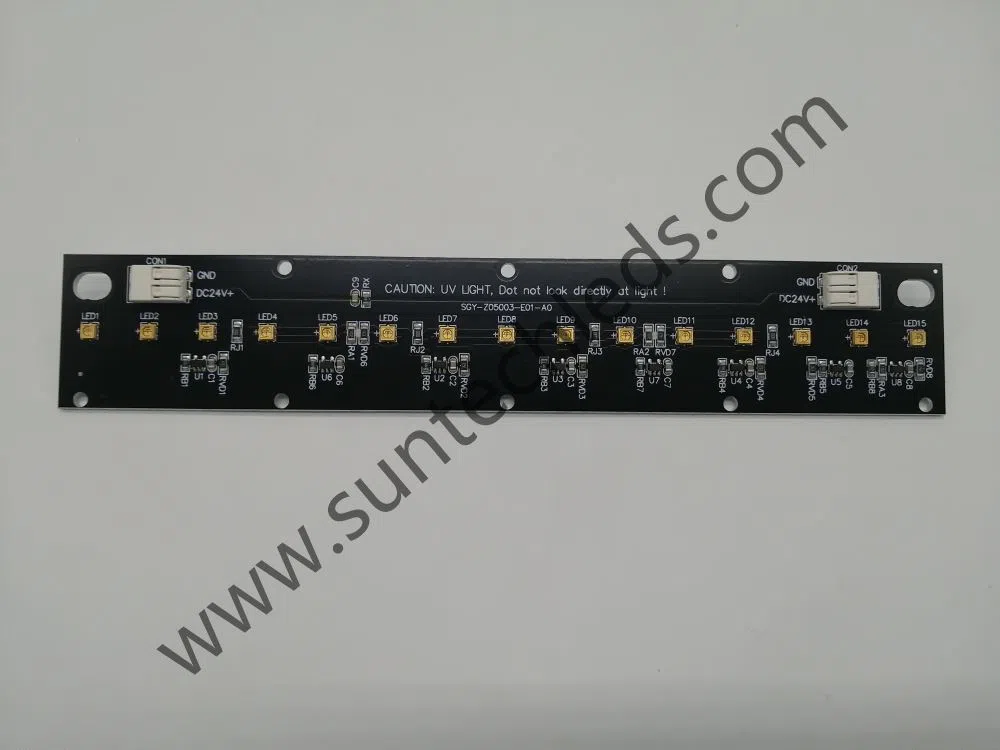

IMG_20200512_173147

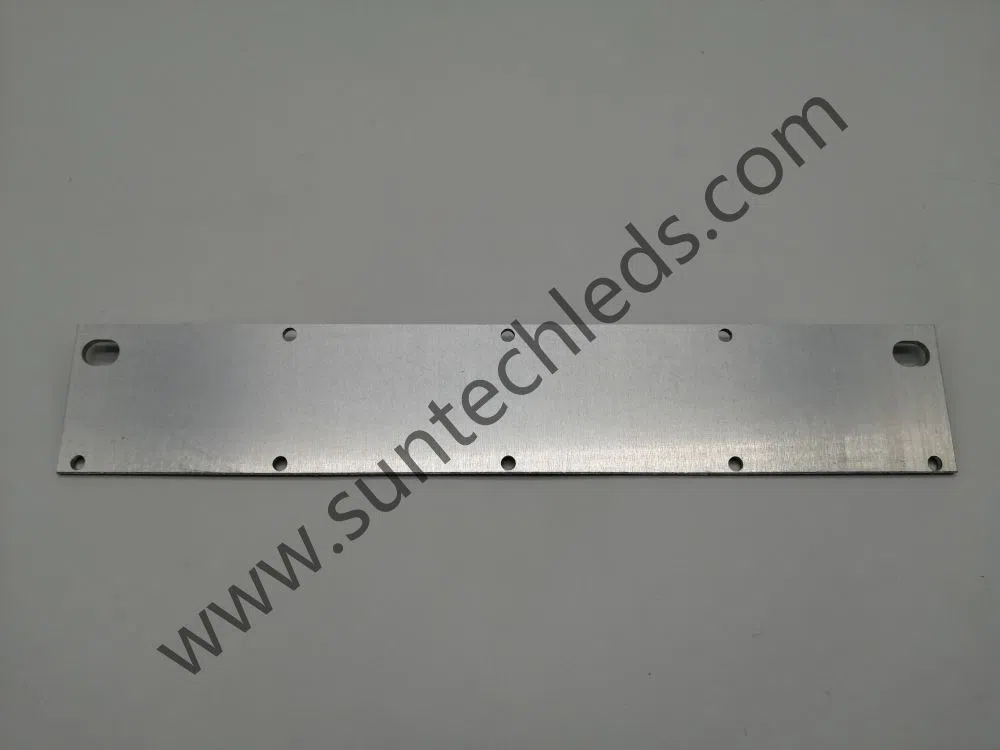

IMG_20200512_173308


UVC Led chip information

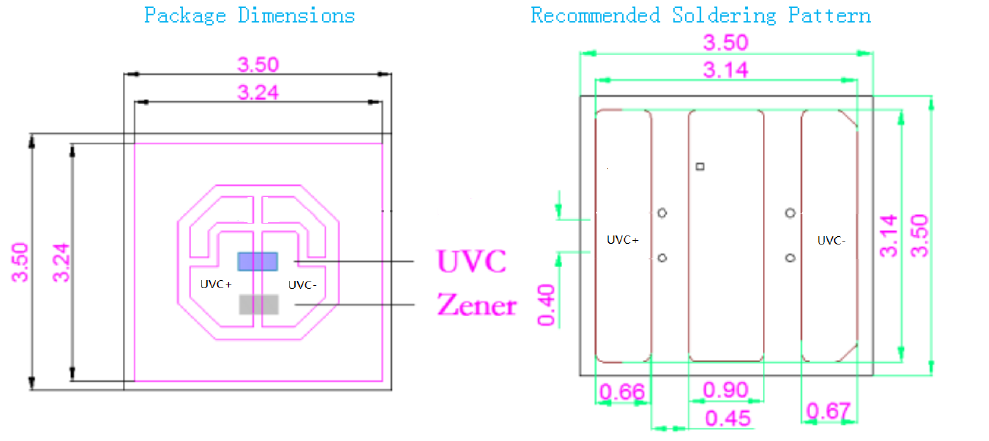

UVC LED chip

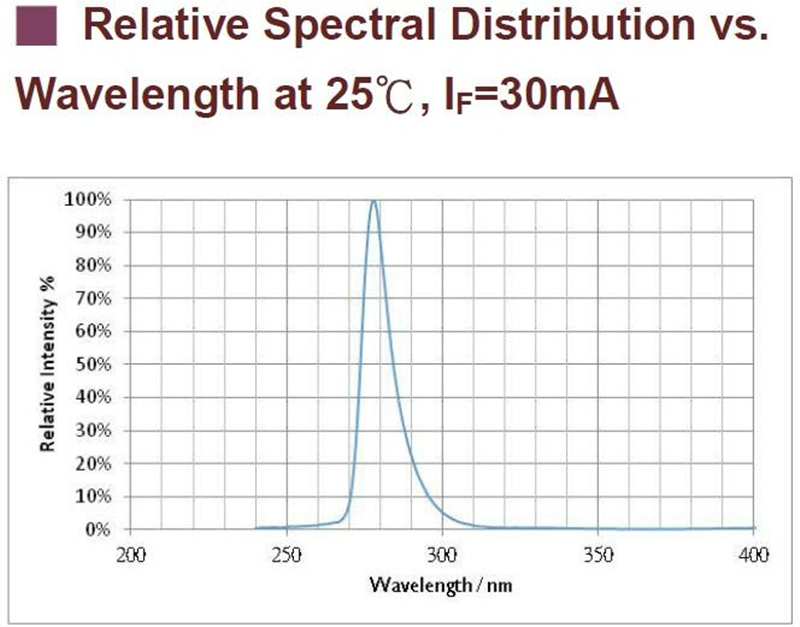

wavelength

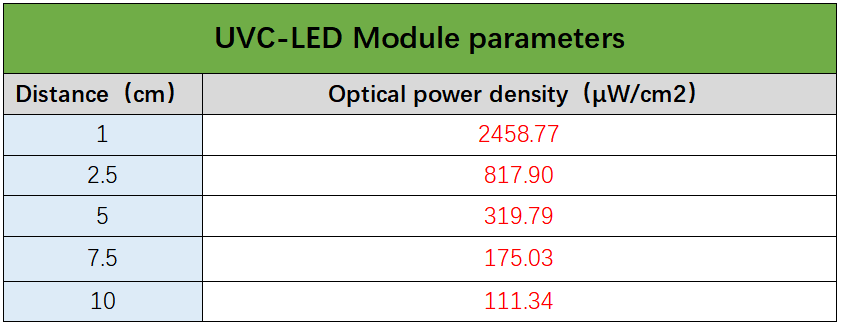

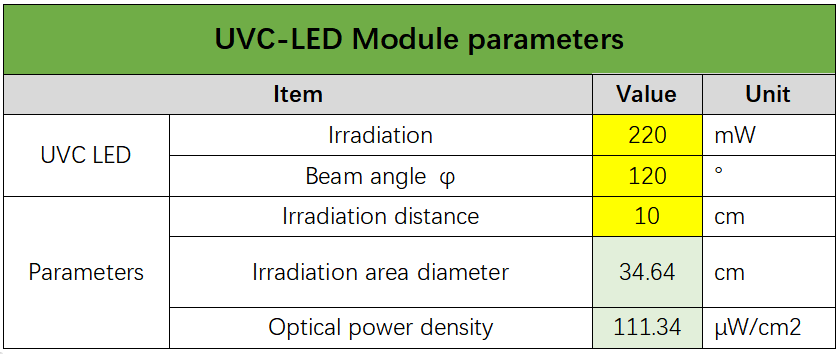

Technological Parameters

01

02

Application of the UVC Led bar light UVC Led disinfection module 265-278nm air sterilization

Our UVC Led bar light is the compact module which can be used for water purifying systems, air ventilation systems, and surface disinfection. It uses 15 of 5mW UVC LEDs which emits light at 278nm. This wavelength is able to break down cells and molecular bonds to either disable or kill viruses and bacteria to effectively reduce chances of sickness and infection.

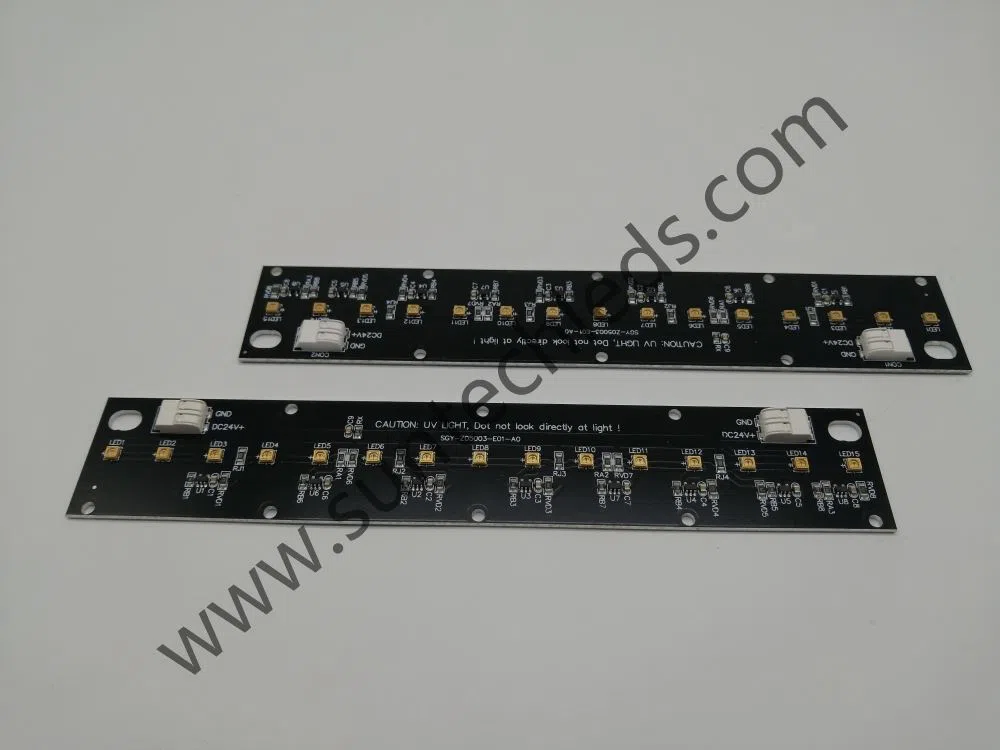

IMG_20200512_173509


Attention when use the UVC Led bar light UVC Led disinfection module 265-278nm air sterilization

1. Pay special attention: UV lamps, please do not look directly at the light source with the naked eye! Test please wear special goggles!

2. Please read the product instructions carefully before the product is installed and used;

3. The power output must be DC24V

4. The product is lightly put, to avoid damage to the product, please hand over to  professionals to install and repair, maintenance

5. When wiring must cut off the external power supply, to prevent people from touching or  damage the lamp, the product must be installed after the installation before powering

6. It is forbidden to press the surface of the LED

IMG_20200512_173144


Please check the product specification for details. STRG-15UVC3535-24v.pdf
