305nm 315m 310nm UVB LED Chip

315m 310nm UVB LED chip for disinfection

Availability:

315m 310nm UVB LED chip parameters

Item

Mark

Current(mA)

Minimum Value

Typical value

Maximum Value

Unit

Forward Voltage

VF

IF=50mA

4.5

6.0

7.5

V

Forward Current

IF

-

-

50

60

mA

Irradiation

IV

-

5

6

8

mW

Beam Angle

2θ½

IF=50mA

-

130

-

°

Wave Length

λp

IF=50mA

305

310

315

nm

Semi Wave Width

△λ

IF=50mA

-

9.6

-

nm

Thermal resistance

R

IF=50mA

-

25

-

℃/W


For more product information, please download the specificationsUVB-chip-specification-Suntech.pdf

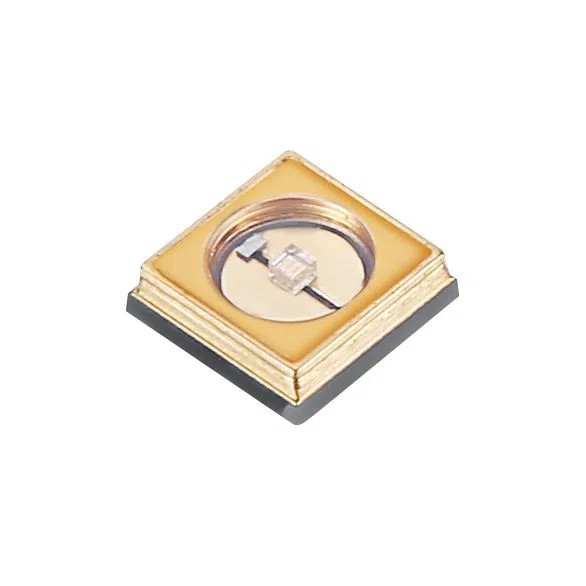

310nm LED diode

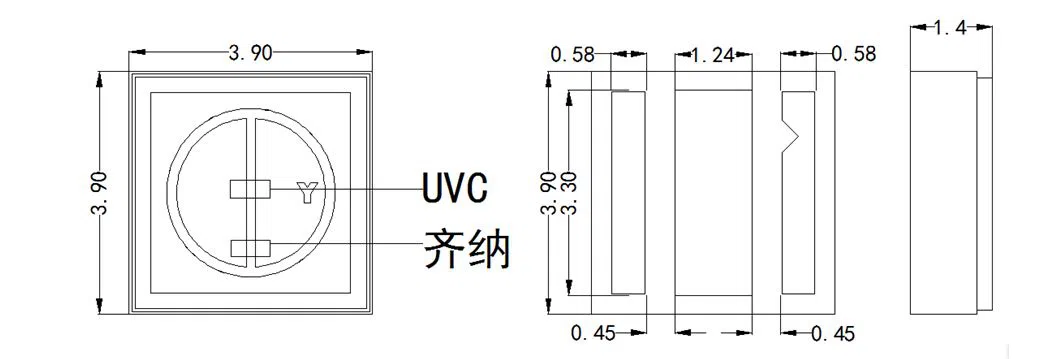

Size of 310nm LED diode


315nm LED chip size

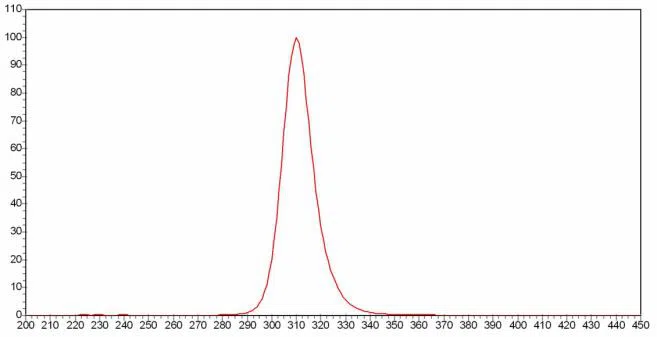

Wavelength of UVB 305nm ~ 315nm

UVB wavelength

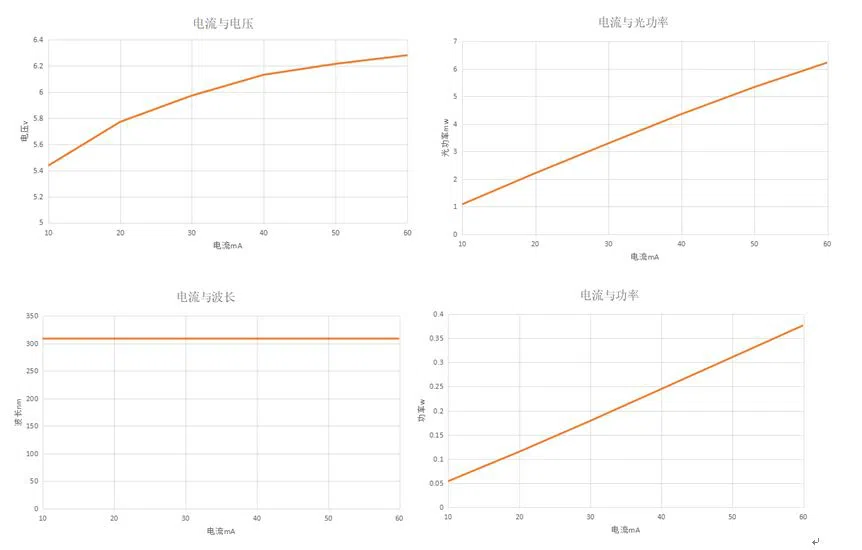

UVB chip curve

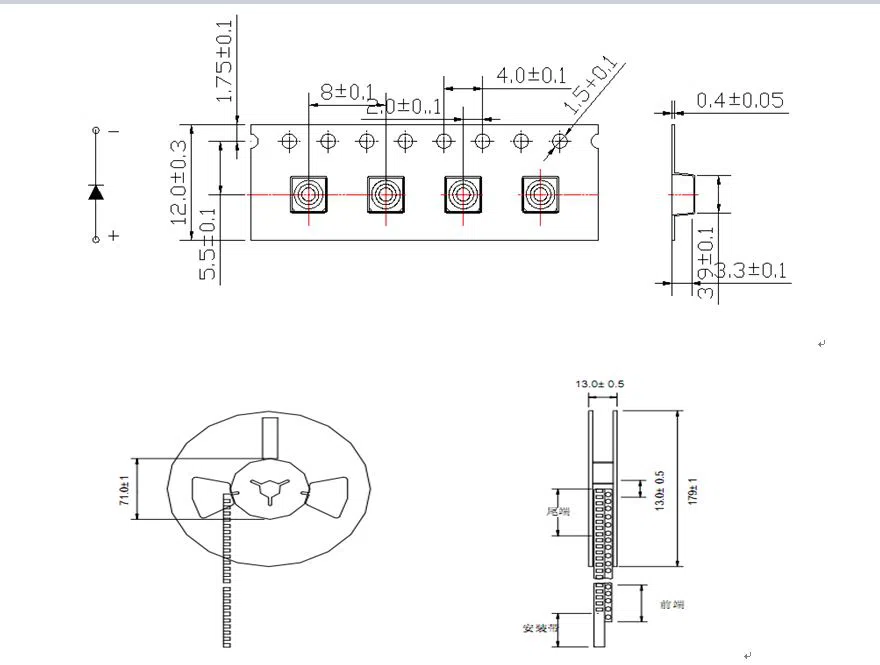

Package of 305nm 315m 310nm UVB LED chip


UVB LED diode package
