LED Pixel Dot Light Everything You Need To Know - SuntechLED

Views: 0     Author: Site Editor     Publish Time: 2021-04-29      Origin: Site

Catalog

What is LED pixel dot light

Do you know LED pixel dot light

Definition of LED pixel dot light

Types of LED pixel dot light

How to name an LED dot light

How to choose LED pixel dot light

LED pixel dot lights advantages

How to install the LED pixel dot light

LED pixel dot light application

LED pixel dot light characteristics


What is LED pixel dot light


LED pixel dot light is a type of facade and landscape decorative light. It is a supplement to linear lights and flood lights.  It is also named LED point light or LED dot light.

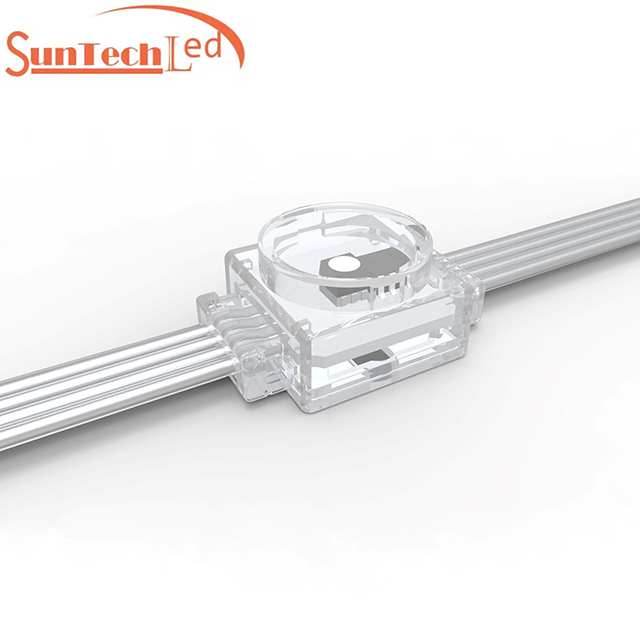

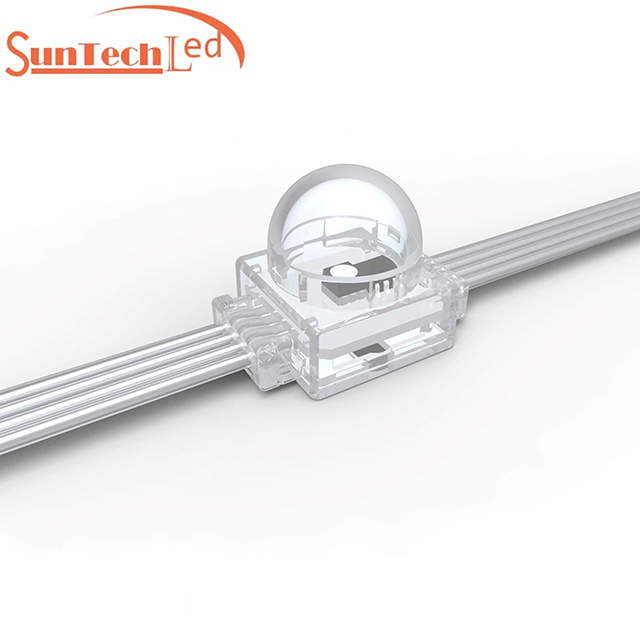

                                     Flat cover LED pixel dot lightBall cover LED pixel dot light

Do you know LED pixel dot light


SuntechLED is recognized as an excellent manufacturer of outdoor LED lighting products in China. We only provide high quality outdoor LED lights at reasonable prices and factory direct sales at competitive prices. We are a professional outdoor LED point lights and LED dot lights supplier in China.


What is a pixel dot light? Was it confusing to hear this word all of a sudden? Is it a small dot that glows? Is it really? Don't worry, follow SuntechLED to find out now.

Suntech Transparent LED Mesh Screen


Definition of LED pixel dot light


LED, or light-emitting diode, is a light-emitting device made of semiconductor homogeneous PN junction, heterogeneous PN junction, metal-semiconductor (MS) junction, and metal-insulator-semiconductor (MIS) junction. Its working principle and some electrical characteristics are the same as general crystal diodes, but the crystal materials used are different.


LED dot lights, you can understand it as a lot of pixels with controllable spacing. Through smart control during work, the light flashing can achieve the effect from dots to surfaces. To some extent, it can replace a certain specification display, but the price is cheaper than the display.


The following video is a LED Mesh Project for Shopping Mall.  It shows the dynamic LED point dot lights effects.



Pixel dot lights with built-in LED cold light sources to have built-in microcomputer chips. Through programming smart control, it can achieve full-color effects such as colorful gradual change, jump change, scan, and water flow. It is also possible to replace the display screen of a certain specification by the array and shape combination of multiple point light source pixels, and various patterns, texts, animations, and video effects can be changed.


Types of LED pixel dot light


      LEDs include visible light, invisible light, lasers, and other different types, and visible light LEDs are common in life. The light-emitting color of light-emitting diodes depends on the materials used. Currently, there are many colors such as yellow, green, red, orange, blue, purple, cyan, white, and full-color, and they can be made into various shapes such as rectangles and circles.


How to name an LED dot light


Our types of pixel led have three models: SPA, SPB and SPZ. Take SPB018 as an example. The name of the point light source is first its model "SPB". The number "018" means that its flat cover size is 18mm. As shown in the figures as below:

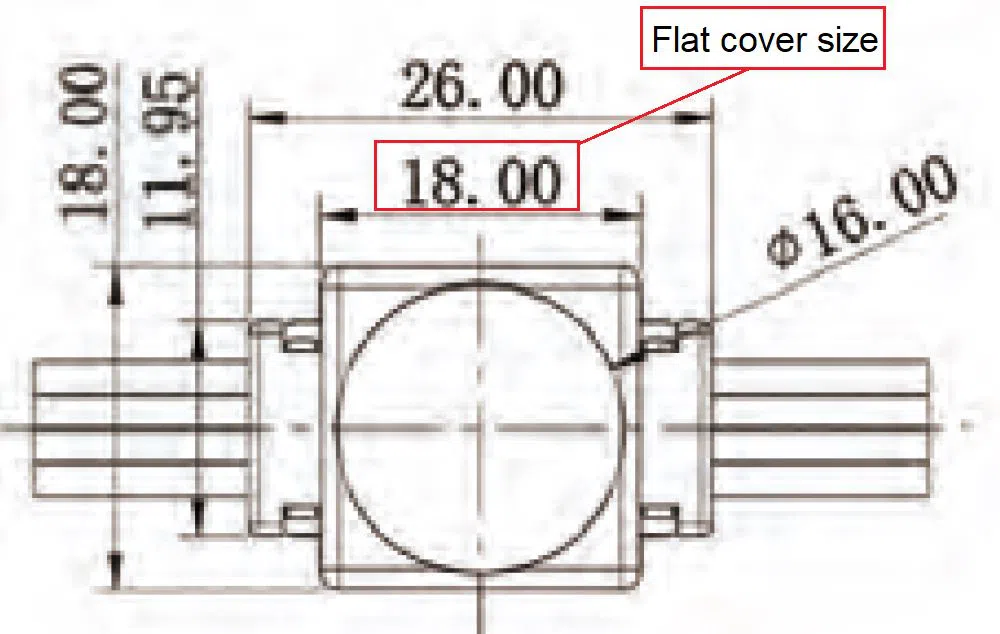

SPB018 LED Point Dot Light Series

SPB018 name

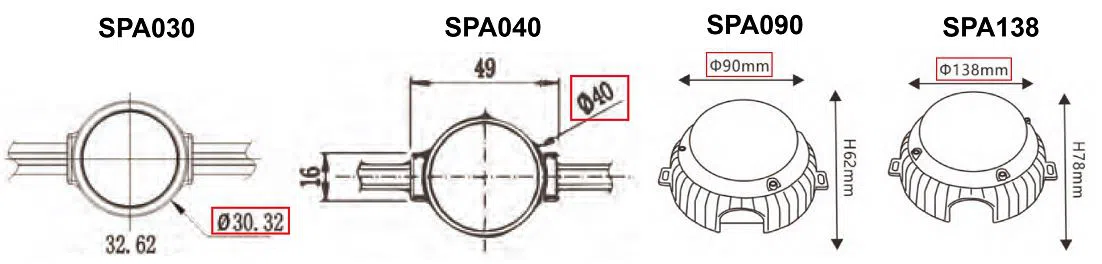

Other models are also shown in the picture as below:

pixel dot light Naming rules

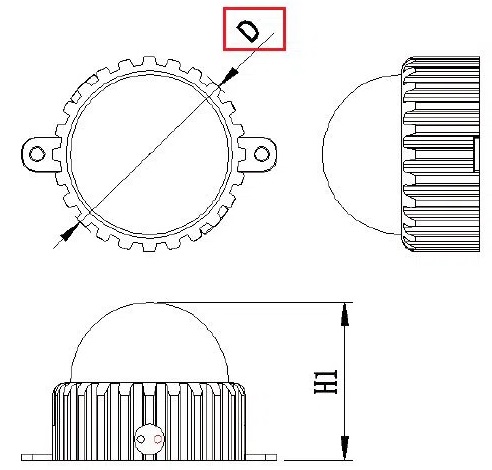

SPZ LED Point Dot Light Series



Pixel dot light SPZ


Table 1. SPZ LED Point Dot Light Series Size Parameters

Product number

D X H 1
SPZ050 Φ 50X55mm
SPZ070 Φ 70X62mm
SPZ085 Φ 85X62mm
SPZ100 Φ 100X85mm
SPZ120 Φ 120X85mm
     Note:H1 height size can be customized!


How to choose LED pixel dot light


In terms of quality, in addition to convenient installation, the selection principle is also the general principle of outdoor lighting: one is to prevent deadlights, and the other is to prevent short circuits caused by water ingress.


Our company Suntechleds provides high-quality branded lamp beads, high thermal conductivity aluminum substrates, constant current chips, and solid potted LED pixel dot light. Welcome to buy. Start choosing the products you like!


We have the following LED pixel dot lights. Click on whichever you like!


Table 2. LED Point Light Model Types From SuntechLED

Item Product Appearance Parameters Description
SPB018

DMX LED Pixel Point

Light For Facade

Lighting

SPB018 flat cover LED pixel dot light

Gray level:256 /4096

LED type:3535/5050/2835

LED Qty:1pcs

Voltage:DC5V/12V

Maximum power: 0.3W/0.5W

Shell material:flame retardant PC

Beam angle:flat cover 120°/spherical cover 160°

Color temperature:RGB/W

Working temperature: -20°C to 50°C

Storage temperature: -20°C to 60°C

Protection level: IP67

Service life:50,000 hours

SPA030

LED RGBW Pixel Dot

Light For Facade &

Landscape Lighting

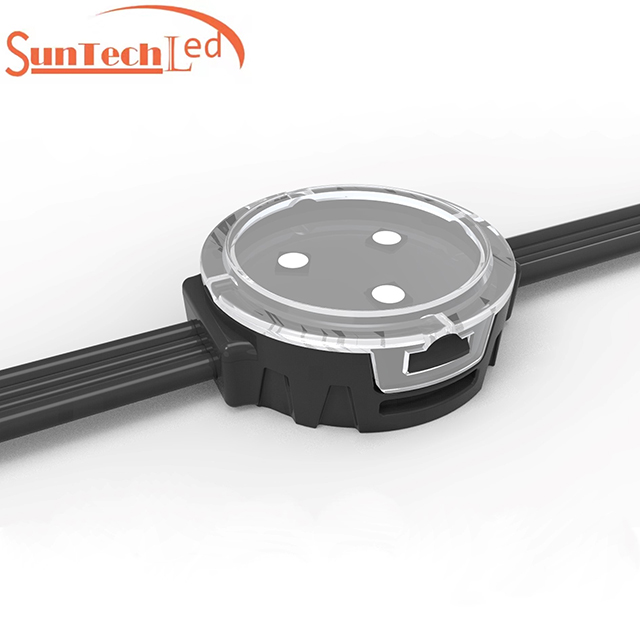

SPA030 LED point light

Gray level:256 /4096/65536

LED type:3535/5050/2835

LED Qty:3pcs/4pcs

Voltage:DC12V/15V

Maximum power:0.7W/1.0W

Shell material:flame retardant PC

Beam angle:flat cover 120°/spherical cover 160°

Color temperature:RGB/W

Working temperature: -20°C to 50°C

Storage temperature: -20°C to 60°C

Protection level: IP67

Service life:50,000 hours

SPA040

LED Pixel Dot Light

For Facade &

Landscape Lighting

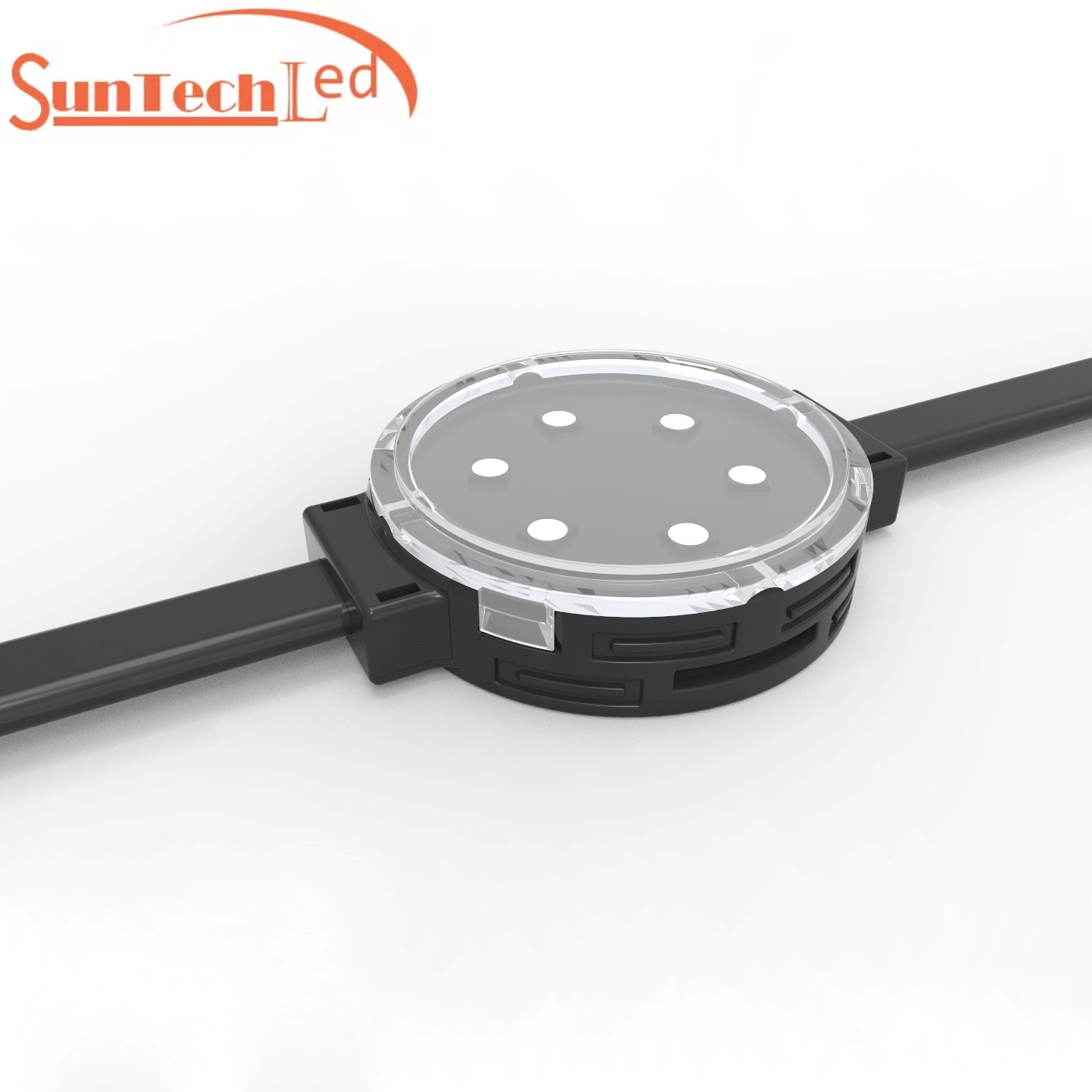

 LED Pixel Dot Light For Facade & Landscape Lighting

Gray level:256/4096/65536

LED type:3535/5050/2835

LED Qty:3pcs/4pcs/6pcs/9pcs

Voltage:DC12V/15V/24V

Maximum power:0.7W/1.0W/1.44W/1.9W

Shell material:flame retardant PC

Beam angle: flat cover 120°/spherical cover 160°

Color temperature:RGB/W

Working temperature: -20°C to 50°C

Storage temperature: -20°C to 60°C

Protection level: IP67

Service life:50,000 hours

SPZ

Addressable RGB LED

Dot Pixel Point Light

Facade Lighting Digital

Programmable

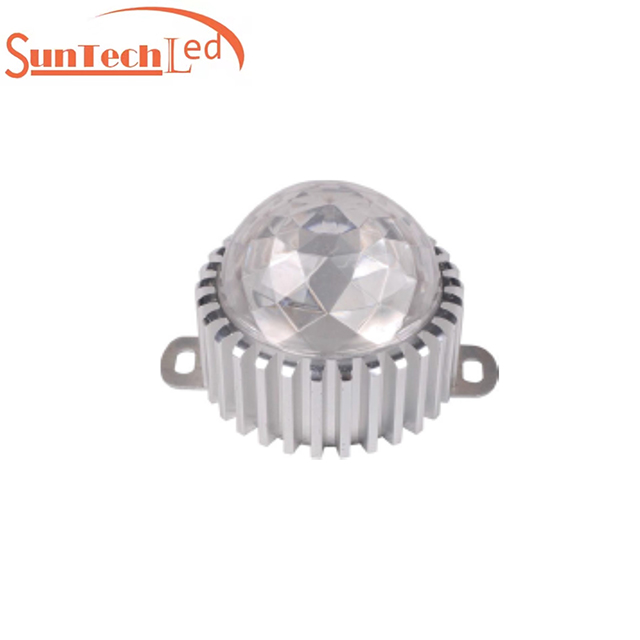

SPZ series led dot lights

Gray level:256/65536

LED type:3535/5050/2835

LED Qty:3pcs/6pcs/12pcs/18pcs

Voltage:DC24V/36V

Maximum power:3W/5W/7W/9W/12W

Shell material:flame retardant PC

Beam angle:flat cover 120°/ball cover 160°/diamond

ball cover 160°

Color temperature:RGB/W

Working temperature: -20°C to 50°C

Storage temperature: -20°C to 60°C

Protection level: IP67

Service life:50,000 hours

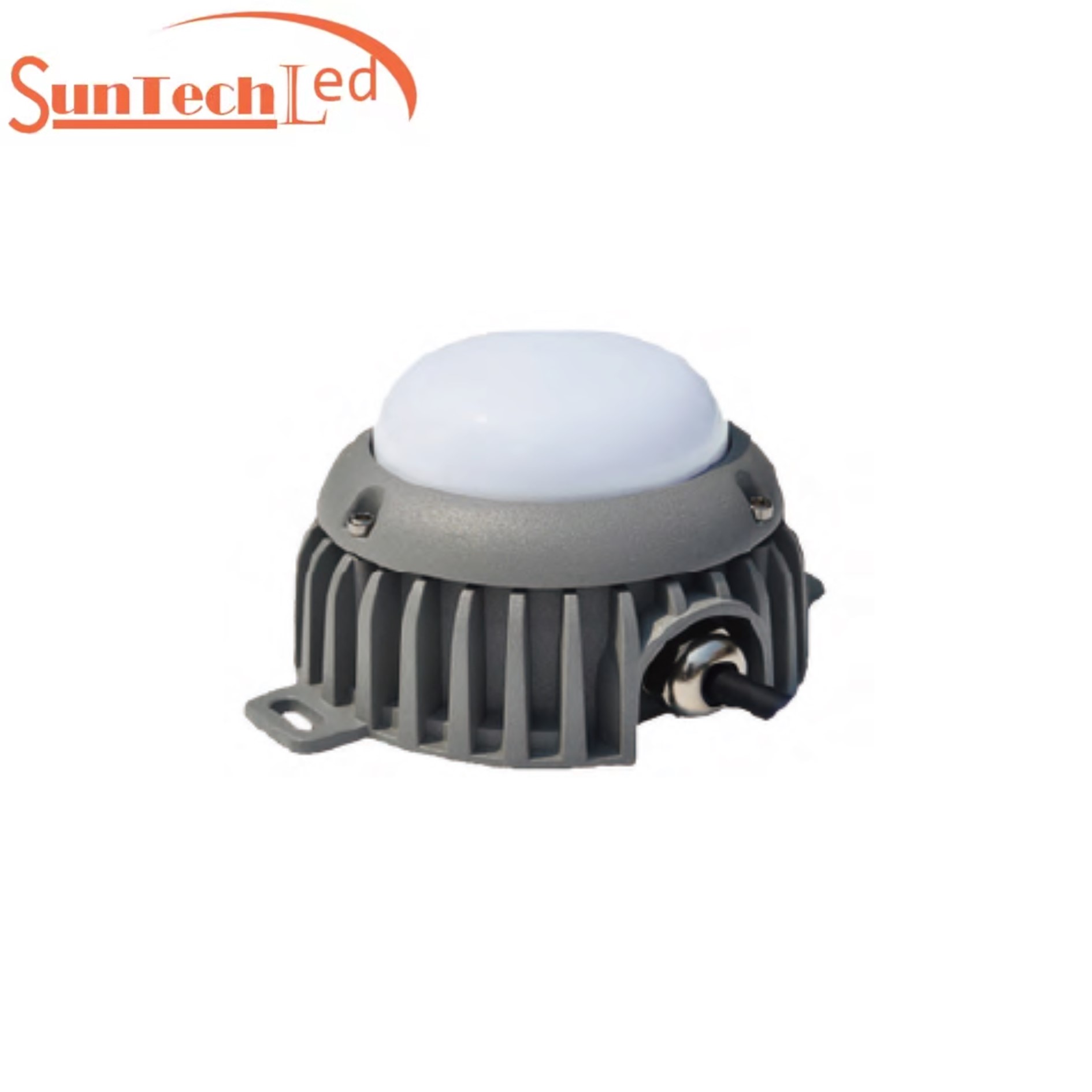

SPA090

LED Pixel Point Light

For Bridge Skyscraper

Building Landscape

Illumination

SPA090 pixel dot point light

Gray level:256/65536

LED type:3535/5050/3030

LED Qty:3pcs/6pcs

Voltage:DC24V/36V

Maximum power:5W/7W

Shell material:high thermal conductivity

aluminum+flame retardant PC

Beam angle:>120°

Color temperature:RGB/W

Working temperature: -20°C to 50°C

Storage temperature: -20°C to 60°C

Protection level: IP67

Service life:50,000 hours

SPA138

Programable LED Pixel

Dot Point Amusement

Lighting For Ferris

Wheel Garden Bar

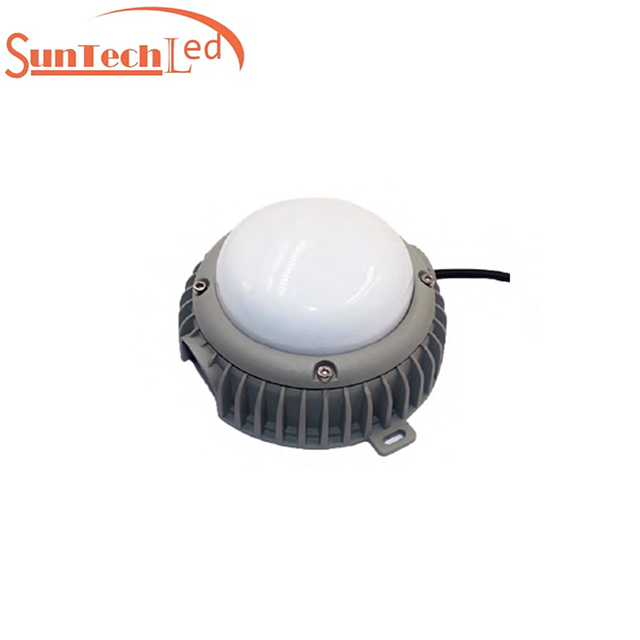

SPA138 pixel point lighting

Gray level:256/65536

LED type:3535/5050/3030

LED Qty:6pcs/9pcs/12pcs

Voltage:DC24V/36V

Maximum power:9W/12W/15W

Shell material: high thermal conductivity aluminum +

flame retardant PC

Beam angle: >120°

Color temperature:RGB/W

Working temperature: -20°C to 50°C

Storage temperature: -20°C to 60°C

Protection level: IP67

Service life:50,000 hours


Suntechleds LED pixel dot lights have several advantages, as follows,



Miro LED dot lights

Small Size And Light Weight


Can be made into any shape, which is convenient for the layout and design of lamps and has a wide range of applications



Faster speed led dot lights

Faster Response Speed


The response time is nanoseconds. This feature makes it widely used in traffic lights



No flicker dot lights

No Flicker  No Ultraviolet Rays


The spectrum of LED LED pixel dot lights is mainly concentrated in the visible light region and will not be interfered by ultraviolet and infrared radiation, so flicker can be effectively avoided



Waterproof dot lights

Strong anti-vibration and Waterproof


Impact resistance. The LED dot light is sealed with epoxy resin, giving it strong waterproof and shockproof capabilities. Excellent impact resistance also brings convenience to transportation and production

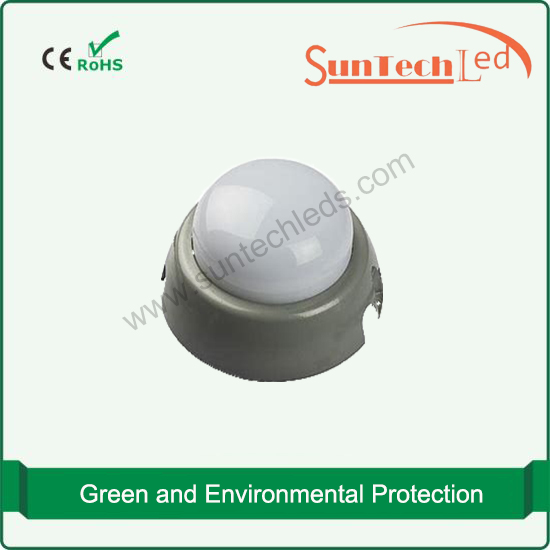

Green led dot lights suntech

Green and Environmental Protection


The LED LED pixel dot light is made of non-polluting materials, and its waste can be recycled




Adjustable dot lights

Brightness is adjustable


The brightness of the LED LED pixel dot light can be effectively controlled according to the current. It is convenient to realize on-demand lighting, with stepless brightness control




Strong directionality dot lights

Strong Directionality


The light emitted by the LED LED pixel dot light is directional, and most of the light can be directed to the illuminated surface. Compared with traditional light sources, the utilization rate is higher





How to install the LED pixel dot light


Suntechleds has accumulated rich experience in engineering application practice for many years. Now I will share with you a more complete and comprehensive installation method for LED pixel dot light. In engineering construction, it can provide references for engineering companies to improve efficiency.

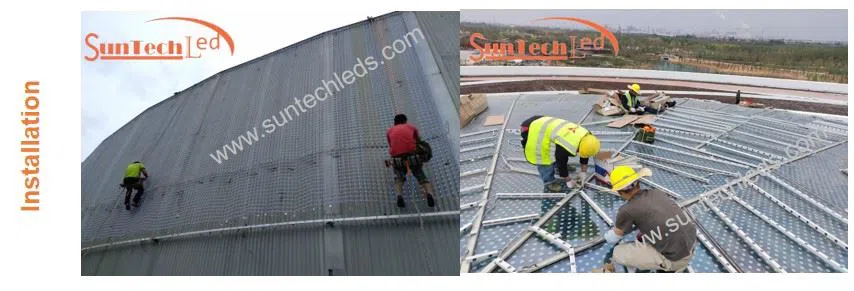

Installation LED pixel dot light suntechleds

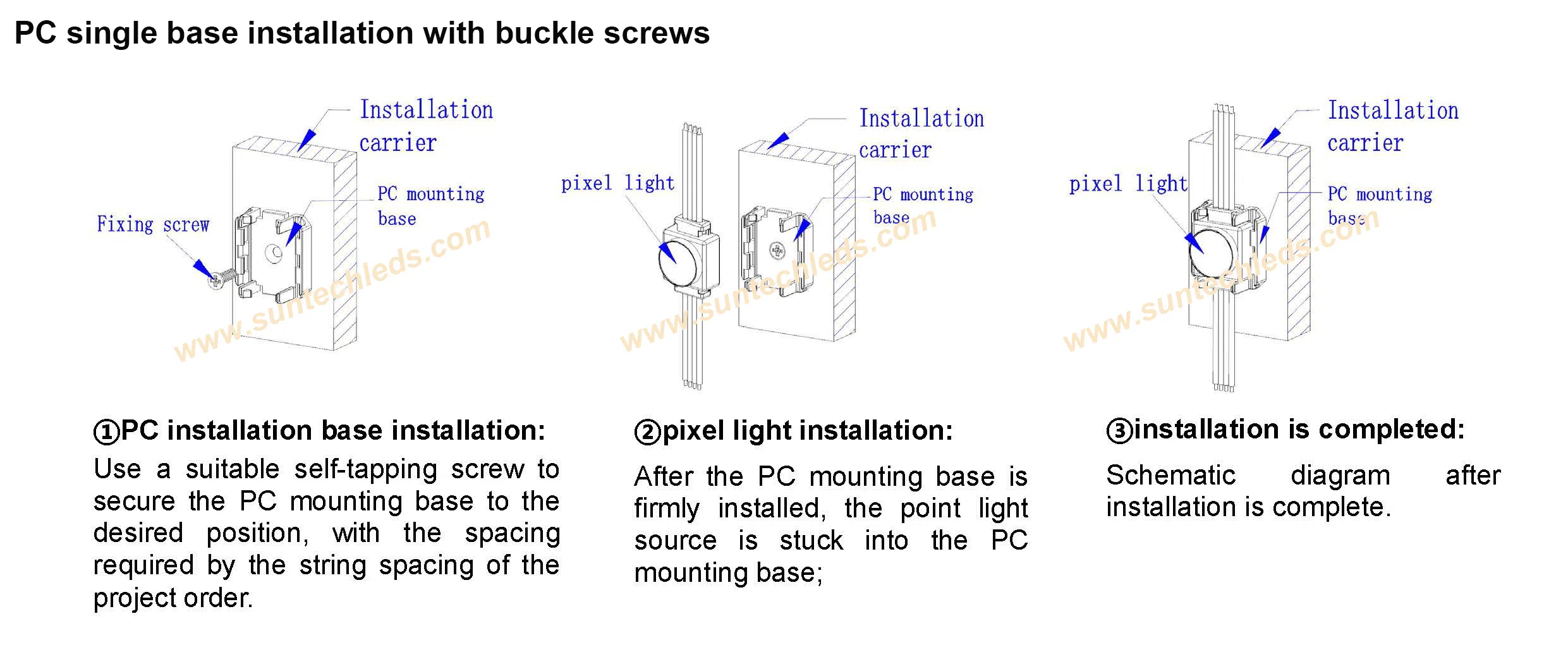

1. Step 1: Installation with buckle screws: the buckle is locked on the installation wall, and then the light is clicked into the buckle;


 PC-single-base-installation-with-buckle-screws

2. Step 2: Snap glue installation: buckle the user's external engineering glue to the installation wall, and then the light can be snapped into the buckle;

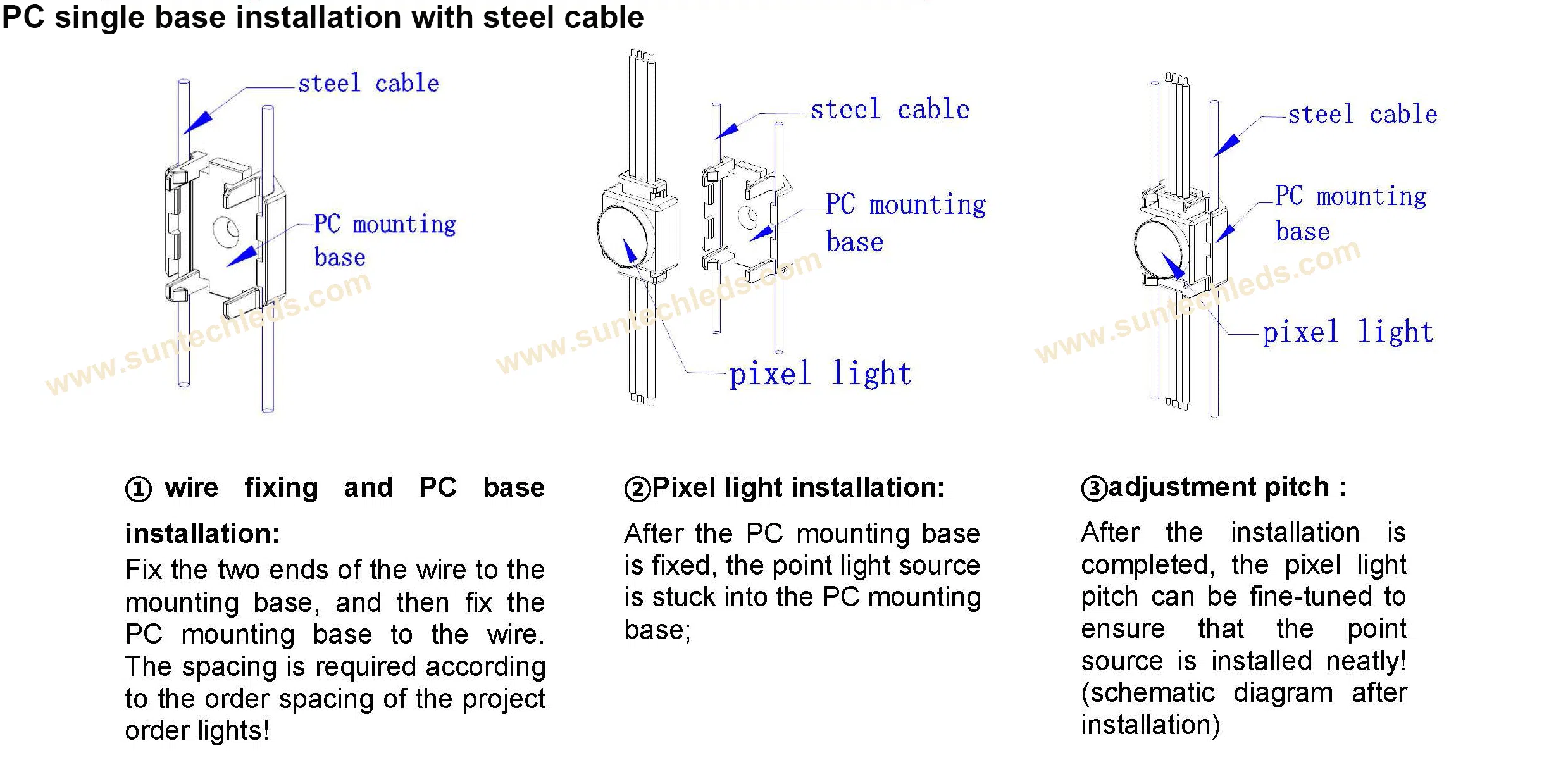

3. Step 3: Installation of the buckle pull wire: the buckle is inserted into the steel wire, and then the light is inserted into the buckle;


PC-single-base-installation-with-steel-cable

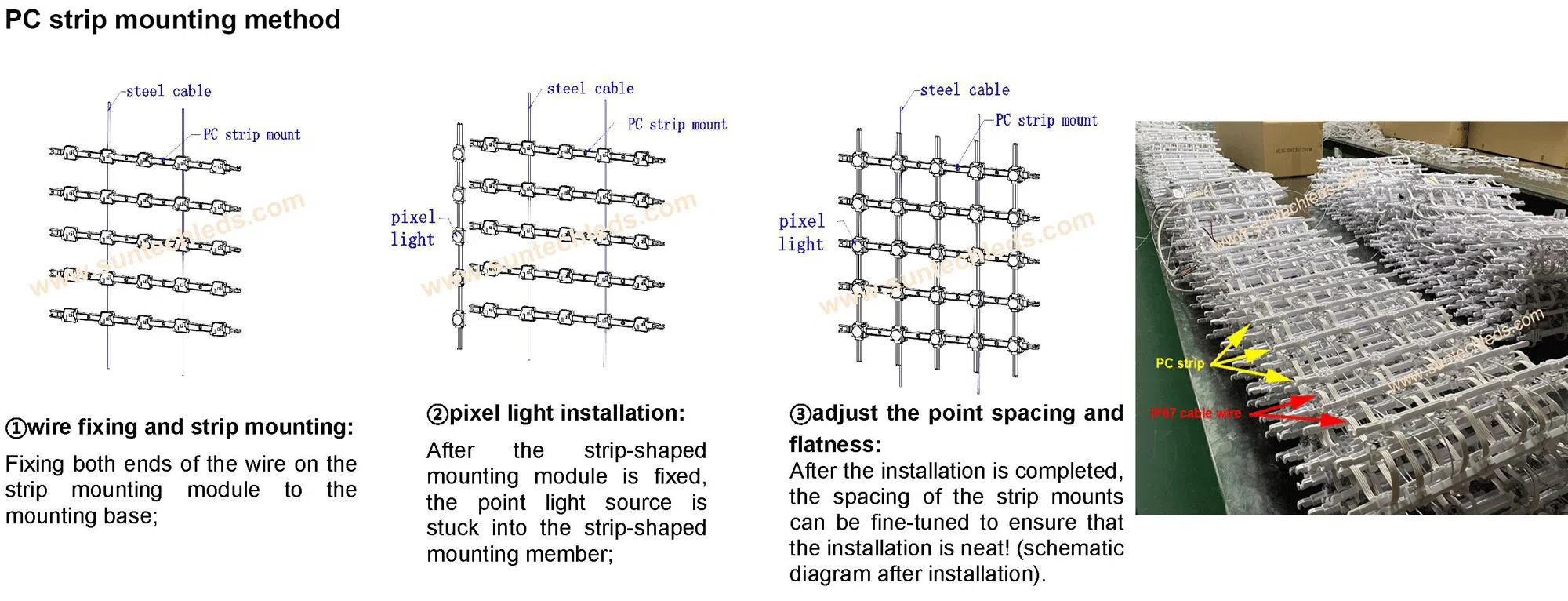

4. Step 4: PC strip mounting method


PC-strip-mounting-method

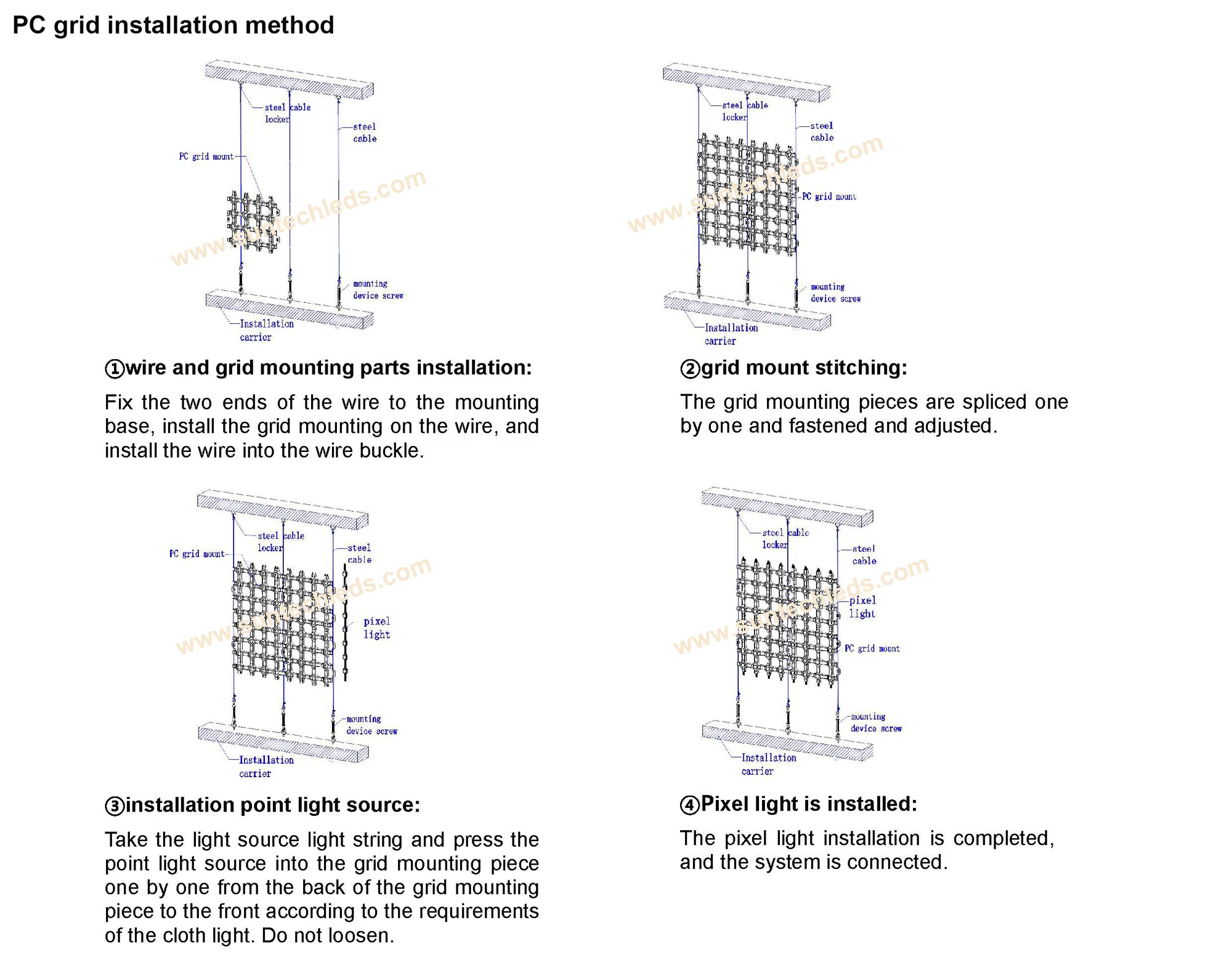

  5. Step 5: PC grid installation method (Click Flexible LED Pixel Mesh Light to view product details)

PC-grid-installation-method

See the video from SuntechLED for details:


6. Step 6: Frame installation method

Frame-installation-method

See the video from SuntechLED for installation details:





7. Step 7: Installation of profile lock bracket


(1) The two mounting brackets are locked to the installation wall according to the spacing, and the light is locked on the aluminum profile with screws, and then the locked profile is locked on the mounting bracket;



(2) The two mounting brackets are locked on the installation wall according to the interval, and the aluminum profile of the light is lighted with the connecting buckle, and then the profile of the fixed light is locked on the mounting bracket;



(3) The two mounting brackets are locked on the installation wall according to the spacing, and the light with the light shade is screwed to the aluminum profile, and then the profile with the fixed light is locked on the mounting bracket;



8. Step 8: Profile lock wall installation



(1) First use screws to lock the light on the aluminum profile. After this, the locked profile on the installation wall;


(2) Use the connecting buckle to clip the light to the aluminum profile, and then lock the fixed light profile on the installation wall;


(3) Screw the light with the light shade onto the aluminum profile, and then lock the profile with the fixed light on the installation wall;



9. Step 9: Non-planar installation: such as cable-stayed large-diameter steel cables on bridges. It is installed in the form of a hoop. Lock the hoop on the large-diameter steel cable. Then lock the profile of the fixed light on the installation wall.


10. Step 10: Other installation methods: But it needs to be developed and designed separately according to actual engineering needs.


LED pixel dot light Features


      LED has the advantages of long life, small size, lightweight, low power consumption (energy saving), low cost, etc., and low working voltage, high luminous efficiency, extremely short luminous response time, wide operating temperature range, pure light color, and strong structure ( Shock resistance, vibration resistance), stable and reliable performance and a series of characteristics, are highly favored by people.



LED pixel dot light application


      Since the luminous body of the LED is close to the "point" light source, the design of the lamp is more convenient, but when used as a large-area display, the current and power consumption are both large. LEDs are generally used for display devices such as indicator lights, digital tubes, display panels and photoelectric coupling devices of electronic equipment, and are also commonly used for optical communications, etc., as well as the decoration of building outlines, amusement parks, billboards, streets, stages and other places

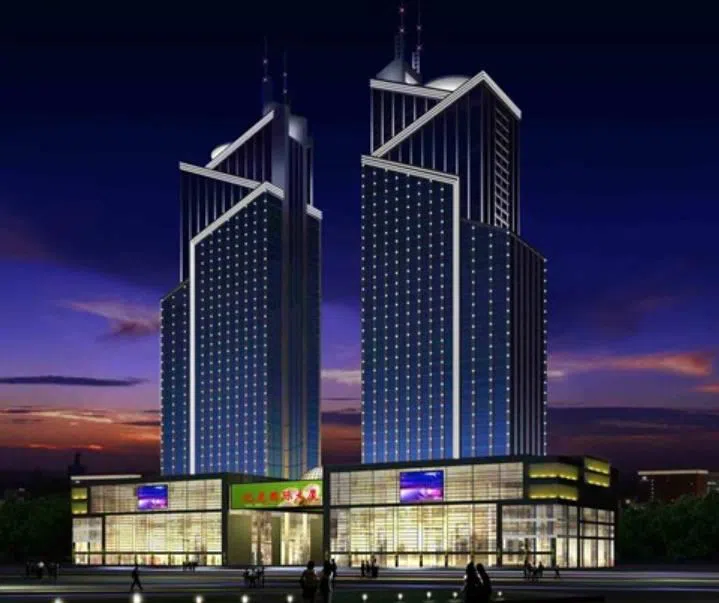

                               suntech led dot lights application in bridgeled dot lights application in facade lighting


LED pixel dot light characteristics


1. The lamp body is made of high-strength aluminum material, and the surface is anti-aging and electrostatic spray treatment, which is self-cleaning and strong in corrosion resistance.


2. The face shield adopts a brand-new PC lampshade, which is shock-resistant and friction-resistant.


3. Using high-quality LED products, high stability and long life.


4. It can be controlled by DMX512 system, with colorful changes, flowing water, and dreamy effects.


5. Green and environmentally friendly and pollution-free: cold light source design, no harm to eyes and skin. Realize the true meaning of green


6. Humanized structure design makes the installation and maintenance of lamps easier. Suitable for a variety of applications.


7. The lamp is designed to fully dissipate heat, and the temperature of the cover is lower, safe and good protection.


If you have difficulty installing LED pixel dot light or other technical problems, please consult our professional Suntechled lighting engineers.


Other LED products maybe you are interested in:

DMX-LED-Strip-Lights-Addressable

DMX LED Strip Lights Addressable

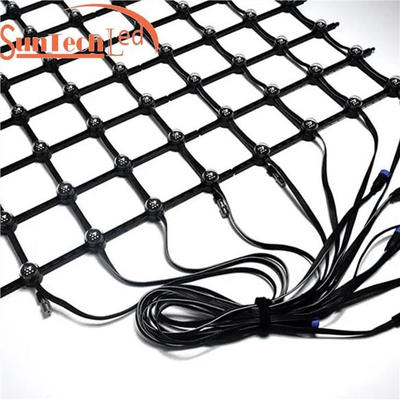

flexible-led-pixel-mesh-light

Flexible LED Pixel Mesh Light

Germicidal UVC LED Strip 265nm 278nm

Germicidal UVC LED Strip 265nm ~ 278nm


More articles from Suntech that you may have interests:

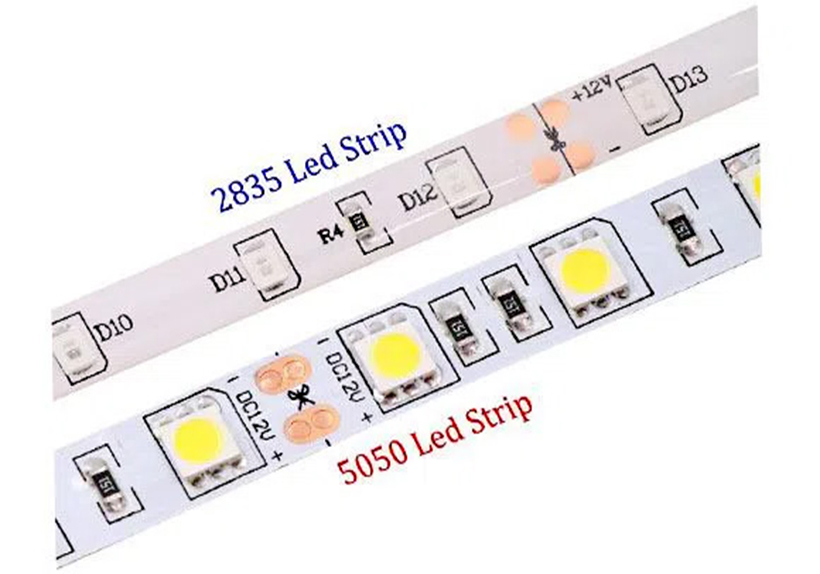

2835-5050-LED-strip

2835 VS 5050

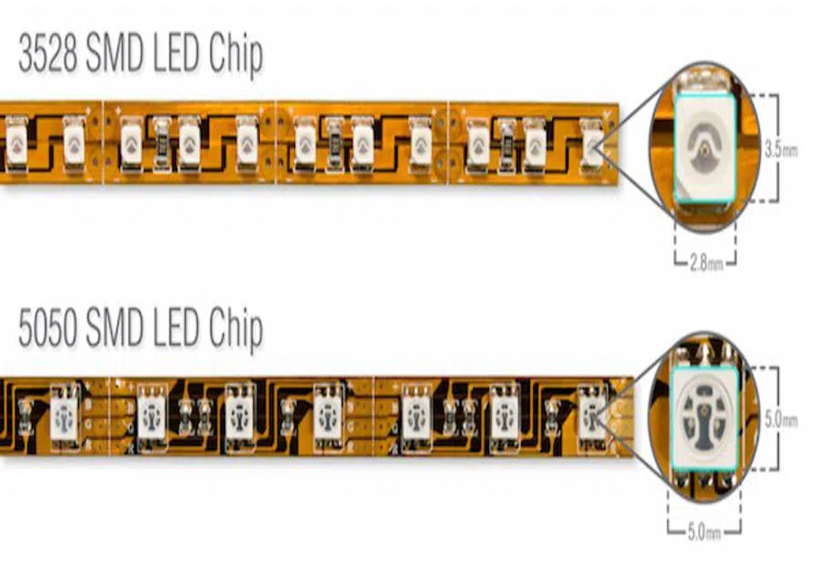

3528-VS-5050

3528 VS 5050

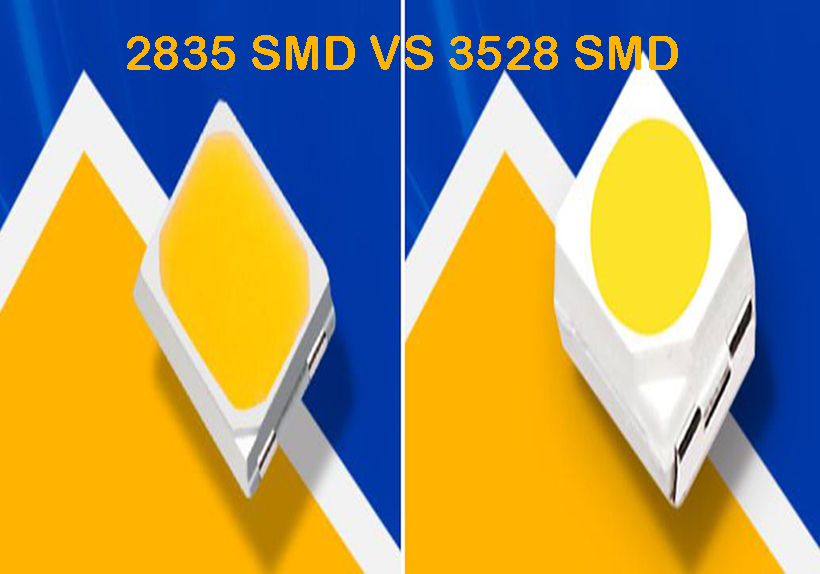

2835-SMD-VS-3528-SMD

2835 VS 3528

UV-365nm-395nm

365nm VS 395nm Which is better

How-to-distinguish-wall-washer-and-flood-light

Wall Washer and Flood Light

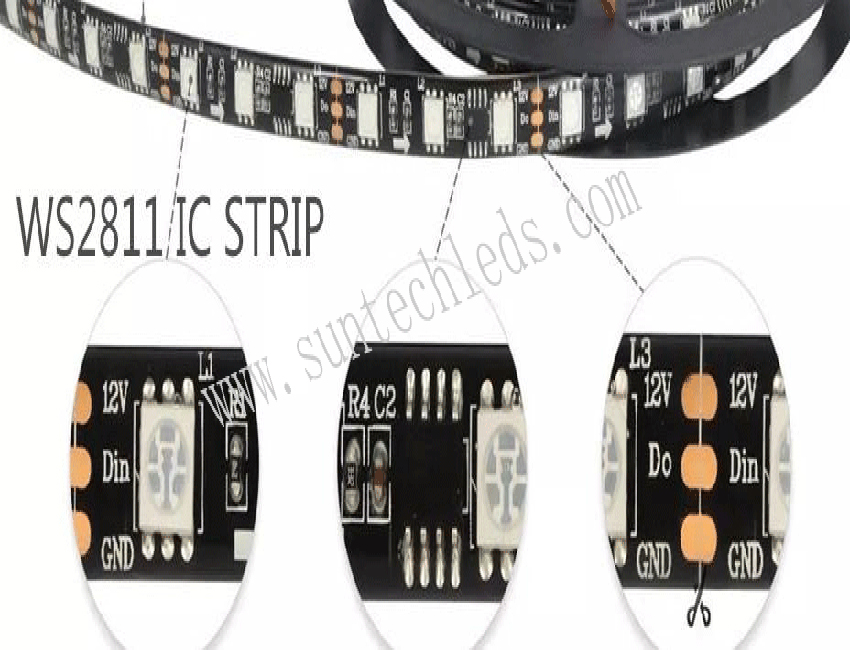

What-Is-The-Difference-WS2811-VS-WS2812B-VS-WS2813-Strip-Light-850-650 WS2811 VS WS2812B VS WS2813
