DMX LED Pixel Point Light For Facade Lighting

Product Code SPB018. The SPB018 pixel light is a low power LED string product designed for outdoor landscape lighting. The product spacing and color can be customized; it is suitable for large-area display or lighting of building facades, bridges and skylights.

Availability:

Overview of LED pixel dot light for facade lighting

LED point light source is a new type of energy-saving and environmentally-friendly decorative light for indoor and outdoor. Each LED has a built-in microcomputer chip so it can be programmed and controlled at will. The full-color changing effect and multiple led point light sources form a dot-matrix screen. A variety of pictures, text, and animation effects can be changed. It is a supplement to the linear light sources and flood lighting. Its beautiful appearance can meet the design requirements of points, lines, and surfaces for decorations such as buildings.



Looking for an ideal LED Pixel Point Light Manufacturer & Supplier? We are the China Origin Factory of LED Pixel Point Light. Please feel free to contact us if any questions.


Why choose us?

1. Adopting glue filling process, the PCB board is 360°surrounded by transparent glue, and the glue will keep transparent in 5 years.

2. The PCB board is not in contact with the shell, and the waterproof performance is stronger.

3. The connection between the internal wiring and the PCB board is completely glue-sealed, which will not cause thermal expansion and contraction, and has excellent moisture resistance.

4. The glue has a high thermal conductivity which reduces heat generation, has a long service life.

5. Equipped with multiple circuit components, better protection performance: anti-signal interference, anti-static, anti-lightning strike.

6. Install protective capacitor components to prevent damage to the circuit during overvoltage, overcurrent, and surge.

7. The connector adopts a glue filling process, which is completely moisture-proof.

8. High-quality LED beads: Osram/Cree


Product parameters


Item No. Light source Color IP Grade Voltage Beam angle Chip Brand

SPB018-01AU-01

3535

RGB/RGBW

IP66

DC12V

120°/160°

Osram/ Cree

SPB018-01AU-02

3535

RGB/RGBW

IP66

DC5V

120°/160°

Osram/ Cree

SPB018-01AE-01

3535

RGB/RGBW

IP66

DC12V

120°/160°

Osram/ Cree

SPB018-01AE-02

3535

RGB/RGBW

IP66

DC5V

120°/160°

Osram/ Cree

SPB018-01XT-01

5050

RGB/RGBW

IP66

DC5V

120°/160°

Osram/ Cree

 For more product information, please download the specificationsLED-pixel-dot-light-specification-Suntech.pdf


Other parameters

Control

DMX512/ Single line serial TTL/ Dual channel Real-time backup TTL

Cover material

Flame retardant PC

OEM/ODM

Available

Working temperature

-2o to 50°

Warranty

5 Years

Packing

Standard package

Lifespan

50,000h


Details of RGB/RGBW programmable dot LED lights SMD3535 SMD5050

SPB018_

SPB018_

SPB018_

SPB018_


DMX LED Pixel Dot Light Project Display





Features of LED pixel string lights RGB/RGBW  DC5v/DC12v

1. New generation of TTL serial technology design

2. Standard DMX512 Control Protocol

3. Industry-leading wireless button-type anti-smash connection design

4. High thermal conductivity glue full potting waterproof design

5. Outdoor lightning protection and Electrostatic (ESD) special protection design

6. Flexible, flexible application, multiple mounting methods

7. Grid installation, strip installation transmittance of up to 94%

8. Innovative high voltage work, support longer power supply distance

9. Support RGB/W current separately adjustable (low light and high gray)

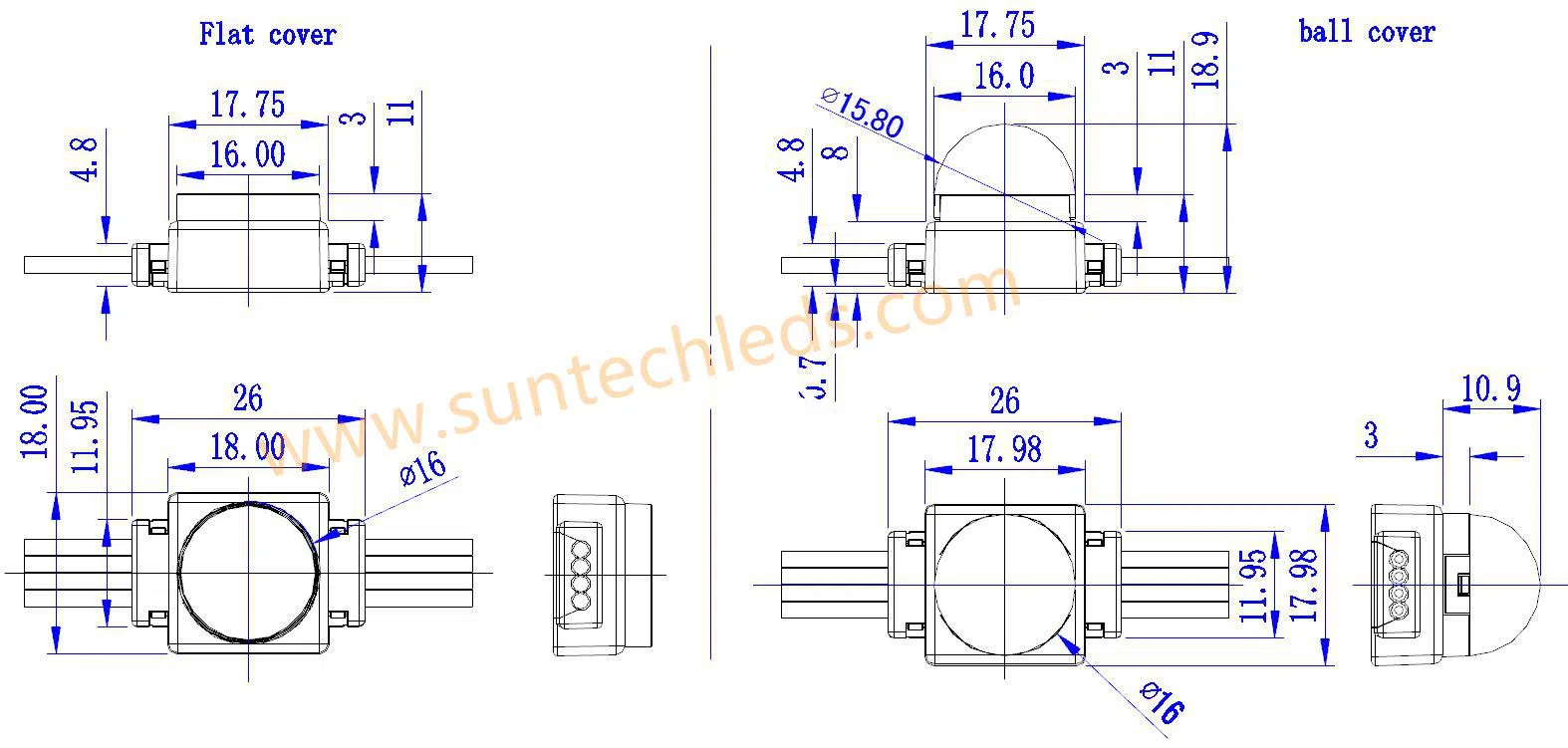

Dimension (mm)

1-1_

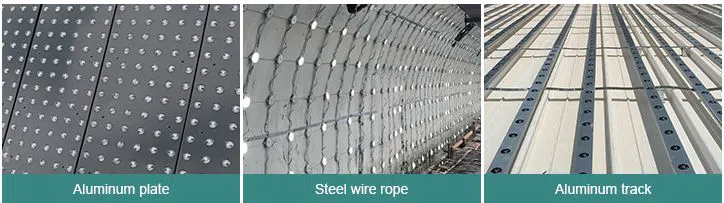

Installation accessories

66a4a4c935613a2cda2ac1df97c5f34_

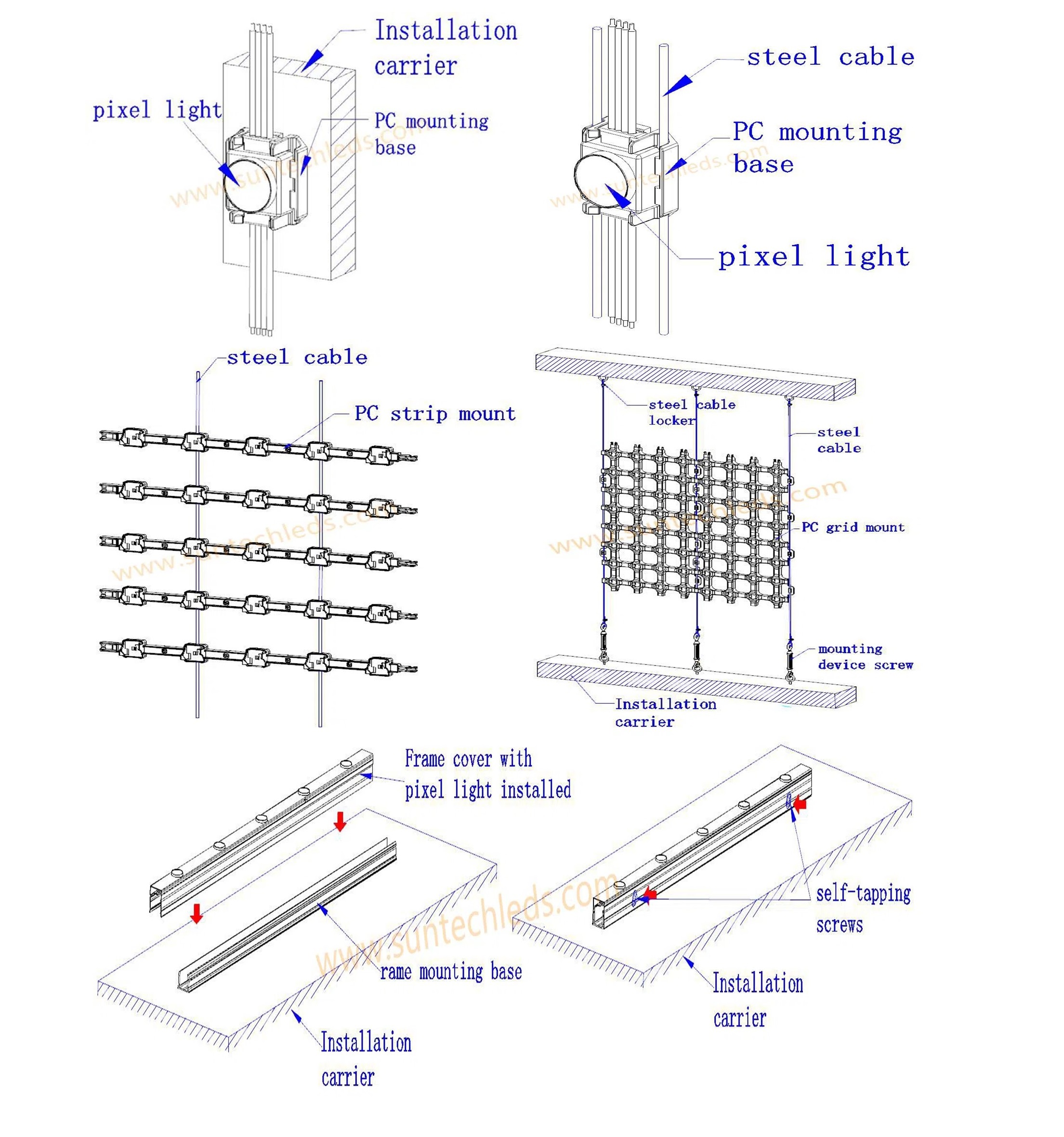

Multiple installation methods


DMX LED Pixel Point Light For Facade Lighting



Application of the smart LED Pixel Point Lights

Buildings/ Bridge outlines/ Hotel decoration/ Billboards/ Curtain walls/ Night lighting/Light Shows/ Interior and Exterior Electronic Screen/ Themed Environments

_20210425184356(1)

_20210426162255


Control system connection

1. The main controller is equipped with a sub-controller and signal adaptor. The main control and sub-control working voltage are AC220V. The working voltage of the signal adaptor is the same as the working voltage of the pixel light.

2. Each sub-controller has 8 ports. The TTL sub-controller can carry 512 (RGB) pixels per port. The DMX sub-controller can carry 170 (RGB) pixels per port. It is used with the signal adaptor and supports 200 meters long-distance transmission.

3. The main control and sub-control, sub-control and sub-control are connected by CAT5 twisted cables, the maximum distance of each section is less than 120 meters; the maximum transmission distance between the sub-controller and the signal adaptor is less than 120 meters. In this case, the maximum distance from the signal adaptor to the first pixel light is no more than 2 meters.

4. It is recommended that the maximum point spacing should not exceed 2.5 meters and each intermediate

the power supply can support the power supply distance of 6 meters left and right (can be adjusted according to the project conditions).

7-31

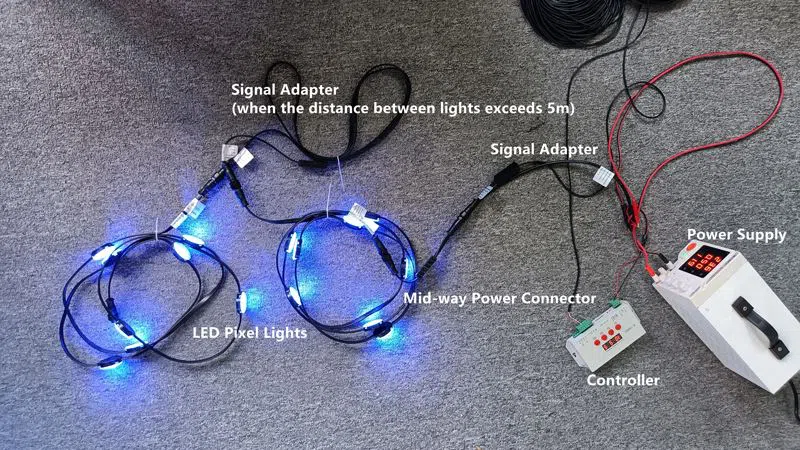

How to Connect the DMX LED Pixel Lights System?

How-to-Connect-the-DMX-LED-Pixel-Lights-System


Production process



Pixel point light installation scene and text SPB018

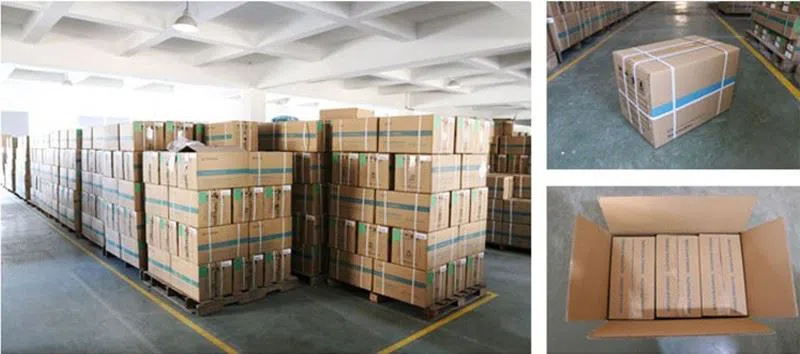

Packing & Shipping

_20210427151329(1)

_20210426151851(1)

FAQ

1. Q: Can I have a sample order of the led product?

   A: Yes. We welcome the sample orders to check the quality. Mixed samples are acceptable.


2. Q: How do I place an order?

   A: First, please send your requirements or questions to sales@suntechleds.com, we will talk about the details. Then we will send you a PI after the information is all right. Finally, we will arrange the delivery as soon as possible once received your payment.


3. Q: What’s the MOQ limit for the RGB LED light?

   A: There is no MOQ limit. 1pcs sample for checking and testing is acceptable.


4. Q: Do you support customize of the led light?

   A: Yes, we support OEM&ODM. Please inform us of the detailed information and we will design and produce it according to your demands.


5. Q: What about the lead time?

   A: Usually, the lead is 3-5days. For customized products, it will be 7-10 days. Please contact us for the accurate delivery time.


6. Q: Is it OK to print my logo on led light product?

   A: It’s OK. Please inform us formally before our production and confirm the design first based on our sample.


7. Q: Do you offer a guarantee for the products?

   A: We offer 5 Years warranty.
