Product Code: SPA090 Lamp type: LED pixel light Light source: 3535 / 5050 / 3030 Material: High thermal conductivity aluminum+Flame retardant PC IP rating: IP67 Warranty: 5 years Outdoor LED pixel light applies to facade lighting, Landscape Lighting, and architectural lighting.
SPA090 Pixel Light
SPA 090 pixel light is a high-power LED string-type or point-type product specially designed for outdoor landscape lighting. It adopts a high thermal conductivity die-cast aluminum shell and engineering grade flame-retardant plastic PC upper cover, and is potted and waterproofed with high thermal conductivity and weather-resistant PU glue; the size of the lamp point is suitable, and the appearance is exquisite; the lamp string is connected by the national standard customized flexible cable, which can be bent at will, Deformation to support the installation of special-shaped facades; product spacing and color can be customized; suitable for large-area display or lighting such as building facades, bridges, and sky screens.
Product Features
★ A new generation of dual-channel real-time backup control protocol
★ Standard DMX512 control protocol
★ Integrated anti-pull connection design
★ High thermal conductivity adhesive, fully potted, and waterproof design
★ Special protection design for outdoor lightning protection and static electricity (ESD)
★ Product flexibility, wide application, multiple installation methods
★ Innovative high-voltage work to support longer power supply distance
★ Support RGB/W current individually adjustable (low brightness and high gray)

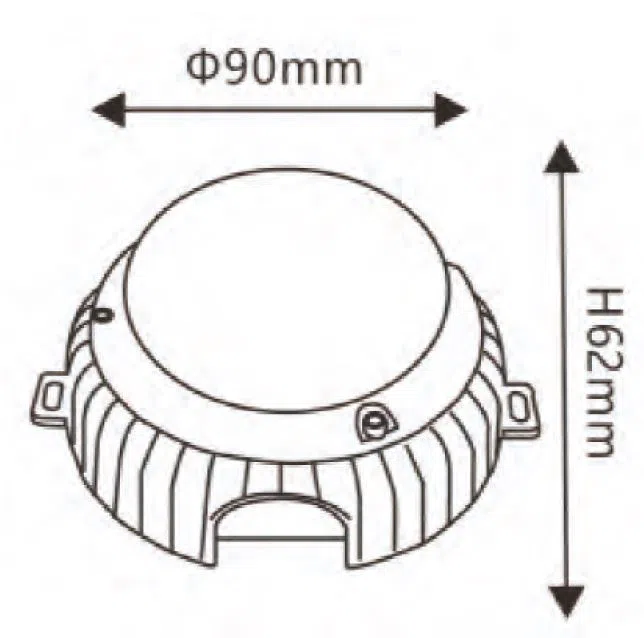

Product Size (Unit: mm)

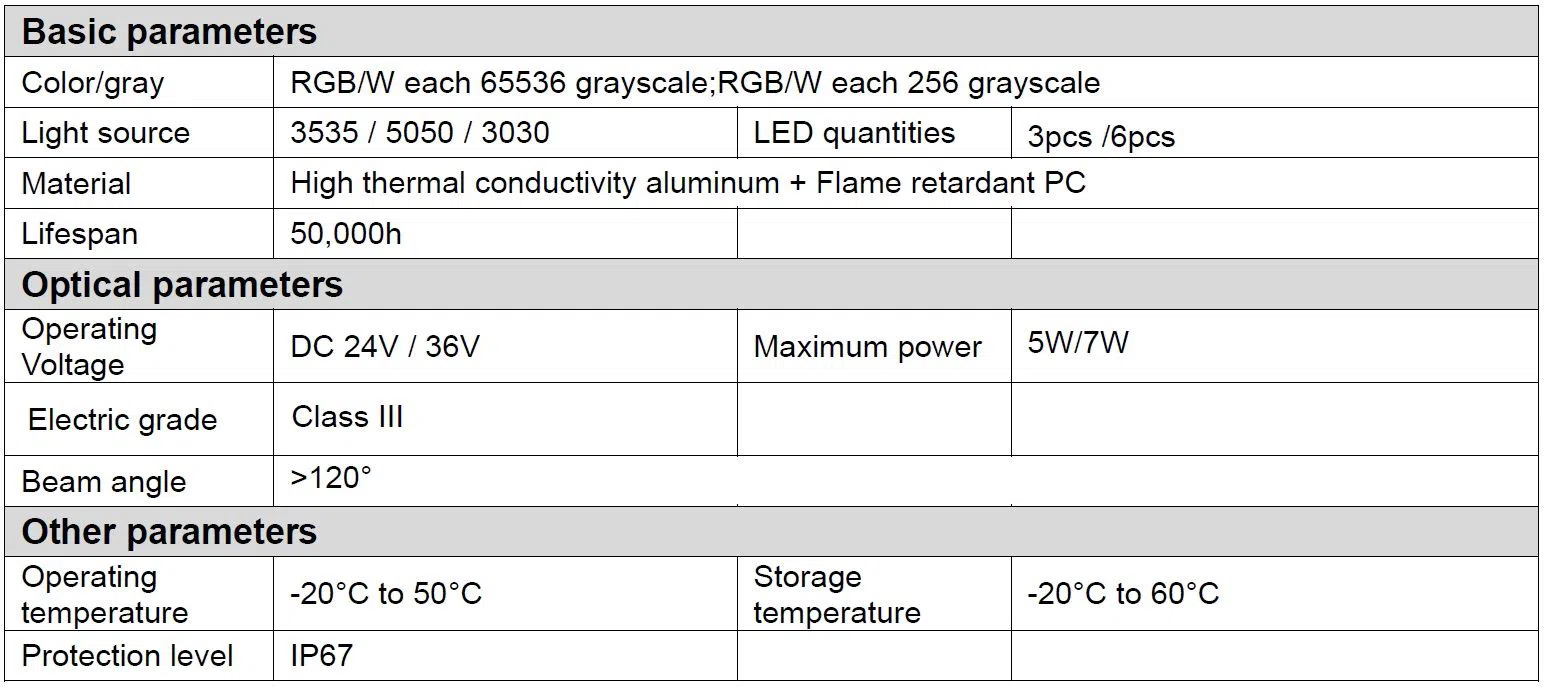

Technical Parameters

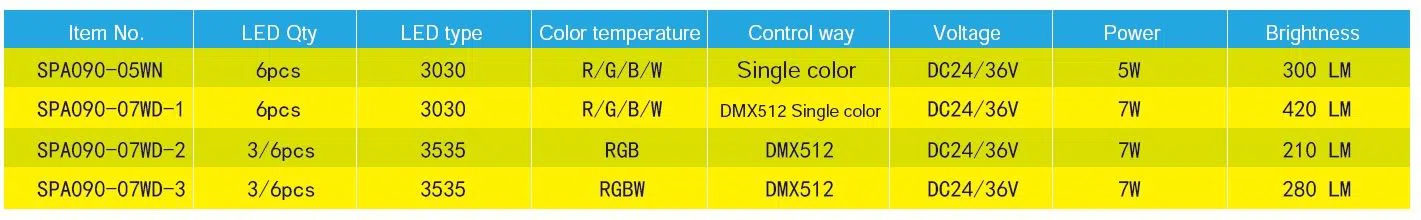

Product Selection Table

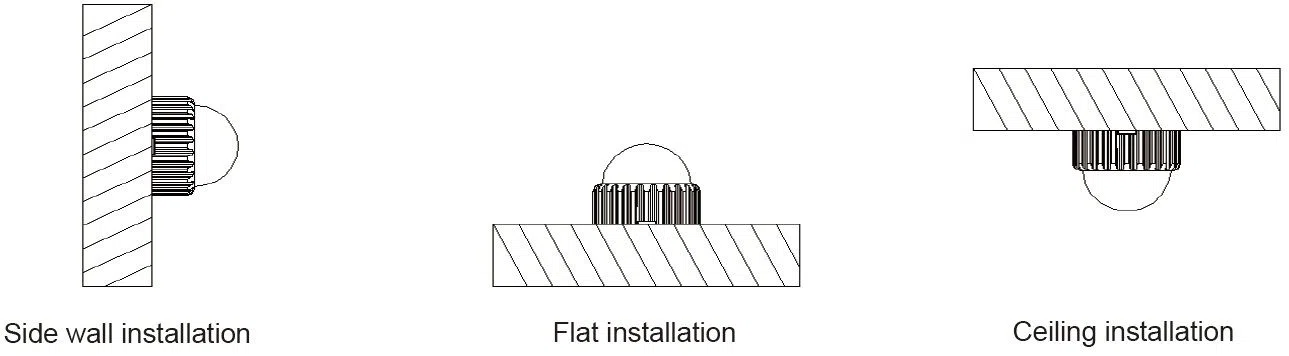

Installation
System Connection
1、The main controller is equipped with a sub-controller and signal adaptor. The main control and sub-control working voltage are AC220V. The working voltage of the signal adaptor is the same as the working voltage of the pixel light.
2、Each sub-controller has 8 ports. The TTL sub-controller can carry 512 (RGB) pixels per port. The DMX
sub-controller can carry 170 (RGB) pixels per port. It is used with the signal adaptor and supports 200
meters long-distance transmission.
3、The main control and sub-control, sub-control and sub-control are connected by CAT5 twisted cables, the maximum distance of each section is less than 120 meters; the maximum transmission distance between the sub-controller and the signal adaptor is less than 120 meters. In this case, the maximum distance from the signal adaptor to the first pixel light is no more than 2 meters.
4、It is recommended that the maximum point spacing should not exceed 2.5 meters, and each intermediate power supply can support the power supply distance of 6 meters left and right (can be adjusted according to the project conditions).
Notes
1. Please read the installation manual carefully before using the product.
2. The product is handled gently and gently to avoid damage to the product. Installation, maintenance and maintenance must be handled by professionals;
3. The external power supply must be cut off during wiring to prevent people from getting an electric shock or damaging the lamp;
4. When the external power cord is connected, the corresponding measures of waterproofing and water
leakage must be taken;
5. The male and female waterproof protective covers for the products shall not be removed before the
products are installed and connected;
6. Quality Assurance: Under normal conditions of use, quality assurance is based on the proper storage,
installation, use and maintenance of the product.
Product Applications
This is a lighting project of our SPA090 Pixel Light. Shows the effect before and after installation.
This video is the actual installation effect of our product taken at night. The length and color of the product can be customized, which can be adapted to the installation of large curves or curved surfaces; it is suitable for contouring of building facades, and decoration and brightening of internal and external surfaces.
We are the leading outdoor LED linear facade lighting manufacturer and wholesale supplier in China. We can produce single color, RGB, RGBW color-changing LED pixel light facade lights. No matter if you are looking for an LED pixel light lights supplier or if you need custom-made pixel light lights, we can all help. Send inquiry to get an instant quote now!
