LED light strip: 5050 VS 2835

Views: 0 Author: Jessica Liu Publish Time: 2021-07-09 Origin: https://www.suntechleds.com

Overview:

2 key factors affecting the brightness of LED strips

5050 SMD and 2835 SMD led strips are the most popular LED light strips in the market right now. what is the meaning of 5050 and 2835? and which one should you choose? You will find the answer easily in this article.

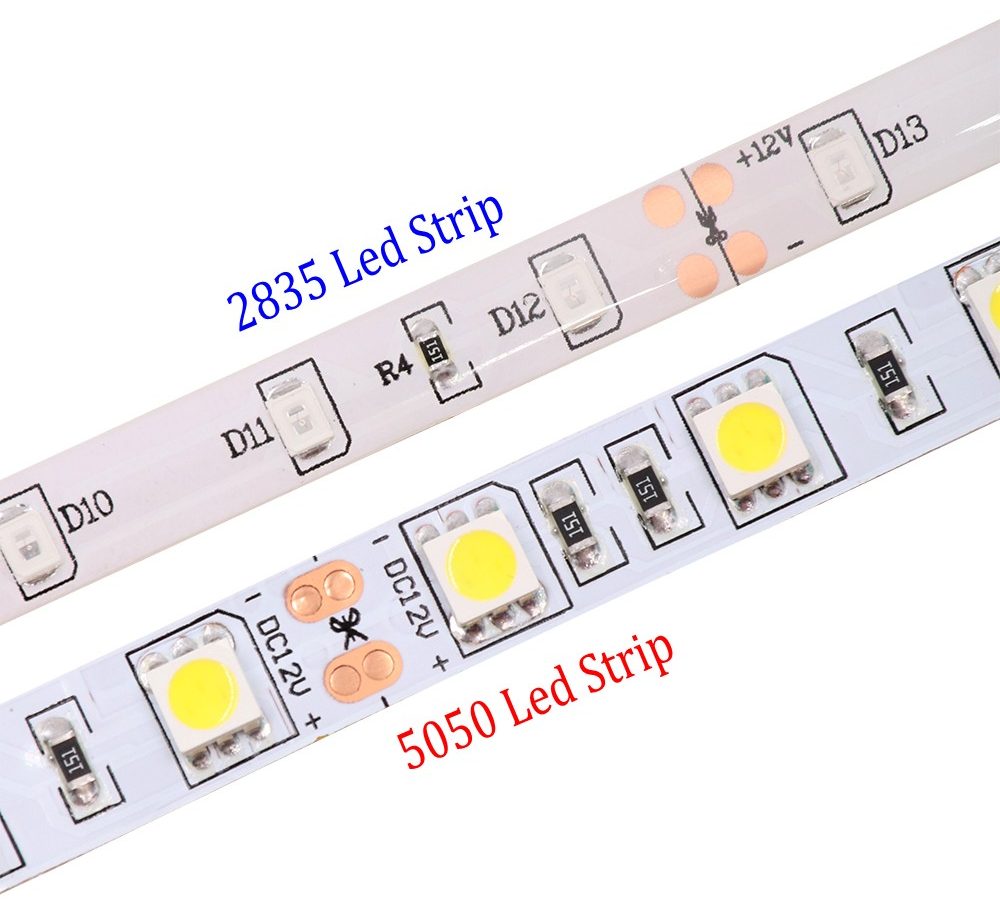

Difference between 5050 LED VS 2835 LED

This is a problem that puzzled many people who have just transitioned to the LED lighting industry. What do these numbers represent? Are they a set of random numbers or represent a series? The answer is very simple. These numbers actually represent the size of the SMD on the LED strip. For example,2835 LED strips are a strip that has LED chips with the dimensions 28mm × 35mm mounted on them. But there is a special situation that you may be confused about: what is the difference between 2835 and 3528? Click here to learn more.

All LED light strips are recognized by similar 4 digit numbers that tell you the size of the LEDs mounted on them. This makes it easier for you to choose the suitable LED for your project.

There is a table that shows you what's the difference between the 5050 SMD and 2835 SMD led strip.

Table1 - SMD2835 vs SMD 5050 - Suntechled

Subject	SMD 2835	SMD 5050
Brightness	Lower (depend on the density)	Higher
Beam angle	120°	120°
Size	2.8×3.5MM	5.0×5.0MM
Colors	Red, Green, Blue, Yellow, White	Red, Green, Blue,Yellow, White,Especially RGB
Lumen	360 to 720 Lumens (per meter)	1000 Lumens (per meter)
Heat Dissipation	No Aluminum profile needed	Aluminum profile needed
Power	0.1w/0.2w/0.5w	0.24w
No. of Chips	Single Chip	Tri-Chip
Control	Fully Dimmable, CCT Control	Fully Dimmable, CCT Control, RGB Control
Recommended Application	Feature Lighting, Task Lighting, High Ambient Lighting, Backlighting, Accent Lighting, Cabinet Lighting	Task Lighting, RBG Lighting, High Ambient Lighting, Mood Lighting, Event Lighting, Indirect Lighting, Signage

For information you may need: SMD3528 VS SMD5050

2835 LED strip

2835 LED Rope Light:

Feature

2835 led strips have 28mm × 35mm SMD is installed on the light strip. These SMD strips can produce 360- 720 lumens of light per meter, depending on the LED density. The biggest advantage of the 2835 LED strips is that they do not emit a lot of heat since the built-in heat sink and can even be touched safely. This also means that you don't need an aluminum profile to help the strip dissipate heat.

Application

The lower density 2825 light strips can be used for special lightings, such as the base and recessed lights in homes, bars, hotels, and other places. Higher density 2835 light strips can be used in places that require a lot of ambient light, such as schools, offices, factories, etc.

5050 LED Tape Light:

Feature

5050 LED light strip is one of the first LED strips to house larger SMDs that are actually “tri-chips”. This means that each SMD house three single chips. Therefore, 5050 can produce three different colors of light at the same time. For example , the WS2811 pixel lighting strips and WS2818 LED strip both use the SMD5050 LED.

Application

Each SMD is 50mm × 50mm in size and it can produce 3 times the light produces by smaller SMDs like 2835. This light strip can produce up to 1000 lumens per meter of light. This makes it perfect for lighting larger spaces like airports, hospitals, factories, warehouses, and so on.

LED strip density

2 key factors affecting the brightness of LED strips

Larger SMDs do produce more light than smaller SMDs. So, this means the greater the number the brighter the LED light strip, right? Not necessarily. There are other factors at play when judging the brightness of LED strips.

LED strip density

This represents the number of SMDs on a single strip. This means that a 2835 LED strip with a higher LED density may produce the same amount of light as a 5050 LED strip with a lower density. In other words, If the SMDs are placed closer together, the strips will produce more concentrated light. If they are far apart, the light will diverge. It likes that 2835 LED strips with SMD placed closer together look brighter than the 5050 LED strips with larger SMD spacing.

The length of the strip

Shorter strips may not hold many SMDs, especially larger SMDs. Even if it is installed by a smaller SMD, this will make its longer strips less luminous.

Conclusion

If you need high-quality and affordable LED strips for your project, please email the Suntech team at sales@sunetchleds.com for priority-free consultation.

Frequently Asked Questions

1. What is 5050 meaning?

5050 means the dimension of the led chips is 50×50cm.

2. Which type of LED chips does Suntechleds have?

Suntech have 2016, 3528, 2835, 5050, 3014, 5630, and so on.

3. 3528, 2835, 5050, 3014, 5630-Which is the best LED chip?

2835: LED chip with dimensions 2.8mm × 3.5mm

3528: LED chip with dimensions 3.5mm × 2.8mm

5050: LED chip with dimensions 5.0mm × 5.0mm

3014: LED chip with dimensions 3.0mm × 1.4mm

5630: LED chip with dimensions 5.6mm × 3.0mm

Different applications are suitable for different sizes of LED chips, which one is better depends on the width of the PCB and the brighter you require.
