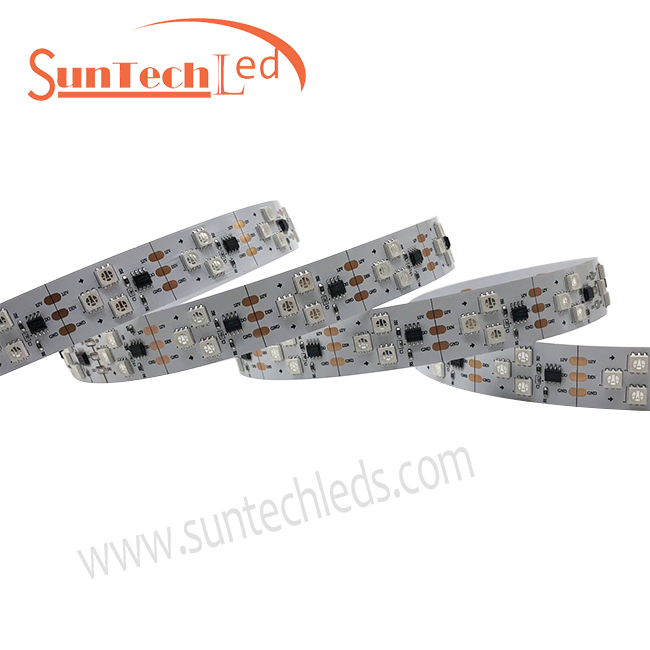

30 pixels per meter, each pixel control 3 RGB led. This addressable LED strip is with IC WS2811 outside. Can be controlled by Arduino or Raspberry Pi.
We have experienced engineers that provide you solutions for your project
Product introduction:
30 pixels per meter, each pixel control 3 RGB led. This addressable LED strip is with IC WS2811 outside. Can be controlled by Arduino or Raspberry Pi.
We have experienced engineers that provide you solutions for your project
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM16703RGB-120-24V | 30 | Addressable RGB | 90 | ≤21.6W | 12v | Double Copper PCB 5000*20mm |
Product details
1. 12v voltage input
2. WS2811 IC is compatible with many controllers such as T-1000 Arduino…

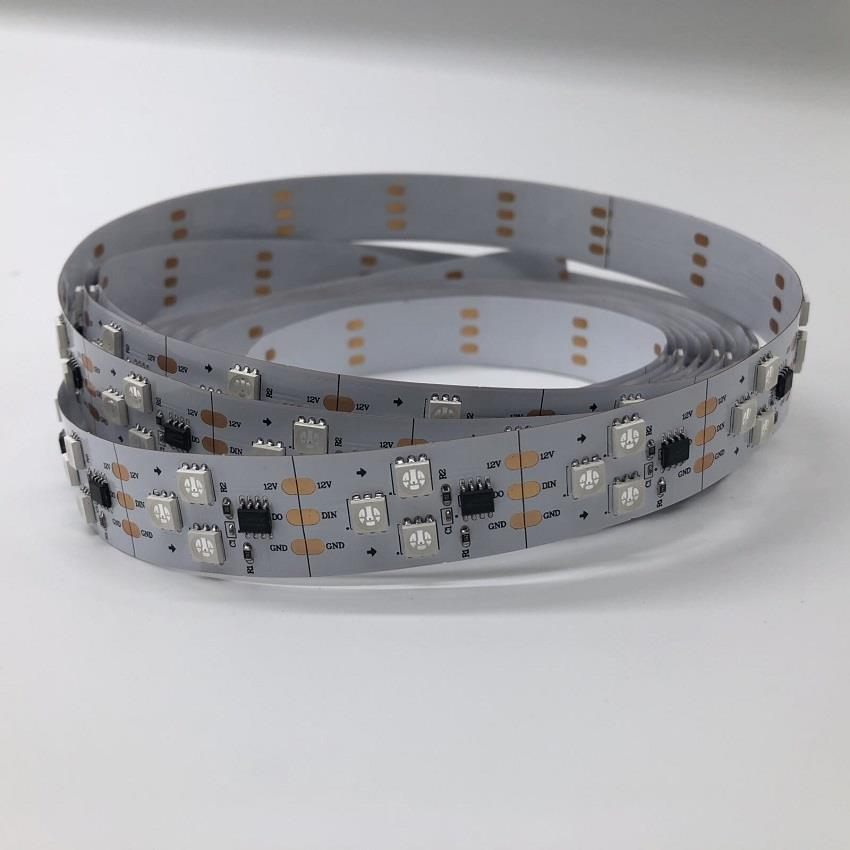

3. 5m per roll , 150 pixels per meter, wider width 20mm.
4. Our normal PCB is 2oz thickness is around 0.24mm. If you need thicker PCB like 3 ounce, we can provide too.

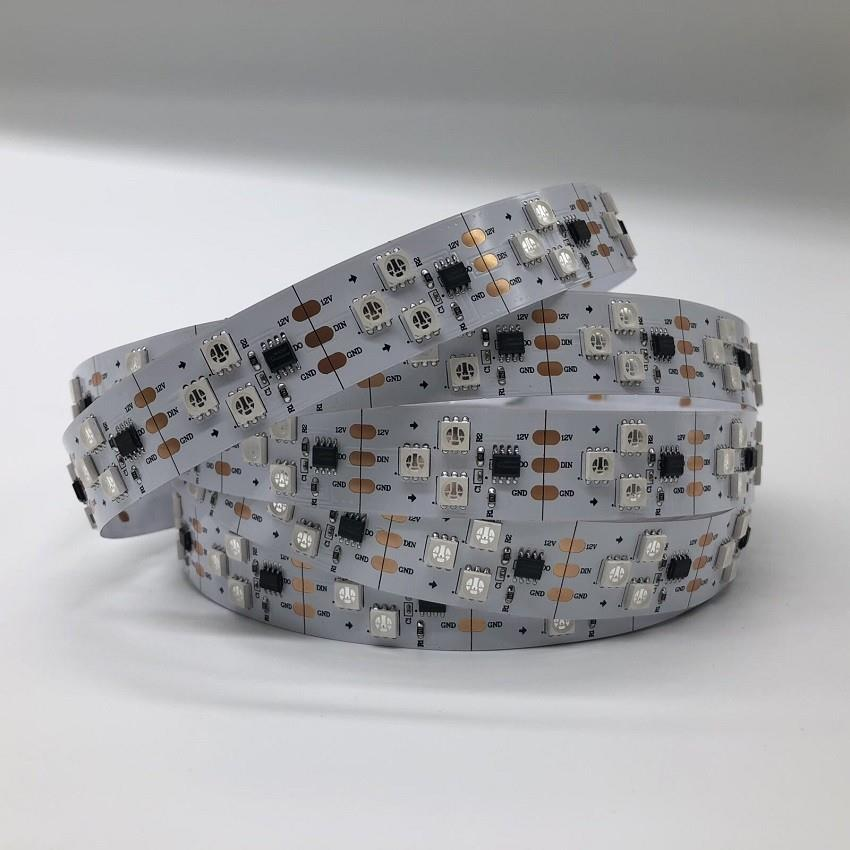

5. 90 LED per meter is special design for application
6. 30 pixels per meter with 90 RGB chips, each 3 RGB chips as one cuttable unit
7. Customized PCB and length we can provide also

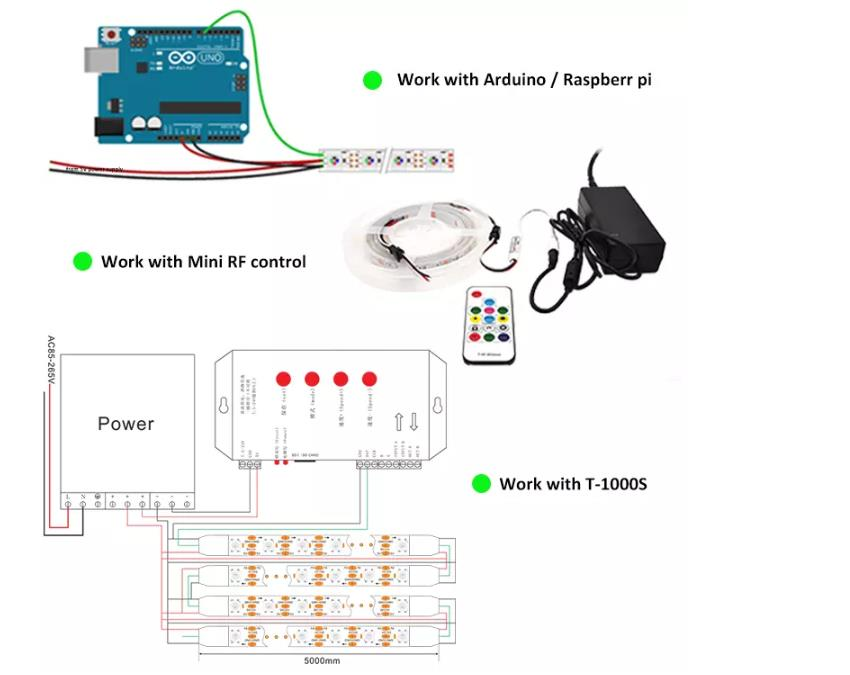

Please see connectin below
Hongkong autumn lighting fair
FAQ
Q1. You are manufacturer or trading company?
A: We are a manufacturer. Welcome to visit our factory at any time.
Q2. Where is your factory?
A: 6th floor, D Building, Shuitian Dingfeng Techpark, Shiyan Town, Baoan, Shenzhen, China.
Q3. Do you provide NEW Design addressable led strip OEM services?
A: Yes, we have experienced engineers team provide lighting solutions for your project.
Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Then We quote according to your requirements or our suggestions.
Third customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the 90 led addressable strip light?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. For led strip , MOQ is 1000m to print your LOGO.
Product introduction:
30 pixels per meter, each pixel control 3 RGB led. This addressable LED strip is with IC WS2811 outside. Can be controlled by Arduino or Raspberry Pi.
We have experienced engineers that provide you solutions for your project
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM16703RGB-120-24V | 30 | Addressable RGB | 90 | ≤21.6W | 12v | Double Copper PCB 5000*20mm |
Product details
1. 12v voltage input
2. WS2811 IC is compatible with many controllers such as T-1000 Arduino…
3. 5m per roll , 150 pixels per meter, wider width 20mm.
4. Our normal PCB is 2oz thickness is around 0.24mm. If you need thicker PCB like 3 ounce, we can provide too.
5. 90 LED per meter is special design for application
6. 30 pixels per meter with 90 RGB chips, each 3 RGB chips as one cuttable unit
7. Customized PCB and length we can provide also
Please see connectin below
Hongkong autumn lighting fair
FAQ
Q1. You are manufacturer or trading company?
A: We are a manufacturer. Welcome to visit our factory at any time.
Q2. Where is your factory?
A: 6th floor, D Building, Shuitian Dingfeng Techpark, Shiyan Town, Baoan, Shenzhen, China.
Q3. Do you provide NEW Design addressable led strip OEM services?
A: Yes, we have experienced engineers team provide lighting solutions for your project.
Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Then We quote according to your requirements or our suggestions.
Third customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the 90 led addressable strip light?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. For led strip , MOQ is 1000m to print your LOGO.
