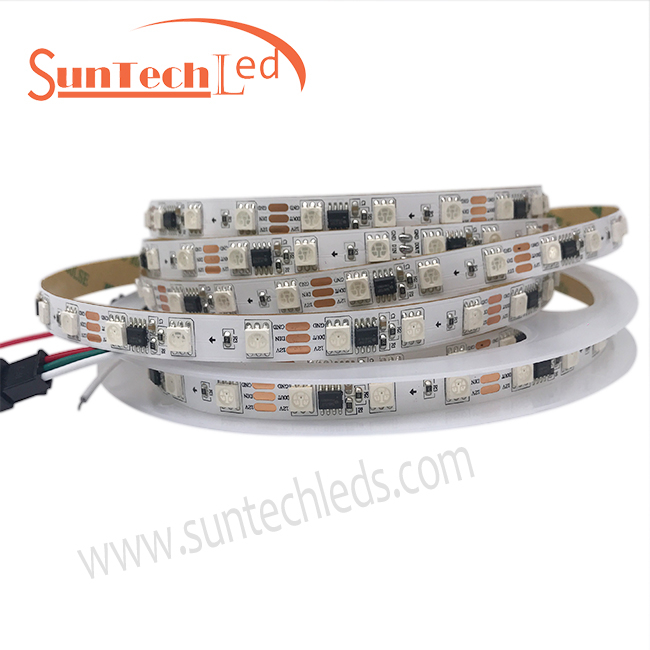

Magic color rgb led strip is 12v input and 60 led per meter. Controlled by WS2811 IC, each 3 chips cuttable. Full color addressable. We provide you design solutions as well.
We are the China factory supplier of pixel led strips.
Product introduction:
Magic color rgb led strip is 12v input and 60 led per meter. Controlled by WS2811 IC, each 3 chips cuttable. Full color addressable. We provide you design solutions as well.
We are the China factory supplier of pixel led strips.
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM2811RGB-60-12V | 20 | Addressable RGB | 60 | ≤14.4W | 12v | Double Copper PCB 5000*10mm |
If you are also interested in the DMX LED strips, please click: DMX RGB LED strip
Product details
1. Magic rgb full color, while showing a variety of colors light
2. Every 3 LEDs cuttable, 30leds/m, 32 leds/m,48leds/m,60leds/m
3. High quality 2811 IC and 5050 LED chip, high intensity and reliability
4. You can use platform such as Arduino, FastLED library, Raspberry Pi,platform to achieve the lighting effect required
5. With 3M glue on the opposite side(IP20/IP65), good flexibility
6. Magic full color, while showing a variety of colors light
7. Data speed: 800kbs
8. .Ultra-bright but running at low temperature and low power consumption
9. LED Brightness: Red ~600mcd, Green ~500mcd, Blue~150mcd

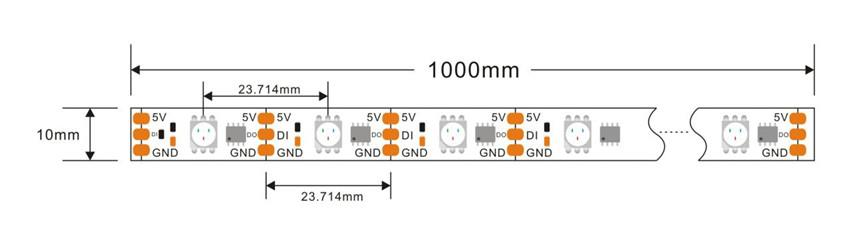

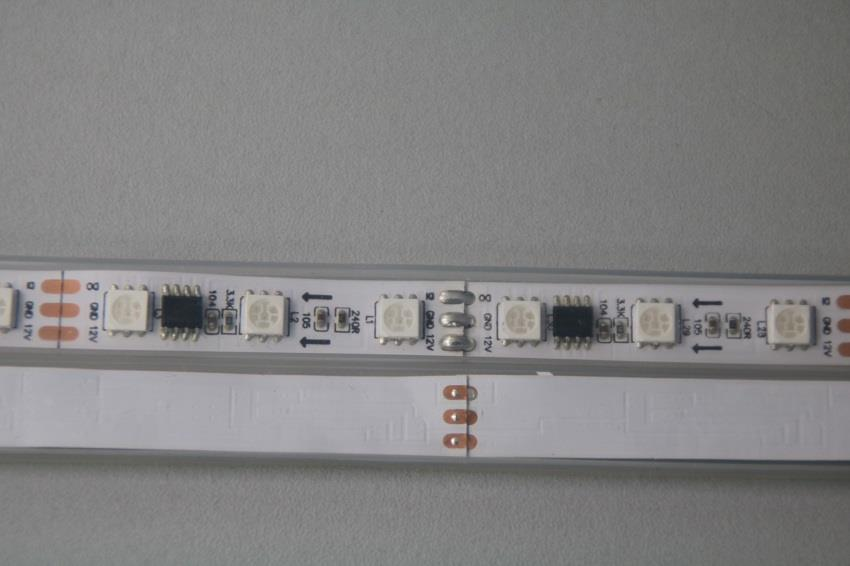

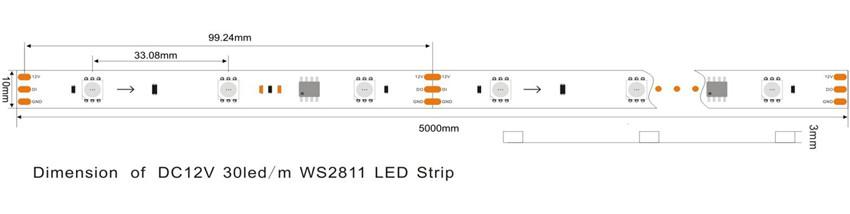

Different led density WS2811 strip for choose, please see diagram below:

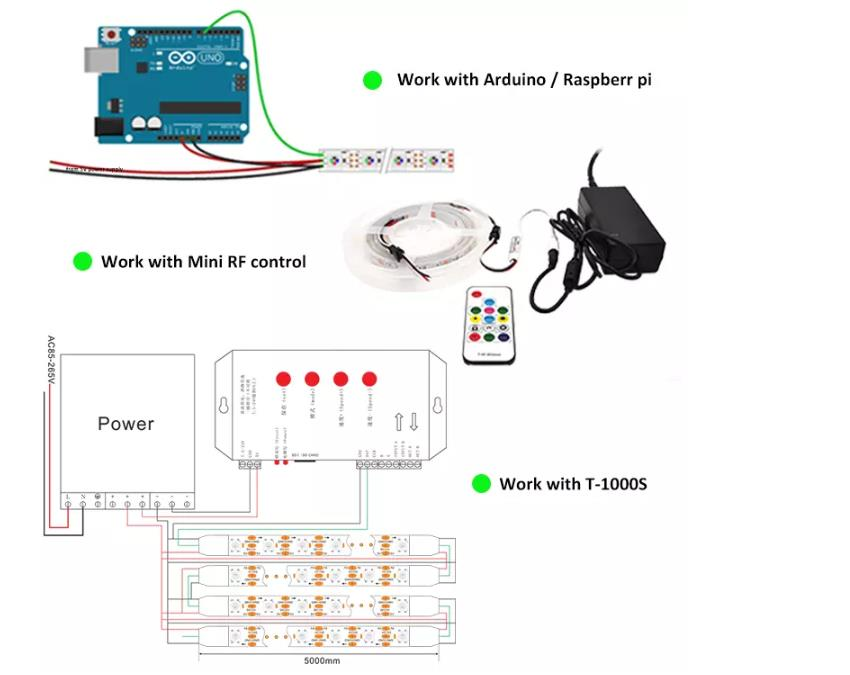

Connection with controllers , compatible with different controllers.
Warehouse review:
Our booth in HK lighting fair 2018
Application:
1.Channel letters illumination.
2. KTV, bars lighting decoration
3.Amusement park lighting
Why choose us:
One of the leading LED light manufacture in China
Various LED products and production lines,12v magic RGB LED strip customized is welcome.
Skilled workers and strict quality inspection
Have regular PCB in stock, quick delivery
Welcome factory visit, products passed CE, CCC, RoHS, .
Best one-stop service(reception service, bargain with factory, inspect service, shipping service, and other value-added service).
