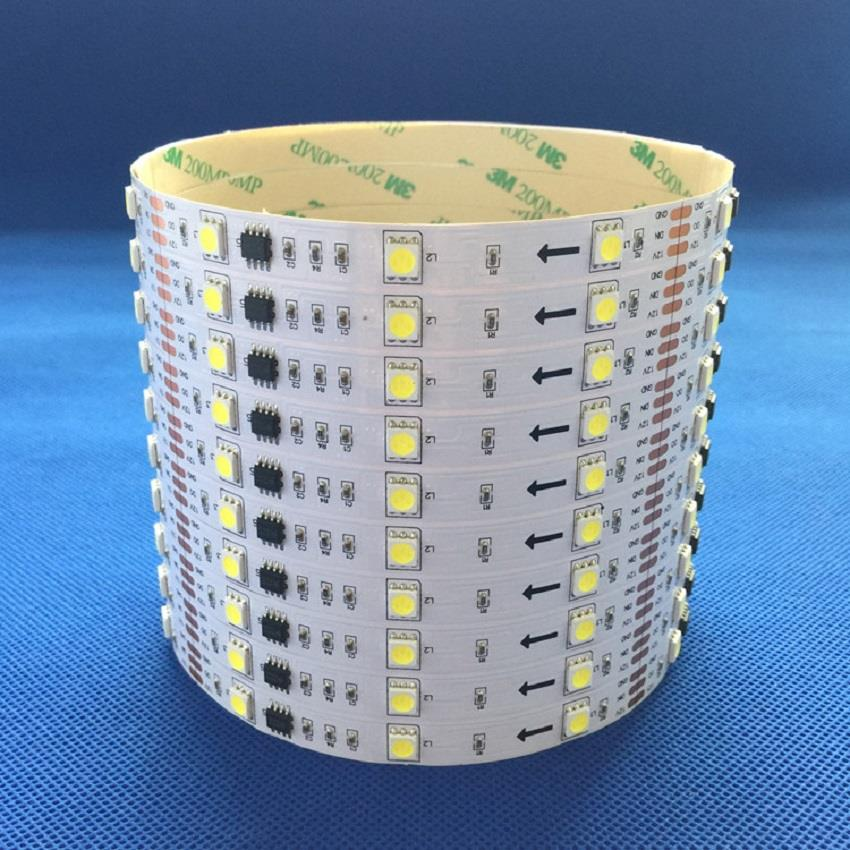

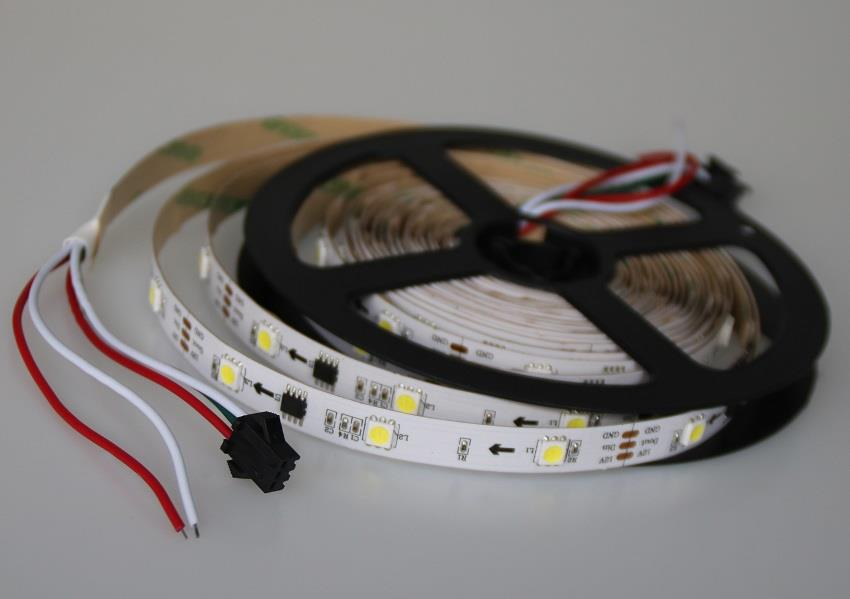

This digital led strip is controlled by IC SM16703 which supports 24 volt,
60 led per meter, each pixel control 6 white leds, namely 10 pixels per meter.
We are a factory could give you the best prices.
Availability: | |
---|---|
Product introduction:
This digital led strip is controlled by IC SM16703 which supports 24 volt,
60 led per meter, each pixel control 6 white leds, namely 10 pixels per meter.
We are a factory could give you the best prices.
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM16703W-60-24V | 10 | Addressable white | 60 | ≤14.4W | 24v | Double Copper PCB 5000*10mm |
Product details
1. 24v is better for less voltage drop, you can connect longer than regular 12v white addressable strip.
2. SM16703 supports 24v input, which is updated version of WS2811, stable and cost effective
3. Gray level: 256.
4. LED source: White + IC SM16703
5. Data speed: 800Kbs
6. IP20 non-waterproof , IP65 silicone tube or silicone gel , IP68 waterproof
7. Widely used in lighting decoration industries.
8. CE & RoHS certifcated

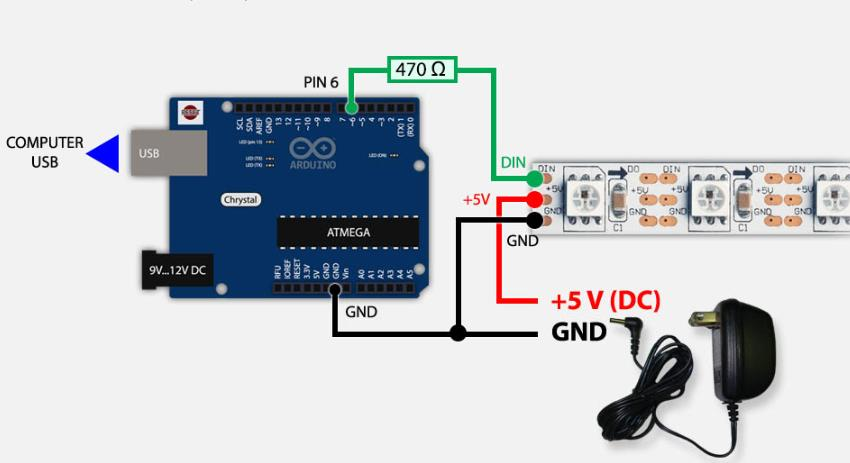

Connection to the arduino controller
Suntech at HK lighting fair exhibition

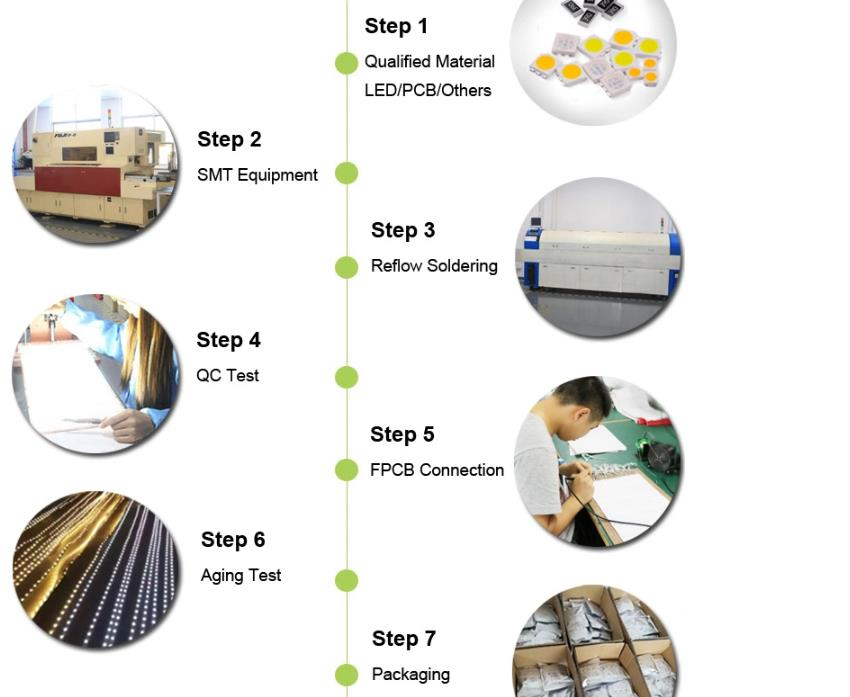

Our digital led strip production process
FAQ
Q: Are you manufacturer for the 24v addressable white led strip?
A: Yes, our factory has been set up for 8 years. Sincerely welcome you to visit us in ShenZhen China.
Q: Can you OEM or ODM?
A: Yes, we have strong developing team. The products can be made according to your resquest.
Q: Can we print our logo on the LED lights?
A: Yes, we can print your logo on the LED lights.
Q: Is the sample available?
A: Yes, we are very glad to make the samples for your test.
Q: What is the warranty for the LED lights?
A: The LED lights have two years warranty. If it is our quality problem, we will replace the new one for the broken.
Q: How long is the lifetime for the LED products?
A:50000 hours
