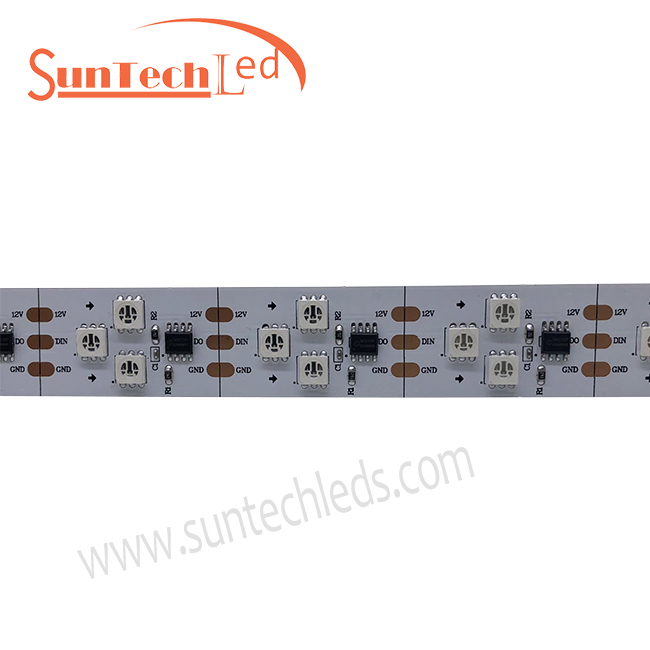

This addressable strip is 12v input, each 3 led as one unit which is controlled by WS2811 IC

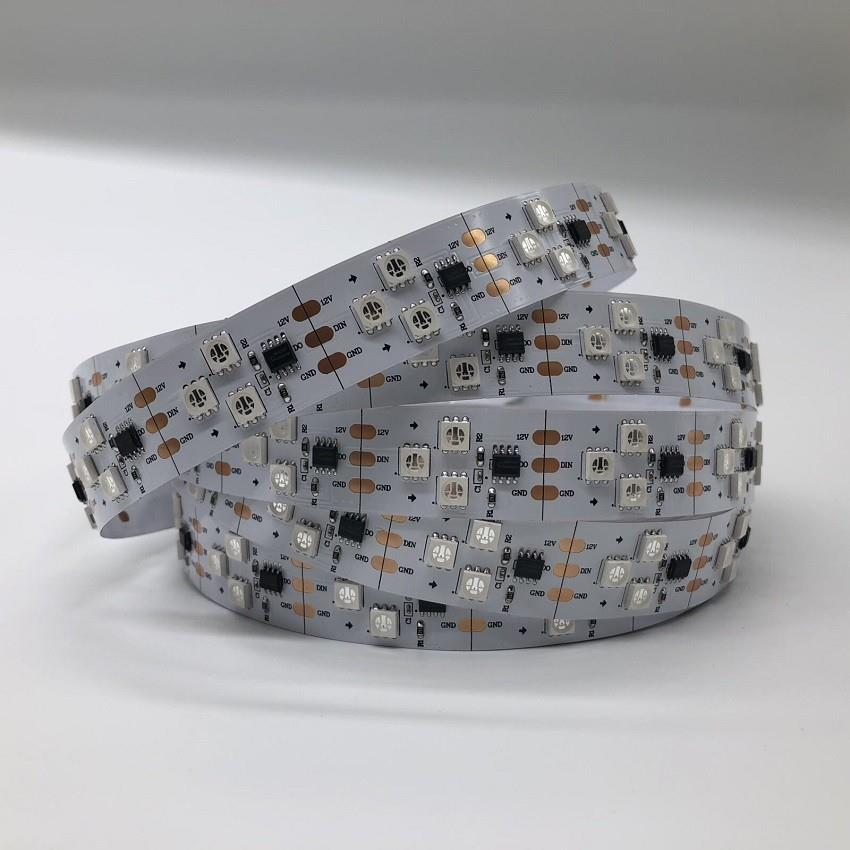

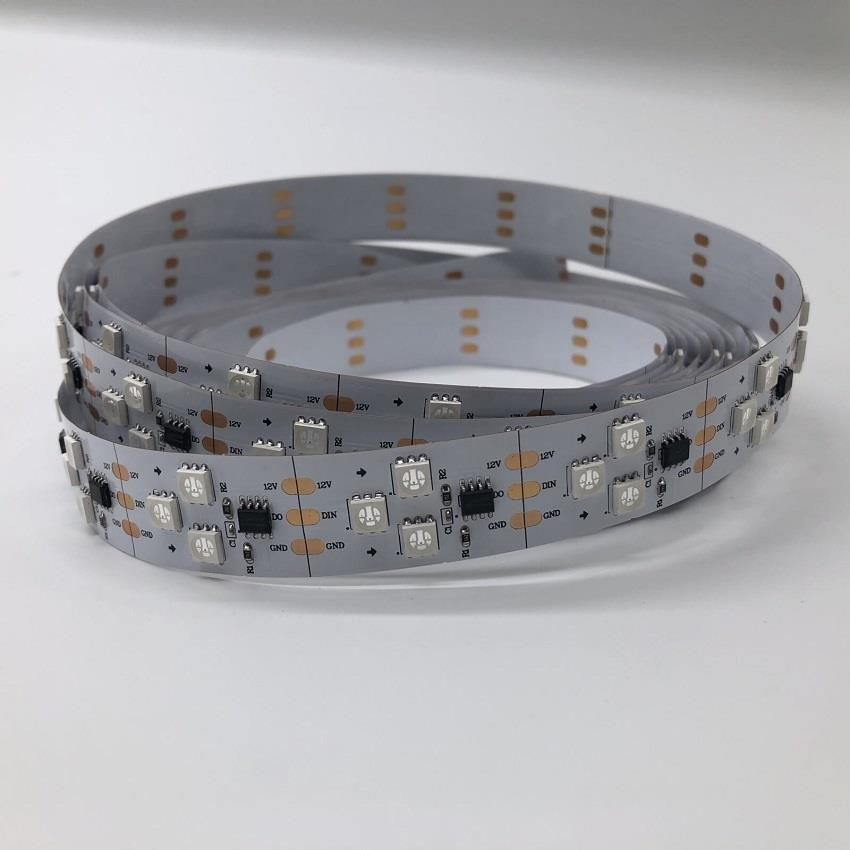

5 meters per roll, 150 pixels per roll
The pixel led strip are mainly exported to European market. We based in Shenzhen China.
Product introduction:
This addressable strip is 12v input, each 3 led as one unit which is controlled by WS2811 IC
5 meters per roll, 150 pixels per roll
The pixel led strip are mainly exported to European market. We based in Shenzhen China.
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM2811RGB-90-12V | 30 | Addressable RGB | 90 | ≤21.6W | 12v | Double Copper PCB 5000*20mm |
Product details
1. The programmable strip is 12v input, lower voltage drop compared to 5v input
2. For this type we provide both WS2811 IC and SM16703 IC
3. Wider PCB width 20mm compared to regular programmable strip is usually 10mm .
4. Each 3 rgb chips can be controlled separately by using Arduino Board or basically by using a microcontroller..
5. 90 LED per meter is special design for application
6. Comes with 3pin JST-SM connectors and separated power / ground wires on both ends.
7. We use good quality LED chip gold wire and pure copper frame. Brand is Epistar.

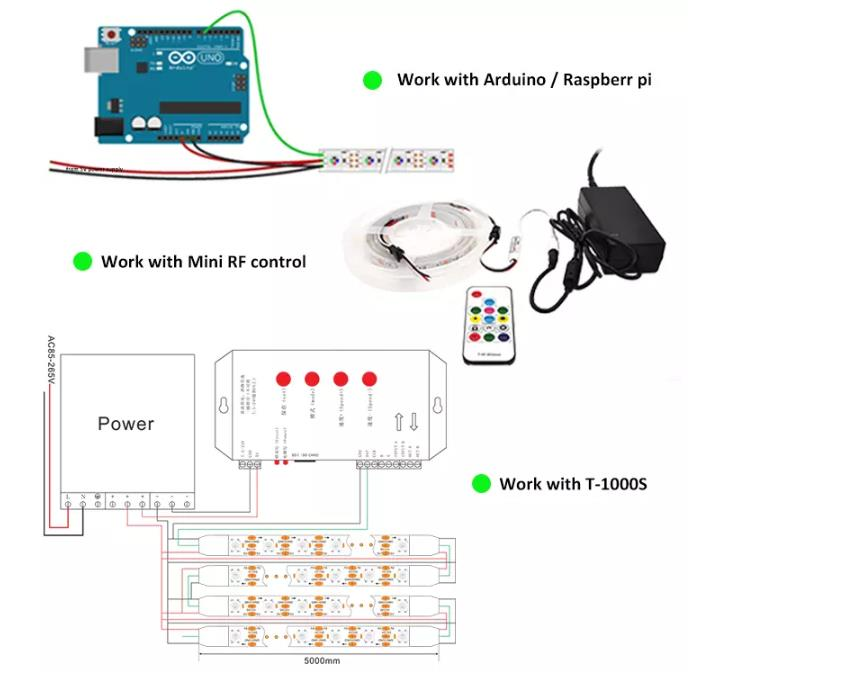

Picture below is connection with different controllers
With clients at Hongkong lighting fair
FAQ
1. Q. Are there quantity discounts if we buy the 2 row addressable strip?
A. For large quantity yes for sure
2. Q. Who can help and advise me?
A. You can tell us your requirements and application, our experienced team will give you professional advices.
3. Q. Do you deliver to destinations worldwide?
A. We can deliver for you anywhere in the world and use the most convenient way for you.
Mostly by DHL, TNT, UPS and Fedex
4. Q. When will you deliver goods?
A. We will arrange production after you pay 30% T/T in advance. and after you finish the balance payment, we will deliver goods in 15-30 days.
