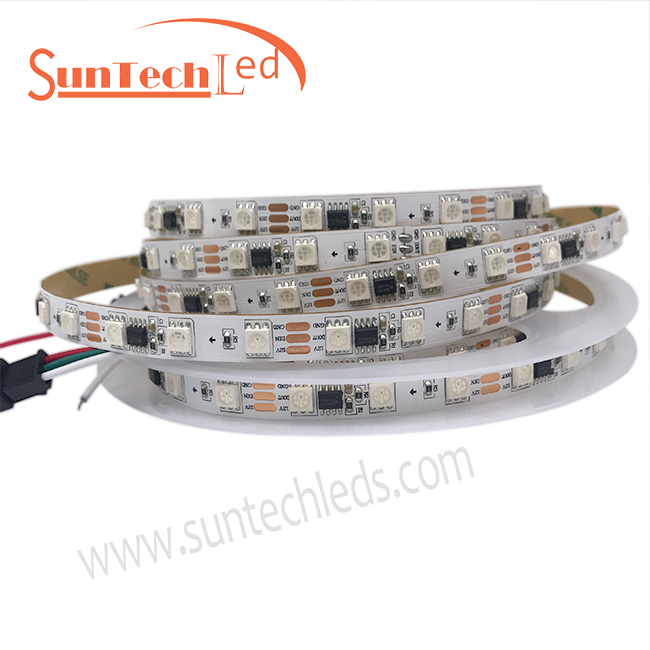

Full color addressable WS2811 LED strip is 30 led per meter. 5 meters per roll, each roll there are 10 pixels.
High quality Epistar RGB chips , pure copper frame and gold wire 99.9% chip
We supply good factory price WS2811 strip light, welcome to pay a visit to us, Shenzhen city.
Product introduction:
Full color addressable WS2811 LED strip is 30 led per meter. 5 meters per roll, each roll there are 10 pixels.
High quality Epistar RGB chips , pure copper frame and gold wire 99.9% chip
We supply good factory price WS2811 strip light, welcome to pay a visit to us, Shenzhen city.
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM2811RGB-30-12V | 10 | Addressable RGB | 30 | ≤7.2W | 12v | Double Copper PCB 5000*10mm |
Are you interested in the DMX LED strips? Welcome to view: DMX RGB LED strip.
Product details

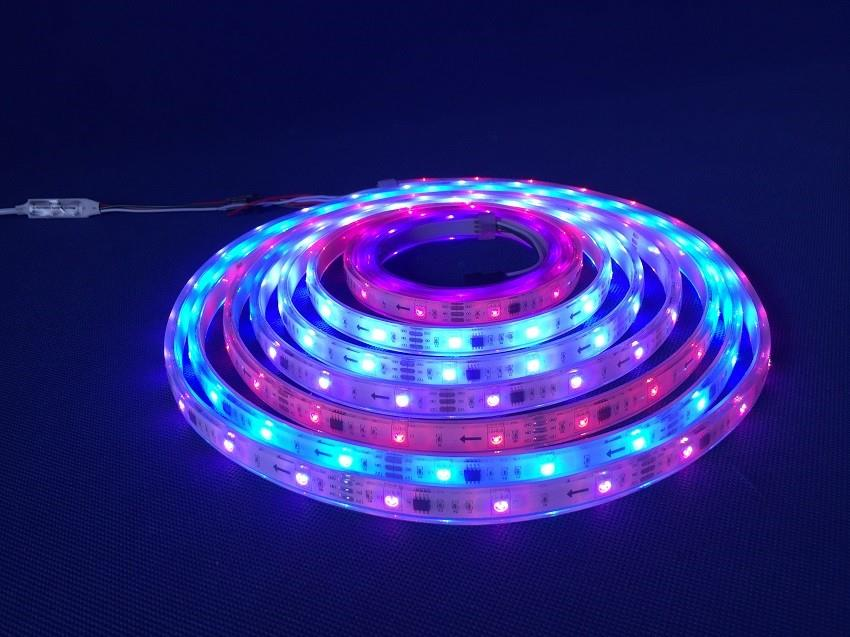

1. Full color programmable, you can set with Arduino controller to get lots of lighting effects.
2. Each 3 led as one unit controlled by one WS2811 pixel
3. Super bright 2200MCD RGB chips, imported from Taiwan chip inside.
4. 2oz PCB, thickness is around 0.25mm, and flexible

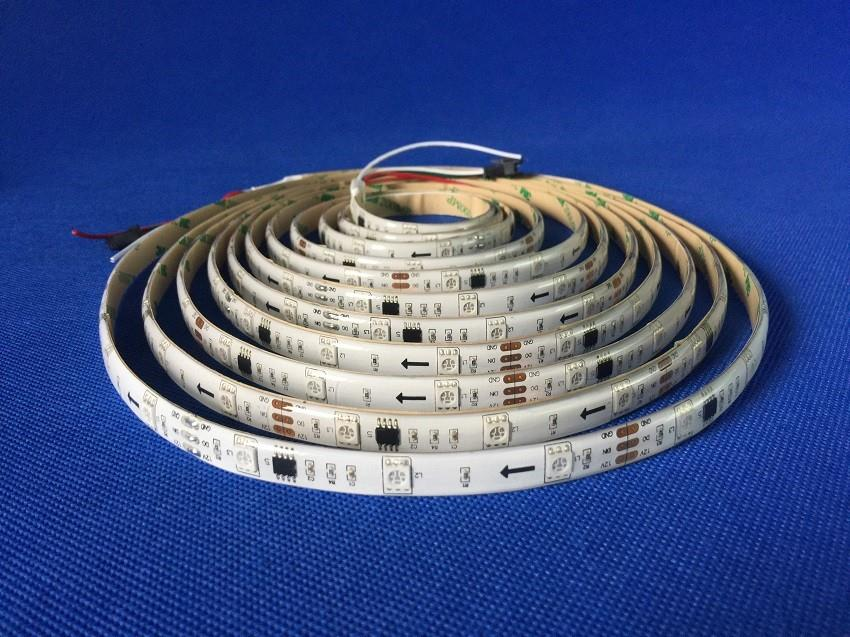

5. IP20 non-waterproof, IP65 silicone gel and IP68 for option according to you specific needs
6. The resistor we use is from famous factory to ensure long life span.
7. Grey level: 256
8. Low power consumption and good heat dissipation
9. RGB chip brightness specification: Red ~600mcd, Green ~500mcd, Blue~150mcd

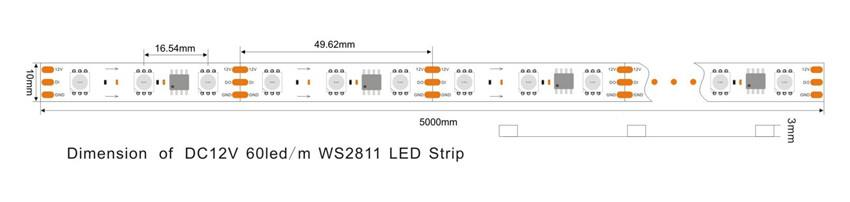

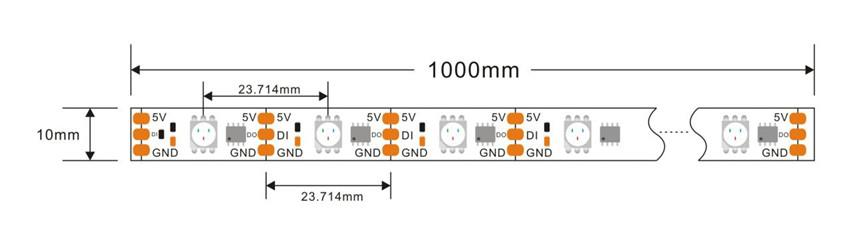

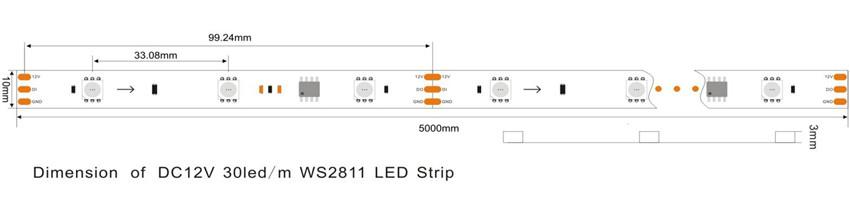

We have various options for choose, please see different diagrams below:

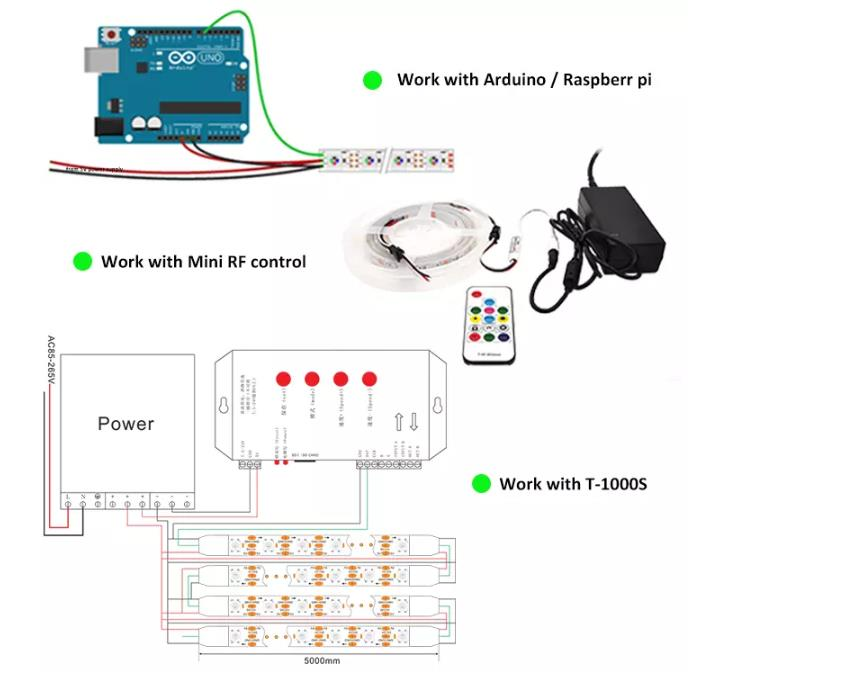

Connection with controllers , compatible with different controllers.

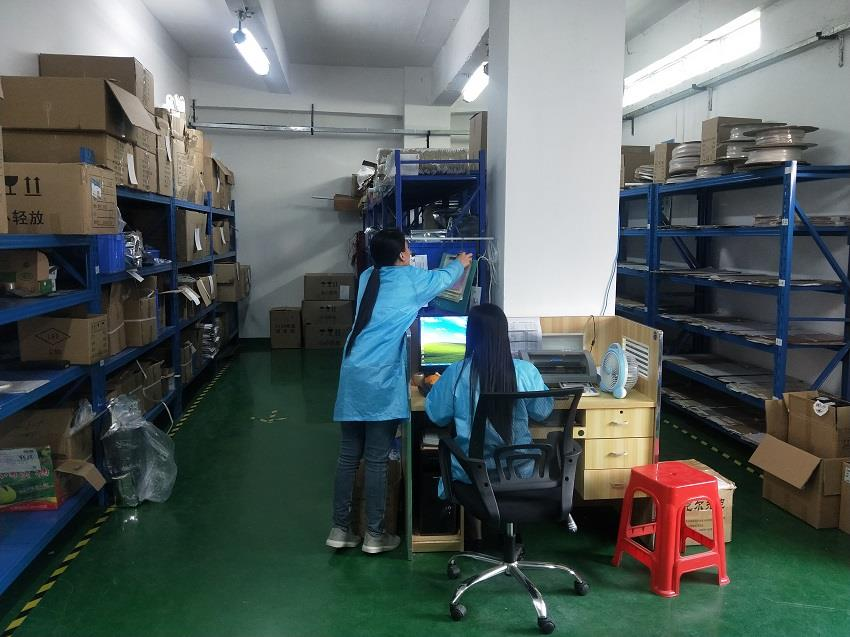

Warehouse review:
Our booth in HK lighting fair 2018
Apply WS2811LED Strip lightto cars
1.Off-Road vehicles:
Jeep, Truck, ATV, UTV, SUV, Forklift, Trains, Boat, Bus, Motorcycle and Tanks
2. Engineering vehicles:
Excavator, Road Roller, Bulldozer, Crane, Agricultural Vehicle and Mining Truck etc.
3.Specialized vehicles :
Fire Engine, Police Cars, Rescue Vehicle, Communication Vehicle, Military Command Vehicle etc.
Why choose us:
Q1: Difference from other suppliers
1) ISO9001 quality system.
2) Nice materials and chips: EPISTAR from Taiwan
3) Good at research and development: Strengthen Market Leading Role
4) Strong packing capacity to produce product with blister package or color box package
Q2: Visit factory
Our factory is in Shenzhen city, we warmly welcome your coming!
Please contact us for a meeting schedule in advance; we can organize transfers for you.
And samples of led work lights, led light bars, led car strip lights will be ready for you
