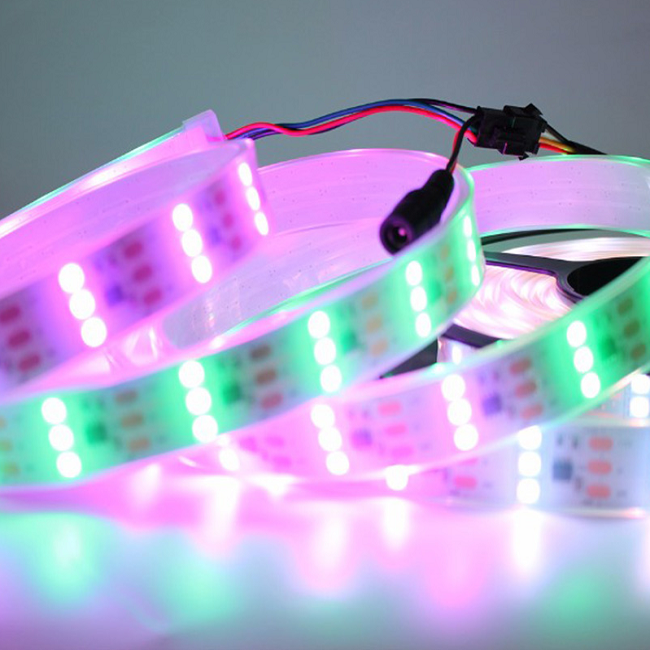

WS2811 controlled triple row digital rgb led strip is 144 led per meter,
Super wide PCB 20mm, Epistar brand RGB LED chip
We supply you direct China factory price.
Product introduction:
WS2811 controlled triple row digital rgb led strip is 144 led per meter,
Super wide PCB 20mm, Epistar brand RGB LED chip
We supply you direct China factory price.
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM2811RGB-144-12V | 48 | Addressable RGB | 144 | ≤34.5W | 12v | Double Copper PCB 5000*20mm |
Product details

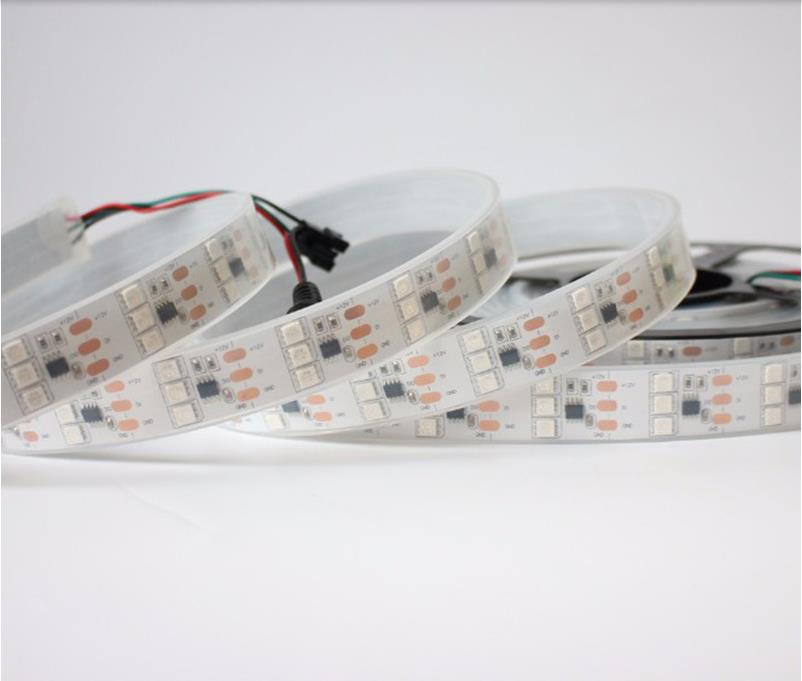

1. Each WS2811 pixel control 3 RGB chips which could be programmable
2. This is not built-in IC strip, it is outside IC digital rgb led strip
3. Each meter 48 pixels, high density with wide PCB 20mm
4. Long lifespan 30,000 hours, we adapts pure copper frame PCB and 99.9% gold wire LED chip
5. Strong sticky 3M tape on back of the PCB,
6. Triple row digital rgb led strip contains intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components..
7. Low voltage ,safety,stability. .
8. Grey scale: 256

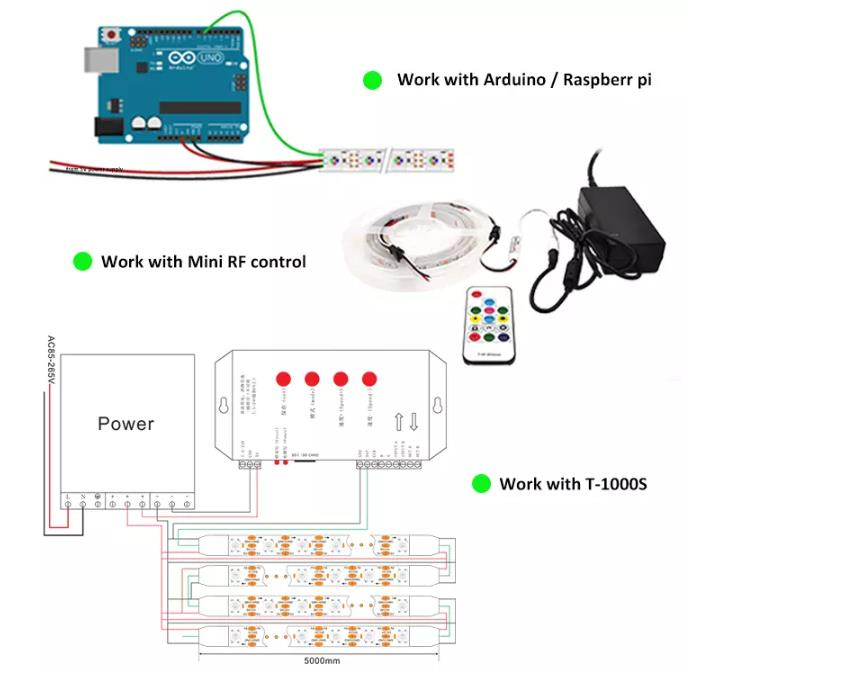

Please see connection picture below
Suntech at HK lighting fair
Why choose us?
1. Less time and money spent on sourcing by communicating with our experienced sale engineer .
2. Ensure only buy what you really need.
3. Choose what you need from fullest led strip & relating accessories ranges supplier.
4. Accept triple row digital rgb strip OEM with lower quantity.
Triple rows digital RGB strip light delivery time
Delivery time:3-5 working days after payment, according to the quantity.
Samples for quality reference are available.
Shipping port :SHENZHEN
Tracking number will be sent you once when we ship out the goods.
Discount are negotiable acording to quantity.
We choose DHL,FEDEX,UPS,OR TNT for customers'requrements,by sea or by air is ok
