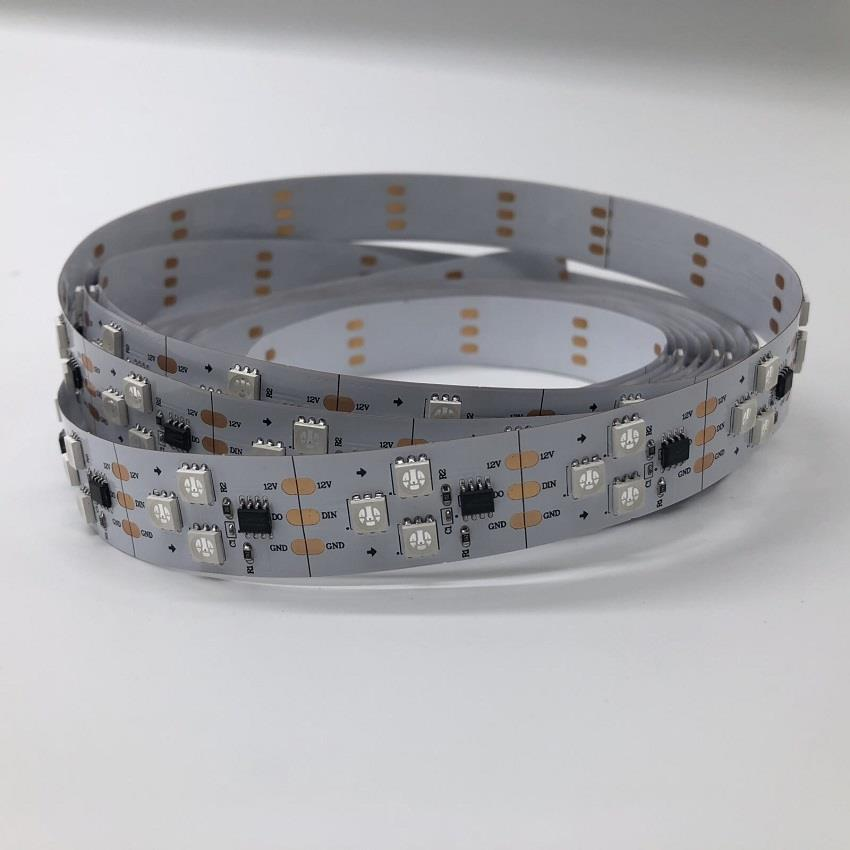

90 led per meter addressable LED strip is 30 pixels per meter, controlled by WS2811 IC, each 3 chips cuttabe . Compatible with Arduino or Raspberry Pi.
We are a professional pixel led strip manufacturer based in Shenzhen, China.
Product introduction:
90 led per meter addressable LED strip is 30 pixels per meter, controlled by WS2811 IC, each 3 chips cuttabe . Compatible with Arduino or Raspberry Pi.
We are a professional pixel led strip manufacturer based in Shenzhen, China.
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM16703RGB-90-24V | 30 | Addressable RGB | 90 | ≤21.6W | 12v | Double Copper PCB 5000*20mm |
Product details
1. Input voltage is 12 volt
2. Digital addressable tape is the next generation of RGB tape, allowing for easily controlled
3. Special design 30 pixels per meter, wider width 20mm.
4. The PCB we used is 2 oz which could get a lot better heat dissipation.
5. The tape we use strong sticky tape 3M 300LSE
6. Each roll is 5 meters and 150 pixels
7. Good for installed in a wider aluminium profile

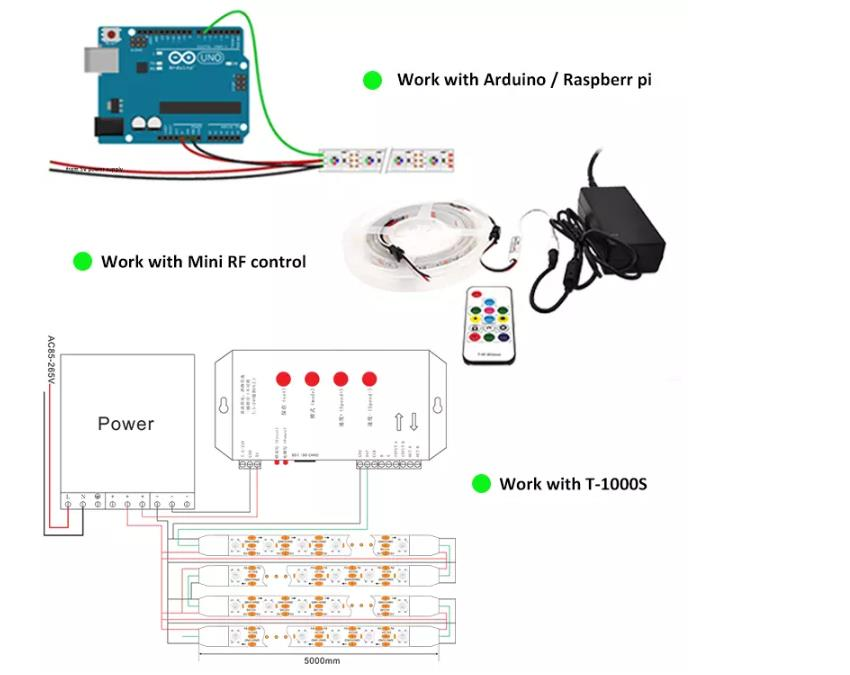

Arduino and Raspherr Pi both are available
Our booth in HK lighting fair
FAQ
Q1.Are you a factory ?
A1.Yes. welcome to visit our factory or exhibition.
Q2.How about your price level?
A2.Ex-factory price , we aim to provide cost effective addressable led tape.
Q3.How many years warranty of the addressable led tape 90 leds?
A3. Yes . All kinds of products at least 2 years warranty
Q4.What is the shipping way?
A4. DHL,UPS,TNT,FEDEX,,EMS
Q5. What is the Payment Terms?
A5. L/C,T/T
