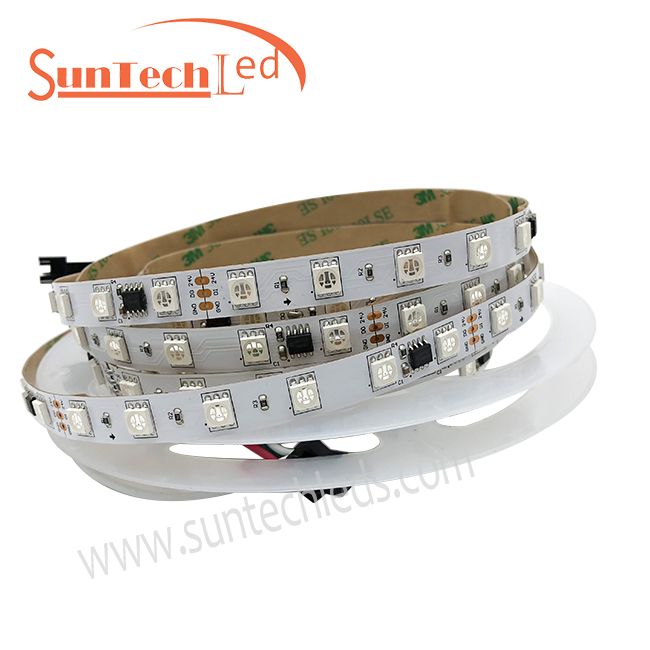

Programmable led strip is 24v input , each WS2811 IC controls 6 RGB led chips.
Each 6 chips are programmable and cuttable.
Numerous colors can be adjusted by controller according to customer needs
We are a factory supply these strip lights. Hope to work together with you.
Product introduction:
Programmable led strip is 24v input , each WS2811 IC controls 6 RGB led chips.
Each 6 chips are programmable and cuttable.
Numerous colors can be adjusted by controller according to customer needs
We are a factory supply these strip lights. Hope to work together with you.
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM16703RGB-60-24V | 10 | Addressable RGB | 60 | ≤14.4W | 24v | Double Copper PCB 5000*10mm |
Product details

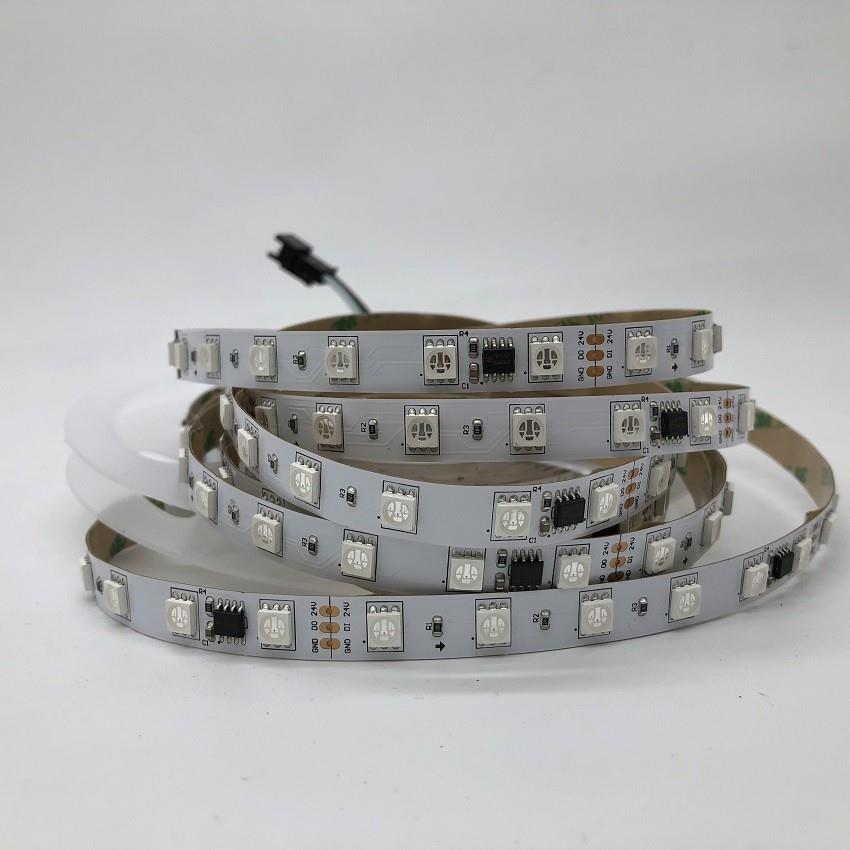

1. SM16703 is outside IC ,24v input each 3 RGB chips as one unit and cuttable
2. Each WS16703 pixel controls 6 led,
3. 24v is better when connect as long as 10m the programmable strip there is no voltage drop
4. This 24 volt pixel strip light is compatible with Arduino, FastLED library, Raspberry Pi platform
5. Environmentally safe: High quality high brightness SMD 5050 LED. It has the characteristics of low power consumption, low heat generation, no glare and impact resistance. Low voltage DC 24 volt power supply, high safety and reliability.
6. It comes with 3pin JST-SM connectors and separated power/ground wires on both ends
7. Cutting are convenient: each 6 LEDs can form a loop, which can be cut and welded along the upper tangent line to meet the requirements of various strip lengths required by customers.
8. The flexible FPCB board is used as the substrate, which can be docked, bent, cut and arbitrarily fixed on the concave and convex surface.

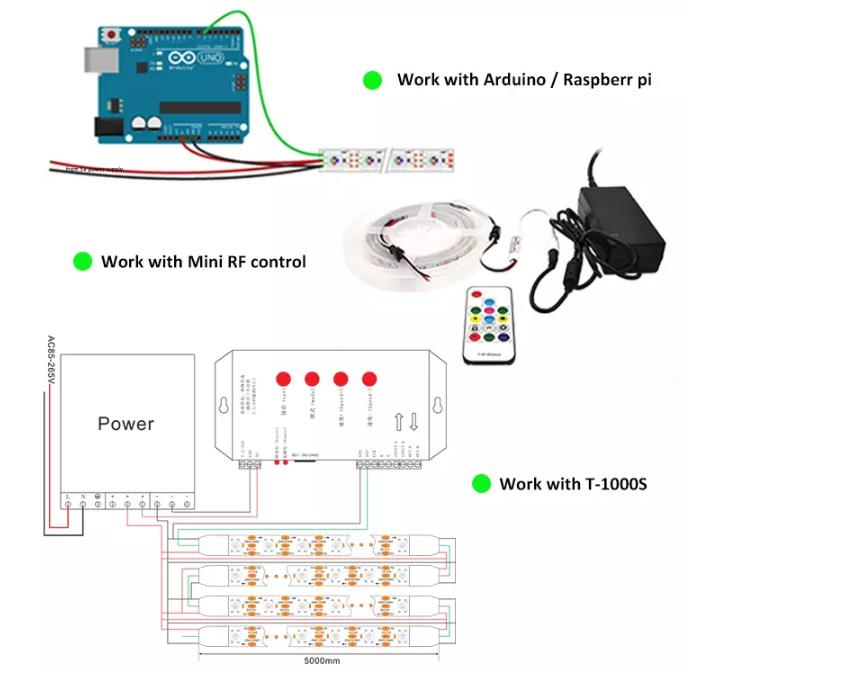

Programmable led strip connection
Arduino , Raspberr pi , RF controller , T-1000s are all workable with the WS2811 strip light

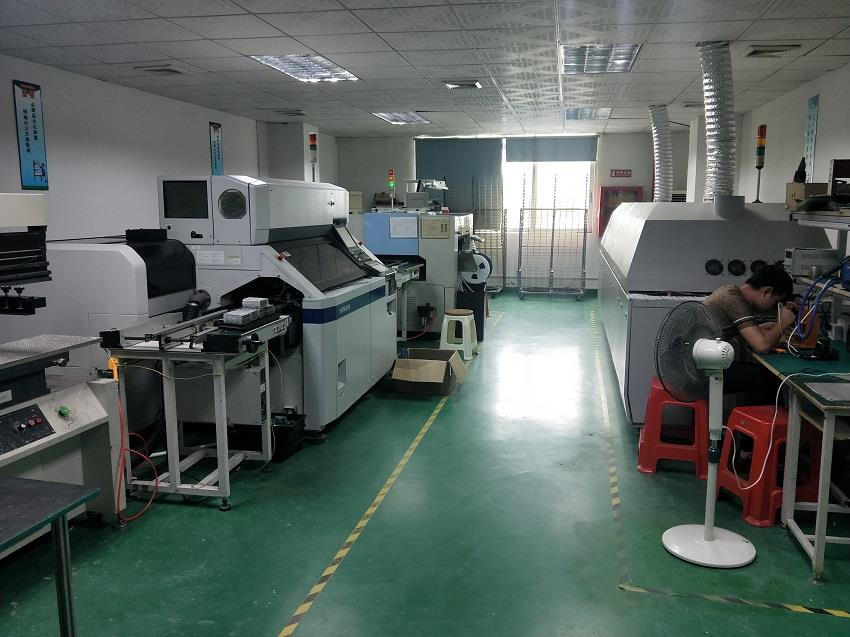

Factory facility SMT workshop

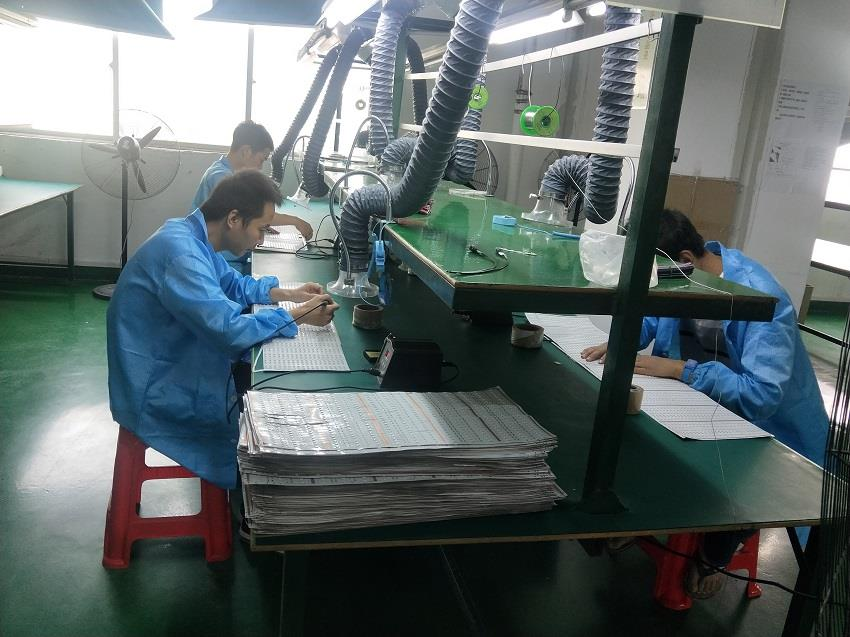

The workshop
Application of programmable LED strip 24v
1, the hotel / nightclub / KTV and other places of the polygonal wall, water droplets ceiling, from the decorative atmosphere;
2. Buildings, advertising walls, signboards, festivals and other decorative areas have a beautiful/lighting effect on the city;
3, home decoration lighting (stairs, door frames, bar, wine cabinets, wardrobes, TV cabinets, DIY home decoration...);
4, car beauty (body, car bottom...);
FAQ
1) What are the best selling products in Suntech?
- LED Strip Light including regular strip light, pixel led strip light
-LED flex neon light
- Controllers&Remote
2) Can I have free samples?
1- 5 Meters led strip samples are available ,no need free sample,
3) What is the main market for Suntech?
We are selling more to EU and North America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing . We are also optimistic about the markets for other American and Asian regions.
4) Can Suntech do custom assembly or offer OEM product?
Suntech can design different size, layout, customer logos and labels for customized needs
