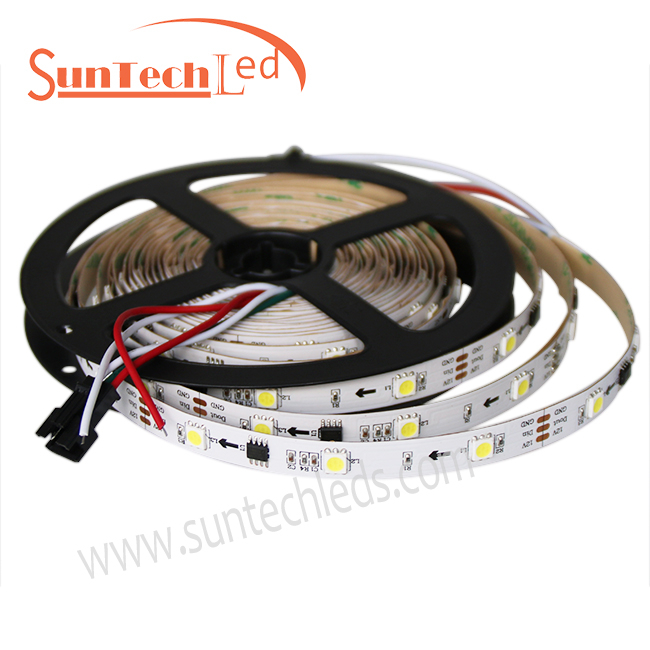

24v volt digital strip light, white color programmable
60 led per meter, 5 meters per roll, 50 pixels each roll
Direct factory prices , hope to work with you
Availability: | |
---|---|
Product introduction:
24v volt digital strip light, white color programmable
60 led per meter, 5 meters per roll, 50 pixels each roll
Direct factory prices , hope to work with you
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM16703W-60-24V | 10 | Addressable White | 60 | ≤14.4W | 24v | Double Copper PCB 5000*10mm |
Product details
1. With 24v voltage you can connect longer led strip because of less voltage drop
2. Each 6 white color chips as one unit, could be cut and controlled
3. Gray level: 256.
4. LED source: White + IC SM16703
5. PMW frequency : 400Hz
6. We can make 30 led per meter, 5 pixels as well besides 60 led/m type
7. For addressable white color application
8. Our digital white led tape pass CE which is a must in EU market.

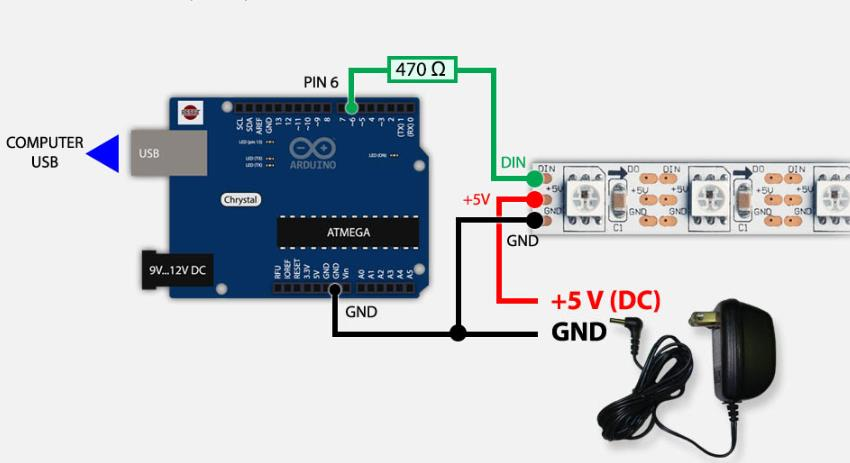

Connection to the arduino controller
Suntech at HK lighting fair exhibition

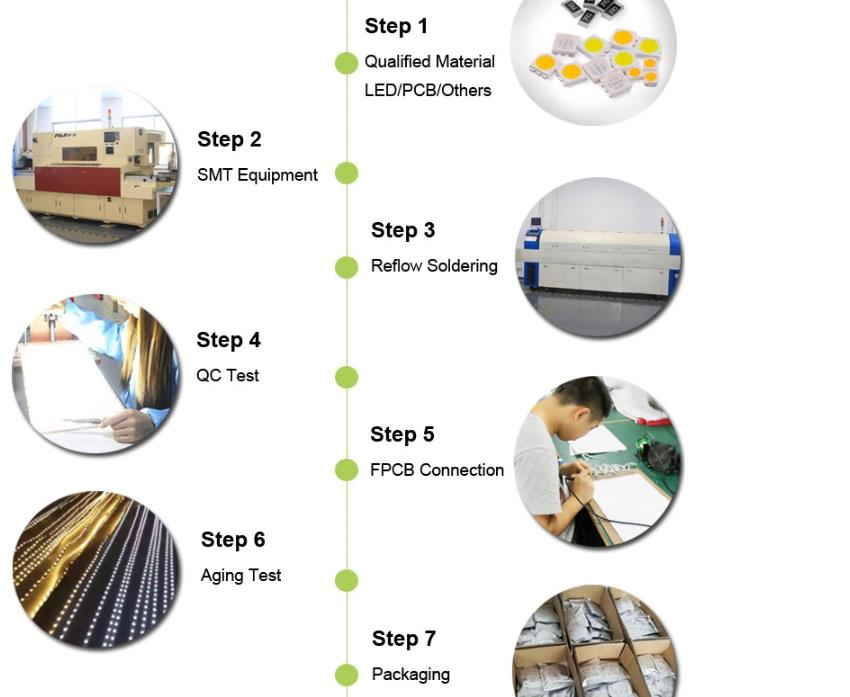

Our digital led strip production process
Application :
Amusement Park Rides Light
◆ Ferris Wheel, Merry-Go-Round, Pirate Ship, Pendulum, Bumper Car, Rotor and so on.
Advertisement Outdoor Signboard Backlight
◆ Logo, Signage, Channel Letter, Signs, Exposed Luminous Characters, Billboard and so on.
Stage Decoration Light
◆ KTV, Disco, Bar, Night Club and other stage light.
Product introduction:
24v volt digital strip light, white color programmable
60 led per meter, 5 meters per roll, 50 pixels each roll
Direct factory prices , hope to work with you
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM16703W-60-24V | 10 | Addressable White | 60 | ≤14.4W | 24v | Double Copper PCB 5000*10mm |
Product details
1. With 24v voltage you can connect longer led strip because of less voltage drop
2. Each 6 white color chips as one unit, could be cut and controlled
3. Gray level: 256.
4. LED source: White + IC SM16703
5. PMW frequency : 400Hz
6. We can make 30 led per meter, 5 pixels as well besides 60 led/m type
7. For addressable white color application
8. Our digital white led tape pass CE which is a must in EU market.
Connection to the arduino controller
Suntech at HK lighting fair exhibition
Our digital led strip production process
Application :
Amusement Park Rides Light
◆ Ferris Wheel, Merry-Go-Round, Pirate Ship, Pendulum, Bumper Car, Rotor and so on.
Advertisement Outdoor Signboard Backlight
◆ Logo, Signage, Channel Letter, Signs, Exposed Luminous Characters, Billboard and so on.
Stage Decoration Light
◆ KTV, Disco, Bar, Night Club and other stage light.
