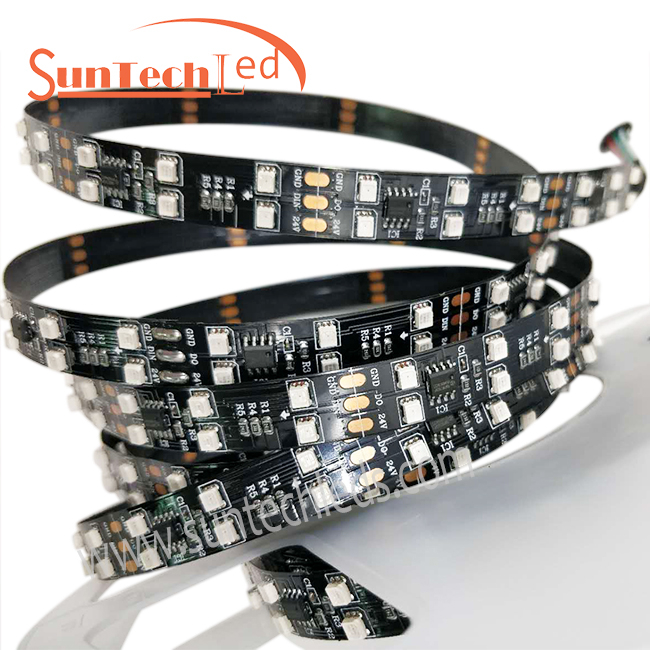

Programmable Double Row RGB LED Strip 24V

This double rows rgb led strip is 24v input, can ensure less voltage drop compared to 5v strip
120 RGB chips per meter, each pixel control 6 chips
We are directory factory of programmable led strips, supply you at quite good price.

Availability:
Programmable Double Row RGB LED Strip 24V
Programmable Double Row RGB LED Strip 24V

Introduction of SM16703 LED strip:

This double rows rgb led strip is 24v input, can ensure less voltage drop compared to 5v strip

120 RGB chips per meter, each pixel control 6 chips

We are directory factory of programmable led strips, supply you at quite good price.



Product parameters:

Model

IC Qty per meter

Color

LED Qty

per meter

Power Consumption

Voltage

PCB Size

W/M

V/DC

mm

ST-SM16703RGB-120-24V

20

Addressable RGB

120

≤28.8W

24v

Double Copper PCB 5000*12mm



Details of SM16703 LED Tape

1. Double rows , PCB width is 12mm

2. SM16703 is compatible with Arduino, T-1000s and other SPI controller

3. Voltage: 24v input

4. Can generate light effects such as flashing, chasing, horse racing, running water, strobe, gradient, meteor, jump, clockwise horse race….

5. LED chip : Epistar

6. Pixel: 20 pixels per meter

7. LED quantity : 120 led per meter

8. IP20, IP65 with silicone tube or silicone gel. IP68 are all available

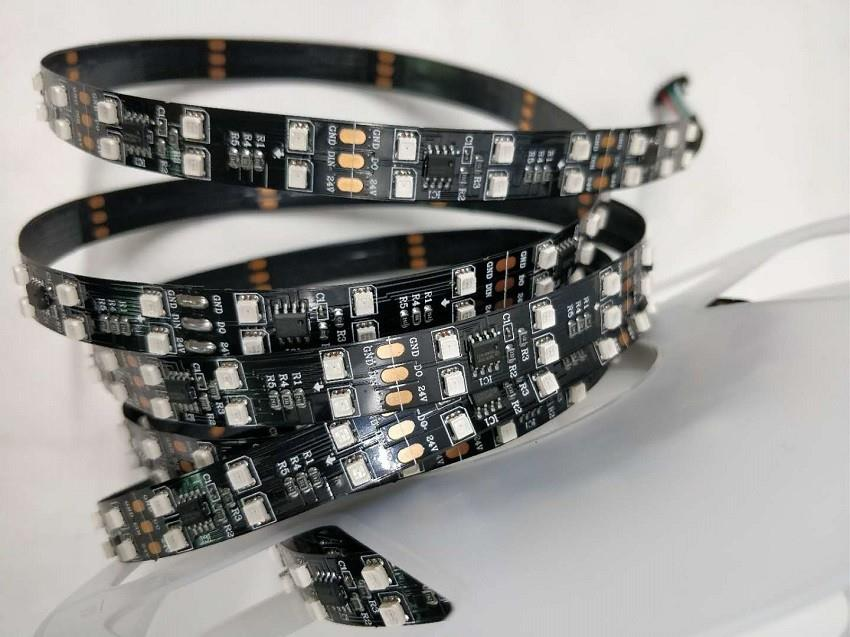

2 row RGB pixel strip

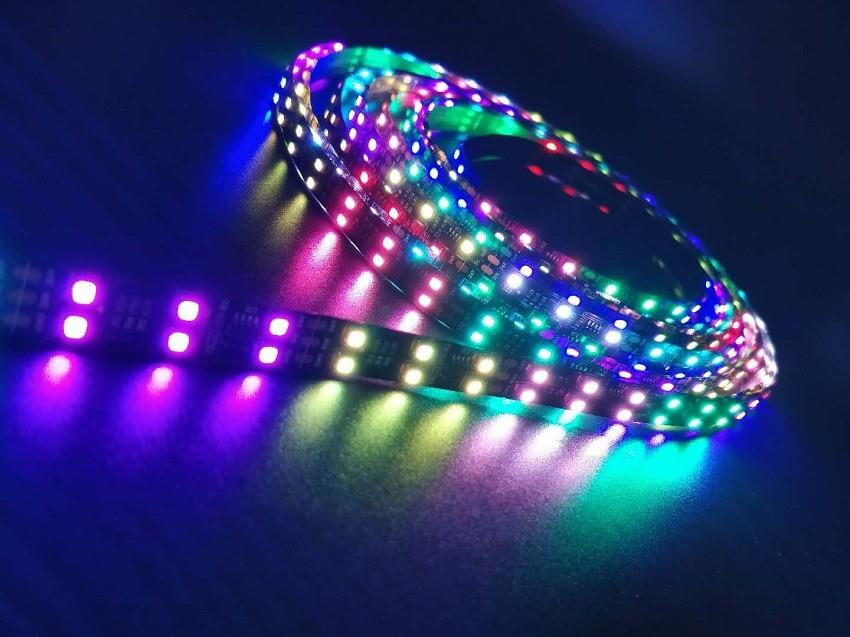

2 row rgb digital strip light SM16703

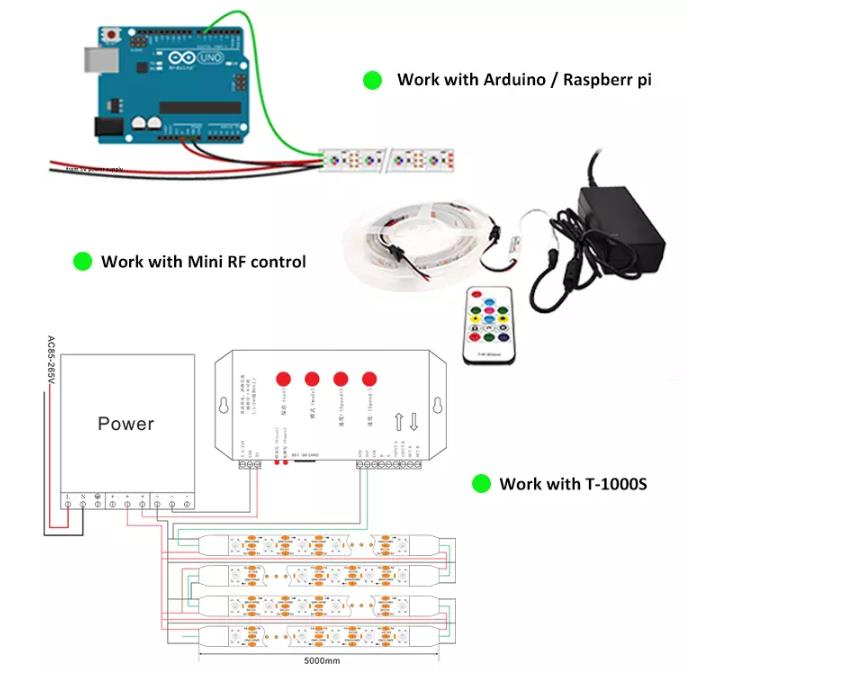

Double row digital strip light connection

Arduino , Raspberr pi , RF controller , T-1000s are all workable with the SM16703 strip light

WS2811 led strip connection

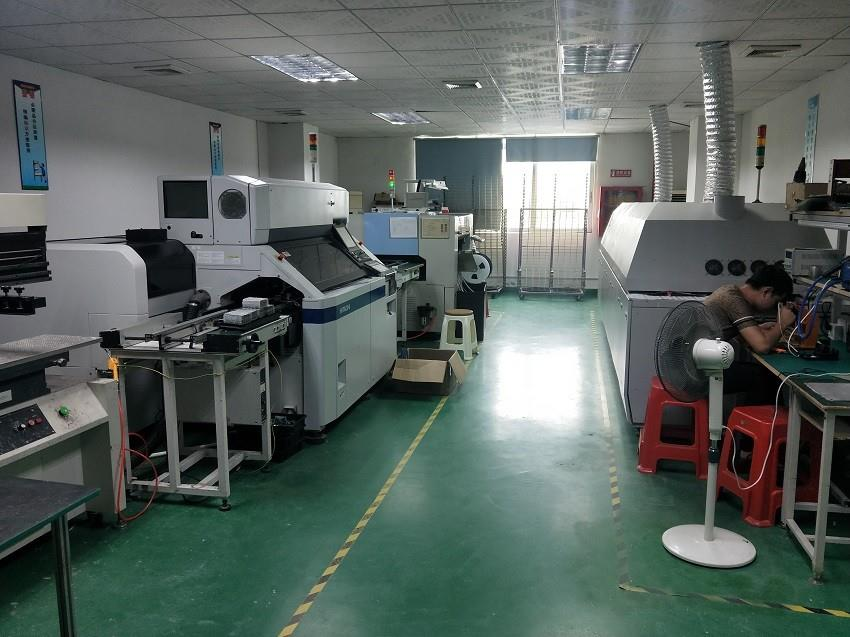

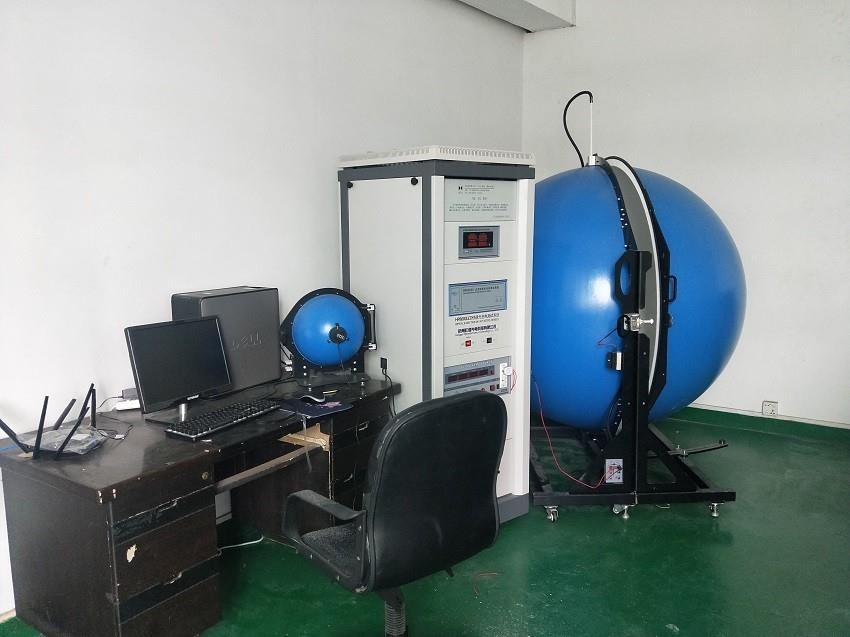

SMT machine reflow machine facility workshop



Addressable RGB LED Tape Application:

1, Decoration for home dark groove trim: door frame, bar, wine cabinet, wardrobe, TV cabinet, ceiling, etc.;

2. Decoration of irregular design bodies: polygonal walls, ceilings, steps and booths in shopping malls, hotels, nightclubs, KTV, etc.;

3. Car beauty lighting: car body, car bottom, unicycle, balance car, etc.;

4. Decoration on shoe lights, toys and entertainment products;


Payment Terms

1) You can pay for your purchase order by , Western Union,e, T/T,.

2) The unit price we provided not included any shipping cost or payment charges. We can offer a discount according to your purchase order quantity.

3) We are not responsible for any import fees or customs taxes.
