Cricket Stadium Flood Lights Pro Sports Lighting 200W 480W

Slim max series LED high mast light 200W 400W 600W 720W flood lighting fixture, efficiency reaches to 180lm/w, 190lm/w, with better brilliance and less energy consumption.
Availability:


Flood Light in Cricket Stadium 200W 480W 900W Parameters:

200W 240W 300W Backyard Stadium Lights 170LM 180LM 190LM
Part Number
LSHM-200W-LV(XXK)MAX LSHM-240W-LV(XXK)MAX LSHM-300W-(XXK)MAX
Input Volt 100-277VAC 100-277VAC 100-277VAC
Watt 200W
240W 300W
Chip Brand Luminleds 5050 Luminleds 5050 Luminleds 5050
Efficiency 180LM/W, 190LM/W
170LM/W
160LM/W
Lumen
36000Lm, 38000Lm 40,800Lm 48,000Lm
Dimension
475*362*132mm
475*362*132mm
475*362*132mm
Weight
7.0KG 9.5KG 10KG

To know more details, please download the datasheet: LSHM-200W-LV(XXK)MAX LSHM-240W-LV(XXK)MAX LSHM-300W-(XXK)MAX.pdf



400W 480W 600W LED Arena Flood Lights for Outdoor Sports Field Lighting
Part Number LSHM-400W-LV(XXK)MAX LSHM-480W-(XXK)MAX LSHM-600W-(XXK)MAX
Input Volt 100-277VAC 100-277VAC 100-277VAC
Watt 400W 480W 600W
Chip Brand Luminleds 5050 Luminleds 5050 Luminleds 5050
Efficiency 180LM/W, 190LM/W 170LM/W
160LM/W
Lumen 72,000Lm, 76,000Lm
81,600Lm
96,000Lm
Dimension 372x744.6x147mm
372x744.6x147mm
372x744.6x147mm
Weight
10KG
14.5KG
15.5KG

Please download the product specification to know more details: LSHM-400W-(XXK)MAX LSHM-480W-(XXK)MAX LSHM-600W-(XXK)MAX.pdf



600W 720W 900W Flood Lights for Premier Sports Lighting
Part Number LSHM-600W-LV(XXK)MAX-B LSHM-720W-(XXK)MAX LSHM-900W-(XXK)MAX
Input Volt 100-277VAC 100-277VAC 100-277VAC
Watt 600W 720W 900W
Chip Brand Luminleds 5050 Luminleds 5050 Luminleds 5050
Efficiency 180LM/W, 190LM/W
170LM/W 160LM/W
Lumen 108,000Lm, 114,000Lm 122,400Lm 144,000Lm
Dimension 520.5x744.6x147mm 520.5x744.6x147mm 520.5x744.6x147mm
Weight 13KG
18KG 19.5KG

For getting more details, please click here to check the product specification: LSHM-600W-LV(XXK)MAX-B LSHM-720W-LV(XXK)MAX LSHM-900W-LV(XXK)MAX.pdf



LED Sports Flood Lights 170LM 180LM 190LM Pictures:

200w 240w 300w:

200w 240w 300w without anti-glare shield

200w 240w 300w High Mast Lights without Anti-glare Shield

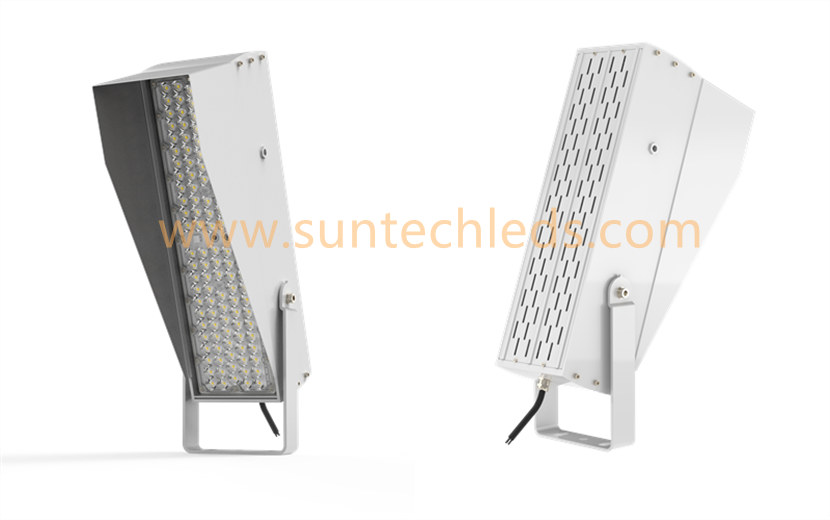

300W front & rear

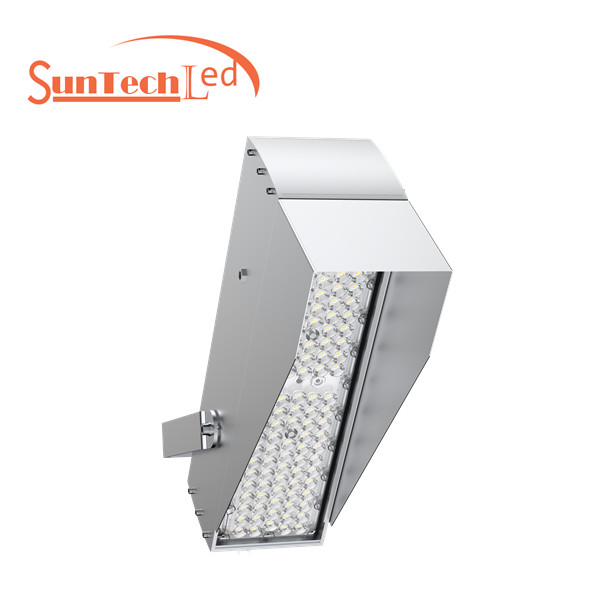

200w 240w 300w High Mast Lights with Anti-glare Shield


400w 480w 600w:

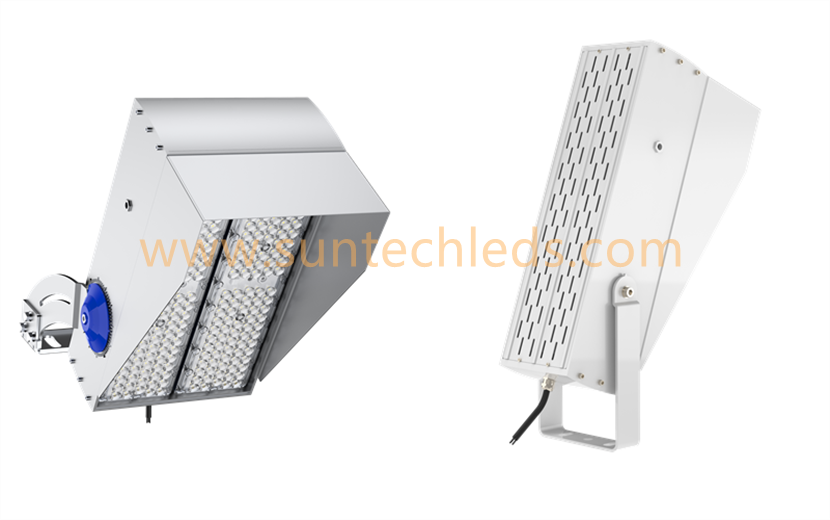

480w 600w with shield

480W 600W Outdoor Mini Flood Lights with Anti-glare Shield

480w 600w without shield

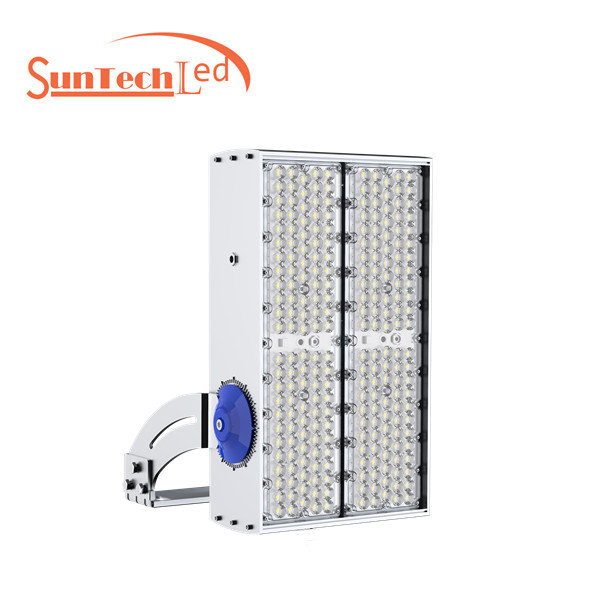

480W 600W Outdoor Mini Flood Lights without Anti-glare Shield


720w 900w:

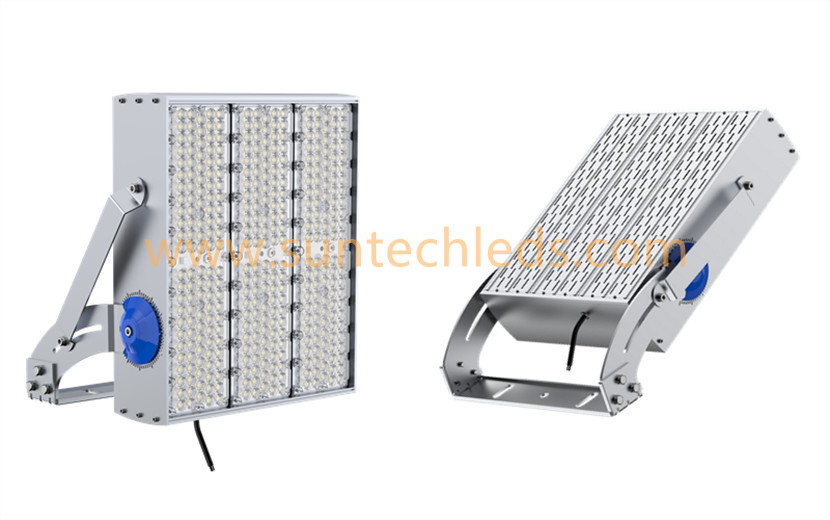

720W 900W without shield

720W 900W Football Floodlights without Anti-glare Cover

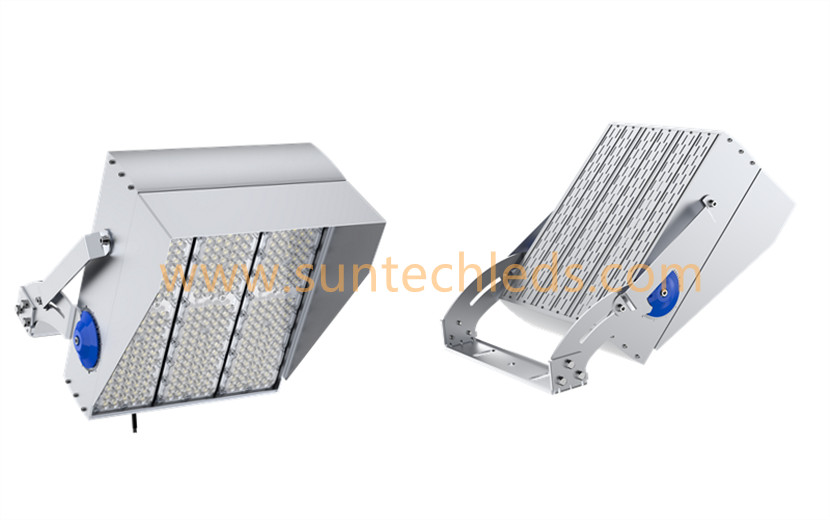

720w 900w with shield

720W 900W Football Floodlights with Anti-glare Cover


Features of the LED Sports Flood Lights for Airfield Ground Lighting:

1. High luminaire efficiency up to 190lm/w.

2. Marine grade aluminum housing.

3. IP66 and IK10 protection rate.

4. 5 years warranty.

5. Non-flickering drivers.

6. Folding aluminum fin design which are very light weight.

7. TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved.

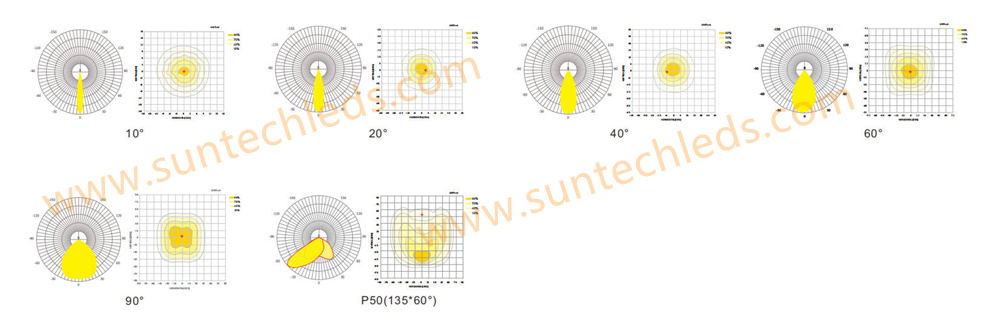

Beam Angle of the Pro Max Series High Mast Flood Hight:

10°/ 20°/ 40°/ 60°/ 90°/ 135*60° (P50)

beam angle of Pro Max

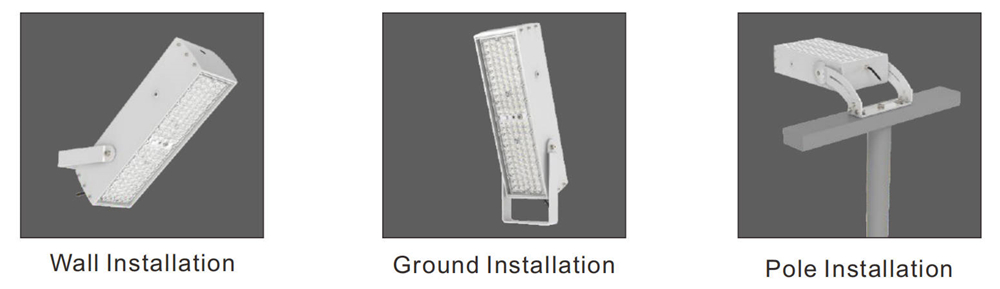

3 Ways to Install the Slim Max High Mast Flood Light:

Wall installation, ground installation, pole installation

installation of high mast light

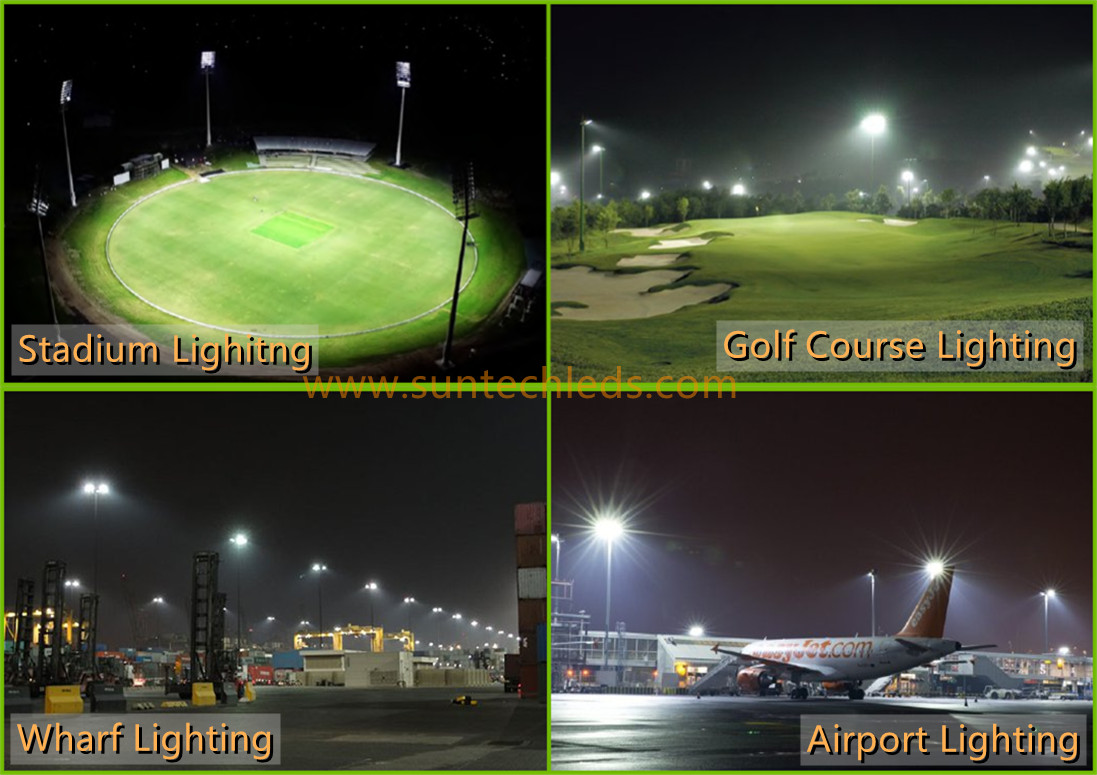

Multiple Applications of the LED High Mast Flood Lights 400W:

Airport, golf course, factories, plants, warehouse, exhibition halls, gym, seaport, highway, high mast lighting and etc.

application
