Basketball Volleyball Golf Tennis Court LED Flood Light 1200W

1200W Tennis Court Flood Lights High Mast with high light efficiency and uniform light, the module can be rotatable to light up as needed.

Availability:


1200W 1400W Basketball Court LED Flood Light Product Parameters:

Part Numbe
LSHM-B1200W-LV(XXK) Light Source Luminleds 5050
Input Volt 100-277VAC IP Rating & IK Rating IP66, IK10
Watt
1200W
Beam Angle 10° 20° 40° 60° 90° 140x100° 135x60°(P50)
Efficiency
160LM/w, 170LM/w
Color Temp 3000K 4000K 5000K 5700K 6000K
Lumen
192,000 LM
Product Size 587x780x188mm
Driver (Option 1) Meanwell Driver:

5pcs XLG-240-H-A or ELG-240-48A

Prooduct weight 16.3 KG
Driver (Option 2)

SOSEN Driver:

5pcs SS-240VA-56

Warranty 5 years

For more detailed information, please download the product specification: LSHM-B1200W-LV(XXK).pdf


Part Numbe LSHM-B1440W-LV(XXK) Light Source Luminleds 5050
Input Volt 100-277VAC IP Rating & IK Rating IP66, IK10
Watt 1440W Beam Angle 10° 20° 40° 60° 90° 140x100° 135x60°(P50)
Efficiency 160LM/W, 170LM/W Color Temp 3000K 4000K 5000K 5700K 6000K
Driver Meanwell Driver 6pcs XLG-240-H-A Product Size 587×928×188mm
Product weight 22.4 KG
Warranty 5 years

Get more details about this 1440W cricket stadium flood light, please click here: LSHM-B1440W-LV(XXK).pdf


Pictures of Tennis Court LED Floodlights 160LM 170LM 180LM:

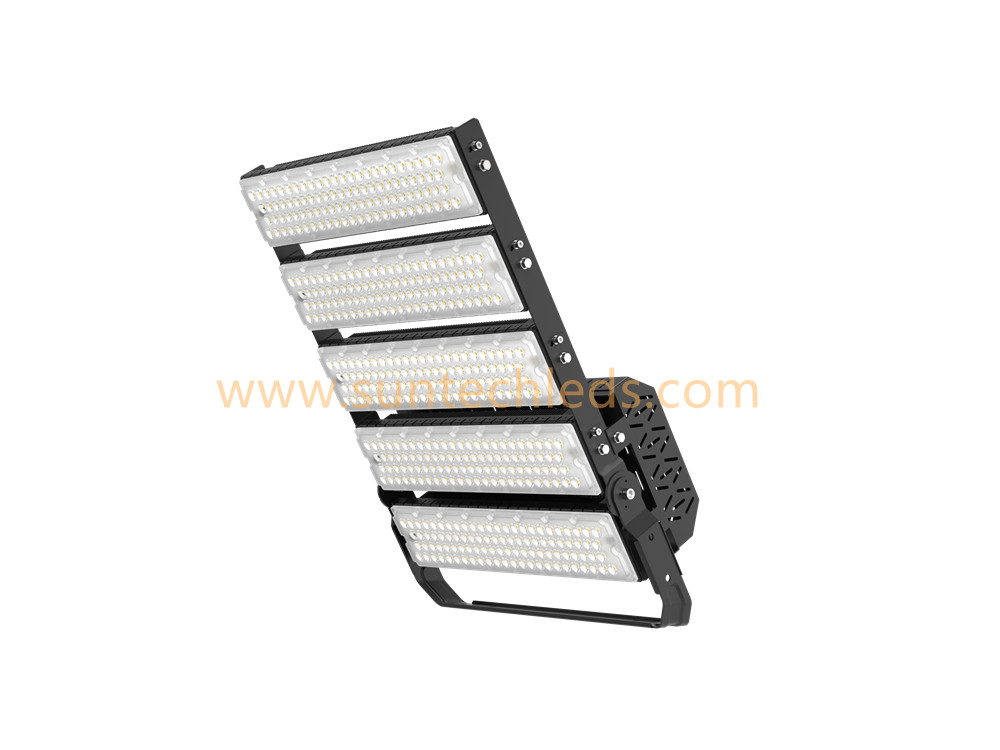

1200w details 11200w details 2

1440W details 11440W details 2

Features of the 1200W High Efficiency LED Tower Sports Lights:

1. Adjustable rotating stadium light, 10°/20°/40°/60° /90°/140*100°

2. Die casting aluminum heat sink makes cooling faster and weight less

3. Optional beam lens available for different applications

4. High quality LED chip, high light efficiency: 160lm/w, 175lm/w, 180lm/w, 190lm/w

5. IP66, IK10, stainless steel screw adopted


Video to display the LED High Mast Light for Volleyball Cricket Stadium Court:




1200W Volleyball Court LED Flood Light Different Beam Angles for option:

adjustable beam angle

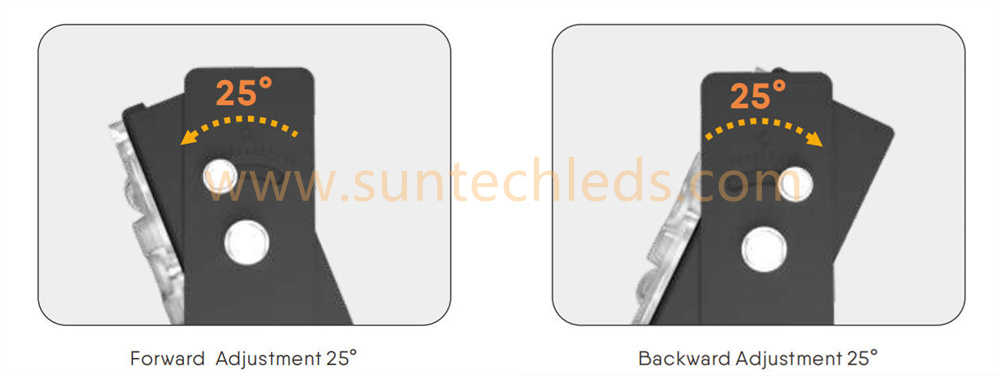

Rotating beam angle:

rotating flood light


1060 pure aluminium , better heat dissipation and lighter, easy for installation.

It adopts 1060 pure aluminum, not only ensure the strength of the light flood, but also convective the design of the new streamline thermal gets excellent heat dissipation and extend the life of lamp bulbs.

1060 pure aluminium for heat dissipation


Withstand wind

Install our High Power 1000W Area LED High Mast Light Can withstand hurricanes of 51.0-56.0m/s.

Withstand wind ability


Tennis court LED stadium lights aging test:

We do 24hours aging test before delivery to ensure clients get reliable quality products.

1000w flood light testing



Underwater testing, real IP66/IP67, please note not able to work underwater, just for testing.


Product sealing is perfect .It means you don't have to worry about flooding when it works. Please note that the floodlight can not be used IN the water.LifeSpan More than 50000 hours,save your replace time and money!

Waterproof aging test of stadium light



Gold field 1400w LED stadium flood light application

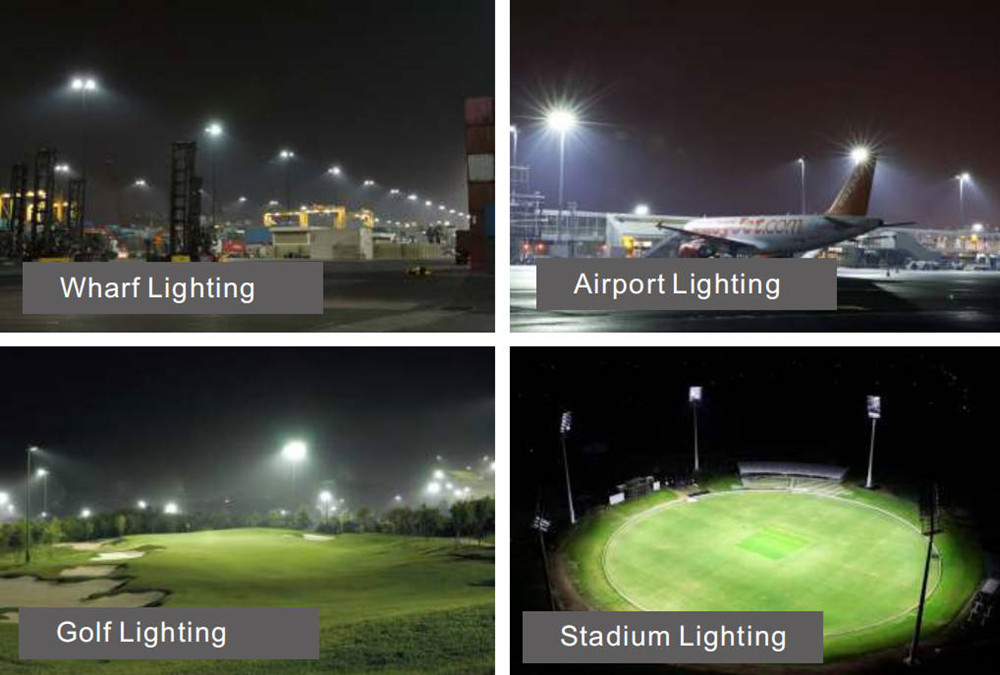

LED High Mast Spot Light widely used in Gymnasium, Sports Stadium Lighting, Gas Station, Canopy, Underground, Building, Garage Lighting, Workshop, Factory Lighting, Warehouse, Storage Lighting,Station, Dock Lighting, Supermarket, Court, etc.


led stadium lights application



Packing & Payment & Shipping


1)All sea shipping packing with Pallet,no throw,no broken



2)Paypal,TT Bank wire,L/C,Western Union,Trader-assurance



3)Samples 2-3 days,bulk order 5-10 days


Football lights packing
