50W 100W 150W LED Flood Light for Railway Tunnel Lighting

Slim ProE series LED floodlights have durable folded aluminum fin module housing, and better heat dissipation. SILM PROE series floodlights can be extended to 240W, and the efficiency can reach 170lm/w.
Availability:


Car Tunnel Lights Cricket Stadium Lights 50W 100W 150W Parameters:

Model
LSHM-50W-LV(XXK)ProE Light efficiency 170LM/W, 140LM/W
Input Volt 100-277VAC Lumen 8500LM,  7000LM
Watt 50W Color Temp 3000K, 4000K, 5000K, 5700K, 6000K
Light Source Luminleds 3030 IP Rating & IK Rating IP66 & IK10
Beam Angle 15° 25° 40° 60° 90° 120° 30x70° 49x21° 136x78° Driver Sosen Driver SS-50VA-56
Product size 280x172x90.1mm Package Size 34x24x14cm
Product Weight
1.4KG Warranty 5 Years

Download the datasheet: LSHM-50W-LV(XXK)ProE.pdf


Model
LSHM-100W-LV(XXK)ProE Light efficiency 170LM/W, 140LM/W
Input Volt 100-277VAC Lumen 17000LM, 14000LM
Watt 100W Color Temp 3000K, 4000K, 5000K, 5700K, 6000K
Light Source Luminleds 3030 IP Rating & IK Rating IP66 & IK10
Beam Angle 15° 25° 40° 60° 90° 120° 30x70° 49x21° 136x78° Driver
Meanwell Driver XLG-100-H-A
Product size
306.6x216.5x104mm
Package Size 37x28x15cm
Product Weight
2.7KG Warranty 5 Years

Download the datasheet: LSHM-100W-LV(XXK)ProE.pdf


Model
LSHM-150W-LV(XXK)ProE Light efficiency 170LM/W, 140LM/W
Input Volt 100-277VAC Lumen 25500LM, 21000LM
Watt 100W Color Temp 3000K, 4000K, 5000K, 5700K, 6000K
Light Source Luminleds 3030 IP Rating & IK Rating IP66 & IK10
Beam Angle 15° 25° 40° 60° 90° 120° 30x70° 49x21° 136x78° Driver
Meanwell Driver XLG-150-H-A
Product size
306.6x311.5x104mm
Package Size 37x38x15cm
Product Weight
3.5KG Warranty 5 Years

Download the datasheet: LSHM-150W-LV(XXK)ProE.pdf


Detailed Pictures of the 140LM 160LM 170LM LED Tunnel Light:
50W ProE front view50W ProE rear view

100W ProE front view100W ProE rear view

150W ProE front view150W ProE side view


Various Beam Angle to meet knids application scenarios:

beam angle of ProE

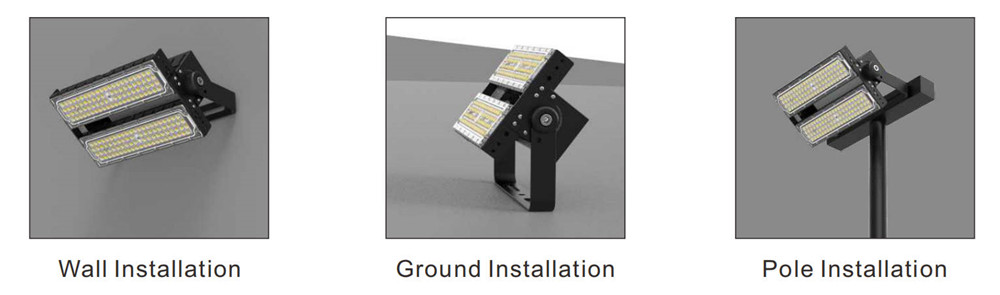

Different ways to install the tunnel lighting fixtures:

installation of ProE


High Efficiency Mini Stadium Lights 50W 100W 150W Application:

Tunnel lighting, flood lighting, factories, plants, warehouse, exhibition halls, gym, high mast lighting and etc.

stadium lights application
