170LM High Efficiency Golf Court Mini Stadium Lights 240W

Slim ProE series arena flood lights is built with robust folding aluminum fin module housing. Anticorrosive surface treatment. Silm pro series flood lights can be extended to 240W. High luminaire efficiency up to 170lm/w.
Availability:


Parameters of Football Pitch Floodlights for Ballpark Lighting 200W 300W

Model
LSHM-200W-LV(XXK)ProE Input Voltage 100-277VAC
Light Source Luminleds 3030 Watt 200W
Beam Angle 15°/ 25°/ 40°/ 60°/ 90°/ 120°/ 30x70°/ 49x21° /136x78° Color Temp 3000K/ 4000K/ 5000K/ 5700K/ 6000K
Light Efficiency
140lm/w , 170lm/w
Driver Meanwell Driver XLG-240-H-A
Lumen
28000lm, 34000lm IP Rating & IK Rating IP66 & IK10
Product Size  306.6x406.5x104mm Product Weight 4.2kg
Size of Box
37x47x15cm Warranty 5 years

Please download the 200W ProE Flood Light specification here: LSHM-200W-LV(XXK)ProE.pdf


Model

LSHM-240W-LV(XXK)ProE Input Voltage 100-277VAC
Light Source Luminleds 3030 Watt 240W
Beam Angle 15° 25° 40° 60° 90° 120° 30x70° 49x21° 136x78° Color Temp 3000K 4000K 5000K 5700K 6000K
Light Efficiency 140lm/w, 170lm/w
Driver
Meanwell Driver XLG-240-H-A
Lumen 33,600lm,  40800LM IP Rating & IK Rating IP66 & IK10
Product Size 306.6x406.5x104mm Product Weight 4.2kg
Size of Box 37x47x15cm Warranty

5 years

Download the 240W ProE Flood Light specification, plese click here: LSHM-240W-LV(XXK)ProE.pdf


Detailed Pictures of the 200W 240W Mini Stadium lights for LED Sports Lighting

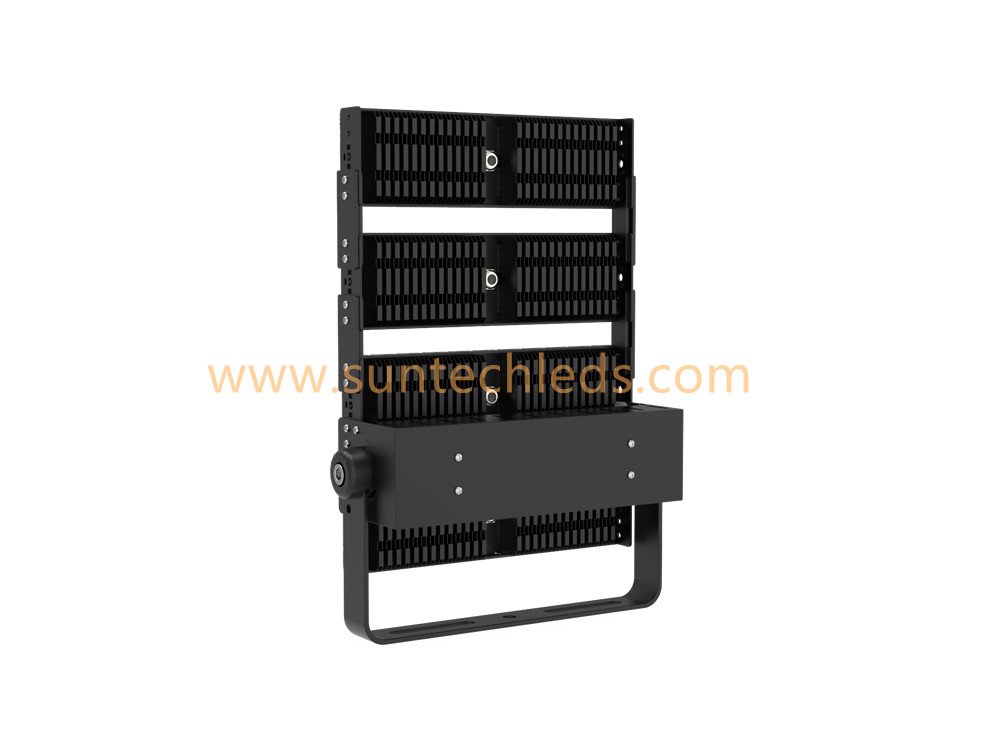

200W model:

200W ProE details 1200W ProE details 2

240W model:

240W ProE details 1240W ProE details 2

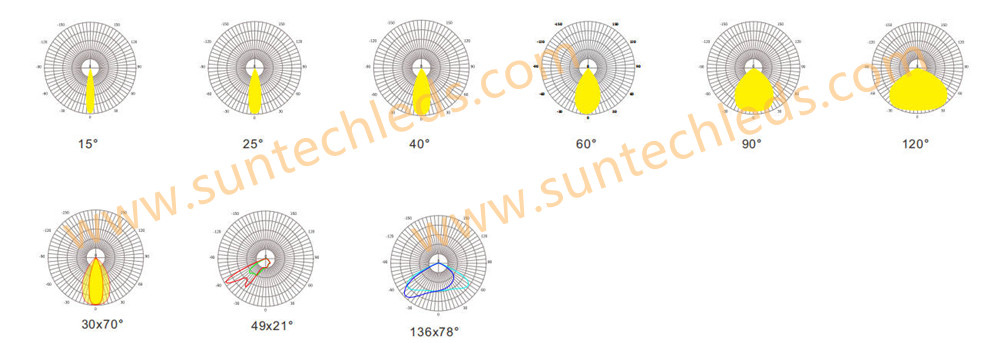

Different beam angle for you to choose from:

15°, 25°, 40°, 60°, 90°, 120°, 30x70°, 49x21°, 136x78°


beam angle of ProE

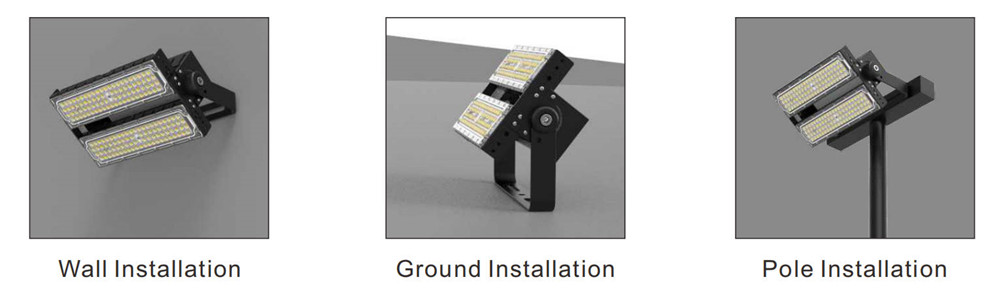

Install the Arena flood Lights: wall installation, ground installation, pole installation

installation of ProE


Applications of the Golf Court Cricket Stadium Flood Lights

Tunnel lighting, flood lighting, factories, plants, warehouse, exhibition halls, shipping center, expressway,

railway terminals, gym, high mast lighting and etc.

application of stadium light
