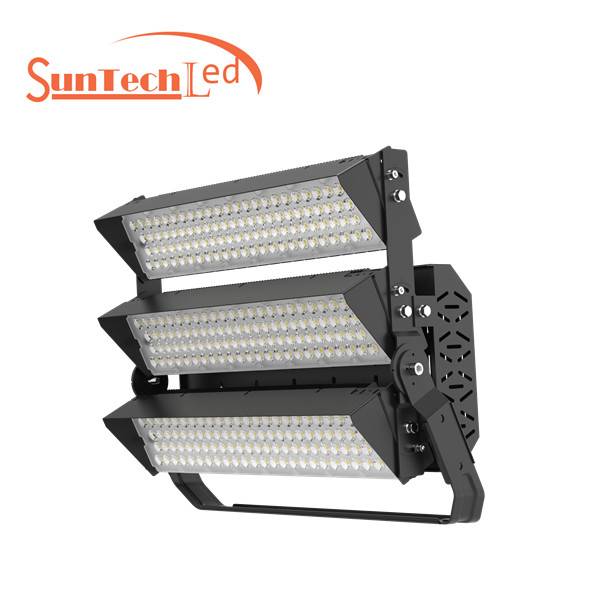

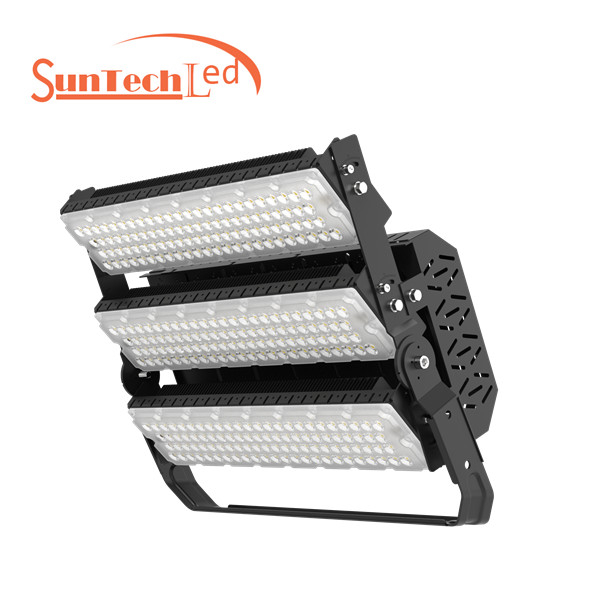

Football Stadium Lights 720W Flood Light 170LM 175LM

Football Stadium Lights 720W Flood Light has high luminaire efficiency up to 170lm 175lm, with IP66 and IK10 protection rate, specially for sport court lighting.
Availability:
Football Stadium Lights 720W Flood Light 170LM 175LM
Football Stadium Lights 720W Flood Light 170LM 175LM


Football Stadium Lights 600w & 720w Product Parameters:

Part Numbe
LSHM-B600W-LV(XXK) LSHM-B720W-LV(XXK)
Input Volt 100-277VAC 100-277VAC
Watt
600W
720W
Light Source Luminleds 5050 Luminleds 5050
Beam Angle 10° 20° 40° 60° 90° 140x100° 135x60°(P50) 10° 20° 40° 60° 90° 140x100° 135x60°(P50)
Efficiency 160LM/W, 175LM/W
160LM/W, 175LM/W
Lumen
105,000 LM
126,000 LM
Driver
Meanwell Driver 3pcs XLG-240-H-A
Meanwell Driver 3pcs XLG-240-H-A
IP Rating & IK Rating IP66, IK10 IP66, IK10
Product Size 587*484*188mm 587*484*188mm
Package Size 61.2x55.6x23.7cm 61.2x55.6x23.7cm
Warranty 5 years 5 years

For more detailed information, please download the product specification:

LSHM-B600W-LV(XXK) & LSHM-B720W-LV(XXK).pdf


Pictures of 600W 720W LED Football Sports Field LED Flood Lights 160lm 175lm:

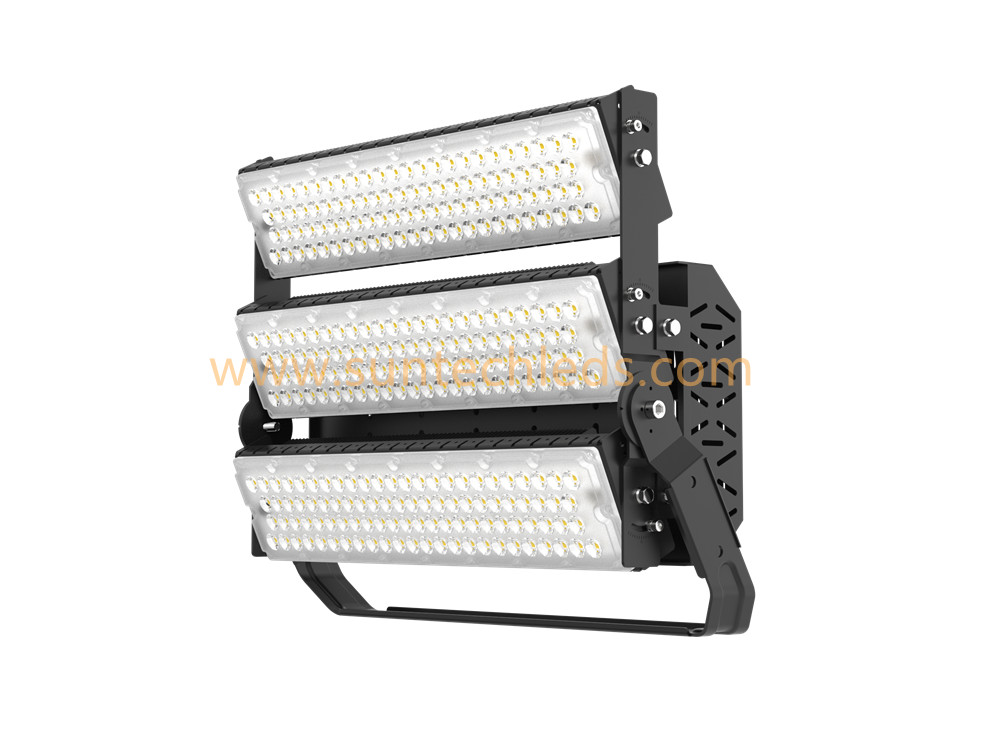

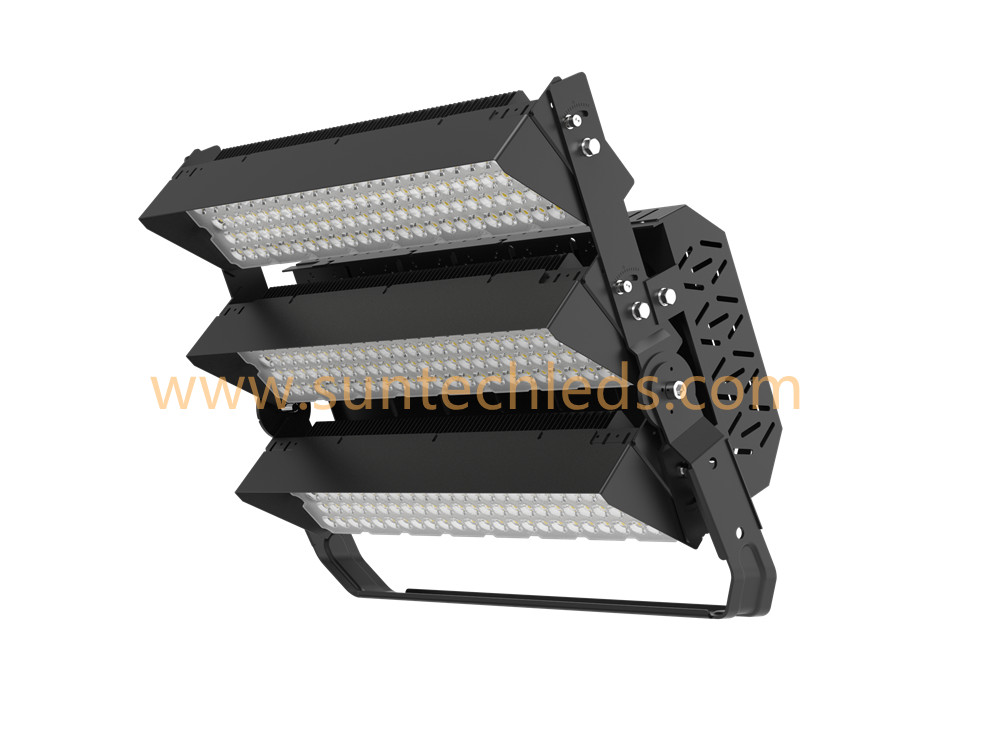

600W details 1600W details 2

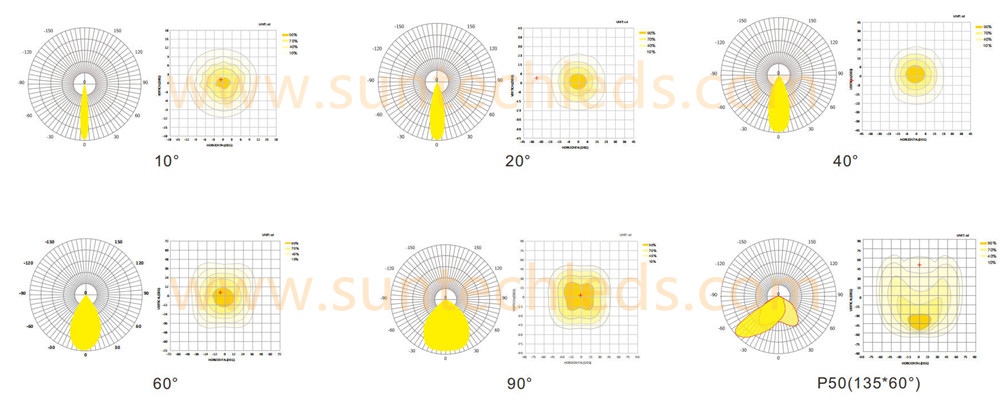

Different beam angles for option:

different beam angle


There are Slim Plus, Slim Max, and ProE series to select, please check: LED high mast flood lights

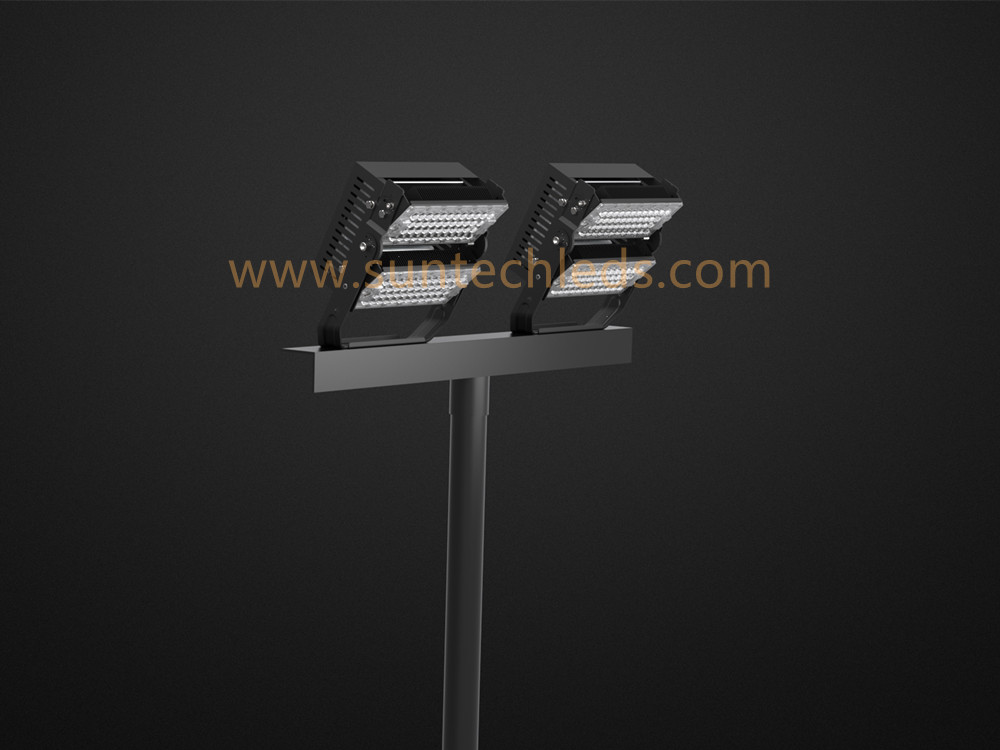

stadium lights install

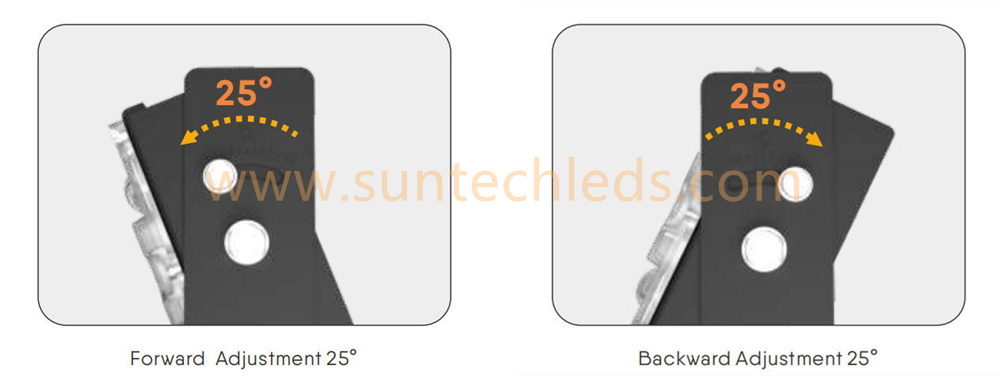

Football Stadium Lights different rotating beam angle

rotating flood light

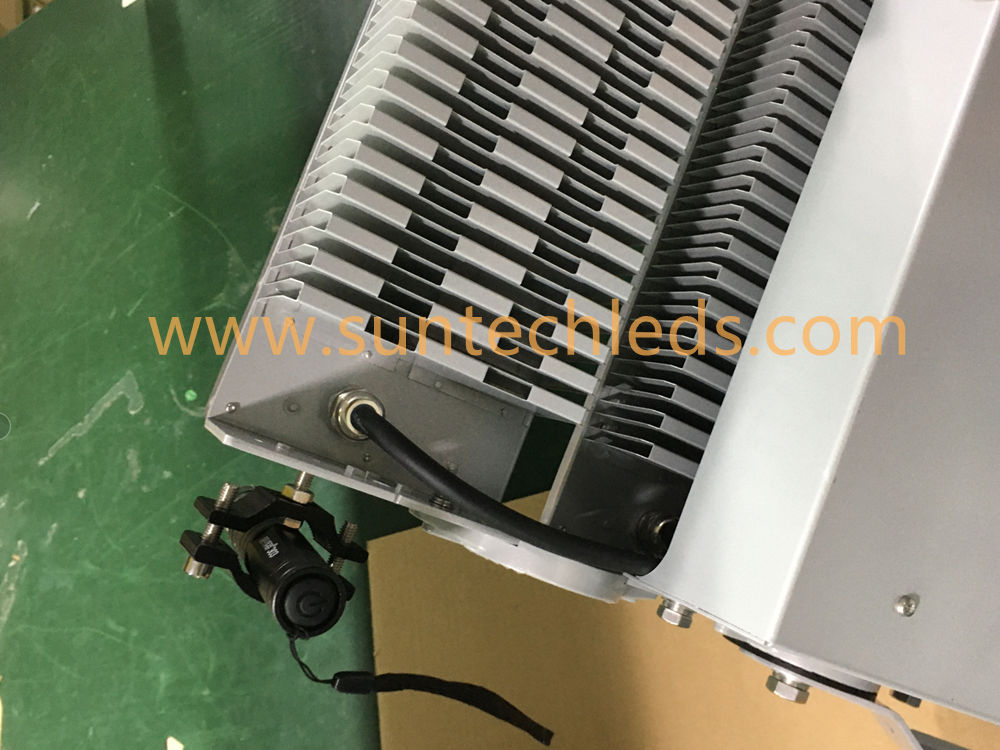

Excellent heat dissipation

It adopts 1060 pure aluminum, not only ensure the strength of the light flood, but also convective the design of the new streamline thermal gets excellent heat dissipation and extend the life of lamp bulbs

1060 pure aluminium for heat dissipation

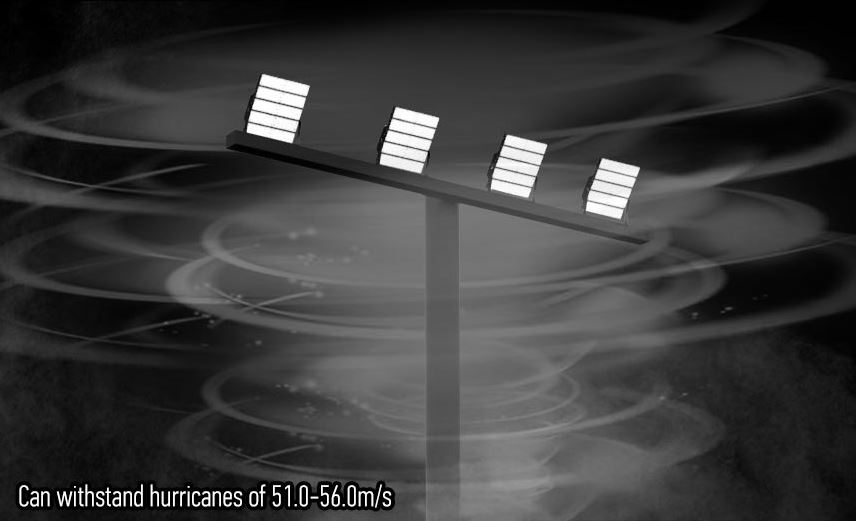

Withstand wind

Install our High Power 1000W Area LED High Mast Light Can withstand hurricanes of 51.0-56.0m/s.

Withstand wind ability

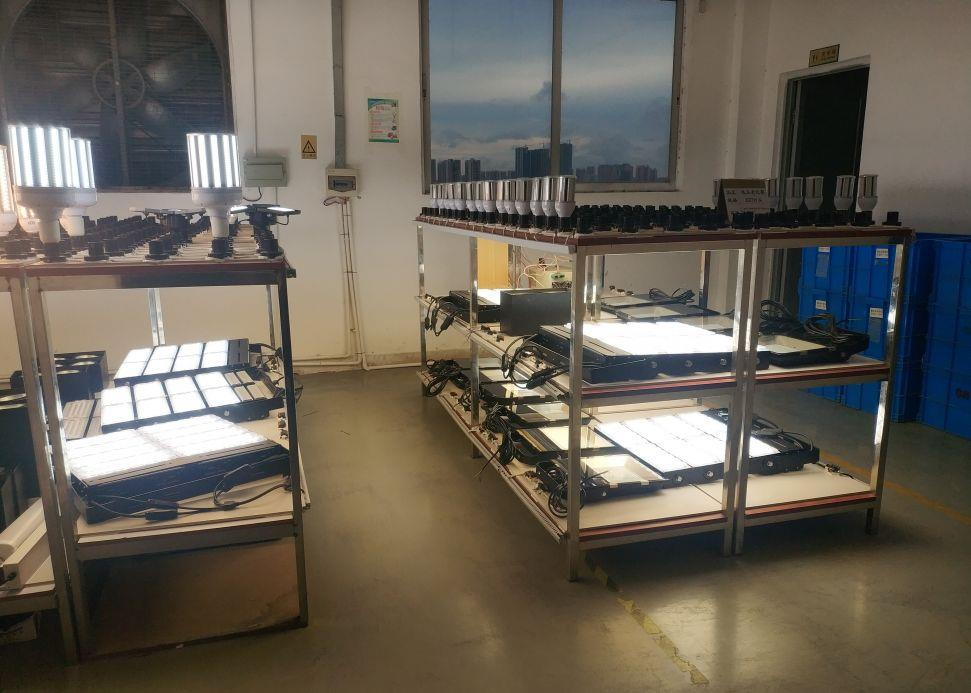

Football Stadium Lights 24 hours aging test before delivery

720w flood light testing

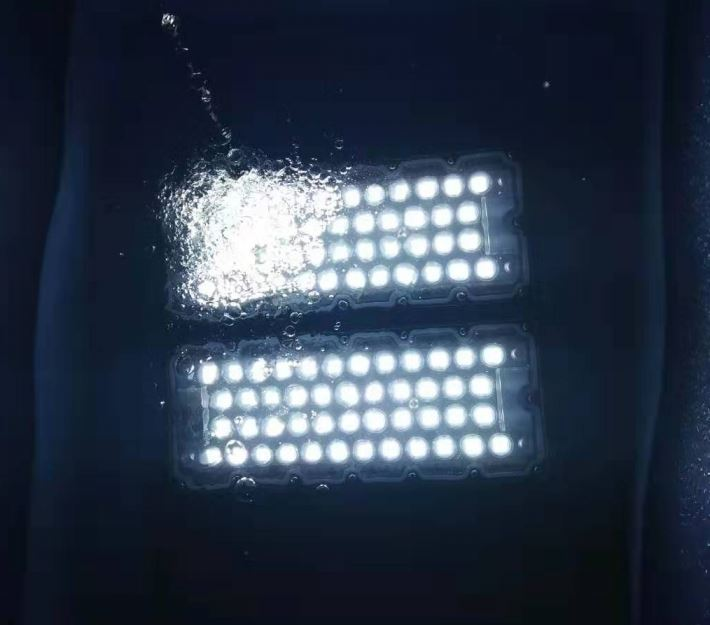

Underwater testing, real IP67, please note not able to work underwater, just for testing.

Waterproof aging test of stadium light

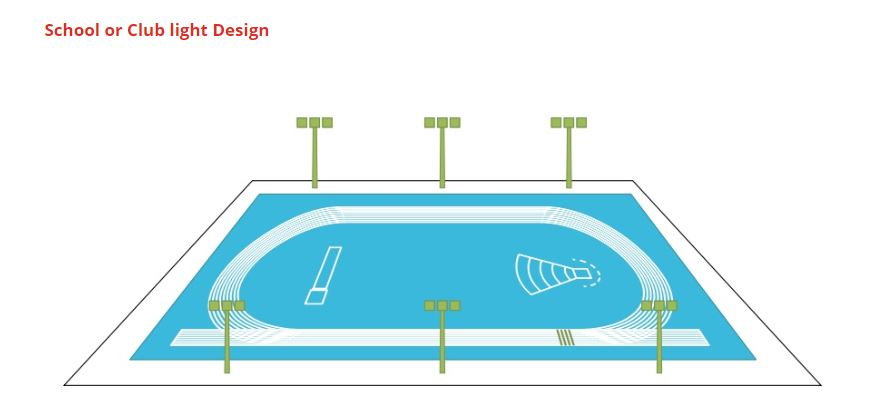

Football Stadium Lights 600W 720W flood light application

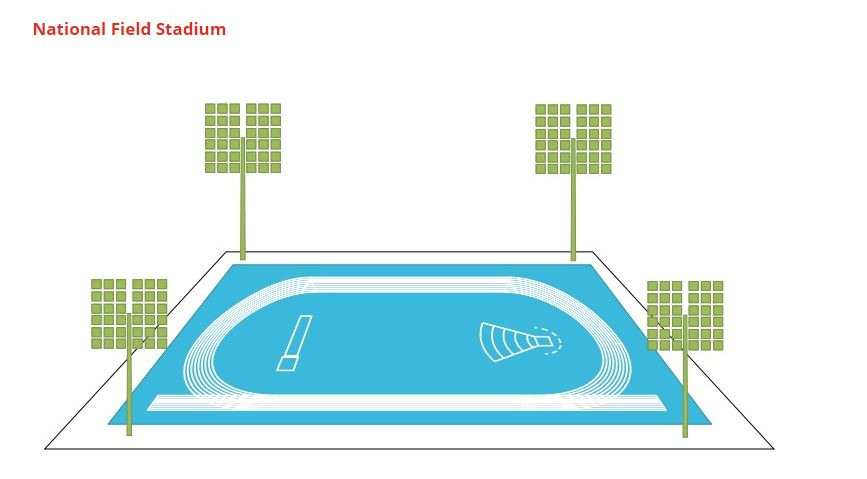

Football field lighting 1


Football field lighting 2
