Addressable RGB LED Artnet DMX Master Controller DMX Lighting

Product Code: MR-BF12B ★ Support ARTNET MADRIX software ★ Support Most of the led lights with IC Chips ★ Support all kinds of the light sources of point, line, and surface ★ Fits for regular and irregular shape of lights project ★ Support Multiple synchronizations, support SD card ★ Support IC Typse: DMX512,UCS1912, TM1803, TM1804, TM1809, TM1812, UCS2903, UCS2909, UCS2912, 8205,8206,16703, WS2811 etc

Availability:

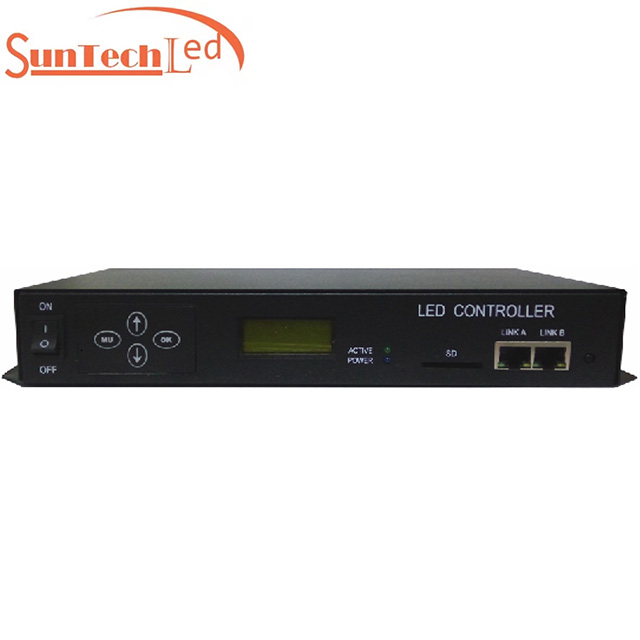

Addressable RGB LED Artnet DMX Master Controller DMX Lighting
Addressable RGB LED Artnet DMX Master Controller DMX Lighting
Addressable RGB LED Artnet DMX Master Controller DMX Lighting

MR-BF12B Master Controller

System Features

1. The system may support 150,000 points offline. It may meet the project needs of clients.

2. The system supports automatic, regular, preset programs play.

3. The controller is equipped with keys and External Remote Control; the episode selection, overall brightness adjustment, white balance adjustment, and playback speed adjustment, etc.

4. Support offline one key fixed; clearing sub-controller ID number; it is convenient to use on the field.

5. Support switch parallel program; reduce system cascade chain length; improve stability.

6. Support dual backup; Failure of one controller and net wire is broken will not influence operation.

7. Tricolor independent brightness control may adjust white balance precisely, simply, and effectively.

8. Support four-color lighting: energy saving, environmental and pure color.

9. Adopt the Ethernet interface and UDP network protocol, the maximum transmission distance is 100 meters.

10. The LCD display module timely displays the controller parameters and status.

11. SD card storage, support maximum 32G, preset maximum 255 program files.

12. Support remote online download and offline program updates of multiple offline host controllers.

13. The built-in animation test program may help customers to debug and apply in projects.

14. Support mixture of different type lamps and different protocols lamps (including DMX512 lamps), strong compatibility.


Design Concept

1. The system signal is dual redundant with doubled stability.

2. Four-color design: energy saving, environmental and pure color.

3. Synchronous with asynchronous integrated control: online priority; it will be shifted to offline effects when without online signal, achieve the video source backup.

4. Large self-development and design video editing, playback, and layout design software: greater adaptability, more support languages, greater openness. It is applicable for various complicated applications of the shaped screen, multi-screen, building screen, pixel light screen, etc.

5. Support mainstream 32, 64-bit operating system: Windows 2000, Windows XP, Windows 7, Windows 8, etc.


Controller Three View Size Chart (Unit: mm)

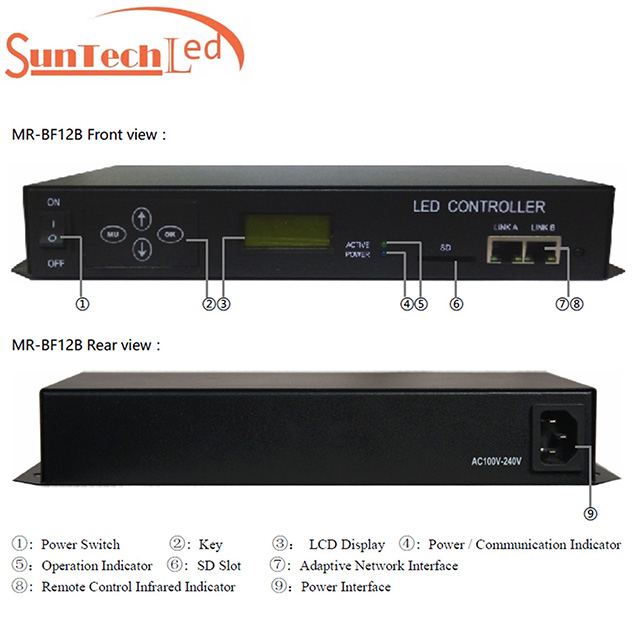

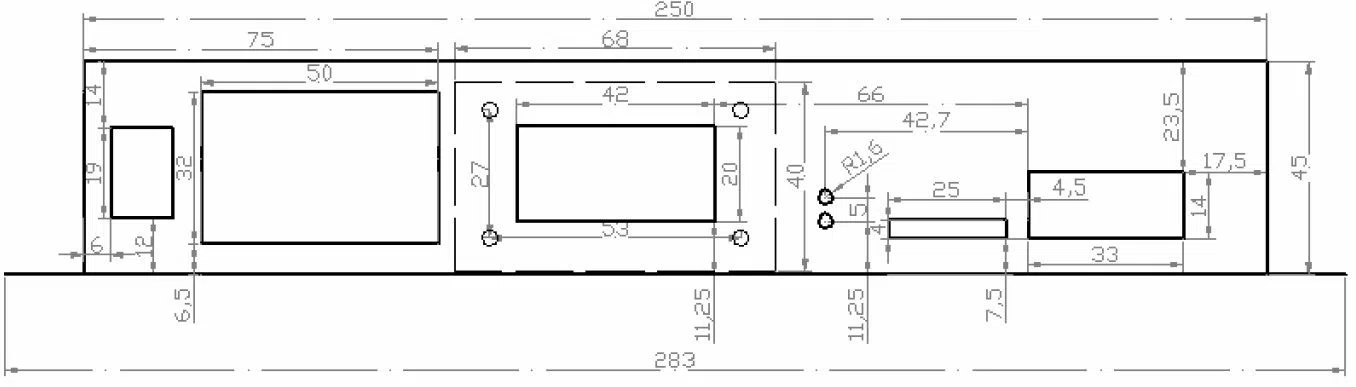

MR-BF12B Front view

addressable rgb led artnet dmx master controller DMX lighting 3

MR-BF12B Top view

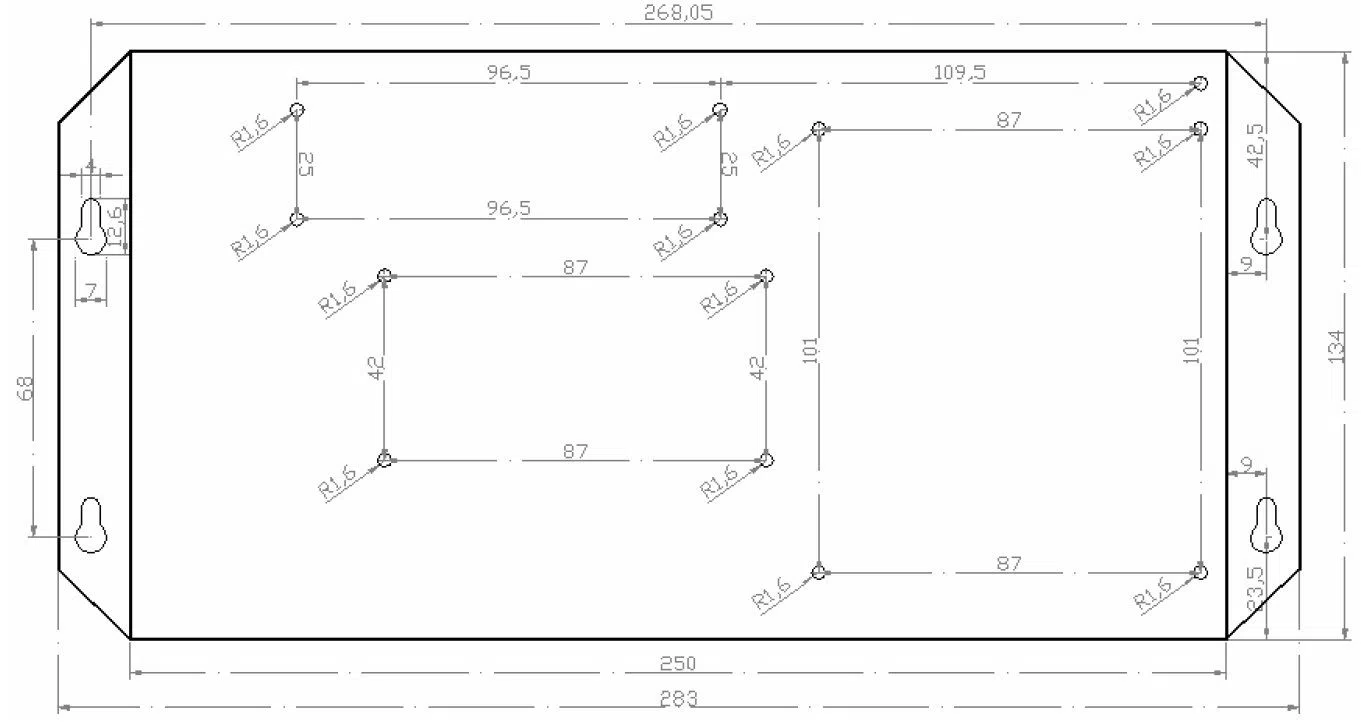

addressable rgb led artnet dmx master controller DMX lighting 4

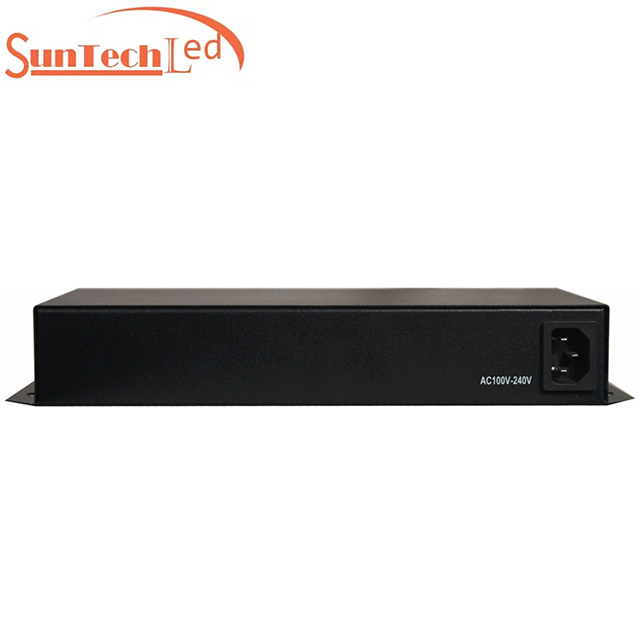

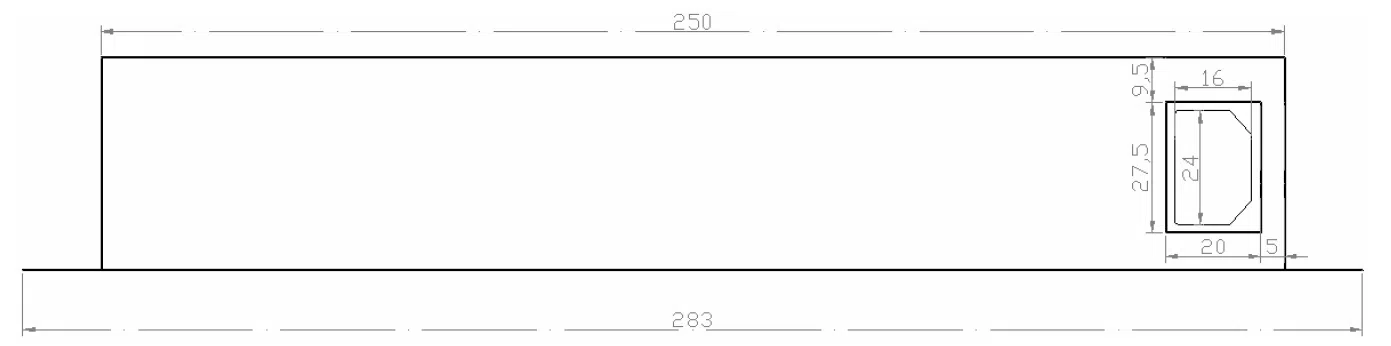

MR-BF12B Rear view

addressable rgb led artnet dmx master controller DMX lighting 5

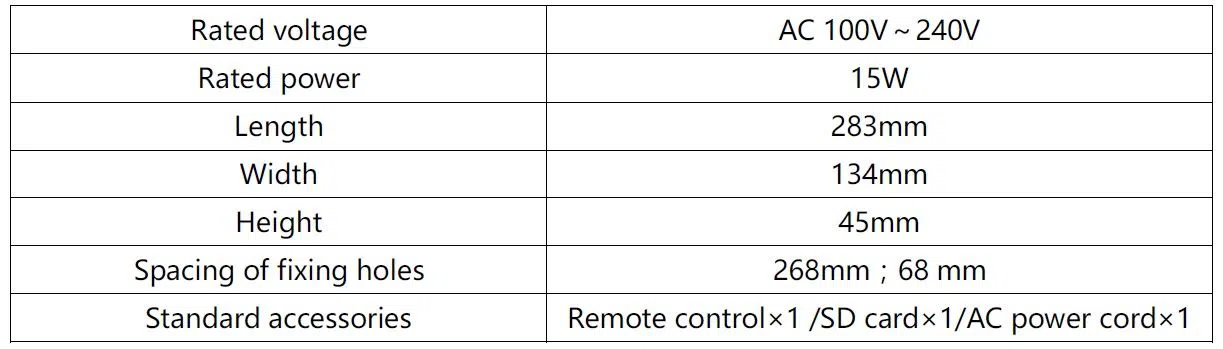

Controller Basic Parameters

addressable rgb led artnet dmx master controller DMX lighting 6


Controller Install Applications

1. Offline mode

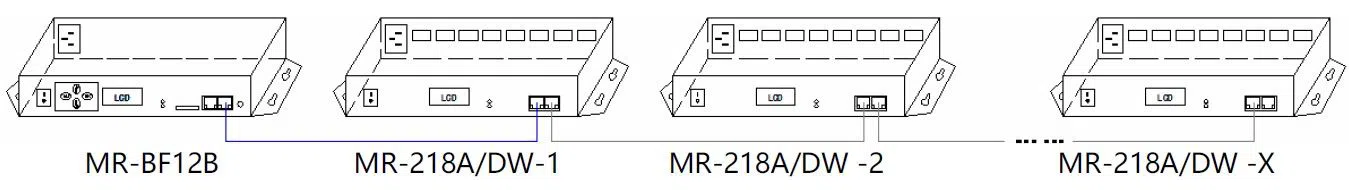

MR-BF12B connect with the offline master controller,as shown below:

addressable rgb led artnet dmx master controller DMX lighting 7

2. Integrated synchronous and asynchronous mode

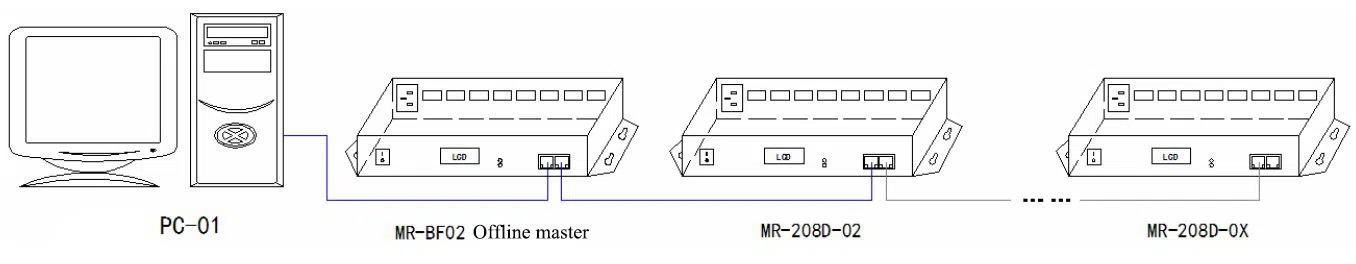

Connected with the computer and offline master controller (when the mode is selected, the computer online works in priority, and the offline effect is automatically switched to without online signal), as shown below

addressable rgb led artnet dmx master controller DMX lighting 8

MR-BF12B main controller and MR-218DW slave controller are used together, suitable for DMX LED lighting fixtures like DMX LED flood light, DMX LED spotlight, DMX LED bar light, etc.


Engineering Case Description And Sketch Map

For example in DMX512 point light source composed of 96 points × 18 dots matrix screen,use MR-218DW controller,the wiring is arranged in the vertical S type,controller for each output port to control 3 lines point light source, totally need of 32 DMX512 interfaces. The following diagram for example:

addressable rgb led artnet dmx master controller DMX lighting 9


Attention matters

1. Cat.5e twisted pair Application Notes

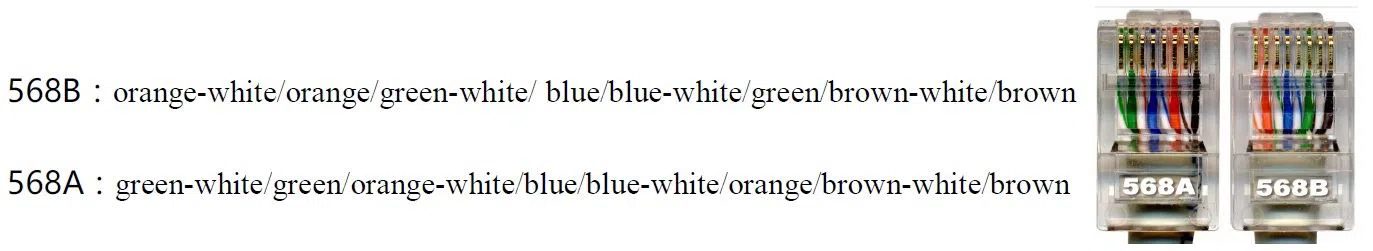

Controller and offline master controller and switch these three devices between each other using a crossover cable is better,One head is 568B, the other head is 568A. Above any equipment and computer room with a straight line,that is both 568B or 568A,Do not define the order of the straight line.

addressable rgb led artnet dmx master controller DMX lighting 10


2. MR-BF12B Controller SD Card Application Notes

MR-BF12B SD memory card is used on the controller,need to use the FAT32 file system to format and then to store the corresponding offline files.

3. Controller connect to ground application notes

MR-BF12B Controller using metal case, rated supply voltage is AC100V-240V , Therefore, it is necessary to ensure the effective grounding of the controller equipment and the effective grounding of the metal outer box.


For more details, please download specifications for reference on this page.

MR-BF12B-Master-Controller-Instruction-V1.0.pdf


As one of the LED outdoor lighting manufacturers and wholesale supplier in China, we always put product quality first. We main produce single-color, RGB, RGBW color-changing LED lights for outdoor facade lighting. And our main products are architectural flood light, exterior led spotlight, outdoor wall washer light, and media mesh screen. We are experienced in customing product for our clilents, and provide the complete techinical support.


We can provide an LED DMX master controller, sub-controller, and DMX512 decoder/editor for landscape lighting and media facade lighting


No matter if you are looking for an LED lights supplier or if you need custom-made lights, we can all help. Send inquiry to get an instant quote now!
