Product Code: TL-LH8101 ★ Support ARTNET MADRIX software ★ Support Most of the led lights with IC Chips ★ Support all kinds of light sources of point, line, and surface ★ Fits for regular and irregular shape of lights project ★ Support Multiple synchronizations, support SD card ★ Support IC Typse: DMX512,UCS1912, TM1803, TM1804, TM1809, TM1812, UCS2903, UCS2909, UCS2912, 8205,8206,16703, WS2811 etc
TL-LH8101 Master Controller
System Features
1. The system may support 150,000 points offline. It may meet the project needs of clients.
2. The system supports automatic, regular, preset programs play.
3. The controller is equipped with keys and External Remote Control; the episode selection, overall brightness adjustment, white balance adjustment, and playback speed adjustment, etc.
4. Support offline one key fixed; clearing sub-controller ID number; it is convenient to use on the field.
5. Support switch parallel program; reduce system cascade chain length; improve stability.
6. Support dual backup; Failure of one controller and net wire is broken will not influence operation.
7. Tricolor independent brightness control may adjust white balance precisely, simply, and effectively.
8. Support four-color lighting: energy saving, environmental and pure color.
9. Adopt the Ethernet interface and UDP network protocol, the maximum transmission distance is 100 meters.
10. The LCD display module timely displays the controller parameters and status.
11. SD card storage, support maximum 32G, preset maximum 255 program files.
12. Support remote online download and offline program updates of multiple offline host controllers.
13. The built-in animation test program may help customers to debug and apply in projects.
14. Support mixture of different type lamps and different protocols lamps (including DMX512 lamps), strong compatibility.
Design Concept
1. The system signal is dual redundant with doubled stability.
2. Four-color design: energy saving, environmental and pure color.
3. Synchronous with asynchronous integrated control: online priority; it will be shifted to offline effects when without online signal, achieve the video source backup.
4. Large self-development and design video editing, playback, and layout design software: greater adaptability, more support languages, greater openness. It is applicable for various complicated applications of the shaped screen, multi-screen, building screen, pixel light screen, etc.
5. Support mainstream 32, 64-bit operating system: Windows 2000, Windows XP, Windows 7, Windows 8, etc.
Extensibility
1. It allows installing all Windows operating systems and supporting international languages.
2. The player software has adequate interfaces so that to compatible with other internationally accepted protocols. It supports the personalized design requirements of customers.
3. Support an MR control system, such as a multi-function converter controller in combination to achieve the special project application requirements.
Controller Three View Size Chart (Unit: mm)

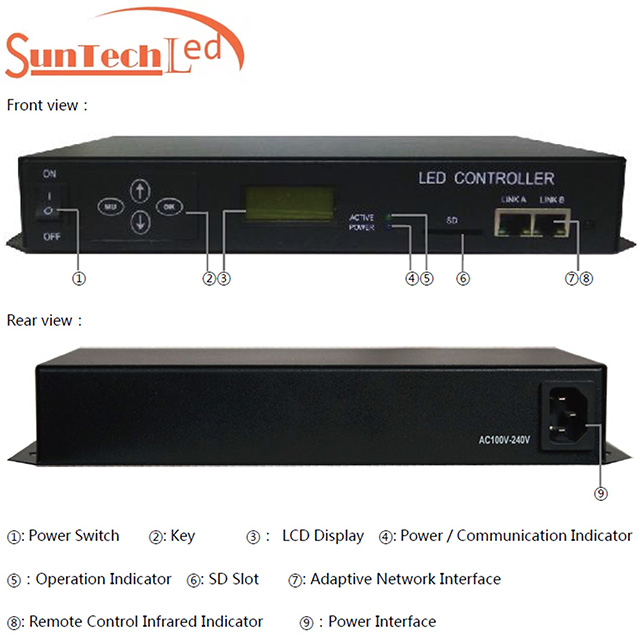

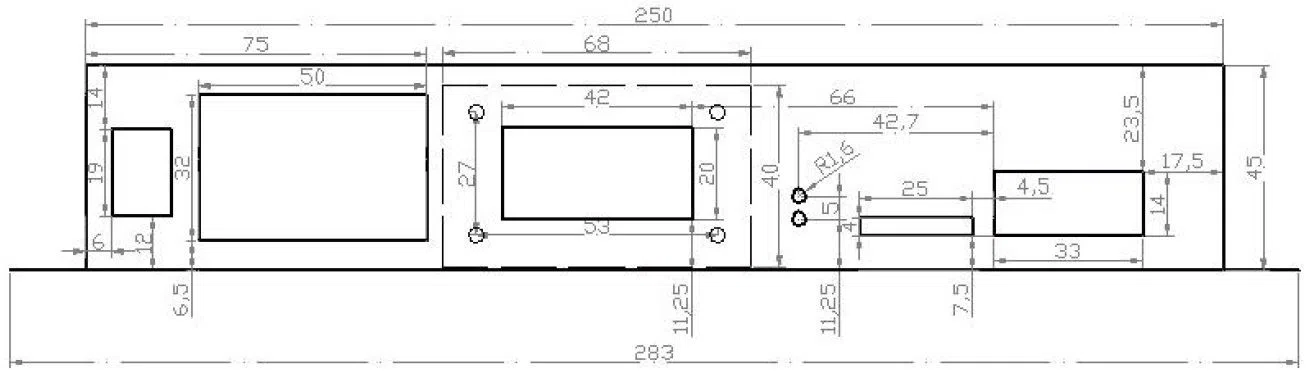

TL-LH8101 Front view
TL-LH8101 Top view

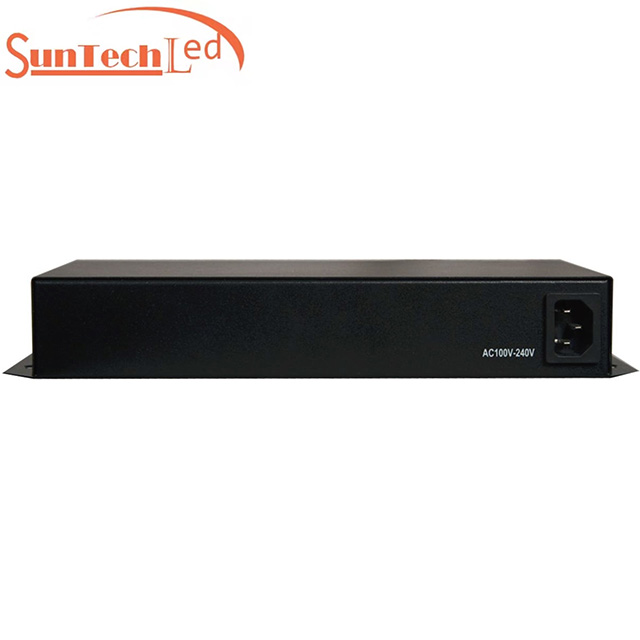

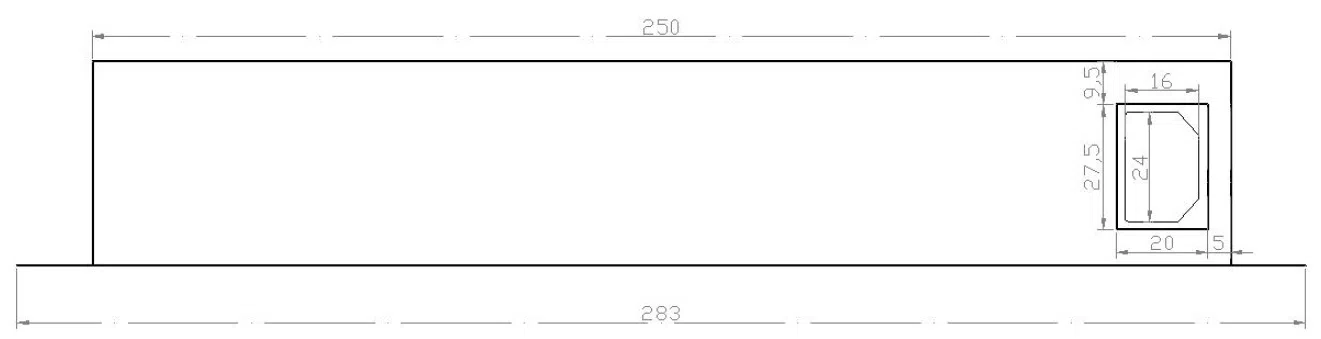

TL-LH8101 Rear view

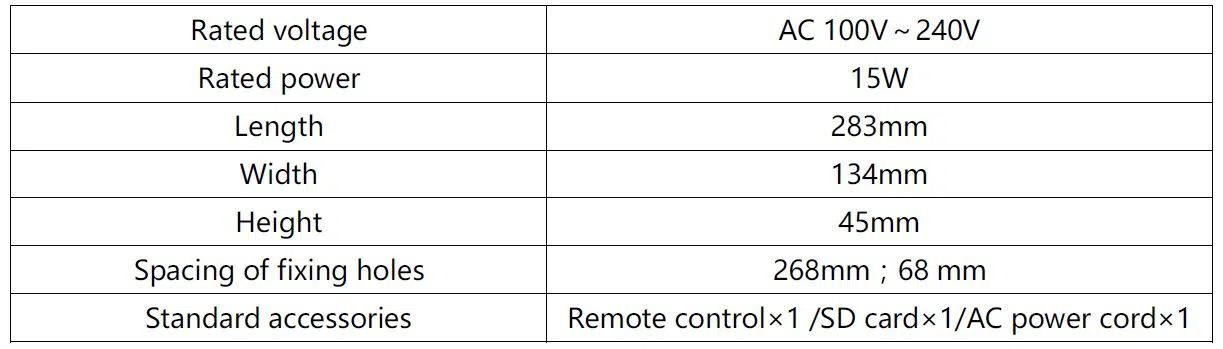

Controller Basic Parameters
Controller Install Applications

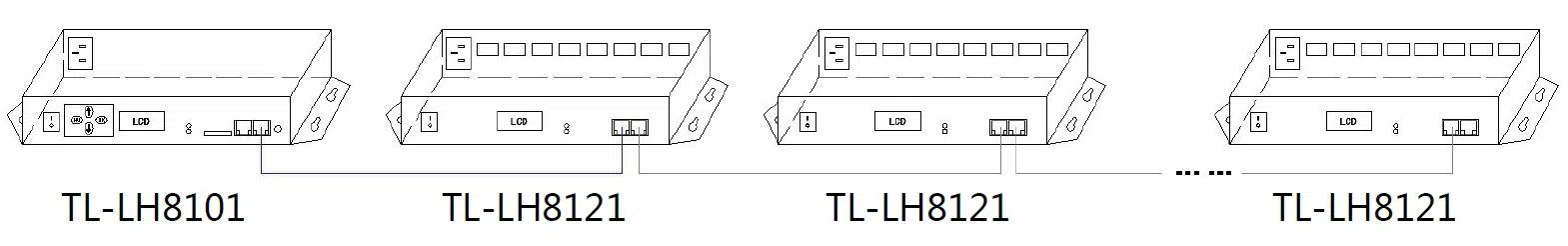

1. Offline mode
TL-LH8101 master controller connected with controller, as follows :

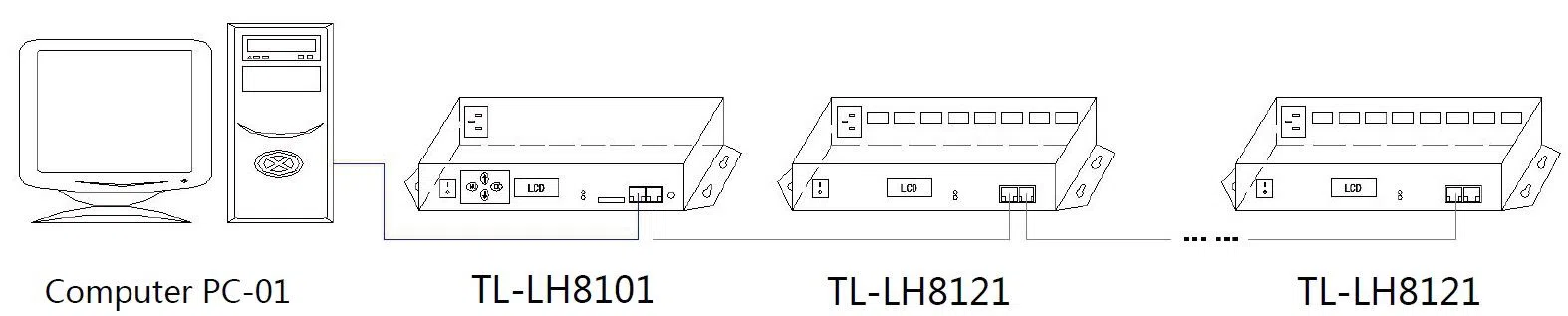

2. Online/Offline integrated mode
Connected with computer and controller ( online signal priority, If no online signal it can automatically switch to offline signal ) as follows :
Engineering Case Description And Sketch Map
For example in DMX512 point light source composed of 96 points × 18 dots matrix screen，use TL-LH8101 controller，the wiring is arranged in the vertical S type，controller for each output port to control 3 lines point light source, totally need of 32 DMX512 interfaces. The following diagram for example：
Attention matters

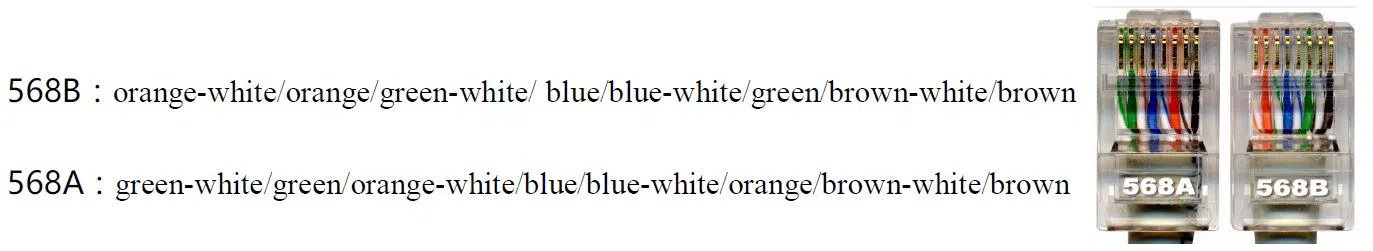

1. Cat.5e twisted pair Application Notes
Controller and offline master controller and switch these three devices between each other using a crossover cable is better，One head is 568B, the other head is 568A. Above any equipment and computer room with a straight line，that is both 568B or 568A，Do not define the order of the straight line.
2. TL-LH8101 Controller SD Card Application Notes
TL-LH8101 SD memory card is used on the controller，need to use the FAT32 file system to format and then to store the corresponding offline files.
3. Controller connects to ground application notes
TL-LH8101 Controller using metal case， rated supply voltage is AC100V-240V ， Therefore, it is necessary to ensure the effective grounding of the controller equipment and the effective grounding of the metal outer box.
For more details, please download specifications for reference on this page.
TL-LH8101-user-manual.pdf
