Product Code: MR-138A ★ Support ARTNET MADRIX software ★ Support Most of the led lights with IC Chips ★ Support all kinds of light sources of point, line, and surface ★ Fits for regular and irregular shape of lights project ★ Support Multiple synchronizations, support SD card ★ Support IC Type: DMX512,UCS1912, TM1803, TM1804, TM1809, TM1812, UCS2903, UCS2909, UCS2912, 8205,8206,16703, WS2811 etc
1. 32-65536 degree Gray control, which can restore the real image color and detail；
2. The system supports automatic, regular, preset programs play；
3. Precise gamma correction algorithm. It better conforms to the visual photographic characteristics of the human body, and the display color is more sufficient and rich, so as to perfectly reflect the animation or video effects of the designer；
4. Support 120-frame frequency at most, to guarantee demands for HD display and 3D display of the image；
5. The controller is equipped with keys and External Remote Control; the episode selection, overall brightness adjustment, white balance adjustment and playback speed adjustment, etc；
6. The LCD display module timely display the controller parameters and status；
7. Controller output compatible with TTL electrical signal and LVDS dual-mode；
8. Multiple-chip control is integrated, and the control chip type, clock frequency, duty ratio, grayscale and other parameters are changed through software settings；
9. Support four-color lighting: energy saving, environmental and pure color；
10. 8-port output, the number of loading points of the single port is not limited, and the customer shall conduct test according to the chip characteristics；
11. SD card storage, support maximum 32G, preset maximum 255 program files；
12. Support remote online download and offline program update；
13. The built-in animation test program may help customers to debug and apply in the project.
1. Four-color design: energy saving, environmental and pure color；
2. Synchronous with asynchronous integrated control: online priority; it will be shifted to offline effects when without online signal, achieve the video source backup；
3. Large self-development and design video editing, playback, and layout design software: greater adaptability, more support languages, greater openness. It is applicable for various complicated applications of the shaped screen, multi-screen, building screen, pixel light screen, etc；
4. Support mainstream 32, 64-bit operating system: Windows 2000, Windows XP, Windows 7, Windows 8, etc.
1. It allows installing all Windows operating systems and supporting international languages；
2. The player software has adequate interfaces so that to compatible with other internationally accepted protocols. It supports personalized design requirements of customers；

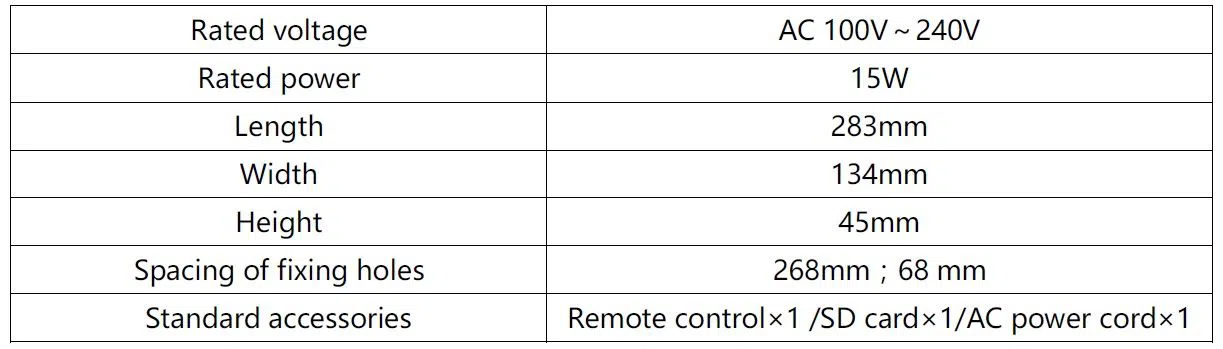

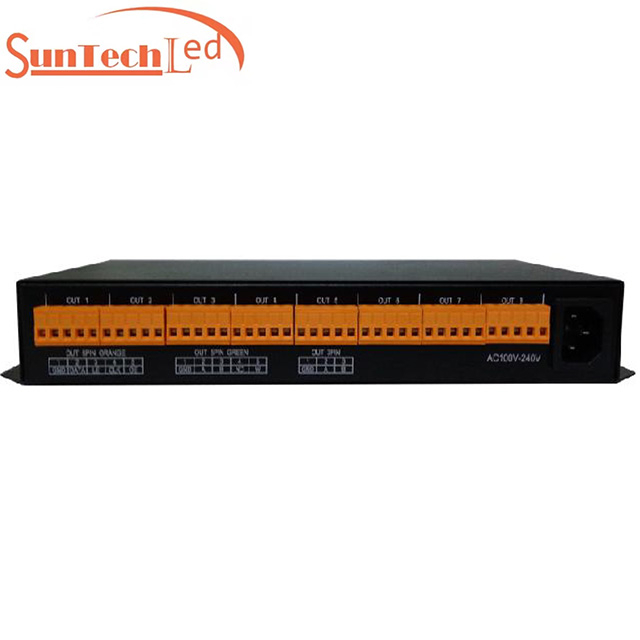

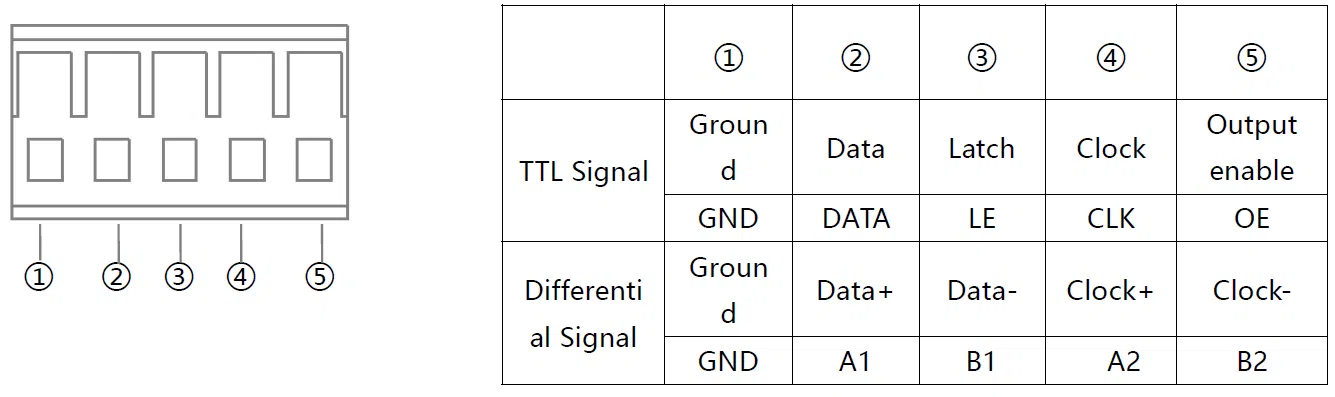

MR-318A controller uses 8pcs 5pin terminal interface output signals. 5Pin Terminals Sort sequentially from left to right， as shown below.

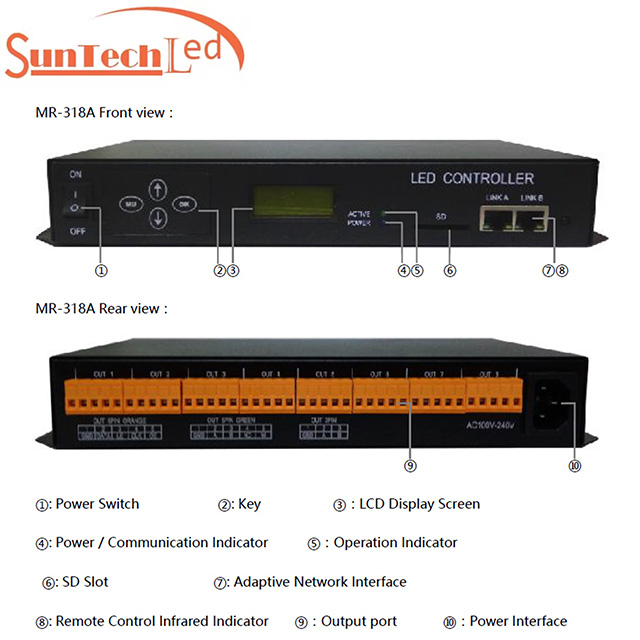

MR-318A Front view

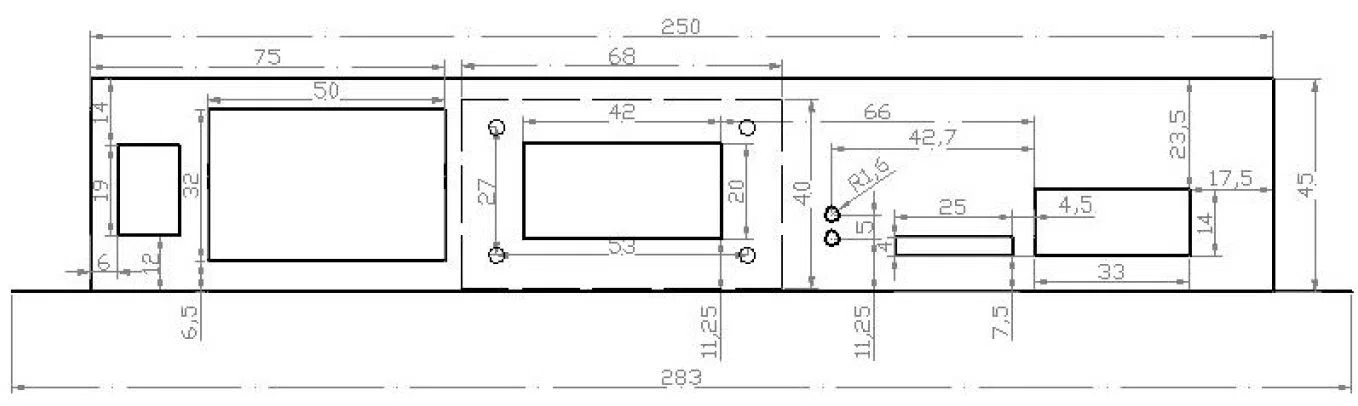

MR-318A Top view

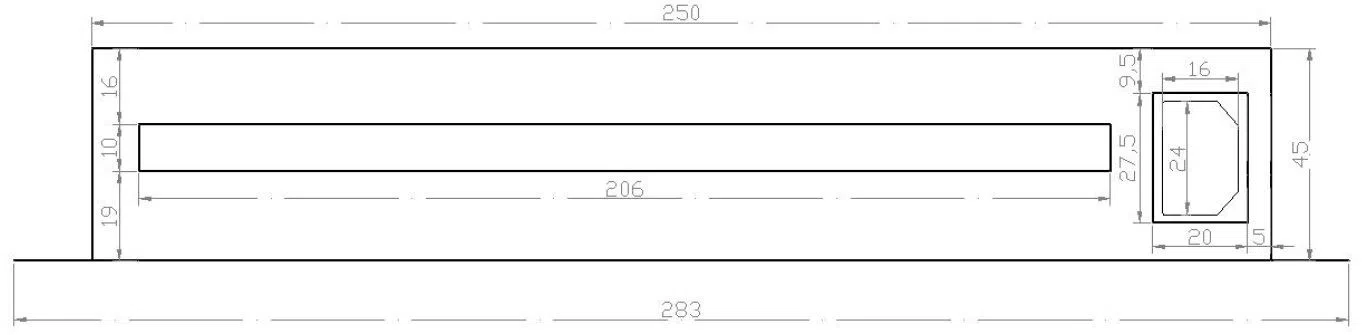

MR-318A Rear view

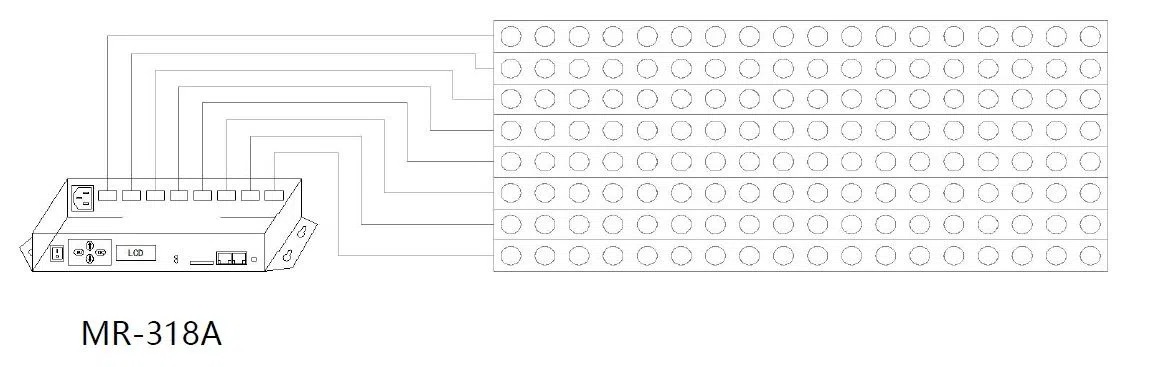

Offline mode directly load with lamps, as shown below：

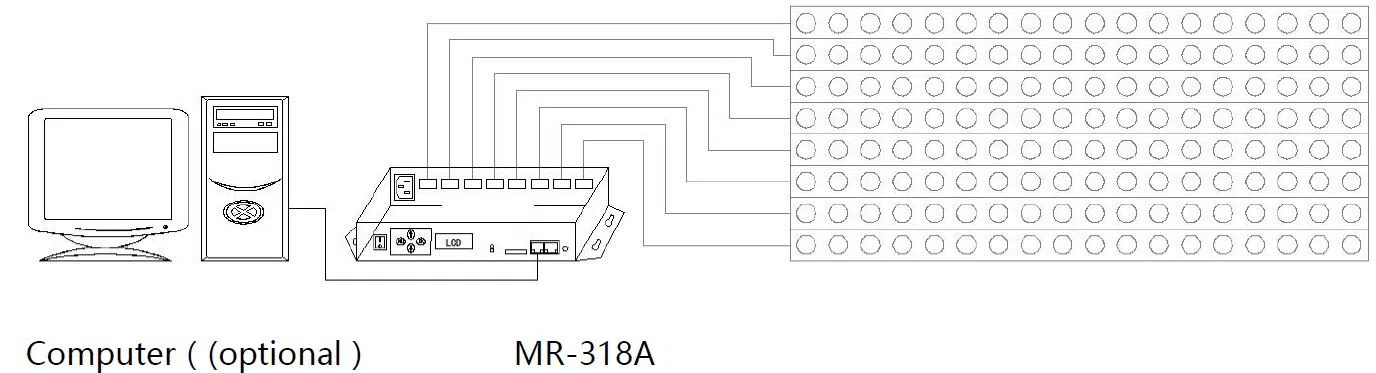

Connected to the computer（Online signal priority. Automatic switching off line signal without online signal, as shown below：
Looking for more DMX LED lighting controllers? Please click: DMX512 LED controller

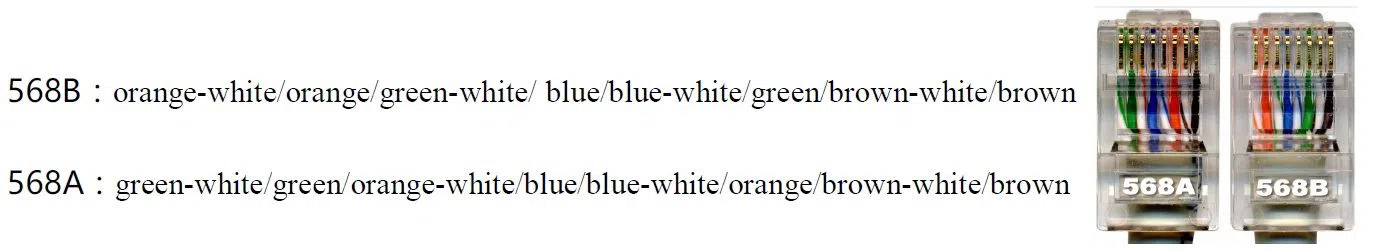

Controller and offline master controller and switch these three devices between each other using a crossover cable is better，One head is 568B, the other head is 568A. Above any equipment and computer room with a straight line，that is both 568B or 568A，Do not define the order of the straight line.
MR-318A memory card is used on the controller，need to use the FAT32 file system to format and then to store the corresponding offline files.
(1) Controller output port to the lamp if the distance is too far，Recommended for the use of 485 dedicated lines or Cat.5e kind shielded cable connection，the best connection way is： Orange-A；Orange white-B；Green-addressing+（ADRI/PO+)；Green white-addressing- （ADRI/PO-)；Other connect to GND（Ground）
(2) At the end of each road signal that is between A and B to add a 120R terminal resistance.
(3) Do not connect the two wires that are intertwined to receive the signal, such as orange and orange white connect to A+or B- at same time.
MR-318A Controller using metal case，rated supply voltage is AC100V-240V，Therefore, it is necessary to ensure the effective grounding of the controller equipment and the effective grounding of the metal outer box. And the output port of the controller is exposed to the metal contact surface，therefore, according to the requirements of safety regulations，to ensure safe use of the operator， signal output port GND signal must be effectively grounded.
For more details, please download specifications for reference on this page.
MR-318A-Controller-Instructions-V1.0.pdf
