Functional Overview:
YC-3000A control system is based on the Ethernet Art-net protocol to achieve communication transmission, and the upper computer soft send multi-channel data in the form of DMX512 protocol sent to SPI and DMX lamps.
YC-3000A Control System Adopts High-Performance FPGA processor, data processing is efficient and stable, follows standard Art-net protocol, provides two RJ45 network interfaces, with other conventional network equipment, can achieve a variety of network topology.
YC-3000A provides eight standard DMX512 data output ports, a total of 8,680 data output and support for extended protocol, Art-net protocol-compatible lighting control software, it is widely used in LED lattice and stage lighting control system which needs a lot of DMX512 data. It is often used in TV station, stage performance and so on.
Controller Appearance:

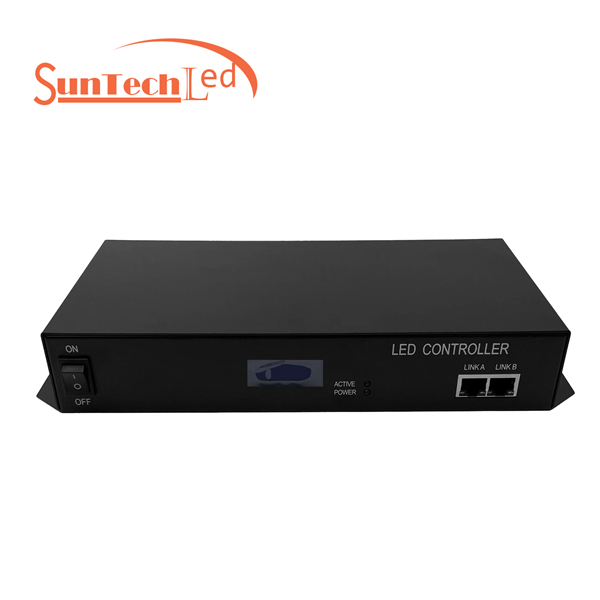

YC-3000A Front View

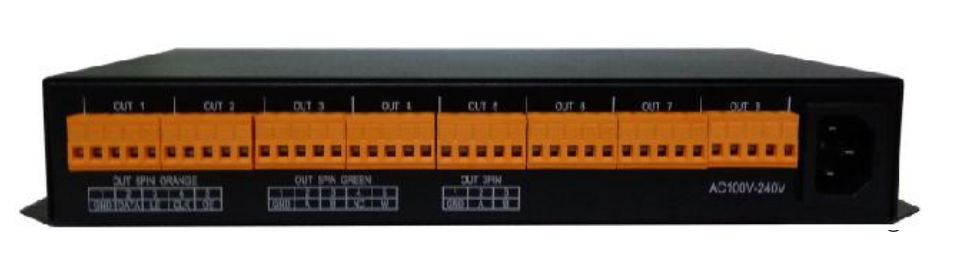

YC-3000A Rear View
Basic parameters of the YC-3000A LED DMX Slave Controller
| Rated Voltage | AC 100V～240V |
Rated Power | 15W |
Dimension | L283mm×W134mm×H45mm |
Fixed Hole Spacing | 268mm; 68 mm |
Standard Attachment | AC Power Line×1 |
For more product details, please download the specification:
YC-3000A Artnet Controller instruction.pdf
You can check the YC series controller here: S608D Master controller | YC-MAX8 integrated LED controller
For more DMX LED lighting controllers, please click: RGB DMX Controller
