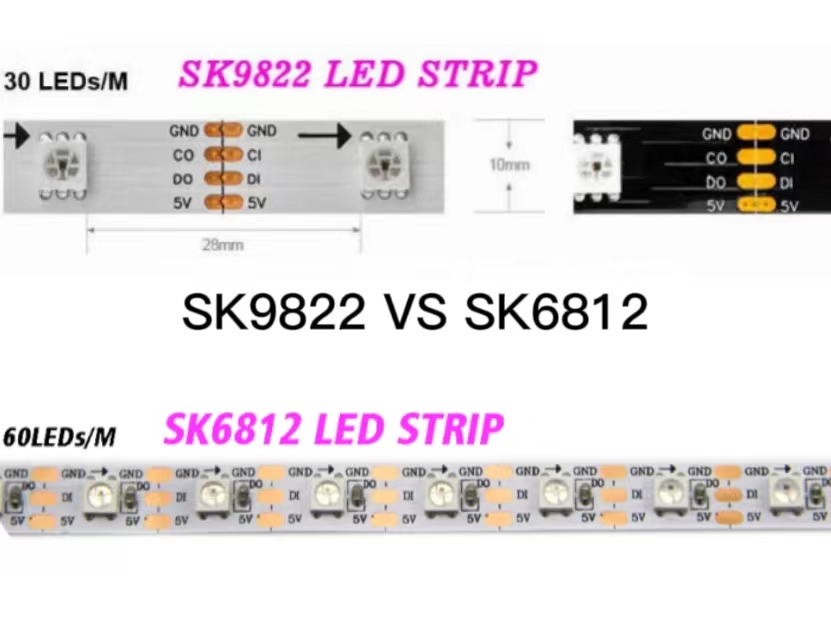

SK9822 VS SK6812

Views: 0     Author: Grace     Publish Time: 2022-12-28      Origin: https://www.suntechleds.com/

Table of contents

1. Features Differences between SK9822 VS SK6812

2. Features Common between SK9822 and SK6812

3. What is SK9822?

4. What is SK6812?

5. Size comparison chart of SK9822 VS SK6812

6. Applications

7. Conclusion



We've blogged a lot about addressable LED strip comparisons: such as WS2812B vs APA10TM1814 vs SK6812. This guide will tell you the difference between SK9822 and SK6812. Let's read on!


1. Features Differences between SK9822 VS SK6812


Table-1: sk9822 vs sk6812

Item
SK9822 SK6812

Voltag

DC5v

DC5v/DC12v

Color

RGB

RGB/RGBW

Power Drawn (Max)

~9W (1.8A@5V)

~12W (2.4A@5V)

Output Channel

4 3

Wires

Positive + Negative +Data wire+Clock wire

Positive + Negative + Data wire


From the table above, we can clearly know the difference between SK9822 VS SK6812. Both can be made into RGB addressable LED strip with built-in IC 5v. SK6812 is very similar to WS2812B, and SK9822 is very similar to APA102. SK9822 has a data wire and a clock wire which makes the transmission speed quicker. SK6812 has only one data wire to transmit the signal, and the transmission speed is slower.



2. Features Common between SK9822 and SK6812

(1) Both SK9822 LED and SK6812 LED use SMD 5050 components, built-in IC, 5v RGB chip, 1pcs pixel to control one LED.

(2) Top-quality SMD internal integrated high quality external control line serial cascade constant current IC.

(3) All can be made into 30led/m, 60led/m and 144led/m.

(4) LED has the advantages of low driving voltage, high brightness, large scattering angle, good consistency, low power consumption, and long life.The control circuit is integrated in the LED above.


3. What is SK9822?

SK9822 is a new build in IC LED chip. With clock wire and data wire, compatible with APA102 LED chip. The protocol for the SK9822 is very similar to the protocol for the APA102C. It has a data wire and a signal wire to better transmit signal. Three (RGB) transmission channels drive intelligent control circuit and a light-emitting circuit in LED light source control.

The product contains signal decoding module, data buffer, built-in constant current circuit and RC oscillator; adopts CMOS technology, low voltage, low power consumption; 256-level gray-scale PWM adjustment and 32-level brightness adjustment; use data and synchronous CLK signals transmission, and the output actions of each wafer in series are synchronous.

For more details, please download the datasheet: SK9822_datasheet.pdf

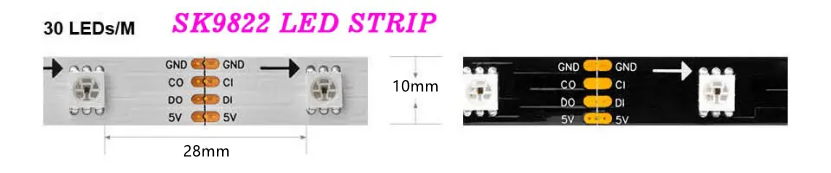

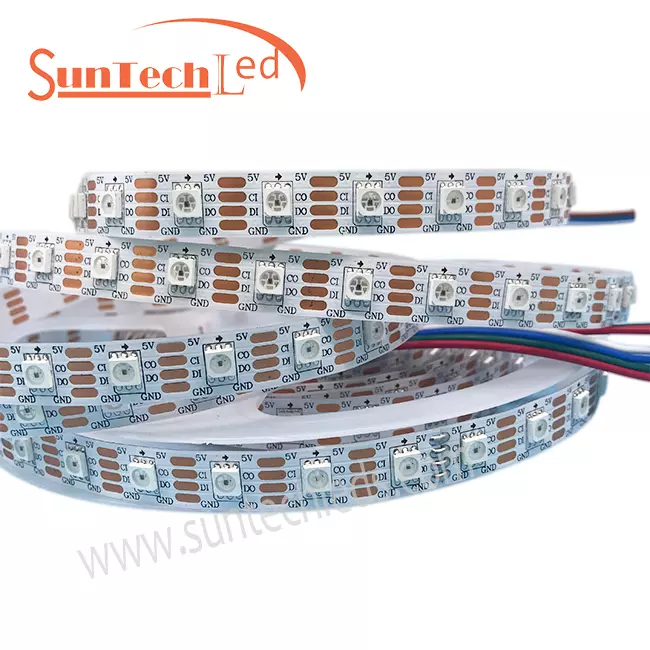

SK9822-led-strip

Picture-1: sk9822 LED strip with 4 channels


4. What is SK6812?

SK6812 is a smart LED control circuit and light emitting circuit in one controlled LED source, with the shape of 5050 LED chips. Form a complete pixel point control, uniform color mixing.

The intensity of each pixel is included in the input of the intelligent digital interface, and the output is driven by the patented PWM technology, which effectively ensures the high consistency of the color of the pixels. The control circuit consists of a signal shaping amplifier circuit, a built-in constant current circuit and a high-precision RC oscillator.

For more details, please download the datasheet: sk6812_datasheet.pdf

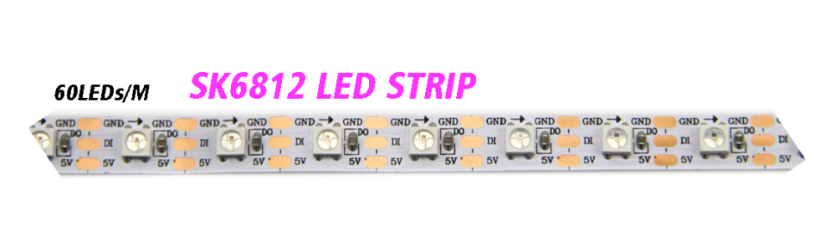

SK6812 led strip

Picture-2: sk6812 LED strip with 3 channels


5. Size comparison chart of SK9822 vs SK6812

Please see the mechanical dimensions comparison picture between SK9822 vs SK6812 below:

SK9822 chip size

SK9822 chip size

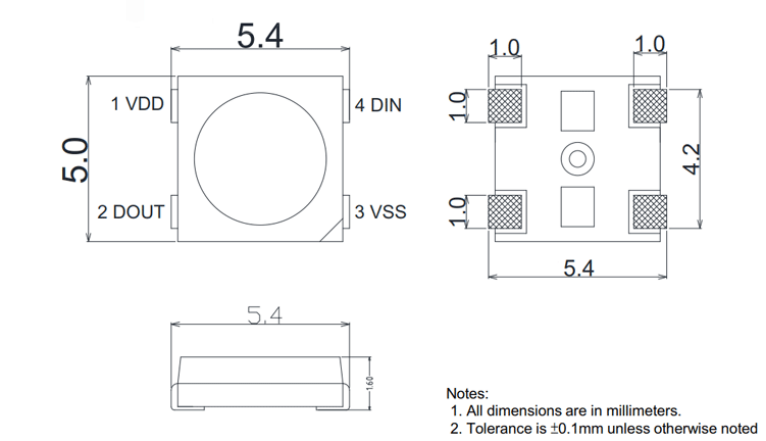

SK6812 chip size

SK6812 chip size


6. Applications:

(1) These two flexible addressable LED light strips are ideal for cabinet displays, under curtains, shelves, Hotel, KTV, and outdoor advertising signs.

(2) LED Full color module, Full color LED string light, LED appearance, scene lighting.

(3) LED point light, LED pixel screen, a variety of electronic products, electrical equipment, etc.


7. Conclusion

Now the LEDs on the market are all similar, when you discover the nuances between them, it will be easier for you to find the product you want. After reading this blog about SK9822 VS SK6812, I think you have a better understanding of the difference. Shenzhen Suntech LED has focused on the production of addressable LED strips and regular LED strips for more than ten years. There is strict control over the quality of the products, which has won a large number of customers' consistent high praise. If you want to buy LED strip, please click this contact to send us an email: sales@suntechleds.com
