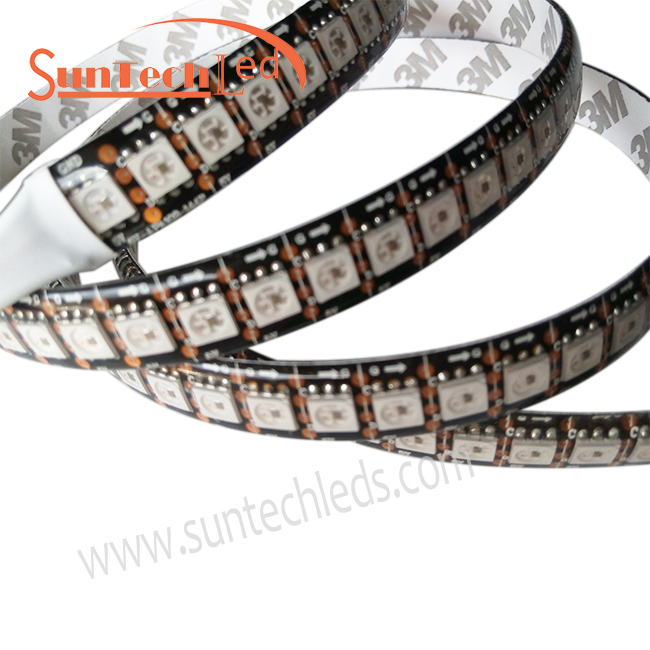

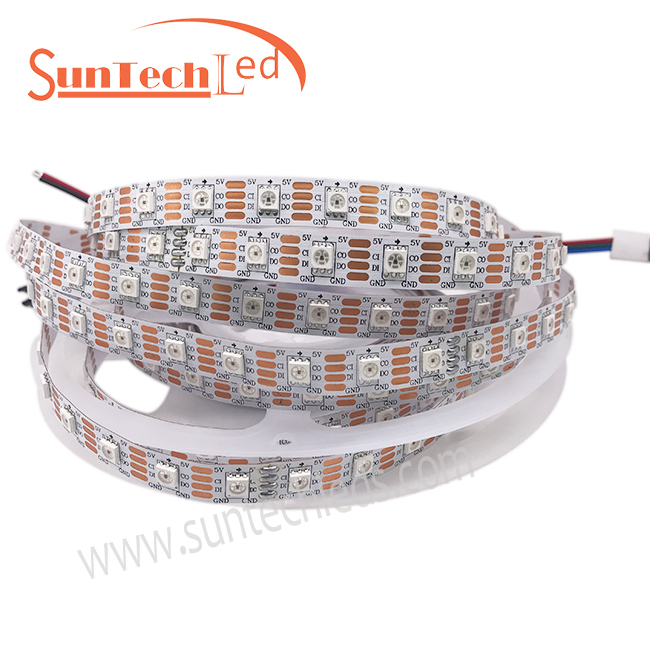

WS2813 LED Strip Addressable

WS2813 led strip is full color addressable, 1 IC and 1 LED chip programmable. Break point continue function, while one LED dies, the signal can still pass through.
We focus on addressable strips manufacturing, hope to be your partner in China.

Availability:

Product introduction:

WS2813 led strip is full color addressable, 1 IC and 1 LED chip programmable. Break point continue function, while one LED dies, the signal can still pass through.

We focus on addressable strips manufacturing, hope to be your partner in China. To know what is the difference between WS2812B and WS2813?Please click the blue marked part.


Product parameters:


Model

Color

LED Qty

per meter

Power Consumption

Voltage

PCB Size

W/M

V/DC

mm

ST-WS2813RGB-60-5V

Addressable RGB

60

≤18W

5v

Double Copper PCB  5000*10mm

ST-WS2813RGB-144-5V Addressable RGB       144                 ≤43W            5v Double Copper PCB  5000*10mm

For more product details, please click the product specification: WS-2813-led-strip-specification.pdf


Product details

1. High Brightness, Low power dissipation, Long lifespan, Low voltage 5v, Low decline

2. A new version based on WS2812B pixel

3. One LED dies, the signal can still get passed

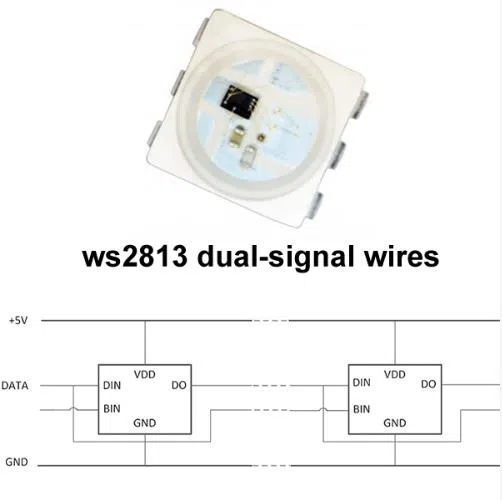

4. WS2813 IC has dual signals please see picture below

   DIN gets data from the previous pixel or the controlling controller.

   BIN gets data from the pre-previous pixel

   If the WS2813 does not receive a signal to DIN, it will take the signal from BIN.

   DOUT is thus connected with DIN from the next and additionally with BIN from the next but one LED


If you are also interested in the DMX LED light, please click: DMX LED tape


WS2813 LED Details:

201901211011345784740

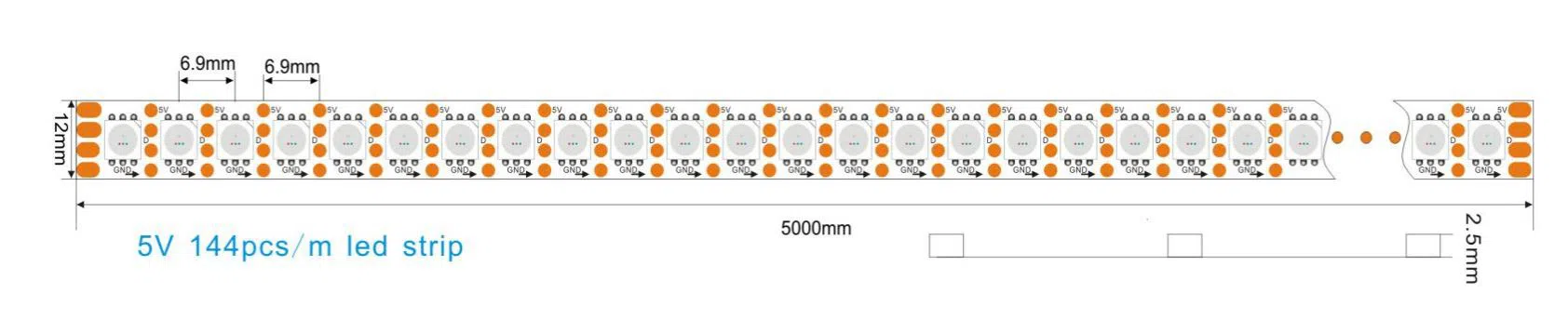

WS2813 led strip size

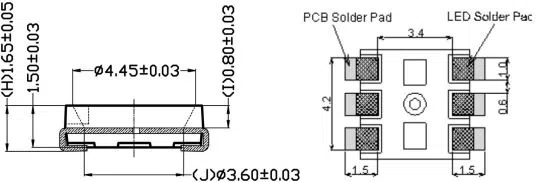

WS2813 LED chip dimensions



image image  _20210425110917

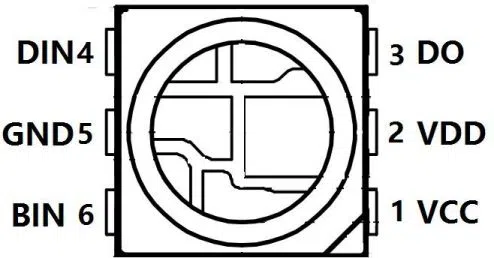

PIN Configuration





How to connect WS2813 led strip with controller?

WS2813 led strip connected to the controller


WS 2813 applications

 Guardrail tube series, point light display series, flexible/rigid strips series, module series applications.

 Lighting stage costumes, innovative gadgets or any other electronic products.

123 133

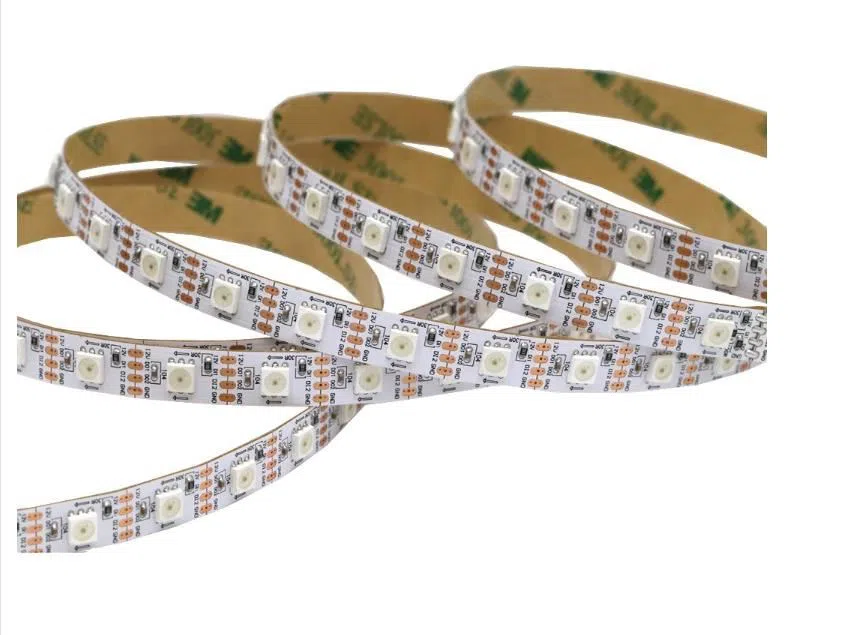

201901211011443005696

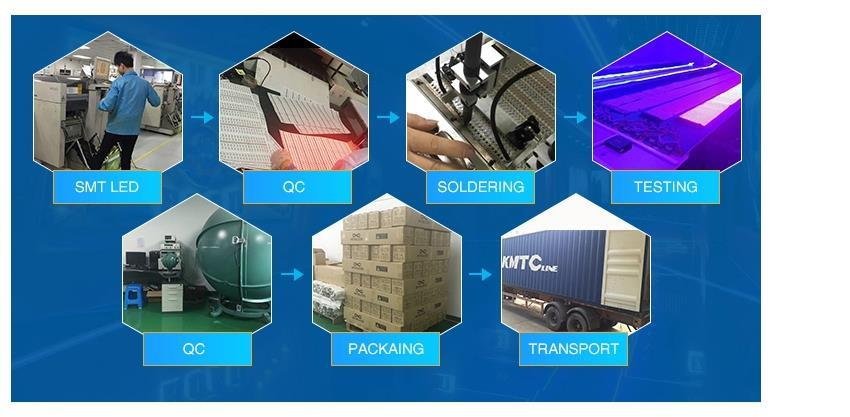

Addressable led strip production.

SMT LED -> QC -> Soldering -> Testing -> QC -> Packing-> Transport shipping

5

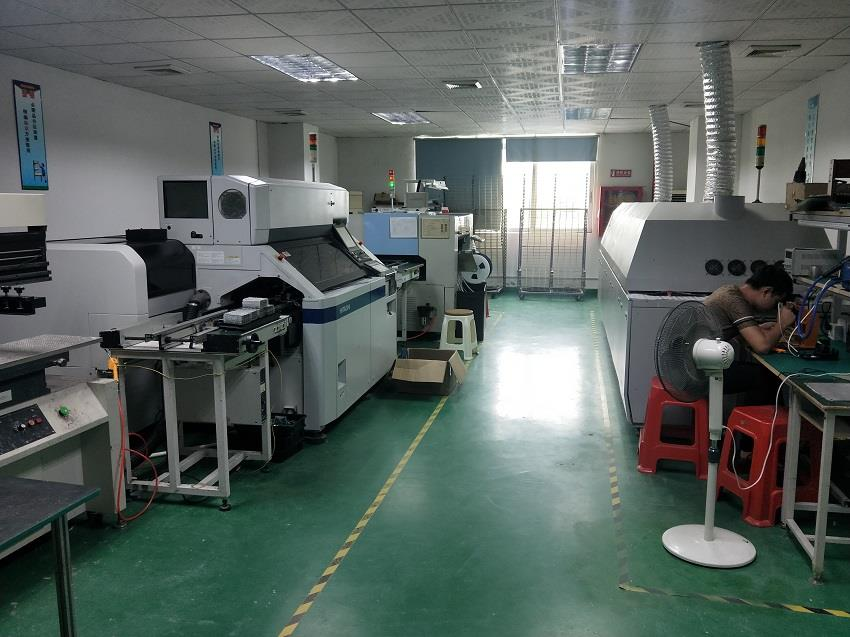

Our programmable led strip equipment

Digital led strip facotry 2 Suntech


FAQ

1. What can you do if we have a project that need customized programmable led strip light?

    We have professional engineers that can provide solutions according to your specific needs.

2. How can I get WS2813 LED strip for testing?

    Sample is the first step of cooperation, for 1m or 2m sample could be free, you need to pay shipping charge

3. May I get customized PCB?

    Yes, MOQ for printing LOGO is 500 meters

4. Do you have CE certificate for Europe market?

    Yes, CE is a must for EU market, we have RoHS also
